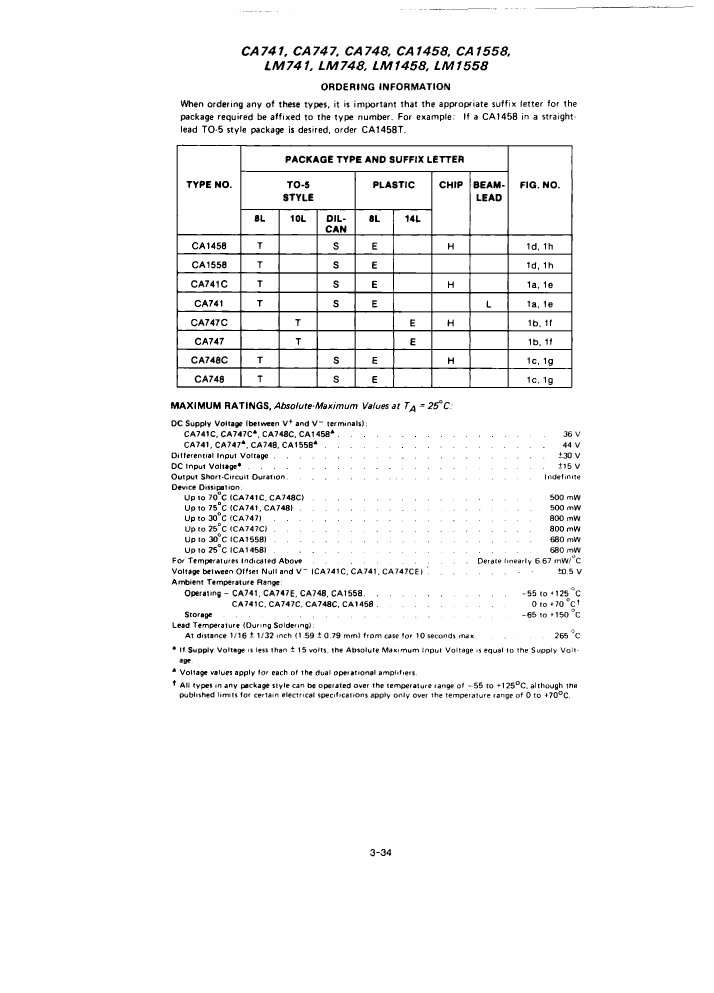

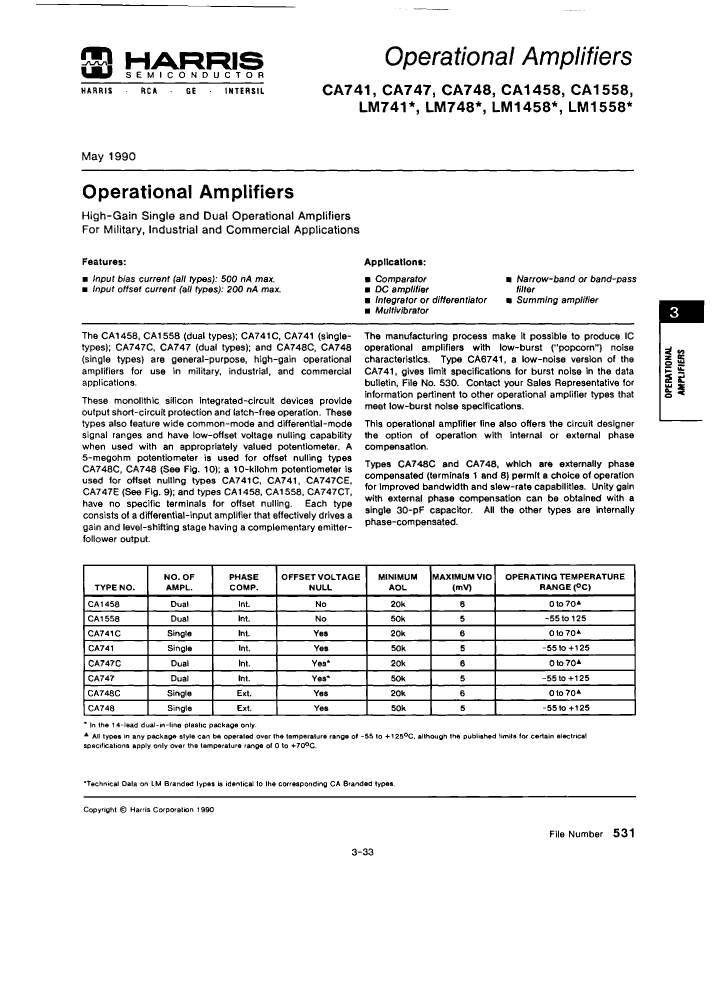

CA748S amplifier basic information:
CA748S is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are, TO-5, 8PIN, DIL
CA748S amplifier core information:
The minimum operating temperature of the CA748S is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.5 µA Its maximum average bias current is 0.5 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of the CA748S is 0.5 V/us. The maximum slew rate of the CA748S given by the manufacturer is 3.3 mA.
The nominal supply voltage of the CA748S is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the CA748S is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

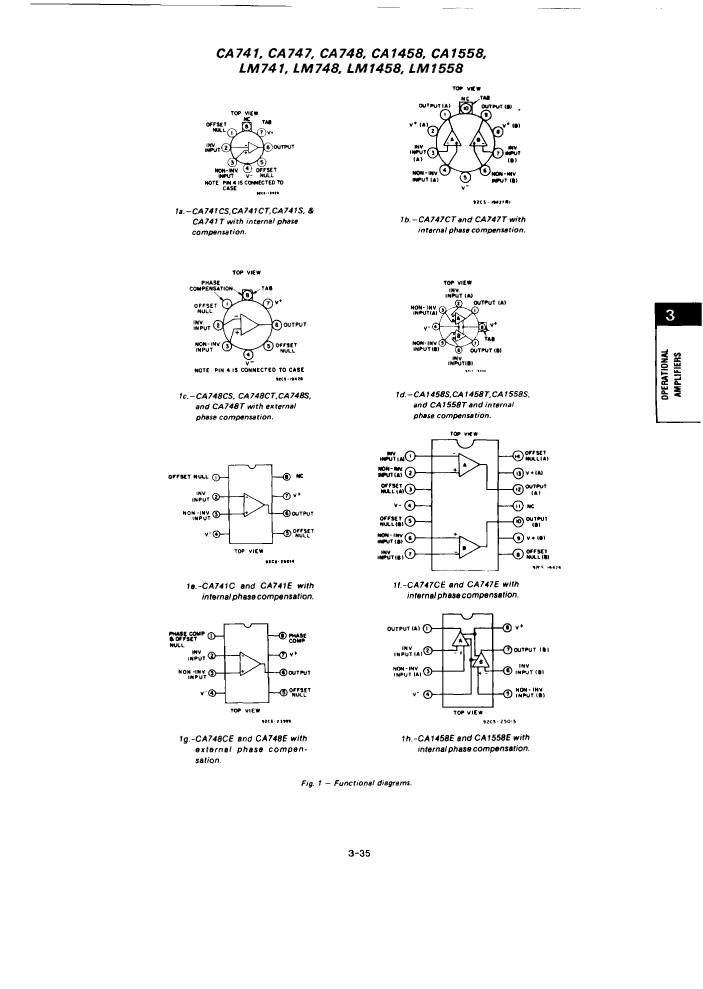

Related dimensions of CA748S:
CA748S has 8 terminals. Its terminal position type is: BOTTOM.

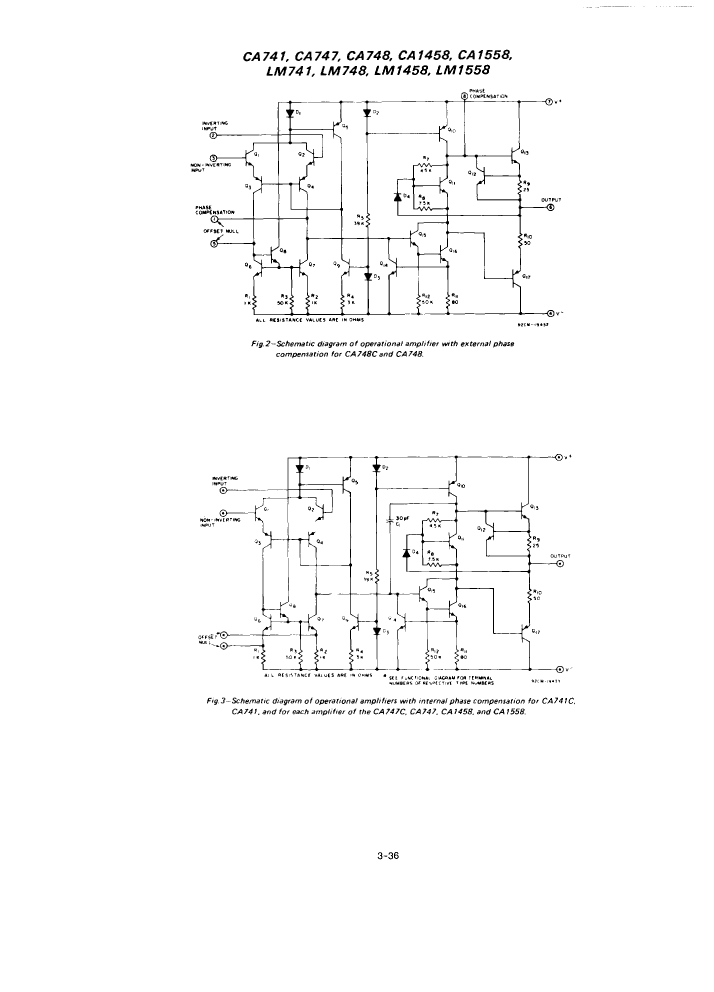

CA748S amplifier additional information:
CA748S adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of CA748S is: NO. Its temperature grade is: MILITARY. CA748S does not comply with Rohs certification.
The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The material of CA748S package is mostly METAL. And its package shape is ROUND. CA748S package pin formats are: CYLINDRICAL.
Its terminal form is: WIRE.
CA748S amplifier basic information:
CA748S is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are, TO-5, 8PIN, DIL
CA748S amplifier core information:
The minimum operating temperature of the CA748S is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.5 µA Its maximum average bias current is 0.5 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of the CA748S is 0.5 V/us. The maximum slew rate of the CA748S given by the manufacturer is 3.3 mA.
The nominal supply voltage of the CA748S is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the CA748S is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of CA748S:
CA748S has 8 terminals. Its terminal position type is: BOTTOM.
CA748S amplifier additional information:
CA748S adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of CA748S is: NO. Its temperature grade is: MILITARY. CA748S does not comply with Rohs certification.
The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The material of CA748S package is mostly METAL. And its package shape is ROUND. CA748S package pin formats are: CYLINDRICAL.
Its terminal form is: WIRE.

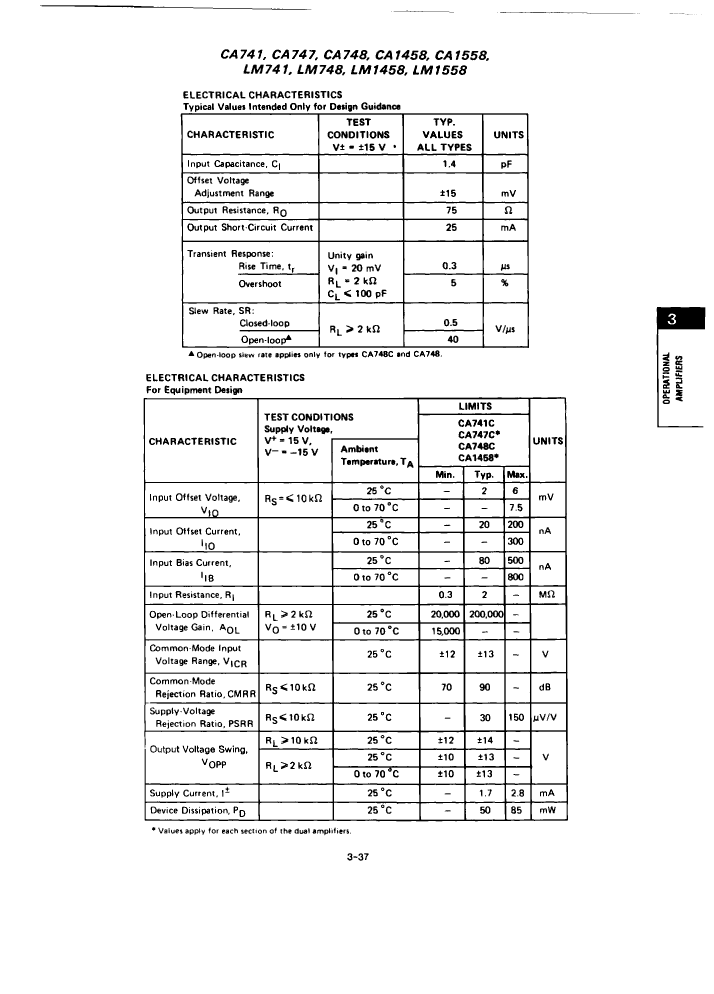

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Harris |
| package instruction | , TO-5,8PIN,DIL |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.5 µA |
| Maximum bias current (IIB) at 25C | 0.5 µA |
| Nominal Common Mode Rejection Ratio | 90 dB |
| frequency compensation | NO |
| Maximum input offset voltage | 6000 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| Encapsulate equivalent code | TO-5,8PIN,DIL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal slew rate | 0.5 V/us |
| Maximum slew rate | 3.3 mA |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
