MHz Band Ceramic Resonator
actual size
HCJ-MS,-MSA,-MSB,-M,-MY
ƒ
0
: 2.0 ~ 20.0 MHz
features
s
ultra compact package
s
vibration resistance
s
high temperature stability
type
frequency range (MHz)
MS
2.0 ~ 3.57
MSA
3.58 ~ 8.0
MSB
3.45 ~ 8.0
M
8.01 ~ 12.0
MSA
16.0 ~ 20.0
external capacitance C
1
external capacitance C
2
frequency tolerance at 25 °C
frequency stability (-20 °C ~ +80 °C)
aging rate
resonant impedance (maximum)
standard frequency (MHz)
100
Ω
2.0
3.0
30
Ω
3.58 / 4.0
4.19 / 5.0
4.91 / 6.0 / 8.0
package
standard package unit
L
M
± 0.3%
33 pF
33 pF
± 0.5% (optional ± 0.3%)
± 0.5%
± 0.3% max. (10 years) at initial value
30
Ω
3.58 / 4.0
4.19 / 6.0
40
Ω
10.0 / 11.06
12.0
10 pF
10 pF
± 0.3%
40
Ω
16.0 / 20.0
M
2000 pcs. tape and reel
P
R
order information
HCJ - 4.0 MSA TR
packaging:
blank = bulk
TR = tape and reel
TF = ammo-pack
resonator type
frequency in MHz
Jauch marking
test circuit
14
1 2 3 4
HC74HC04
(Motorola)
7
OUT
R = 1.0 M
Resonator
C
1
33 pF
C
2
33 pF
GND
The pulse of progress

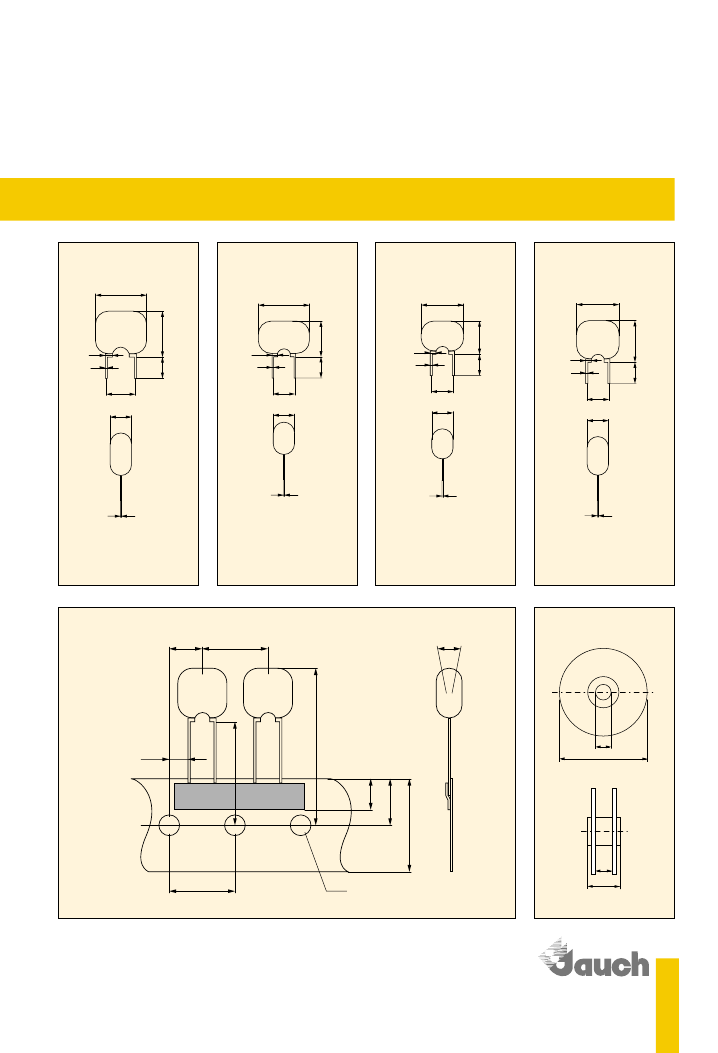

HCJ - MS, - MSA, - MSB, - M, - MY series
package L
12.0 max
10.0 max
10.0 max
10.0 max
10.0 max
package M
package P
package R
7.5 max
7.0 max
1.2
5.0
0.6
5.0
5.0
1.2
0.5
5.0
5.0
1.2
0.6
5.0
5.0
1.2
5.0
5.0
5.0
5.0
0.2
0.6
0.2
0.2
5.0
0.2
tolerance ± 0.2 mm unless
otherwise specified
in mm
tolerance ± 0.2 mm unless
otherwise specified
in mm
tolerance ± 0.2 mm unless
otherwise specified
in mm
tolerance ± 0.2 mm unless
otherwise specified
in mm
taping specification
6.35
±1.3
12.7
±1.0
0
±2.0
reel specification
30.0 max.
3.85
±1.7
20
±0.5
30
360
6.0 min
9.0
±0.5
18.0
+1/-1.5
44
12.7
±0.3
ø 4,0
in mm
52
9.0 max
in mm
