HD63705V0C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> HD63705V0C

HD63705V0C: DescriptionMicrocontroller, 8-Bit, UVPROM, 6805 CPU, 1MHz, CMOS, CDIP40, CERAMIC, DIP-40; CategoryMicrocontrollers and processors; File Size1MB，35 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD63705V0C Overview

Microcontroller, 8-Bit, UVPROM, 6805 CPU, 1MHz, CMOS, CDIP40, CERAMIC, DIP-40

HD63705V0C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	DIP
package instruction	WDIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Address bus width	11
bit size	8
CPU series	6805
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
length	50.26 mm
Number of I/O lines	31
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	192
rom(word)	4096
ROM programmability	UVPROM
Maximum seat height	5.6 mm
speed	1 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

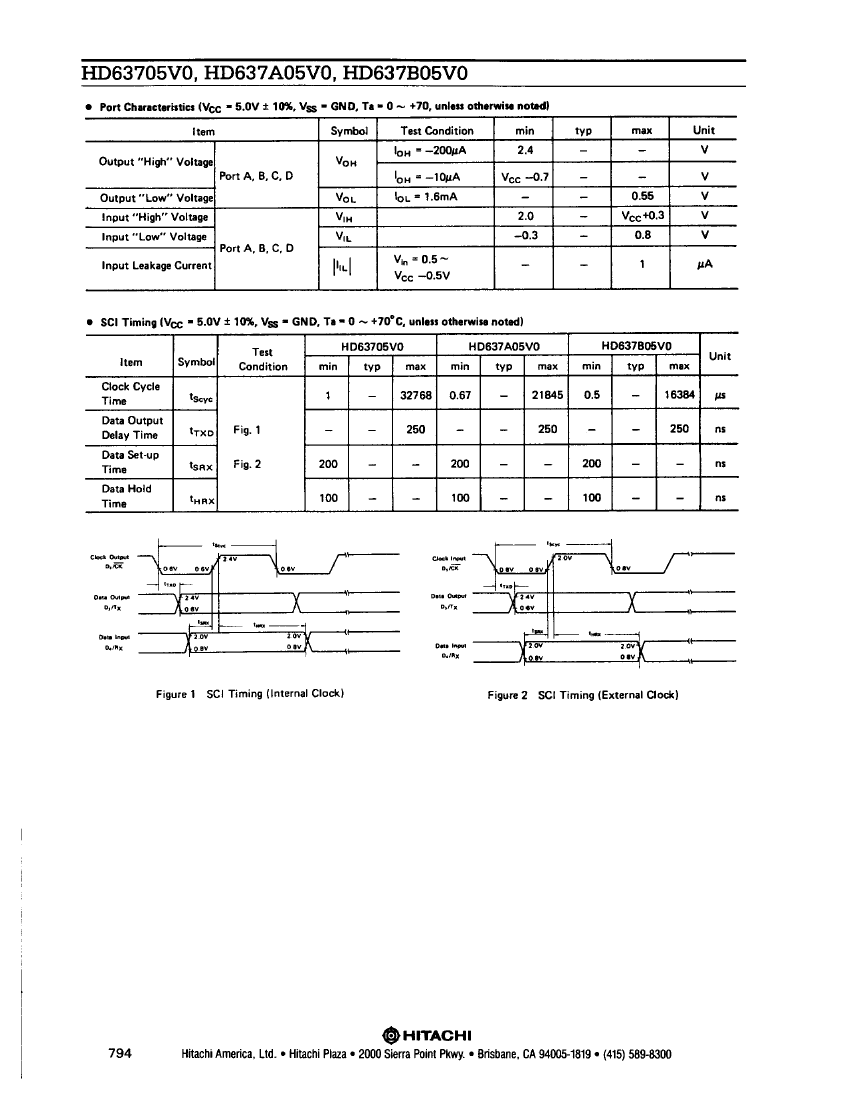

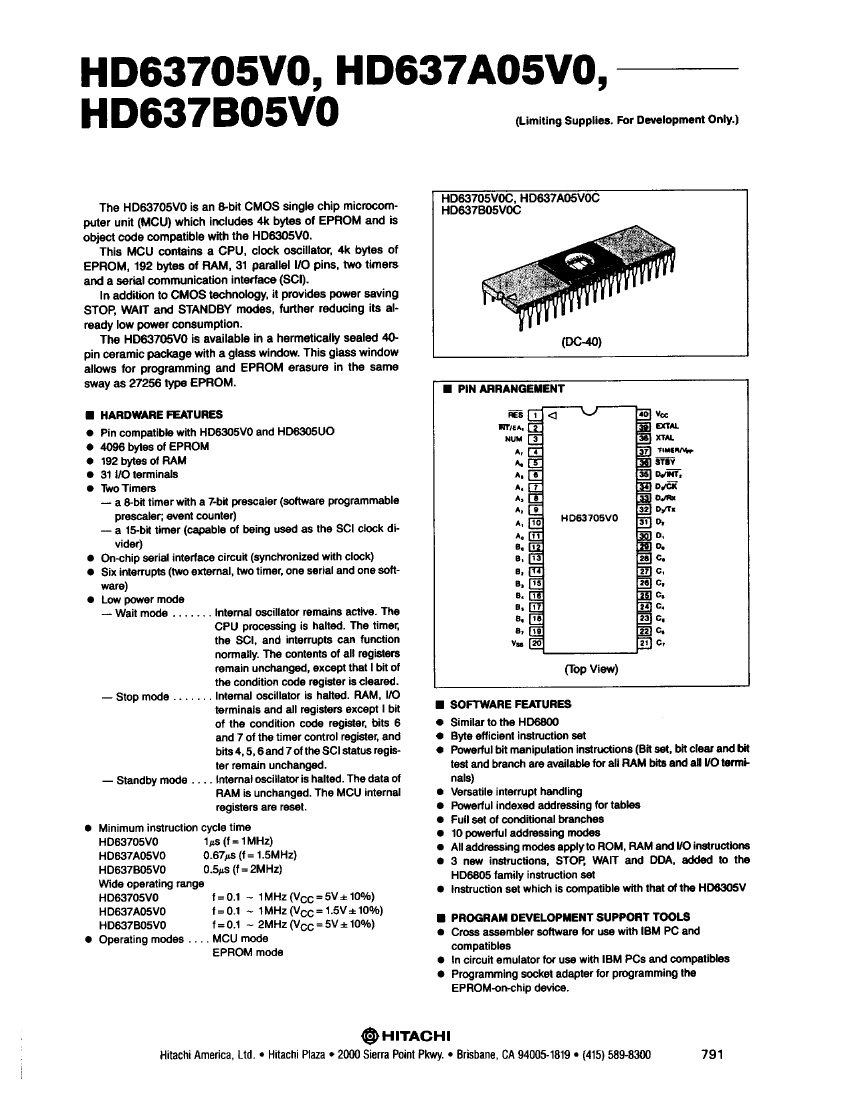

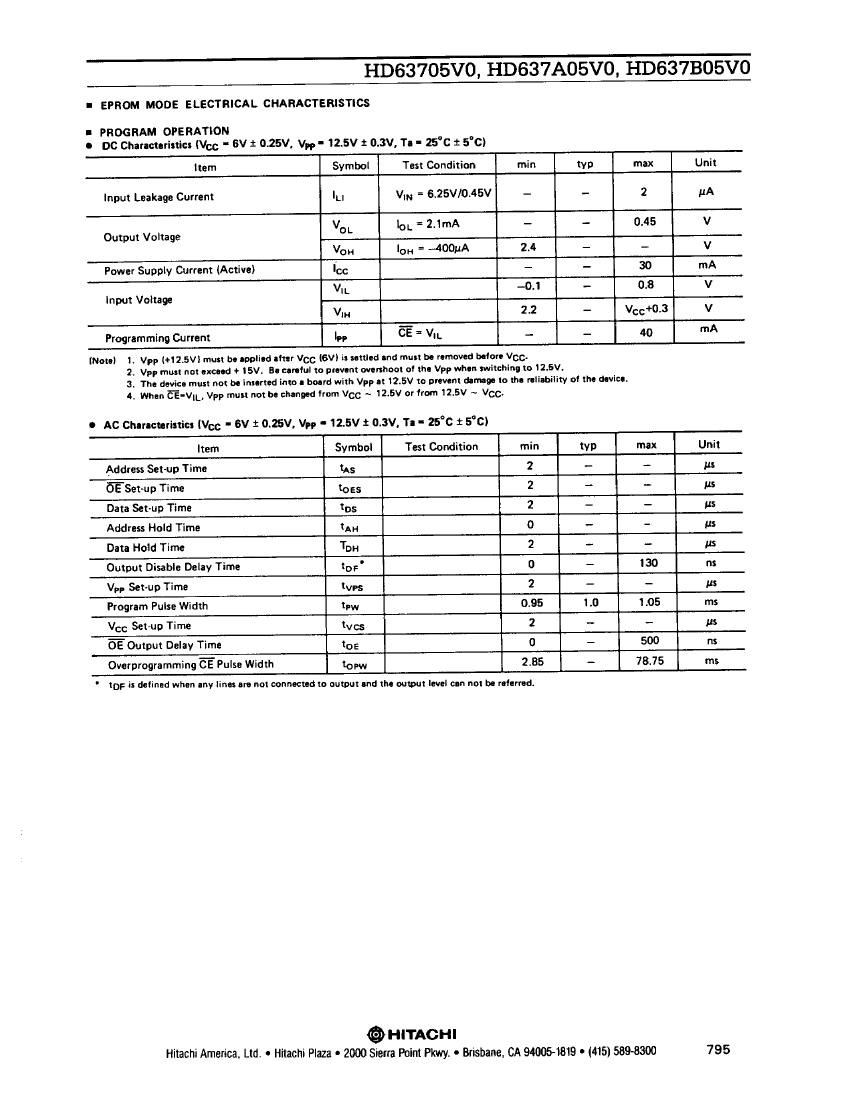

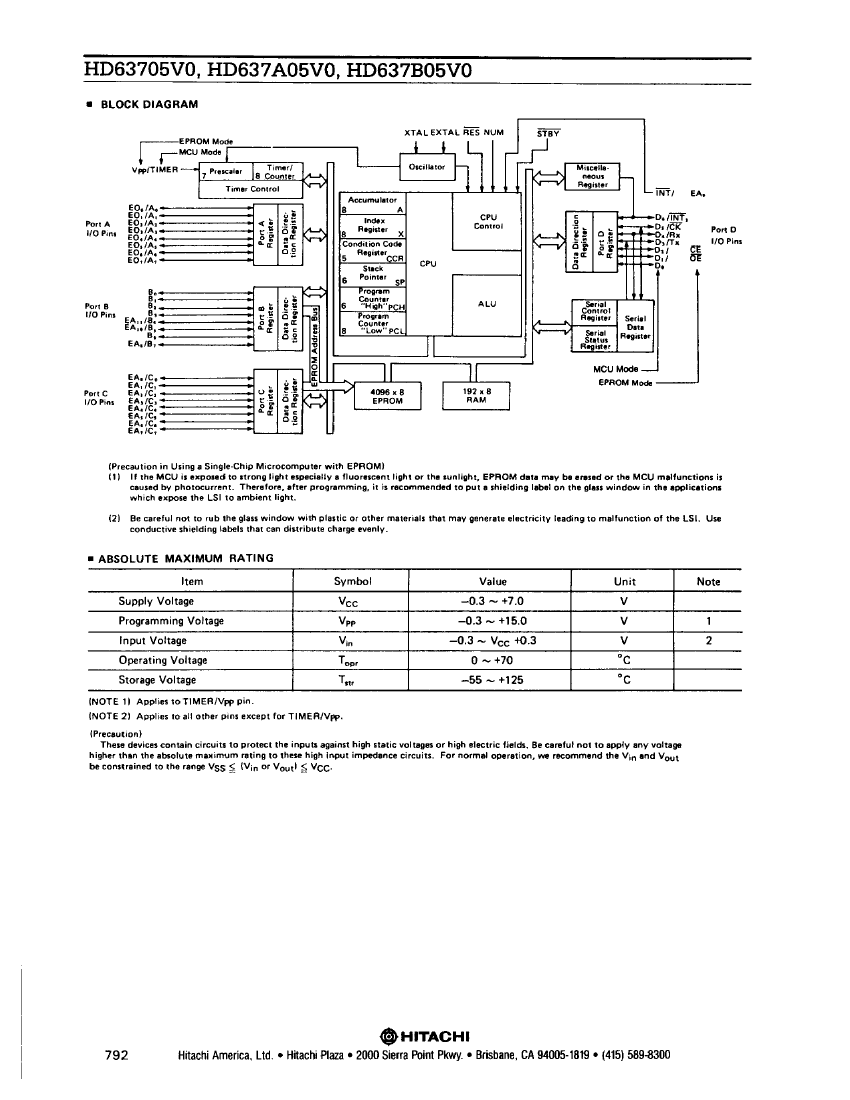

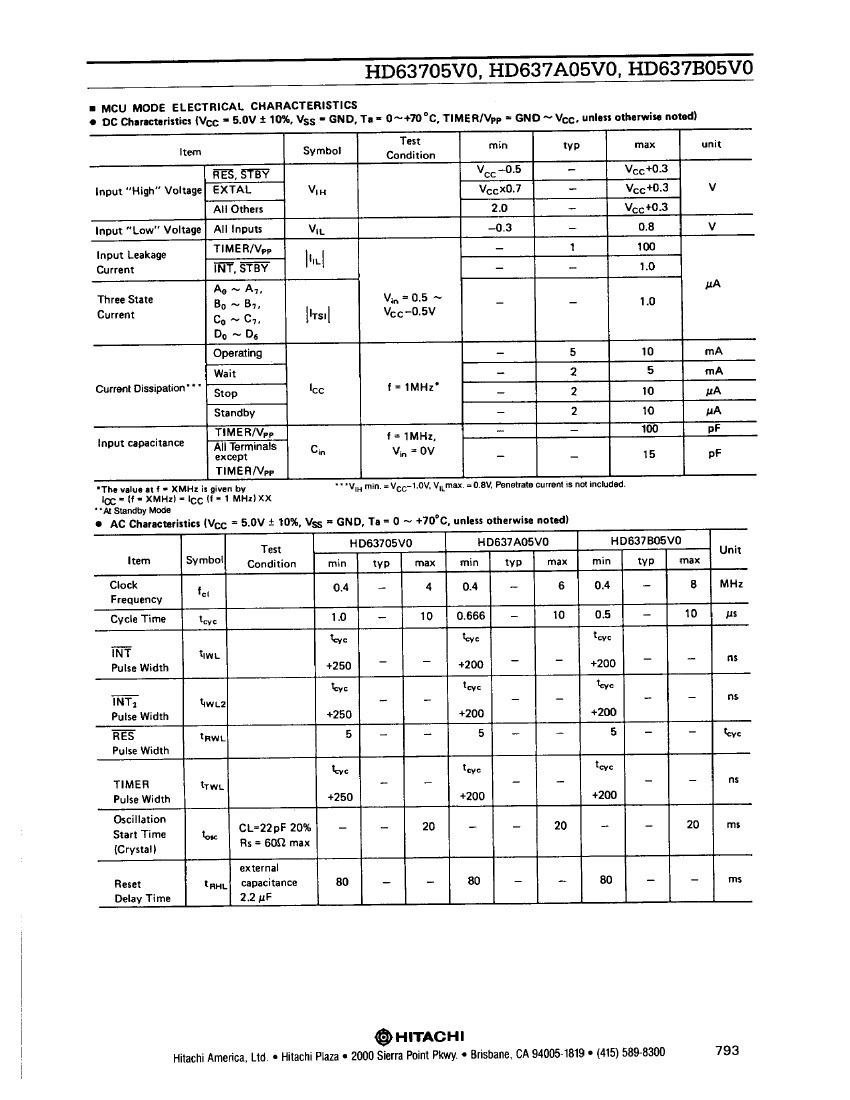

Preview

Download Datasheet

View All

HD63705V0C Related Products

	HD63705V0C	HD637A05V0C	HD637B05V0C
Description	Microcontroller, 8-Bit, UVPROM, 6805 CPU, 1MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, UVPROM, 6805 CPU, 1.5MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, UVPROM, 6805 CPU, 2MHz, CMOS, CDIP40, CERAMIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	DIP	DIP	DIP
package instruction	WDIP, DIP40,.6	WDIP, DIP40,.6	WDIP, DIP40,.6
Contacts	40	40	40
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Has ADC	NO	NO	NO
Address bus width	11	11	11
bit size	8	8	8
CPU series	6805	6805	6805
maximum clock frequency	4 MHz	6 MHz	8 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
JESD-30 code	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40
JESD-609 code	e0	e0	e0
length	50.26 mm	50.26 mm	50.26 mm
Number of I/O lines	31	31	31
Number of terminals	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP	WDIP	WDIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	192	192	192
rom(word)	4096	4096	4096
ROM programmability	UVPROM	UVPROM	UVPROM
Maximum seat height	5.6 mm	5.6 mm	5.6 mm
speed	1 MHz	1.5 MHz	2 MHz
Maximum slew rate	10 mA	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1
