DFNS11-MLDPIBFREQXB50: DescriptionLVDS Output Clock Oscillator, 27MHz Min, 800MHz Max; Categoryoscillator; File Size80KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFNS11-MLDPIBFREQXB50 Overview

LVDS Output Clock Oscillator, 27MHz Min, 800MHz Max

DFNS11-MLDPIBFREQXB50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	DFNS11-MLDPI
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	27 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	0.6 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

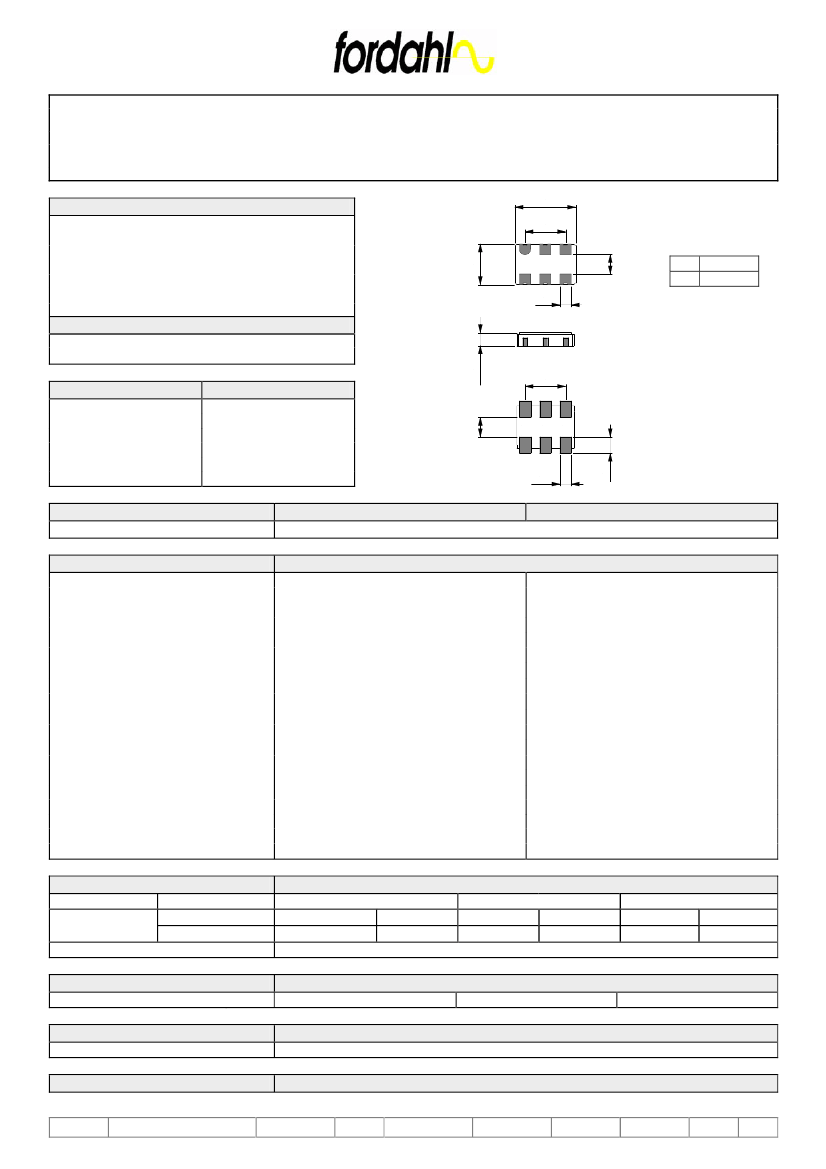

FREQUENCY CONTROL PRODUCTS

SURFACE MOUNT

LVDS CLOCK OSCILLATOR

DFN S11-MLLPI (3.3 V) & DFN S11-MLDPI (2.5 V)

FEATURES

5.0±0.2

L±0.2

5.08

27 TO 800 MHz

Low noise PLL multiplication circuit

Low jitter

APPLICATIONS

2.4

L

H

7.0 mm

1.7 mm

1.4

H±0.2

Datacomms

Function

E/D

NC

GND

Output 1

Output 2

Vcc

5.08

DFN S11

1

2

3

4

5

6

1

5

2

4

3

2.4

PC board footprint

1.4

TYPE

Frequency Range

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle @ 1.25 V

rise/fall times ( 20 to 80% )

high/low levels

differential output

differential output error

offset voltage

offset voltage error

output leakage current

jitter RMS (12 kHz to 20 MHz)

enable / disable on pin 1

complementary output on pin 5

start up

DFN S11-MLLPI

27 to 800 MHz

3.3 V ± 5 %

≤

70 mA

100

Ω

between outputs

45/55…55/45 %

≤

0.6 ns

≤

1.6 V/

≥

0.9 V

≤

454 mV

≤

50 mV

≤

1.375 V

≤

50 mV

≤

10

μA

≤

3 ps RMS

high or open = enable, low = disable

180° phase shifted

≤

10 ms @ 3.15 V

2.0

DFN S11-MLDPI

2.5 V ± 5 %

≤

70 mA

100

Ω

between outputs

45/55…55/45 %

≤

0.6 ns

≤

1.6 V/

≥

0.9 V

≤

454 mV

≤

50 mV

≤

1.375 V

≤

50 mV

≤

10

μA

≤

3 ps RMS

high or open = enable, low = disable

180° phase shifted

≤

10 ms @ 2.375 V

FREQUENCY STABILITY

types

all types

remarks

temperature range

0 to 70°C

-40 to 85°C

stability [ ppm ] and temperature code

stability

code

stability

code

stability

code

XB25

XB50

XB100

≤

± 25

≤

± 50

≤

± 100

XE25

XE50

XE100

≤

± 25

≤

± 50

≤

± 100

stability includes calibration at 25°C, temperature, ageing, Vcc and load changes 1

st

yr.

OPTIONS

stability over long life time

A = 5 years

B = 10 years

C = 15 years

ORDERING CODE

Example

type + option code + frequency + stability/temperature code

DFN S11-MLDPI 622.08 MHz XB25

REMARK

TYPE

DFN S11-MLL/MLD

Please consult factory for life time/stabilities possible combinations

REVISION

01

CHECKED

NE

DATE

02.10.2006

PAGE

XX
