IHLP-2525CZ-060.47UH+/-20%ERE3 datasheet, PDF

Datasheet> All Categories > inductor> Fixed inductance> IHLP-2525CZ-060.47UH+/-20%ERE3

IHLP-2525CZ-060.47UH+/-20%ERE3: DescriptionGeneral Fixed Inductor, 1 ELEMENT, 0.47 uH, GENERAL PURPOSE INDUCTOR, SMD, LEAD FREE; Categoryinductor Fixed inductance; File Size136KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

IHLP-2525CZ-060.47UH+/-20%ERE3 Overview

General Fixed Inductor, 1 ELEMENT, 0.47 uH, GENERAL PURPOSE INDUCTOR, SMD, LEAD FREE

IHLP-2525CZ-060.47UH+/-20%ERE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	2725
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	2725
structure	Shielded
core material	IRON
DC Resistance	0.00386 Ω
Nominal inductance(L)	0.47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	IHLP-2525CZ-06
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	3 mm
Package length	6.86 mm
Package form	SMT
Package width	6.47 mm
method of packing	TR, 13 Inch
Maximum rated current	17.5 A
series	IHLP-2525CZ-06
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

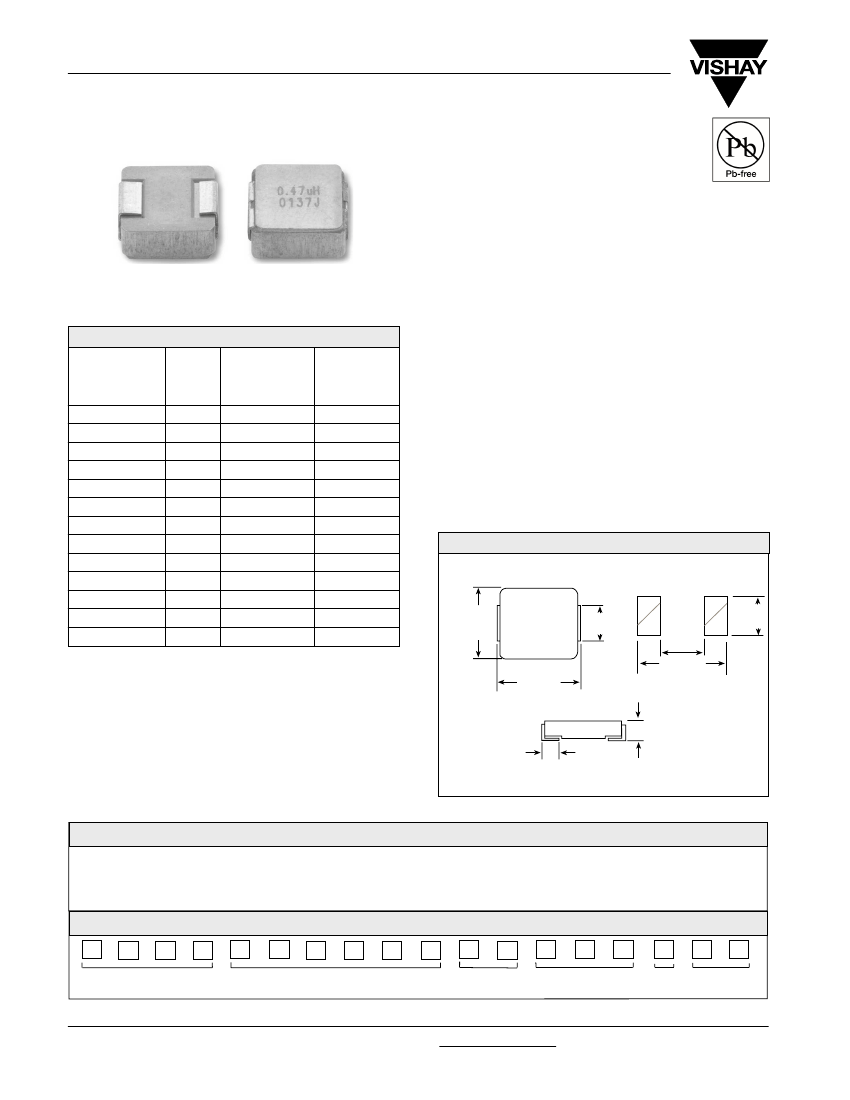

IHLP-2525CZ-06

Vishay Dale

10% DCR Tolerance,

Low Profile, Power Inductor

FEATURES

•

Lowest height (3.0mm) in this package footprint.

•

Shielded construction.

•

Frequency range up to 5.0MHz.

•

Lowest DCR/µH, in this package size.

Manufactured under one or more of the following:

US Patents; 6,198,375 / 6,204,744 / 6,449,829 / 6,460,244.

Several foreign patents, and other patents pending.

STANDARD ELECTRICAL SPECIFICATIONS

DCR m

Ω

INDUCTANCE

10%

20%

@ 25

@100KHz, .25V, 0A

0.10

0.20

0.33

0.47

0.68

0.82

1.0

1.5

2.2

3.3

4.7

8.2

1.37

2.34

3.20

3.86

5.20

7.41

8.44

14.50

17.73

28.21

37.11

61.47

97.71

HEAT RATING

CURRENT

DC AMPS

TYPICAL

32.5

17.5

15.5

5.5

SATURATION

CURRENT

DC AMPS

TYPICAL

13.5

7.5

7.0

• Handles high transient current spikes without saturation.

• Ultra low buzz noise, due to composite construction.

• 100% Lead (Pb)-free and RoHS compliant.

APPLICATIONS

• Tolerance DCR for current sense applications.

• Improved current balance in phased power supplies.

• Improved thermal management.

•

PDA/Notebook/Desktop/Server and Battery powered devices.

• High current, Low profile POL converters.

• DC/DC converters in distributed power systems.

• DC/DC converter for Field Programmable Gate Arrays.

DIMENSIONS

in inches [millimeters]

Typical Pad Layout (Min.)

0.255

0.010

[6.47

0.254]

0.125

0.01

[3.18

0.3]

0.135

[3.43]

0.146

[3.71]

0.290

[7.37]

NOTES:

1. All test data is referenced to 25°C ambient.

2. Operating Temperature Range - 55°C to + 125°C

3. DC current (A) that will cause an approximate

∆T

of 40°C.

4. DC current (A) that will cause Lo to drop approximately 20%

5. The part temperature (ambient + temp rise) should not exceed

125°C under worst case operating conditions. Circuit design,

component placement, PWB trace size and thickness, airflow

and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application.

0.270

0.015

[6.86

0.381]

0.118 [3.0] Max.

0.050

0.012

[1.27

0.30]

DESCRIPTION

IHLP-2525CZ-06

MODEL

1.0

INDUCTANCE

VALUE

20%

INDUCTANCE

TOLERANCE

PACKAGE

CODE

JDEC LEAD FREE

STANDARD

GLOBAL PART NUMBER

SIZE

INDUCTANCE

TOLERANCE

SERIES

MODEL

PACKAGE

CODE

INDUCTANCE

VALUE

www.vishay.com

For technical questions, contact Magnetics@vishay.com

Document Number 34167

Revision 03-Nov-04
