HD4-4702-2 datasheet, PDF - EEWORLD Datasheet

HD4-4702-2: DescriptionIC,BAUD RATE GENERATOR,CMOS,LLCC,18PIN,CERAMIC; CategoryMicrocontrollers and processors; File Size162KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

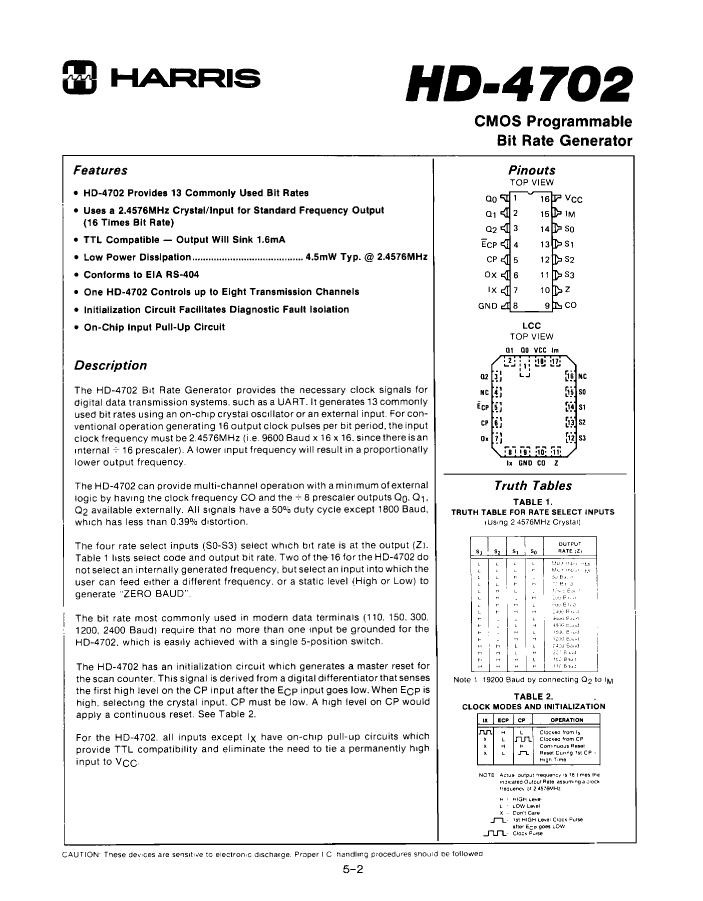

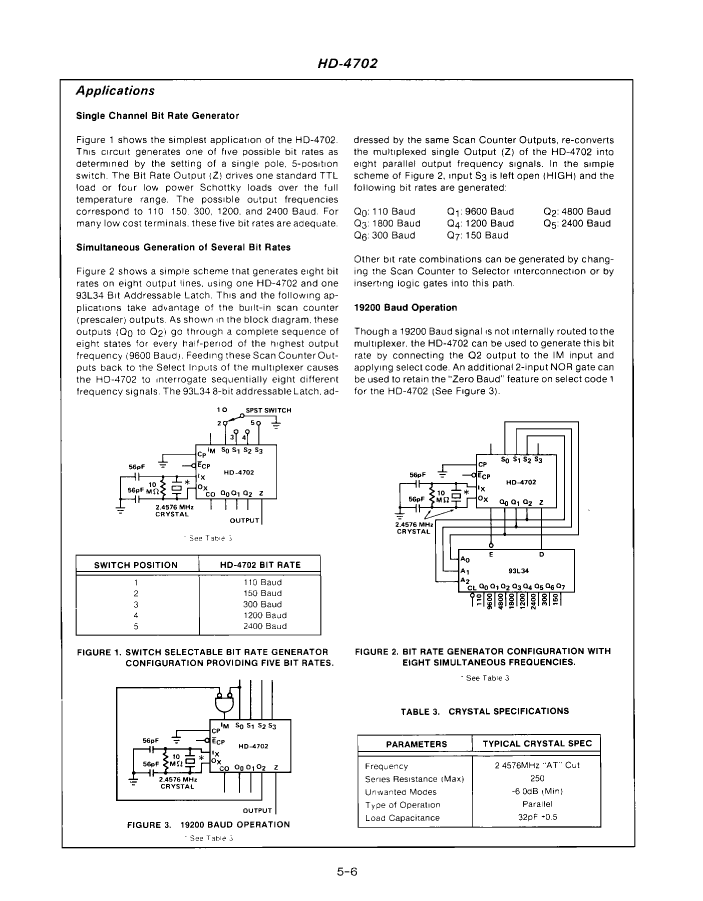

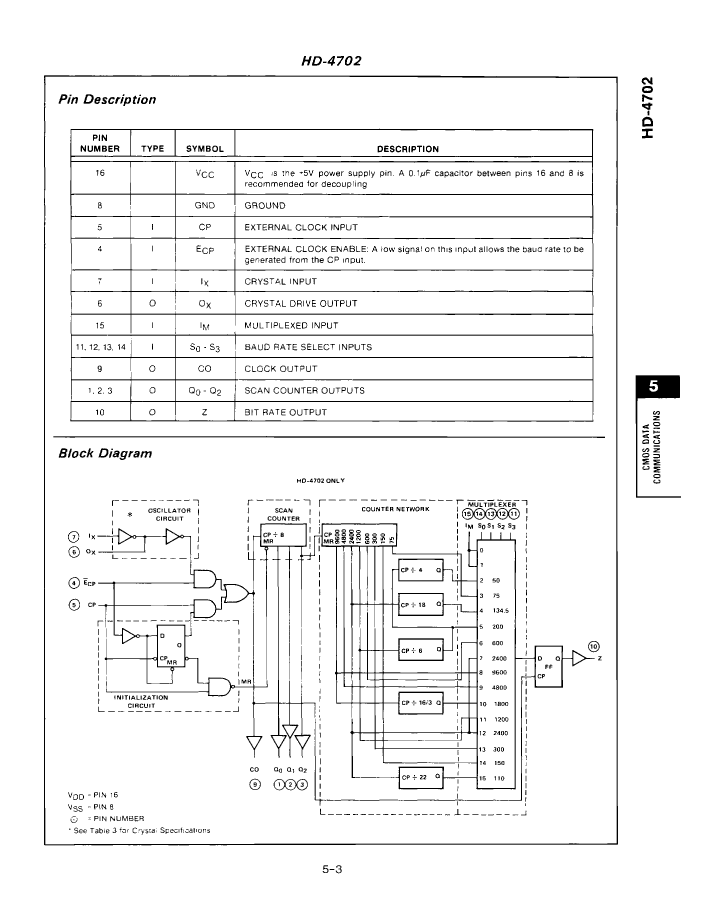

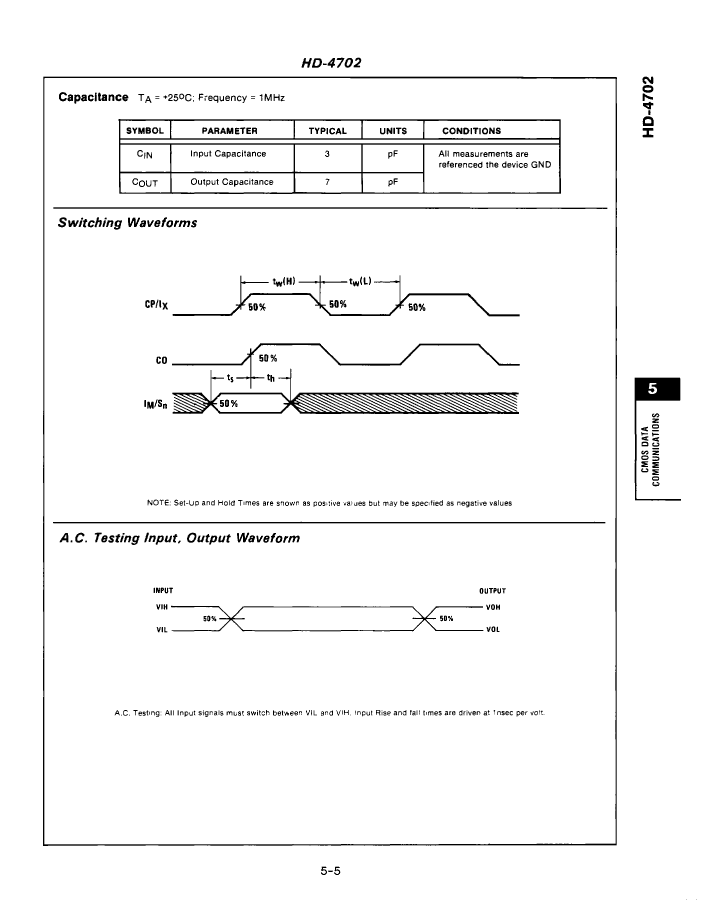

HD4-4702-2 Overview

IC,BAUD RATE GENERATOR,CMOS,LLCC,18PIN,CERAMIC

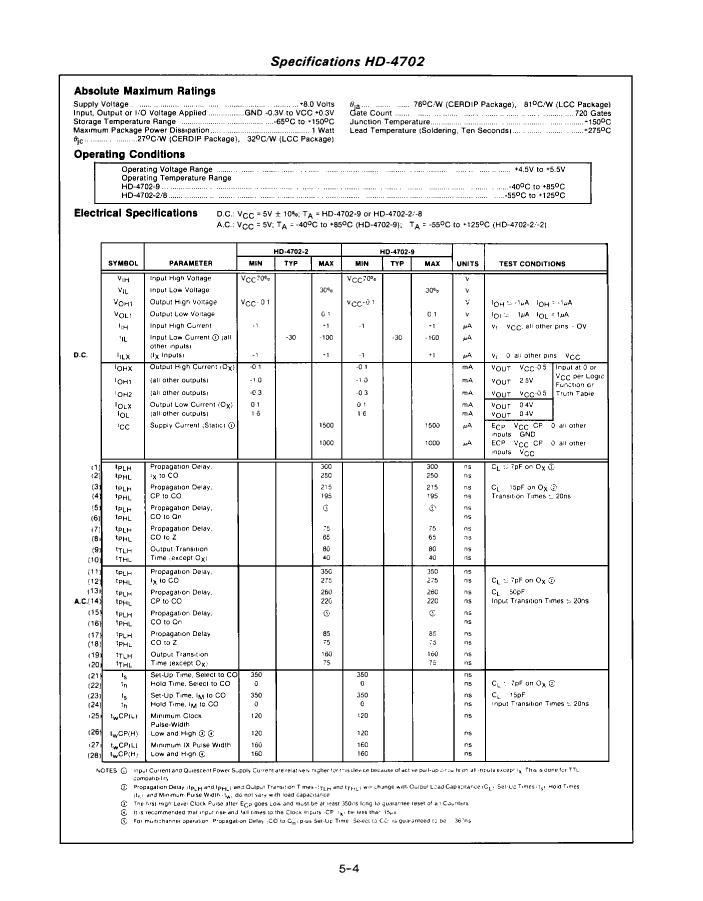

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	QCCN, LCC18,.3X.35
Reach Compliance Code	compliant
Is Samacsys	N
JESD-30 code	R-XQCC-N18
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC18,.3X.35
Package shape	RECTANGULAR
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	HD4-4702-2	HD1-4702-8	HD1-4702-2
Description	IC,BAUD RATE GENERATOR,CMOS,LLCC,18PIN,CERAMIC	IC,BAUD RATE GENERATOR,CMOS,DIP,16PIN,CERAMIC	IC,BAUD RATE GENERATOR,CMOS,DIP,16PIN,CERAMIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	compliant	not_compliant	not_compliant
Is Samacsys	N	N	N
JESD-30 code	R-XQCC-N18	R-XDIP-T16	R-XDIP-T16
Number of terminals	18	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	DIP
Encapsulate equivalent code	LCC18,.3X.35	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	1
Is it Rohs certified?	-	incompatible	incompatible
JESD-609 code	-	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
