AV49810KMZQ/UL6P datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> AV49810KMZQ/UL6P

AV49810KMZQ/UL6P: DescriptionPushbutton Switch, SPDT, Momentary, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size388KB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

AV49810KMZQ/UL6P Overview

Pushbutton Switch, SPDT, Momentary, Solder Terminal, Panel Mount-threaded

AV49810KMZQ/UL6P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	MUSHROOM TYPE
Manufacturer's serial number	AV
Installation features	PANEL MOUNT-THREADED
seal	IP54
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

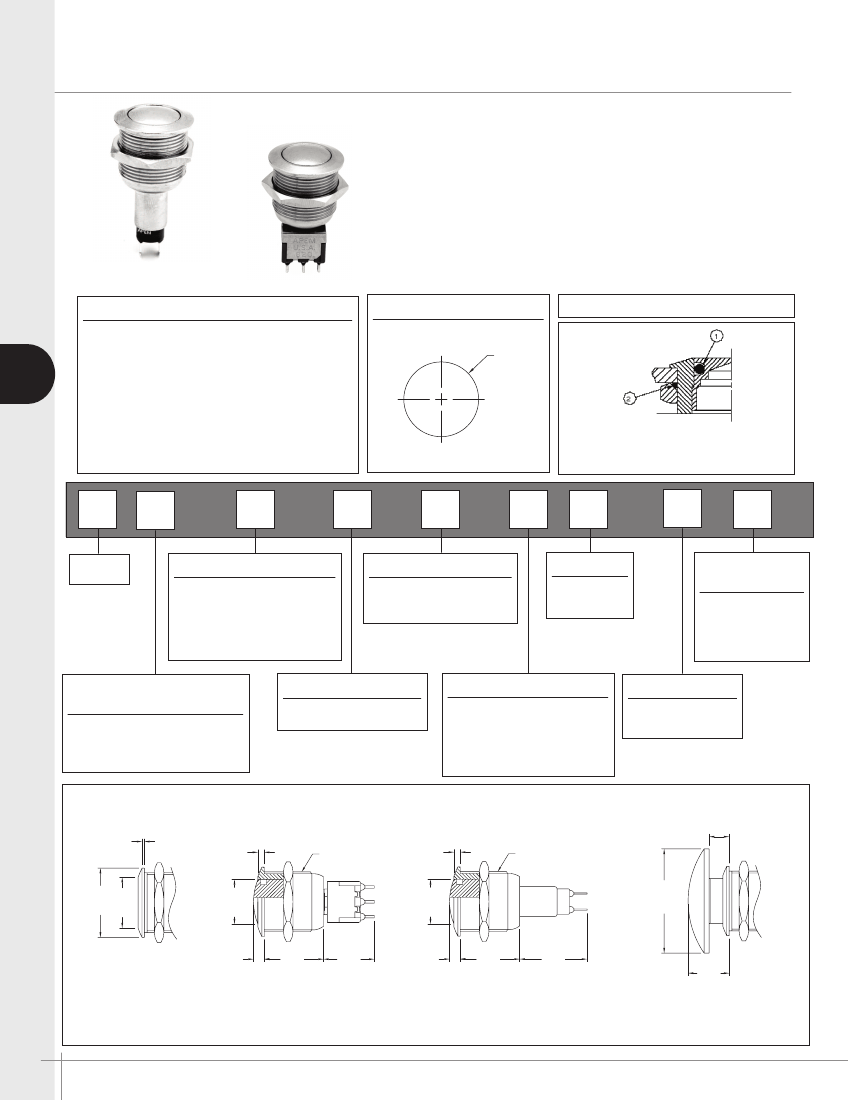

AV series

Anti-vandal and security pushbutton switches

19mm bushing

Single pole ON-OFF, Alternate Action, &

Standard sealing IP54, IP65 models available

Extremely rugged and durable

Specifications

Panel cut-out

Ø19.00

(Ø.748)

Momentary functions

SEALING

For all 800 series models, see section “D”

For all 400 series models, see section “C”.

(

OPTION K

)

internal gasket

Front panel sealing (IP65)

external gasket

SERIES

Switch Model

Contact material

401

402

810KM

820KM

Alternate Action

Momentary

Momentary (SPDT)

Momentary (DPDT)

Gold

Coin Silver

Sealing

IP54

IP65

Mushroom cap

color

Natural

Red

Powder

coated red

Actuators/Bushing

Configurations

19mm w/flat actuator

19mm w/curved actuator

19mm w/mushroom cap

Solder lug

Terminations

Terminal sealing

Epoxy

Agency approval

/UL

(None)

UL approved

For

400 series models only,

all 800 series models built with

sealed terminals standard.

0.75

(.030)

2.00

(.079)

19.00 X 1.00 S.I.

2.00

(.079)

19.00 X 1.00 S.I.

6.37

(.251)

Ø22.00

(Ø.866)

Ø16.13

(Ø.635)

Ø14.18

(Ø.558)

Ø14.18

(Ø.558)

APEM

U.S.A.

800

3.40

(.134)

18.85

(.742)

16.08

(.633)

3.40

(.134)

18.85

(.742)

21.47

(.845)

Ø33.10

(Ø1.303)

13.02

(.513)

flat actuator

& curved bushing

E-1

800 series w/curved

actuator & bushing

400 series w/ curved

actuator & bushing

www.apem.com

Thd. actuator with mushroom

cap & curved bushing

APEM
