Mini-Circuits ZABDC20-232H+ is a 20-dB bi-directional coupler ideal for power leveling and monitoring
L-band applications. The rugged aluminum alloy case measures 2.0” x 2.0” x 0.88” high, with gold-plated
SMA or N-type connectors.
Key Features
Feature
Mainline loss 0.25 dB typ.
Advantages
Extremely low mainline loss for applications where signal strength is key, such as GPS,
CDMA, UMTS, and LTE base station transmitters
Enables more accurate sampling for VSWR measurements
Allows flexible deployment between active components and their DC power supplies
Pass through at 10 MHz supports reference clock frequency communication to remote
systems
Extended frequency range makes this coupler ideal for use in satcom systems, such as
LNB/BUC installations
Directivity 23 dB typ.
DC pass through 2.0 A max.
10 MHz pass through
Full L band coverage
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 1 of 3

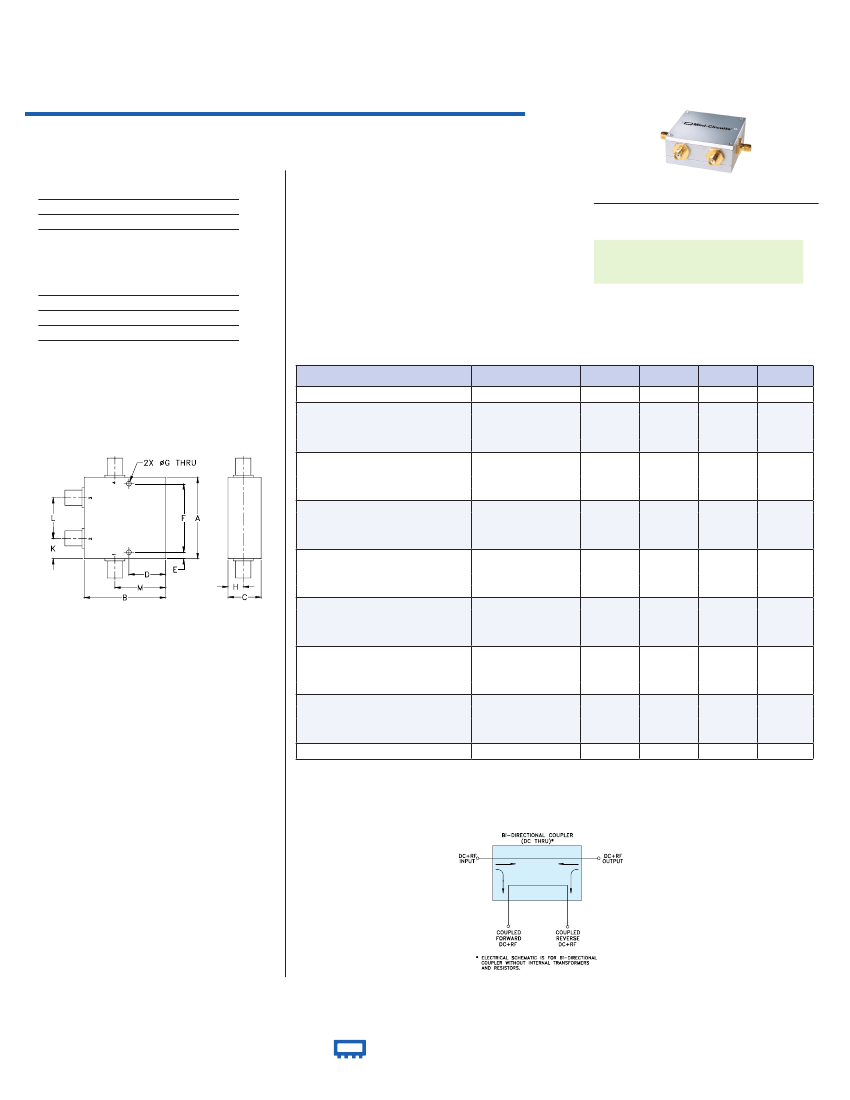

Bi-Directional Coupler
50Ω Up to 50W 800 to 2300 MHz
Maximum Ratings
Operating Temperature
Storage Temperature
DC Current
-55°C to 100°C
-55°C to 100°C
2.0 A
DC to 10 MHz Pass
ZABDC20-232H+
Features
* Case temperature is defined as temperature on ground leads
.
Permanent damage may occur if any of these limits are exceeded.
Coaxial Connections
INPUT
OUTPUT
COUPLED (forward)
COUPLED (reverse)
1
4
2
3
• excellent mainline loss, 0.25 dB typ.
• excellent directivity, 23 dB typ.
• high power, up to 50W
• rugged shielded case
• DC current through input to output 2.0A Max.
at 50 watt RF input power
• 10 MHz pass through
CASE STYLE: DD477-1
Connectors Model
Price
Qty.
SMA
ZABDC20-232H-S+
$119.95 (1-9)
N-Type
ZABDC20-232H-N+
$129.95 (1-9)
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Applications
• L Band
• PCS/DCS/UMTS
• power leveling & monitoring
• VSWR measurement
• satellite communication
Electrical Specifications at 25°C
Condition (MHz)
800-2300
950-1250
1700-2050
950-2150
800-2300
950-1250
1700-2050
950-2150
800-2300
950-1250
1700-2050
950-2150
800-2300
950-1250
1700-2050
950-2150
800-2300
950-1250
1700-2050
950-2150
800-2300
950-1250
1700-2050
950-2150
800-2300
950-1250
1700-2050
950-2150
800-2300
Parameter
Frequency Range
Min.
800
—
—
—
—
—
—
—
—
—
—
—
—
17
18
19
18
18
18
20
18
18
18
20
18
16
17
16
16
—
Typ.
0.23
0.17
0.21
0.22
20.5±1.5
20.5±1.0
19.5±0.8
20.5±1.2
1.5
0.7
0.5
1.0
20
20
23
20
23
23
24
23
23
23
25
23
19
19
20
19
—
Max.
2300
0.35
0.30
0.35
0.35
—
—
—
—
1.9
0.9
0.7
1.3
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
50
Units
MHz
dB
Outline Drawing
Mainline Loss
(above theoretical 0.05 dB)
Coupling
dB
Coupling Flatness (±)
dB
Directivity
dB
Return Loss (Input)
dB
Return Loss (Output)
dB
Outline Dimensions (
inch
)
mm
A
2.00
50.80
H
.38
9.65
B
2.00
50.80
J
---
---
C
.88
22.35
K
.50
12.70
D
.90
22.86
L
1.00
25.40
E
.156
3.96
M
1.25
31.75
F
1.688
42.88
G
.125
3.18
wt
grams
225
Return Loss (Coupling)
Input Power
dB
W
Electrical Schematic
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. OR
M129320
ED-14207/1
ZABDC20-232H+
WP/CP/AM
131017
Page 2 of 3
ZABDC20-232H+
Typical Performance Data
Frequency
(MHz)
Mainline Loss
(dB)
In-Out
800.00
950.00
1100.00
1250.00
1500.00
1700.00
1950.00
2050.00
2150.00
2300.00
0.14
0.16
0.19
0.20
0.22
0.23
0.23
0.23
0.23
0.24
Coupling
(dB)
In-Cpl Fwd
22.19
21.10
20.29
19.67
19.08
18.98
19.27
19.54
19.92
20.69
Out-Cpl Rev
22.18
21.09
20.27
19.66
19.09
18.97
19.27
19.53
19.90
20.68
Directivity
(dB)
Out-Cpl Fwd
20.87
21.04
21.70
22.84
24.24
24.82
24.65
24.19
24.15
23.47
In-Cpl Rev
20.60
20.91
21.72
23.00
24.44
24.88
24.03
23.74
23.44
22.50
In
25.12
24.16
23.65
23.74
24.98
27.55
37.97
49.29
34.53
27.11
Return Loss
(dB)
Out
25.06
24.04
23.62
23.78
24.97
27.56
37.62
39.04
33.03
26.92
Cpl Fwd
22.48
21.21
20.37
19.94
20.11
21.72
26.69
30.82
37.03
30.45
Cpl Rev
22.54
21.44
20.62
20.17
20.35
21.83
26.61
30.31
35.01
29.88
0.32
MAINLINE LOSS (dB)
0.28
0.24
0.20
0.16
0.12
0.08
0.04
at RF level of -10 dBm
ZABDC20-232H+
MAINLINE LOSS
50
COUPLING &
DIRECTIVITY (dB)
40
30
20
10
at RF level of -10 dBm
ZABDC20-232H+
COUPLING & DIRECTIVITY
COUPLING IN-CPL FWD
DIRECTIVITY IN-CPL REV
0.00
800
1000 1200 1400 1600 1800 2000 2200 2400
FREQUENCY (MHz)
0
800
1000 1200 1400 1600 1800 2000 2200 2400
FREQUENCY (MHz)
60
RETURN LOSS (dB)
50
40
30
20
at RF level of -10 dBm
ZABDC20-232H+
RETURN LOSS
CPL-FWD
CPL-REV
IN
OUT
10
800
1000 1200 1400 1600 1800 2000 2200 2400
FREQUENCY (MHz)
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
