3312131071: DescriptionDry Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size96KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3312131071 Overview

Dry Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

3312131071 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	5.08 mm
body height	7.8 mm
Body length or diameter	19.8 mm
Maximum coil current (DC)	0.024 A
Coil operating voltage (DC)	8.4 V
Coil power	288 mW
Coil release voltage (DC)	1.8 V
Coil resistance	550 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@500VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@500VDC
Maximum contact voltage (AC)	500 V
Maximum contact voltage (DC)	500 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3312131071
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.2 ms
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
physical size	19.8mm x 5.08mm x 7.8mm
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	1 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

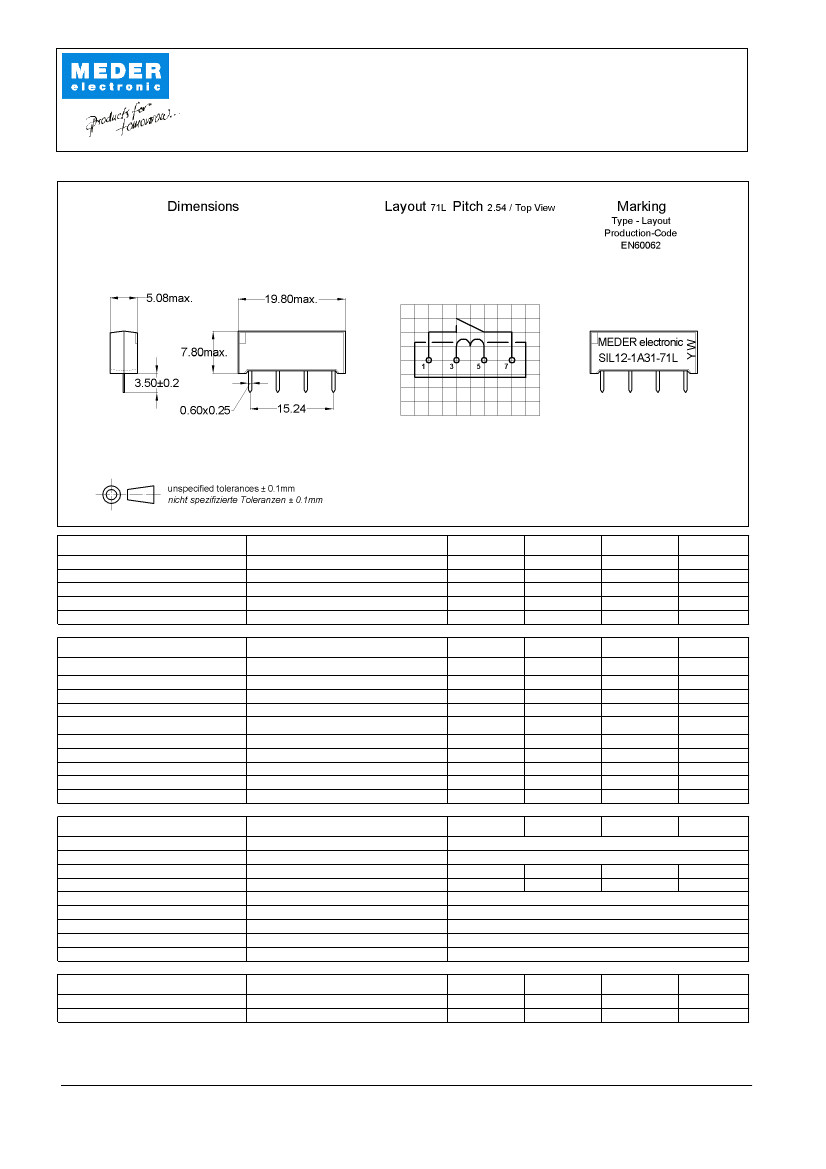

Item No.:

3312131071

Item:

SIL12-1A31-71L

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 31

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage

Operate time incl. bounce

Release Time

Capacity

Conditions

up to 500V max. 50W, with 1000V max. 5W

Min

Typ

Max

Unit

DC or Peak AC

!

Start Value

" #

#

RH <45 %, 100 V test voltage

according to EN 60255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

$

%

(

&'

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Housing material

Connection pins

Reach / RoHS conformity

Approval

Conditions

according to EN 60255-5

40° 95% R.H.

C,

Min

Typ

1

A - NO

Max

%

)

Unit

epoxy resin

FeNi-alloy tin plated

yes

UL File No. NRNT2.E156887

UL File No. NRNT8.E156887

Environmental data

Shock

Vibration

Conditions

1/2 sine wave duration 11ms

from 10 - 2000 Hz

Min

Typ

Max

Unit

*

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

06.09.07

18.01.12

Designed by:

Last Change by:

THAUKE

CRUF

Approval at:

06.09.07

18.01.12

Approval by:

RRIPPL

CRUF

Version:

7
