Series AM15E-IZ
15 Watt | DC-DC Converter
FEATURES:
•
•
•
•
RoHS compliant
2:1 input range
Low ripple and noise
Remote On/Off control
•
•
•
•
Power modules for PCB mounting
Regulated output
Operating temperature range: -40 to +75ºC
Capacitive loading up to 41000 µF (36-75V input)
Models
Single output
Model
AM15E-1203SIZ
AM15E-1205SIZ
AM15E-1212SIZ
AM15E-1215SIZ
AM15E-2403SIZ
AM15E-2405SIZ
AM15E-2412SIZ
AM15E-2415SIZ
AM15E-4803SIZ
AM15E-4805SIZ
AM15E-4812SIZ
AM15E-4815SIZ
Input
Voltage
(V)
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
Output
Voltage
(V)
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
Output Current
max
(A)
4
3
1.25
1
4
3
1.25
1
4
3
1.25
1
Ripple & Noise
% Vout,
max
80mV p-p
80mV p-p
1
1
80mV p-p
80mV p-p
1
1
80mV p-p
80mV p-p
1
1
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
Efficiency
(%)
75
83
85
85
81
83
88
87
81
83
88
87
Models
Dual output
Model
AM15E-2405DIZ
AM15E-2412DIZ
AM15E-2415DIZ
AM15E-2405DIZ
AM15E-2412DIZ
AM15E-2415DIZ
AM15E-4805DIZ
AM15E-4812DIZ
AM15E-4815DIZ
Input
Voltage
(V)
9-18
9-18
9-18
18-36
18-36
18-36
36-75
36-75
36-75
Output
Voltage
(V)
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output Current
max (A)
±1.5
±0.62
±0.5
±1.5
±0.62
±0.5
±1.5
±0.62
±0.5
Ripple & Noise
% Vout,
max
1
1
1
1
1
1
1
1
1
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
Efficiency
(%)
85
85
85
83
88
87
83
88
87
Input Specifications
Parameters
Voltage range
Filter
Conditions
Typical
9-18
18-36
37-75
π
(Pi) Network
Maximum
Units
VDC
Isolation Specifications
Parameters
Rated voltage
Resistance
Capacitance
Conditions
Typical
1500
> 1000
1000
Maximum
Units
VDC
MOhm
pF
www.aimtec.com
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(926 6832)
North America only
Series AM15E-IZ
15 Watt | DC-DC Converter
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Over voltage protection
Over load protection
Line voltage regulation (Single)
Line voltage regulation (Dual)
Load voltage regulation (Single)
Load voltage regulation (Dual)
Temperature coefficient
Conditions
Auto recovery
Typical
Maximum
±2
Units
%
Continuous,
Zener diode clamp protection
Over 110% full load and recovers automatically
±0.5
±0.5
±0.5
±2
±0.05
%
%
%
%
%/
o
C
HL-LL
HL-LL
25-100%
25-100%
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Case temperature
Cooling
Humidity
Case material
Weight
Dimensions
MTBF
Conditions
100% load
Without derating
Typical
200
-40 to+75
-55 to +115
Maximum
Units
KHz
o
C
o
C
o
C
%
95
Free air convection
Non condensing
95
Nickel coated copper
33
g
2.00 x 1.0 x 0.4 inches
50.8 x 25.4 x 10.2 mm
> 800 000 hrs (MIL-HDBK -217F, Ground Benign, t=+25
o
C)
Pin Out Specifications
Pin
1
2
3
4
5
6
Single
On/Off Control
-V Input
+V Input
-V Output
No pin
+V Output
Dual
On/Off Control
-V Input
+V Input
-V Output
Common
+V Output
Dimensions
www.aimtec.com
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(926 6832)
North America only
Series AM15E-IZ
15 Watt | DC-DC Converter

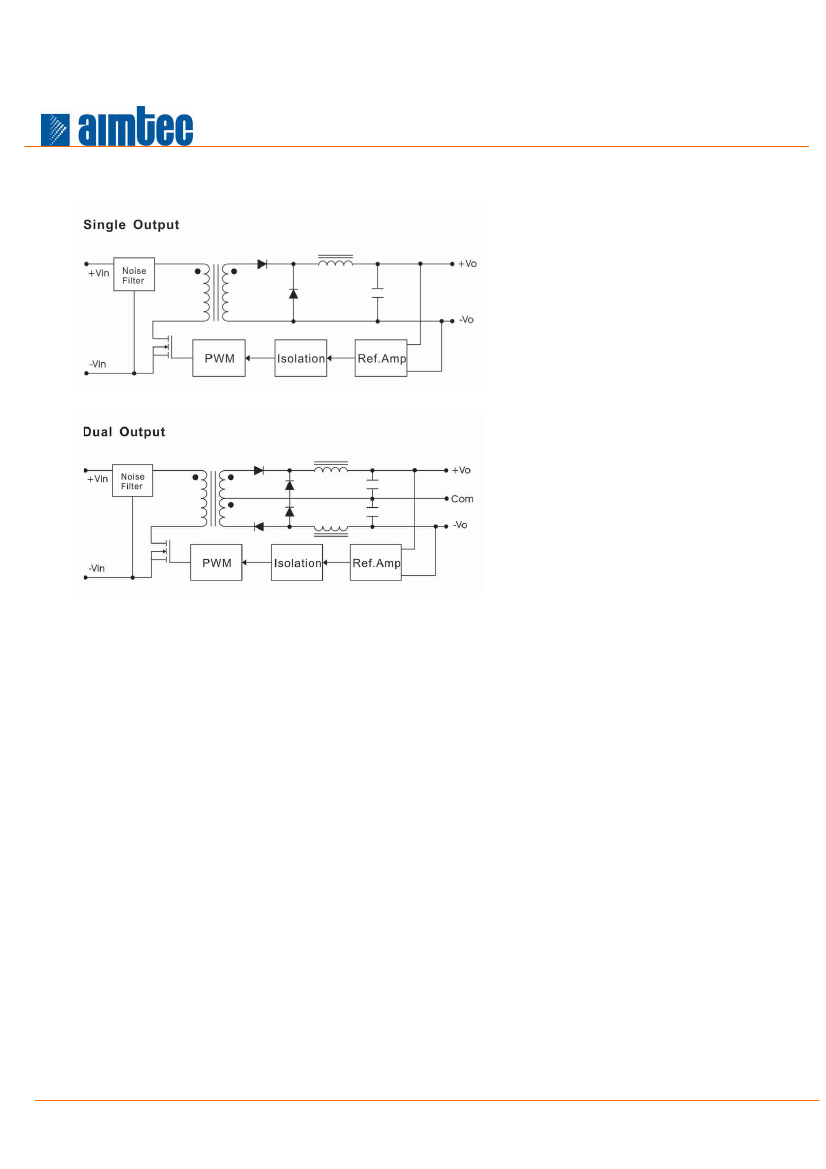

Block diagram
