145064-2

Description
EDGE CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,0.025 PITCH
CategoryThe connector    The connector
File Size114KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

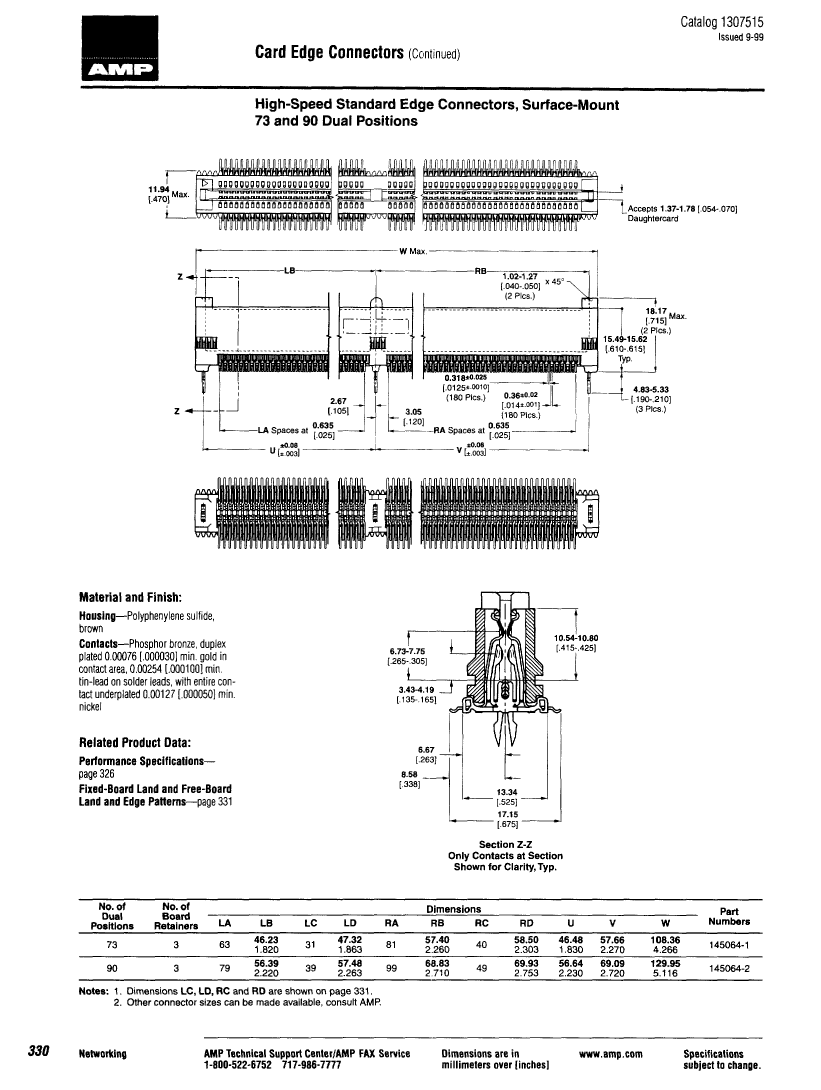

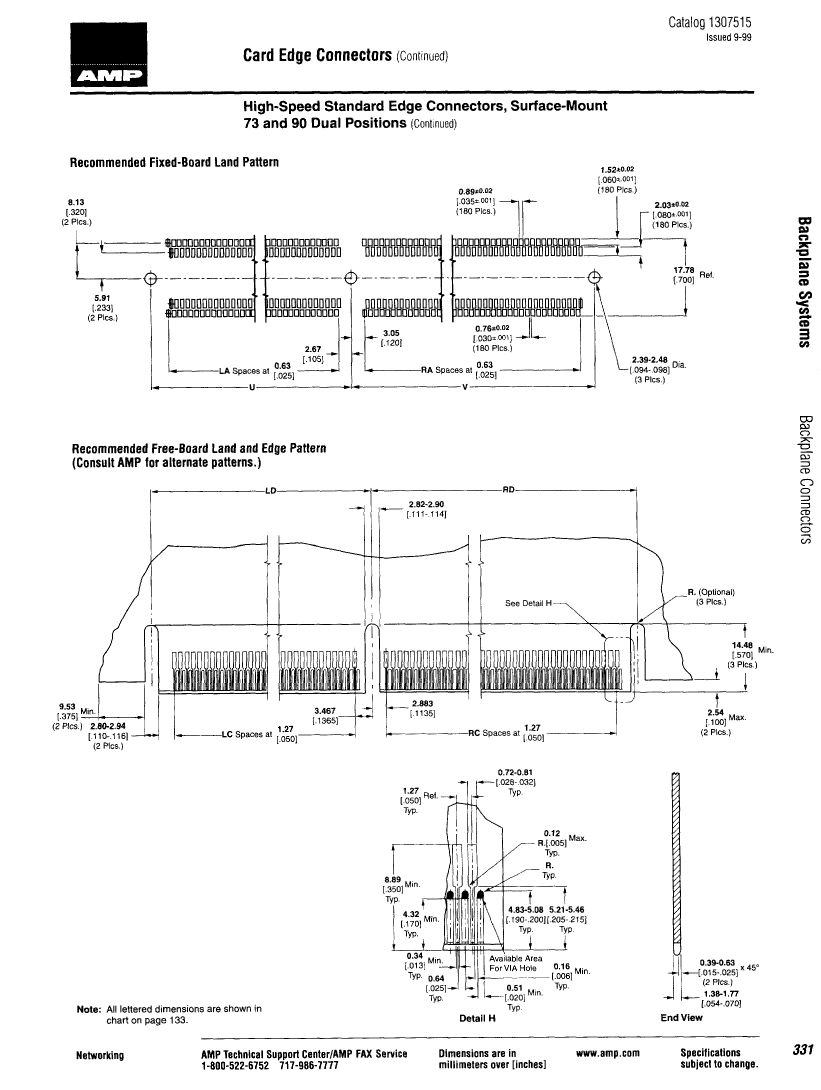

145064-2 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,0.025 PITCH

145064-2 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Other featuresNONE
Board mount optionsSPLIT BOARD LOCK
body width0.47 inch
subject depth0.715 inch
body length5.116 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage500VAC V
Durability25 Cycles
maximum insertion force1.39 N
Insulation resistance1000000000 Ω
Insulator colorBROWN
insulator materialPOLYPHENYLENE SULPHIDE
Manufacturer's serial number145
Plug contact pitch0.025 inch
Installation methodSTRAIGHT
Number of connectorsONE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
Plating thickness30u inch
Rated current (signal)1 A
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Total number of contacts180
Base Number Matches1

145064-2 Related Products

145064-2 145064-1
Description EDGE CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,0.025 PITCH EDGE CONNECTOR,PCB MNT,RECEPT,146 CONTACTS,0.025 PITCH
Reach Compliance Code unknow unknow
Other features NONE NONE
Board mount options SPLIT BOARD LOCK SPLIT BOARD LOCK
body width 0.47 inch 0.47 inch
subject depth 0.715 inch 0.715 inch
body length 5.116 inch 4.266 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact resistance 40 mΩ 40 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE
Dielectric withstand voltage 500VAC V 500VAC V
Durability 25 Cycles 25 Cycles
maximum insertion force 1.39 N 1.39 N
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color BROWN BROWN
insulator material POLYPHENYLENE SULPHIDE POLYPHENYLENE SULPHIDE
Manufacturer's serial number 145 145
Plug contact pitch 0.025 inch 0.025 inch
Installation method STRAIGHT STRAIGHT
Number of connectors ONE ONE
Number of rows loaded 2 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C
PCB contact pattern STAGGERED STAGGERED
Plating thickness 30u inch 30u inch
Rated current (signal) 1 A 1 A
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.635 mm 0.635 mm
Total number of contacts 180 146
Base Number Matches 1 1
