2mmx5mm RECTANGULAR SOLID LAMP
L-103GDT
GREEN
Features
z
z
z
z
z
z
Description
The Green source color devices are made with
Gallium Phosphide Green Light Emitting Diode.
LOW POWER CONSUMPTION.
RELIABLE AND RUGGED.
EXCELLENT UNIFORMITY OF LIGHT OUTPUT.
SUITABLE FOR LEVEL INDICATOR.
LONG LIFE - SOLID STATE RELIABILITY.
RoHS COMPLIANT.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAD9805
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: MAR/20/2005
DRAWN: H.Q.YUAN
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA
Min.
L-103GDT
GREEN (GaP)
GREEN DIFFUSED
1.8
Typ.
5
Viewing
Angle
2θ1/2
110
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
565
568
30
15
2.2
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Green
105
25
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAD9805
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: MAR/20/2005
DRAWN: H.Q.YUAN
PAGE: 2 OF 3

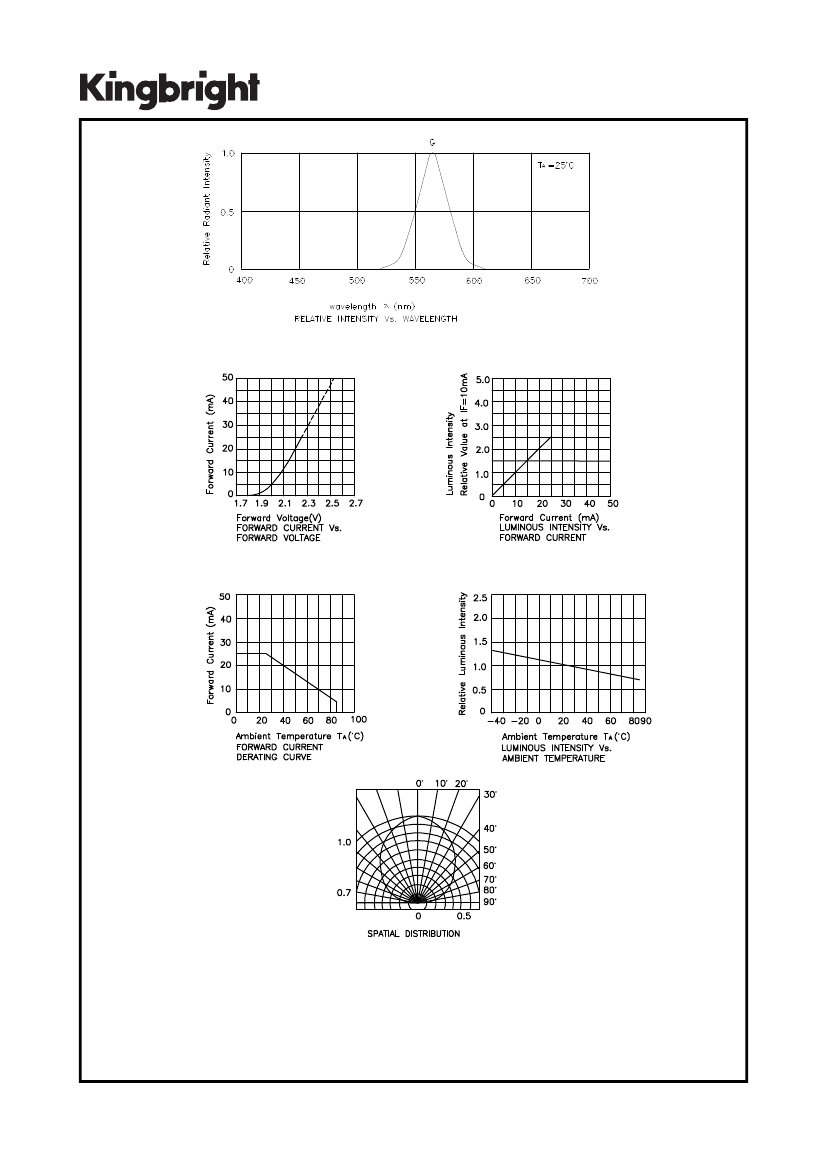

Green
L-103GDT
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAD9805
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: MAR/20/2005
DRAWN: H.Q.YUAN
PAGE: 3 OF 3
