BD826-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The transistor> BD826-10

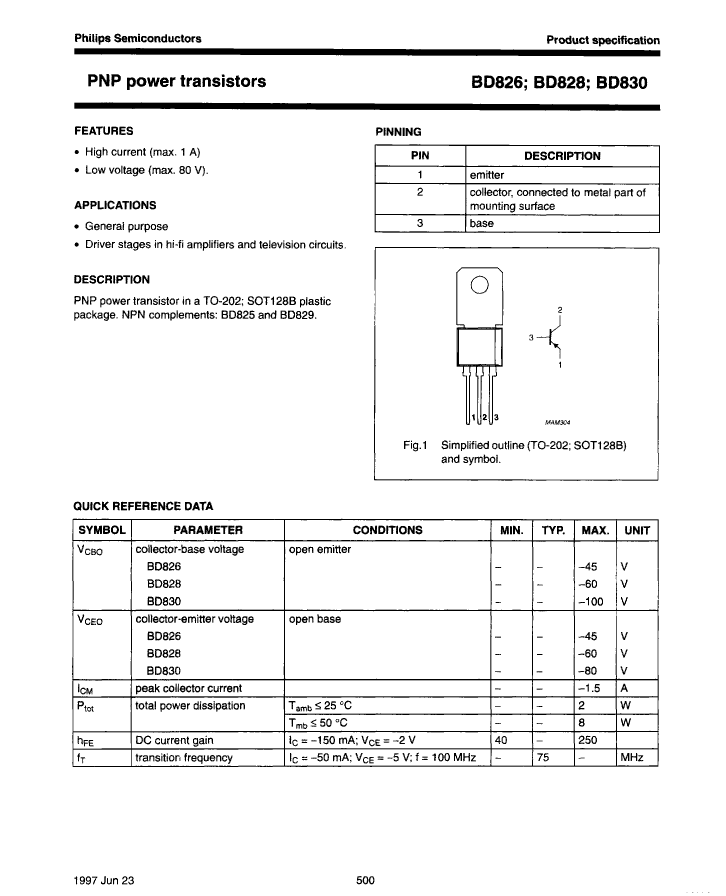

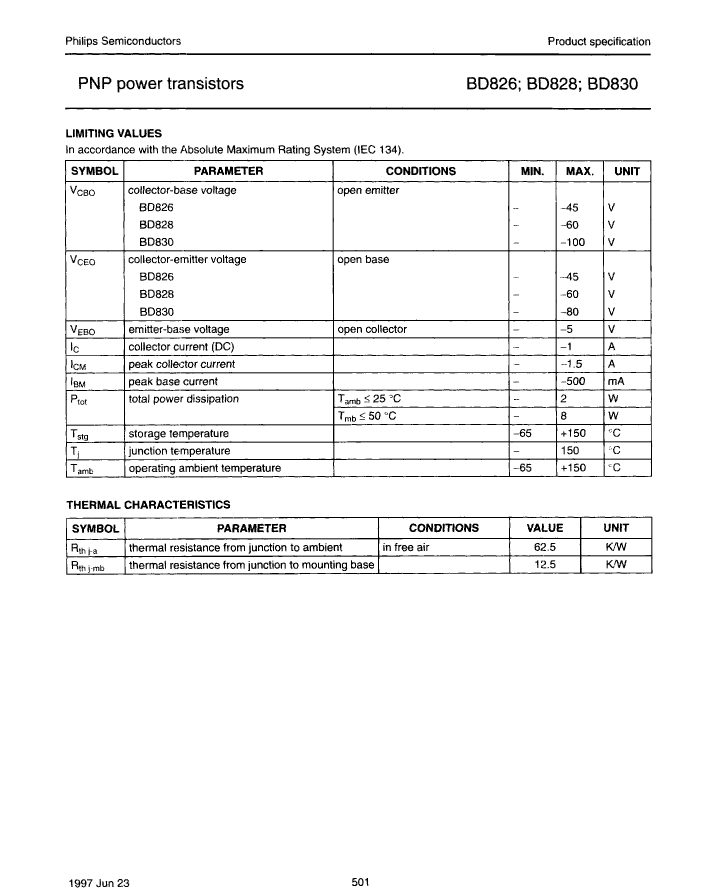

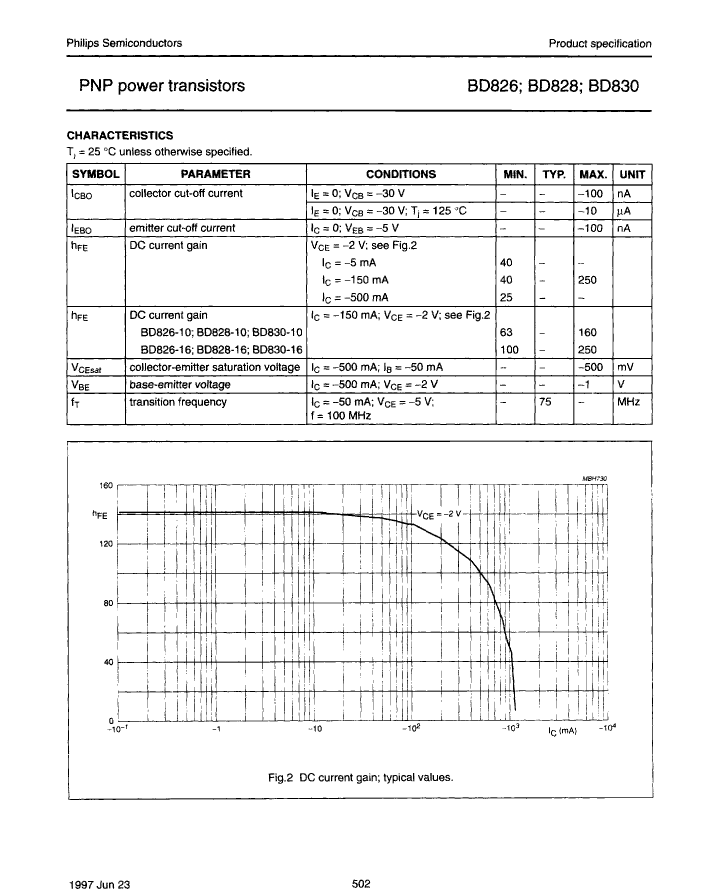

BD826-10: DescriptionTRANSISTOR 1 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power; CategoryThe transistor; File Size76KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BD826-10 Overview

TRANSISTOR 1 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power

BD826-10 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	63
JEDEC-95 code	TO-202
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	75 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

BD826-10 Related Products

	BD826-10	BD826-16	BD830-16	BD830-10	BD828	BD828-10	BD828-16
Description	TRANSISTOR 1 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power	TRANSISTOR 1 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power	TRANSISTOR 1 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power	TRANSISTOR 1 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power	1A, 60V, PNP, Si, POWER TRANSISTOR, TO-202	TRANSISTOR 1 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power	TRANSISTOR 1 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	45 V	45 V	80 V	80 V	60 V	60 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	63	100	100	63	25	63	100
JEDEC-95 code	TO-202	TO-202	TO-202	TO-202	TO-202	TO-202	TO-202
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz
