CFP7557-0350F: DescriptionCard Edge Connector, 57 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,; CategoryThe connector; File Size148KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/; Environmental Compliance

Download Datasheet Parametric Compare View All

CFP7557-0350F Overview

Card Edge Connector, 57 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,

CFP7557-0350F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ZIF, LOW PROFILE
body width	0.075 inch
subject depth	0.195 inch
body length	0.787 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.2418 mm
Rated current (signal)	0.3 A
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	57
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

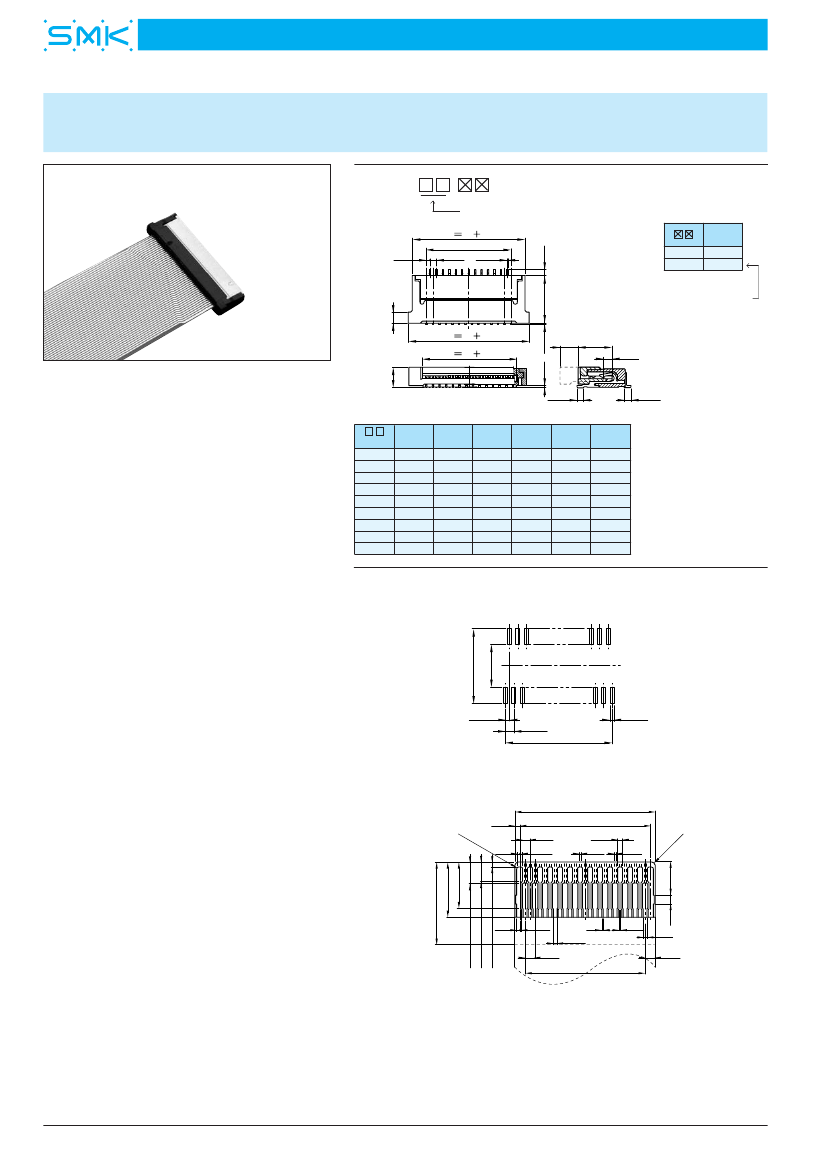

FPC Connectors

FP-03U

Series

0.3mm Pitch (SMT)

●

CFP75

0.3

0.6

50F

No. of Pins /

極数

2.5

0.5

0.125

1.8

1.9

4.3

39、51、57、65Pのみ

only 39、51、57 and 65P

1.65

3.1

0.8

0.65

■

Features

1. Upper contact design.

2. Low profile of 1.8mm height when mounted.

3. Our structure to hold the FPC temporary,

provides easy operability.

4. Positive locking by a one-touch sliding action.

5. Using the ZIF structure.

6. Supplied in the embossed taping with automatic

mounter.

0.2

0.55

0.15

3.2

0.55

No. of Pins

4.8

6.0

7.8

9.6

11.4

13.2

15.0

16.8

19.2

5.45

6.65

8.45

10.25

12.05

13.85

15.65

17.45

19.85

7.3

8.5

10.3

12.1

13.9

15.7

17.5

19.3

21.7

8.0

9.2

11.0

12.8

14.6

16.4

18.2

20.0

22.4

5.4

6.6

8.4

10.2

12.0

13.8

15.6

17.4

19.8

4.2

5.4

7.2

9.0

10.8

12.6

14.4

16.2

18.6

■

Specification

1. Rating : 0.3A, 50V AC/DC

2. Contact Resistance : 30mΩ max., initially

3. Insulation Resistance : 100MΩ min. at 100V DC

4. Withstanding Voltage : 100V AC (for one minute)

5. Operating Temperature Range : –40˚C to +85˚C

■

P.C. Board Dimension

取付基板参考図

5.4

●

Housing : Thermoplastic Resin,

Natural Color, 94V-0

●

Cover : Thermoplastic Resin, Black, 94V-0

●

Contact : Cu Alloy, Au Plating

0.3

0.6

3.1

■

Material and Plating

0.3

■ 特長

1. 接触部の½½は上側です。

2. 実装高さは1.8mmです。

3. FPC仮保持機構により、操½性を高めています。

4. カバーはFPCの挿入口を箱型構造とし、ワン

タッチスライド操½で確実なロックができます。

5. ZIF構造を採用しています。

6. 自動マウンタ対応でエンボステーピング方式に

よる供給です。

■

Applicable FPC Dimension

適合FPC参考寸法

(t=0.2±0.03)

0.3

2-R

0.1

A+0.6=E

(n-1) X 0.3=A

0.6

0.15

0.2

0.3

(0.1)

1. 定格電圧電流：AC/DC 50V 0.3A

2. 接触抵抗：初期30mΩ以下

3. 絶縁抵抗

：DC

100V 100MΩ以上

4. 耐電圧

：AC

100V (1分間)

5. ½用温度範囲

：–40℃∼+85℃

0.2

1.25

1.15

0.3

0.05

0.6

0.1

(0.1)

0.3

（導½間）

A-0.6=F

0.2

（導½幅）

■ 材質・表面処理

ハウジング：熱可塑性樹脂原色 94V-0

バー：熱可塑性樹脂黒色 94V-0

●

コンタクト：銅合金金めっき

●

カ

●

FPC plating to recommend : Au plating

推奨するFPCめっき：金めっき

0.5

0.6

■ 仕様

4.5

3.3

2.8

CFP7557-0350F Related Products

	CFP7557-0350F	CFP7539-0350F	CFP7551-0350F	CFP7565-0250F	CFP7565-0350F	CFP7580-1601F	CFP7584-1601F
Description	Card Edge Connector, 57 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,	Card Edge Connector, 39 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,	Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,	Card Edge Connector, 65 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,	Card Edge Connector, 65 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,	Card Edge Connector, 80 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 84 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ZIF, LOW PROFILE	ZIF, LOW PROFILE	ZIF, LOW PROFILE	ZIF, LOW PROFILE	ZIF, LOW PROFILE	ZIF, LOW PROFILE	ZIF, LOW PROFILE
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	57	39	51	65	65	80	84
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	-
Maker	SMK	SMK	SMK	SMK	SMK	-	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
Is Samacsys	N	-	N	N	N	-	-
body width	0.075 inch	0.075 inch	0.075 inch	0.071 inch	0.075 inch	-	-
subject depth	0.195 inch	0.195 inch	0.195 inch	0.195 inch	0.195 inch	-	-
body length	0.787 inch	0.575 inch	0.717 inch	0.882 inch	0.882 inch	-	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	-	-
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	-
Dielectric withstand voltage	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V	-	-
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	-	-
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	-	-
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	-	-
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	-
Plug contact pitch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	-	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	-
PCB row number	2	2	2	2	2	-	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	-	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-
PCB contact row spacing	4.2418 mm	4.2418 mm	4.2418 mm	4.2418 mm	4.2418 mm	-	-
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	-	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	-	-
