CAT93C46BSI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> CAT93C46BSI

CAT93C46BSI: DescriptionEEPROM, 128X8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8; Categorystorage; File Size260KB，8 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT93C46BSI Overview

EEPROM, 128X8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8

CAT93C46BSI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Catalyst
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	3 WIRE INTERFACE
Spare memory width	16
Maximum clock frequency (fCLK)	1 MHz
Data retention time - minimum	100
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	MICROWIRE
Maximum standby current	0.0001 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
write protect	SOFTWARE
Base Number Matches	1

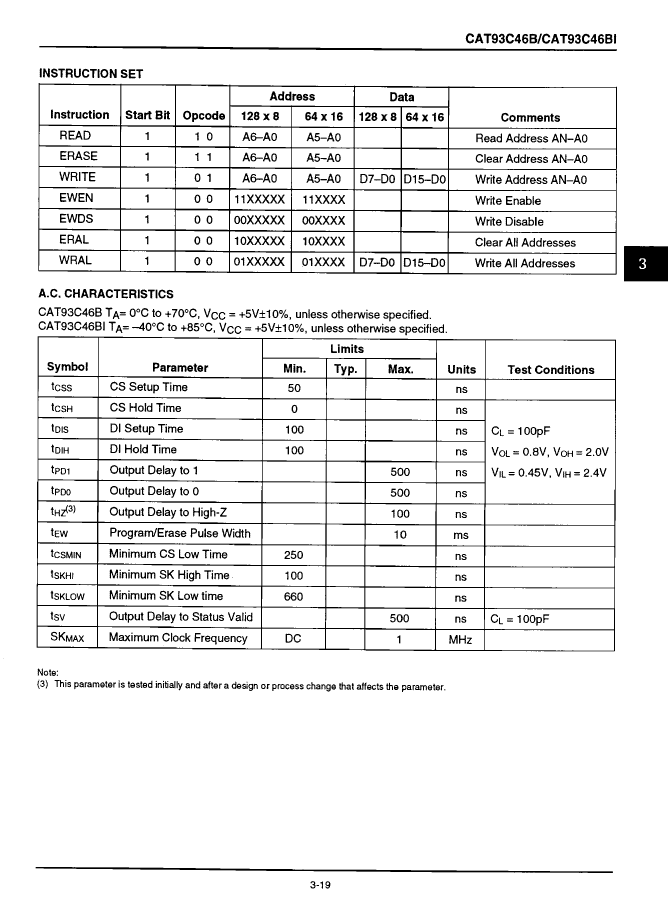

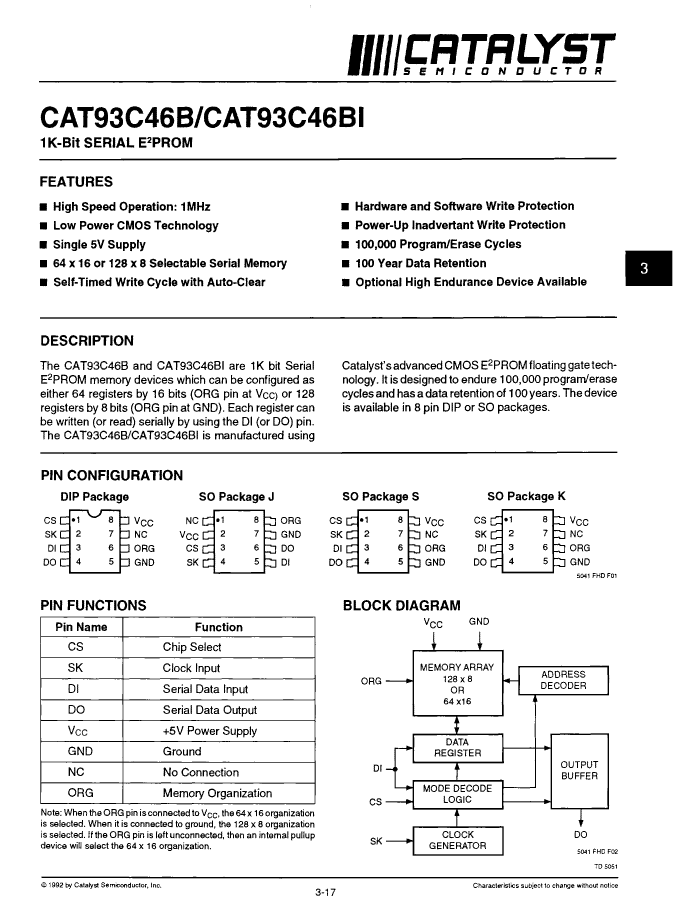

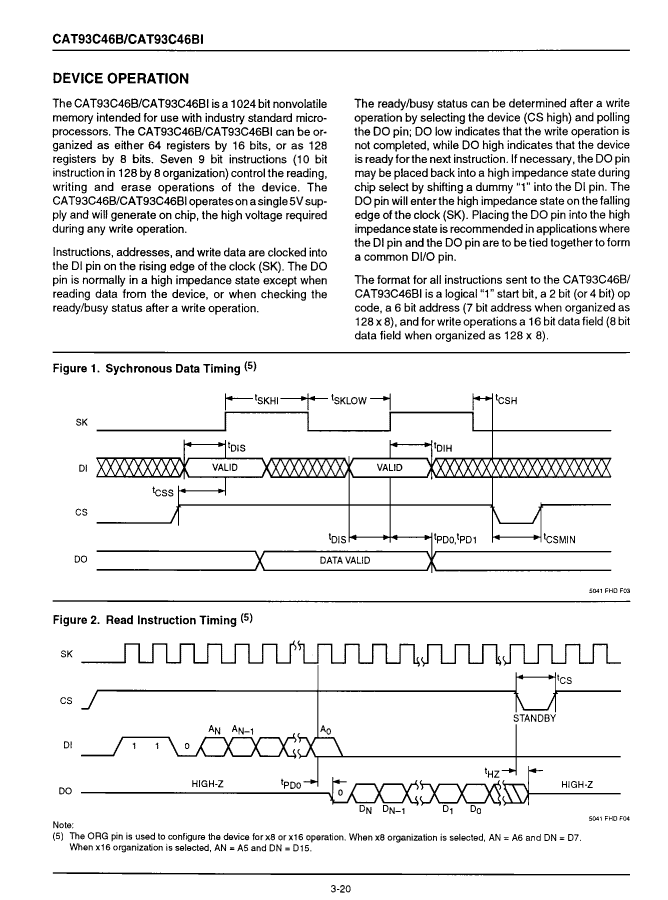

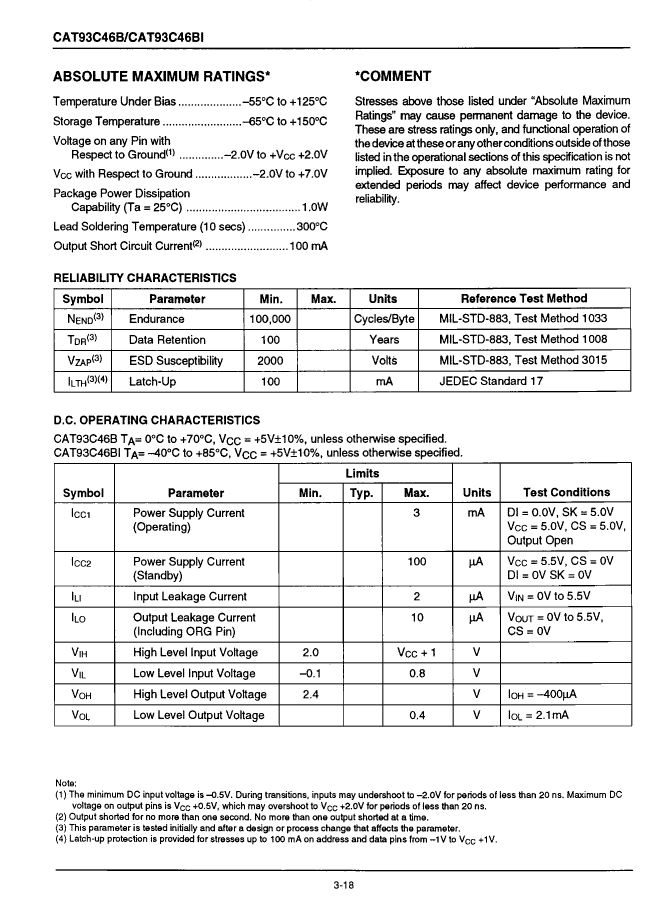

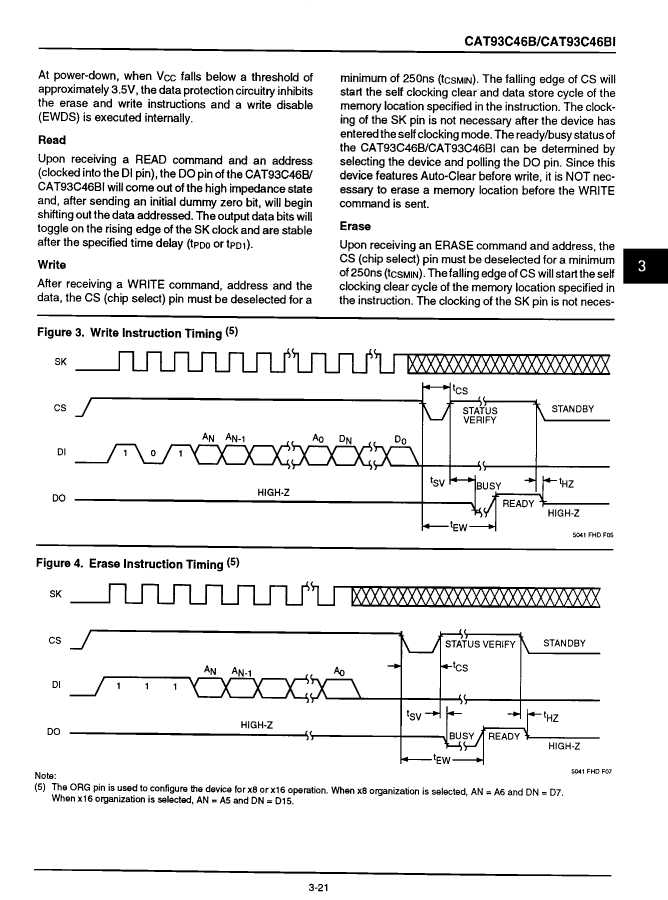

Preview

Download Datasheet

View All

CAT93C46BSI Related Products

	CAT93C46BSI	CAT93C46BS	CAT93C46BPI	CAT93C46BP	CAT93C46BJI	CAT93C46BJ	CAT93C46BK
Description	EEPROM, 128X8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 128X8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 128X8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8	EEPROM, 128X8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8	EEPROM, 128X8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 128X8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 128X8, Serial, CMOS, PDSO8, 0.210 INCH, EIAJ, SOIC-8
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst
Parts packaging code	SOIC	SOIC	DIP	DIP	SOIC	SOIC	SOIC
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.3
Contacts	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	3 WIRE INTERFACE	3 WIRE INTERFACE	3 WIRE INTERFACE	3 WIRE INTERFACE	3 WIRE INTERFACE	3 WIRE INTERFACE	3 WIRE INTERFACE
Spare memory width	16	16	16	16	16	16	16
Maximum clock frequency (fCLK)	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Data retention time - minimum	100	100	100	100	100	100	100
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	4.9 mm	4.9 mm	9.27 mm	9.27 mm	4.9 mm	4.9 mm	5.3 mm
memory density	1024 bit	1024 bit	1024 bit	1024 bit	1024 bit	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
word count	128 words	128 words	128 words	128 words	128 words	128 words	128 words
character code	128	128	128	128	128	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	85 °C	70 °C	70 °C
organize	128X8	128X8	128X8	128X8	128X8	128X8	128X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	DIP8,.3	DIP8,.3	SOP8,.25	SOP8,.25	SOP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	4.57 mm	4.57 mm	1.75 mm	1.75 mm	2.03 mm
Serial bus type	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	3.9 mm	7.62 mm	7.62 mm	3.9 mm	3.9 mm	5.25 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
write protect	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE
