LMU18GM45 datasheet, PDF - EEWORLD Datasheet

LMU18GM45: DescriptionMultiplier, 16-Bit, CMOS, CPGA84, CERAMIC, PGA-84; CategoryMicrocontrollers and processors; File Size329KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

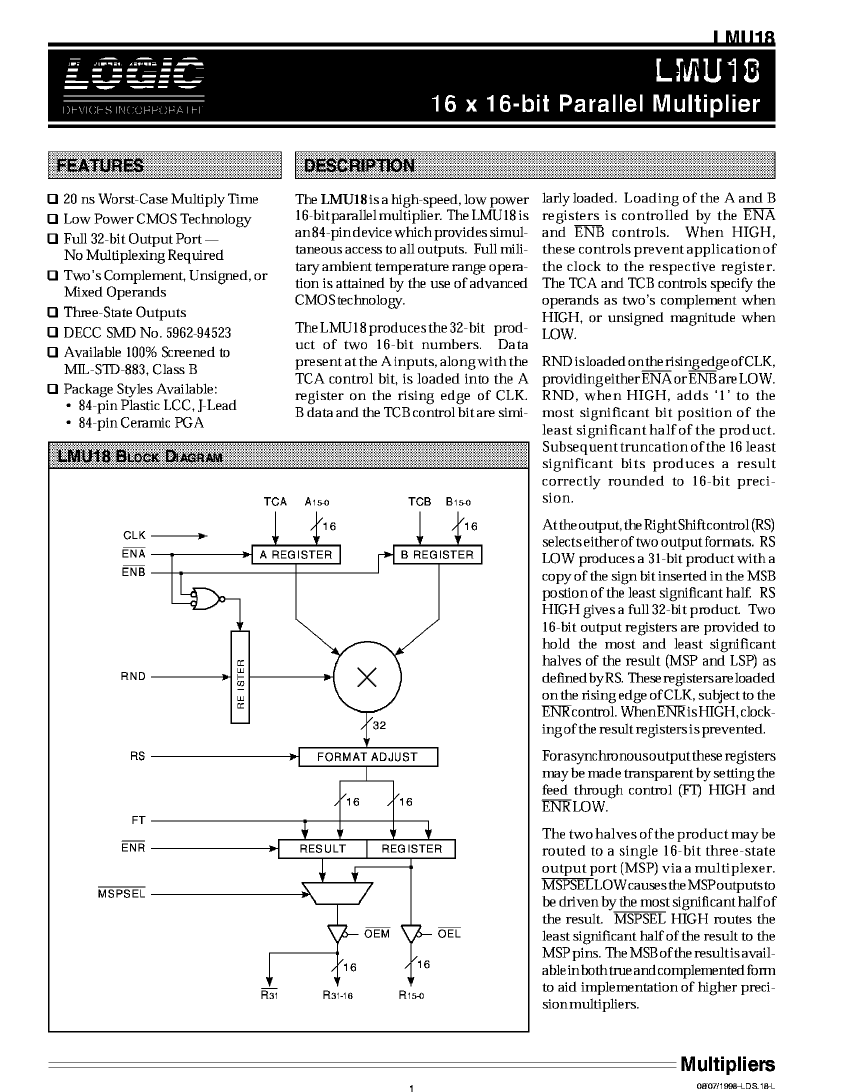

LMU18GM45 Overview

Multiplier, 16-Bit, CMOS, CPGA84, CERAMIC, PGA-84

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Is Samacsys	N

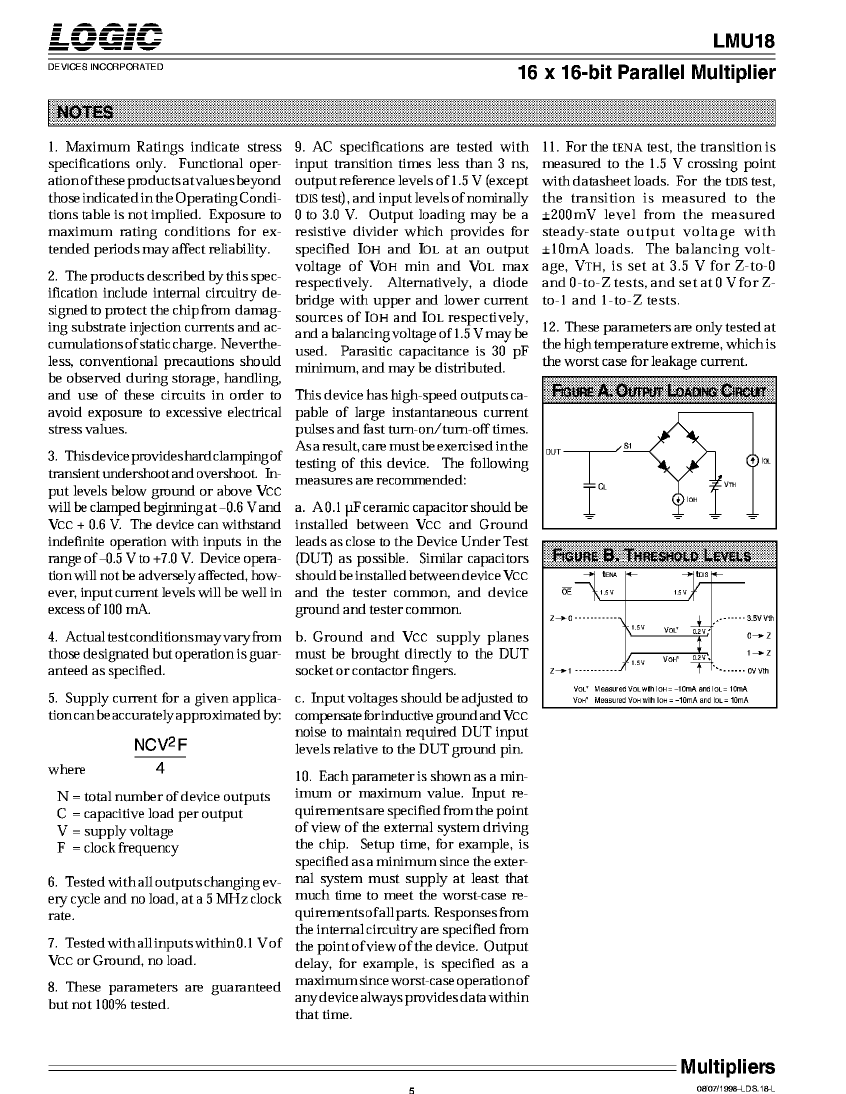

Other features	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
boundary scan	NO

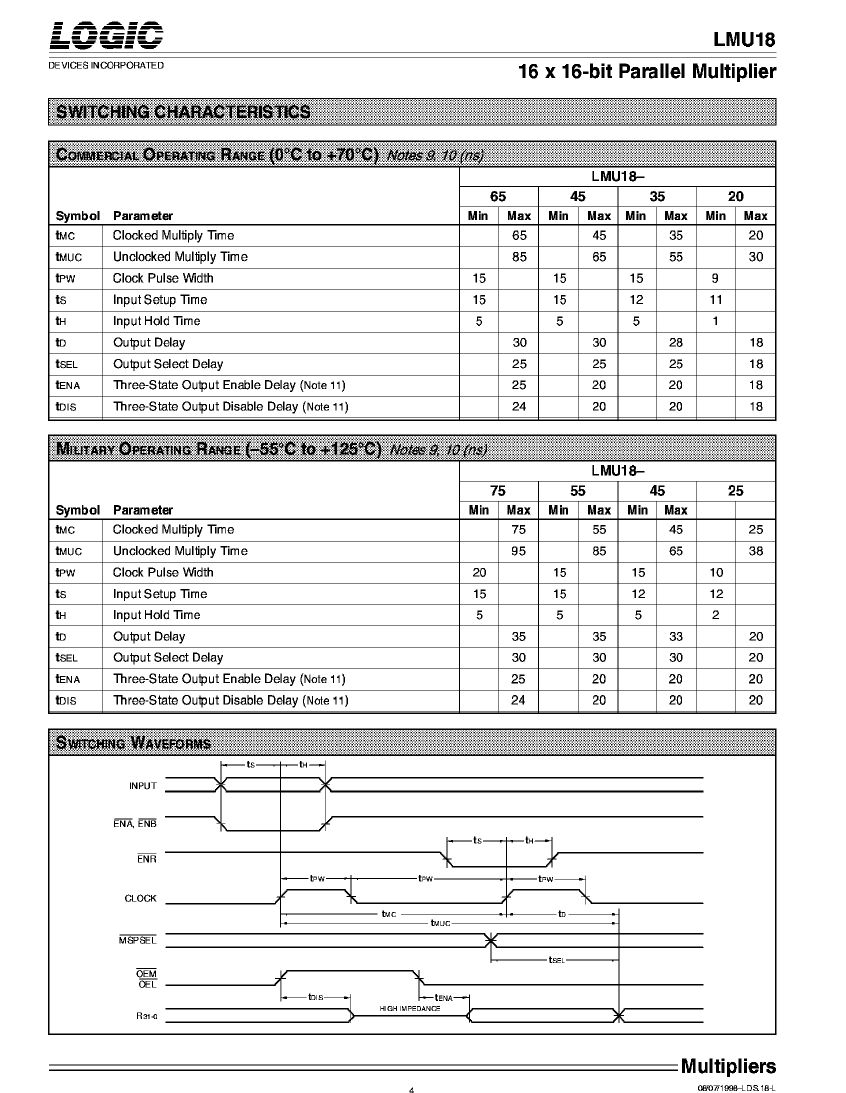

maximum clock frequency	22.22 MHz

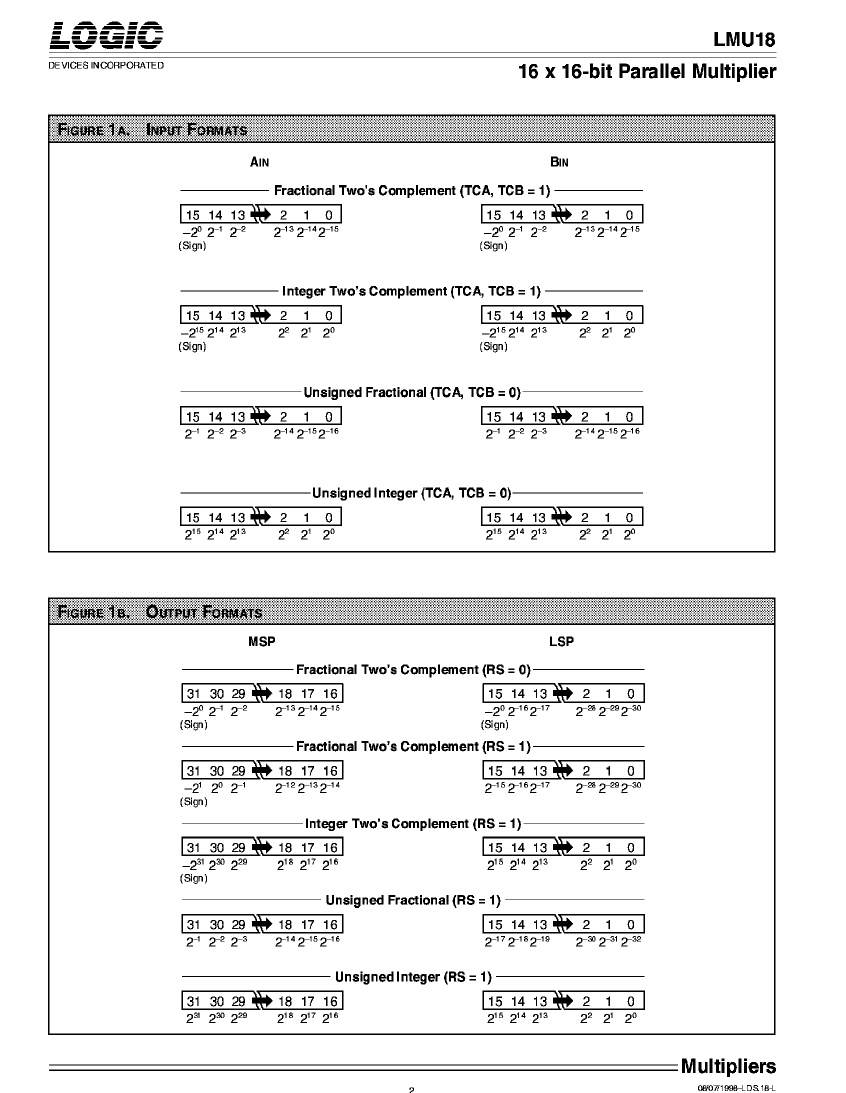

External data bus width	16
JESD-30 code	S-CPGA-P84
JESD-609 code	e0
length	28.0416 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	84

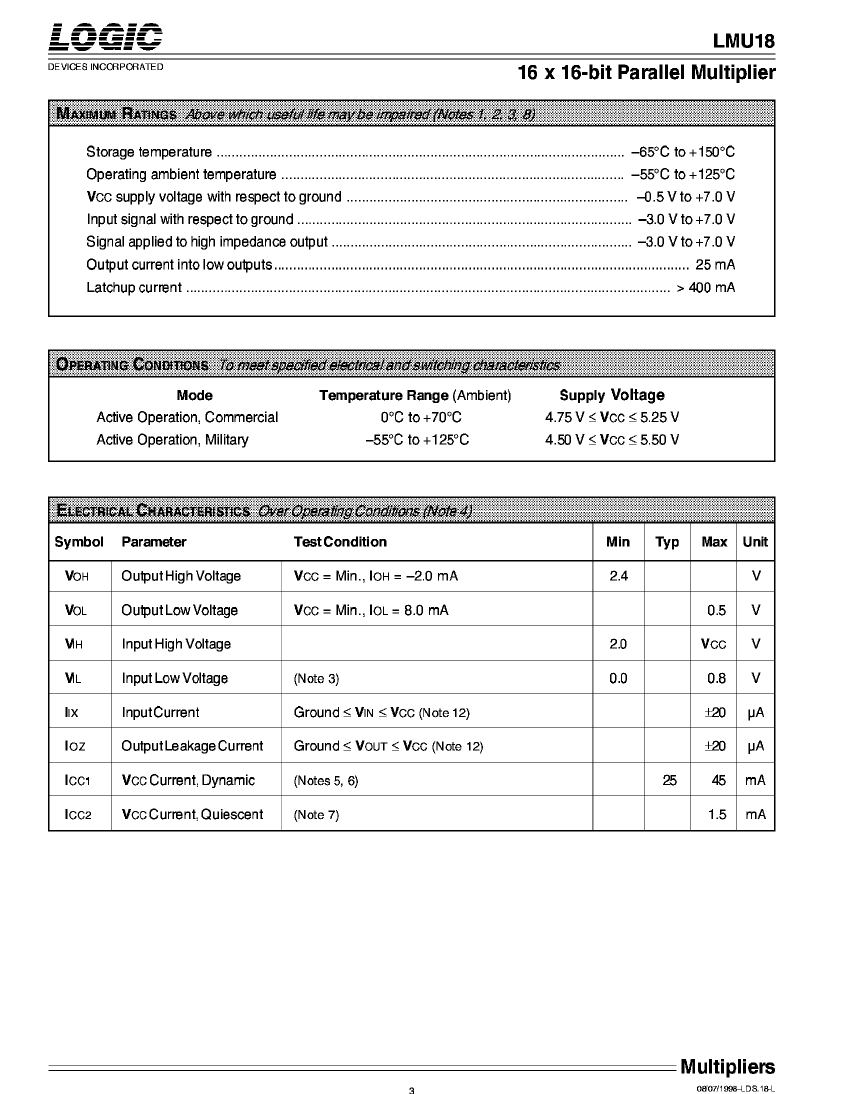

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	32
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.445 mm
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	28.0416 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER
Base Number Matches	1
