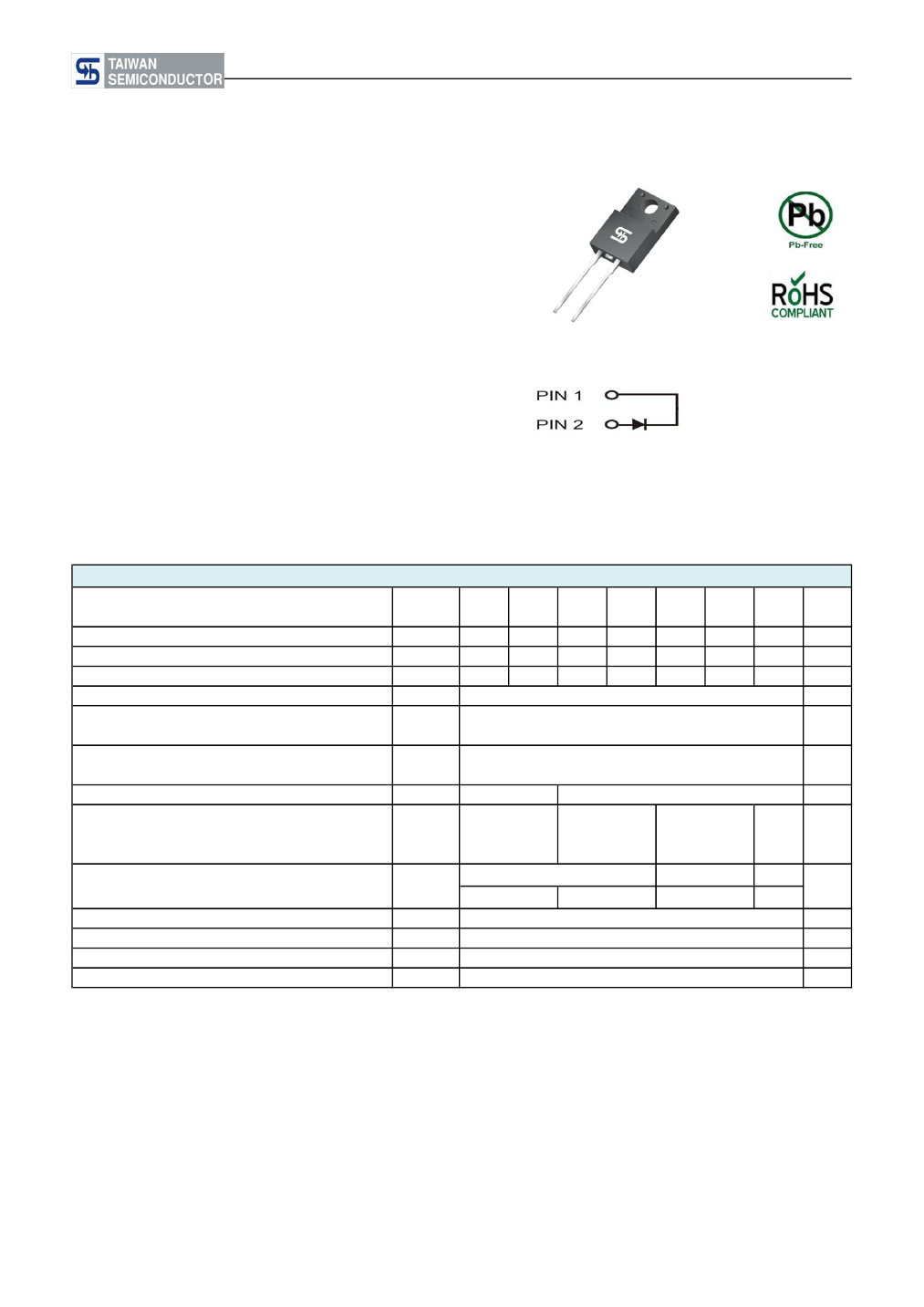

MBRF1635 - MBRF16150
Taiwan Semiconductor
CREAT BY ART
16A, 35V - 150V Isolated Schottky Barrier Rectifiers
FEATURES
- Low power loss, high efficiency
- Guard ring for over-voltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
1
2
MECHANICAL DATA
Case:
ITO-220AC
Molding compound: UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7 g (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak repetitive forward current
(Rated V
R
, square wave, 20KHz)
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Peak repetitive reverse surge current (Note 1)
Maximum instantaneous forward voltage (Note 2)
I
F
=16A, T
J
=25°C
I
F
=16A, T
J
=125°C
Maximum reverse current @ rated V
R
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
RRM
V
F
1
0.63
0.57
I
R
dV/dt
R
θJC
T
J
T
STG
0.5
15
10
10000
3
- 55 to +150
- 55 to +150
0.75
0.65
MBRF MBRF MBRF MBRF MBRF MBRF MBRF
1635
35
24
35
1645
45
31
45
1650
50
35
50
1660
60
42
60
16
32
150
0.5
0.85
0.75
0.3
7.5
0.95
0.92
0.1
5
mA
V/μs
°C/W
°C
°C
1690 16100 16150
90
63
90
100
70
100
150
105
150
UNIT
V
V
V
A
A
A
A
V
Version: J1512
MBRF1635 - MBRF16150
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
MBRF16xx
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
ITO-220AC
PACKING
50 / Tube
Note 1: "xx" defines voltage from 35V (MBRF1635) to 150V (MBRF16150)
EXAMPLE
EXAMPLE P/N
MBRF1660HC0G
PART NO.
MBRF1660
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

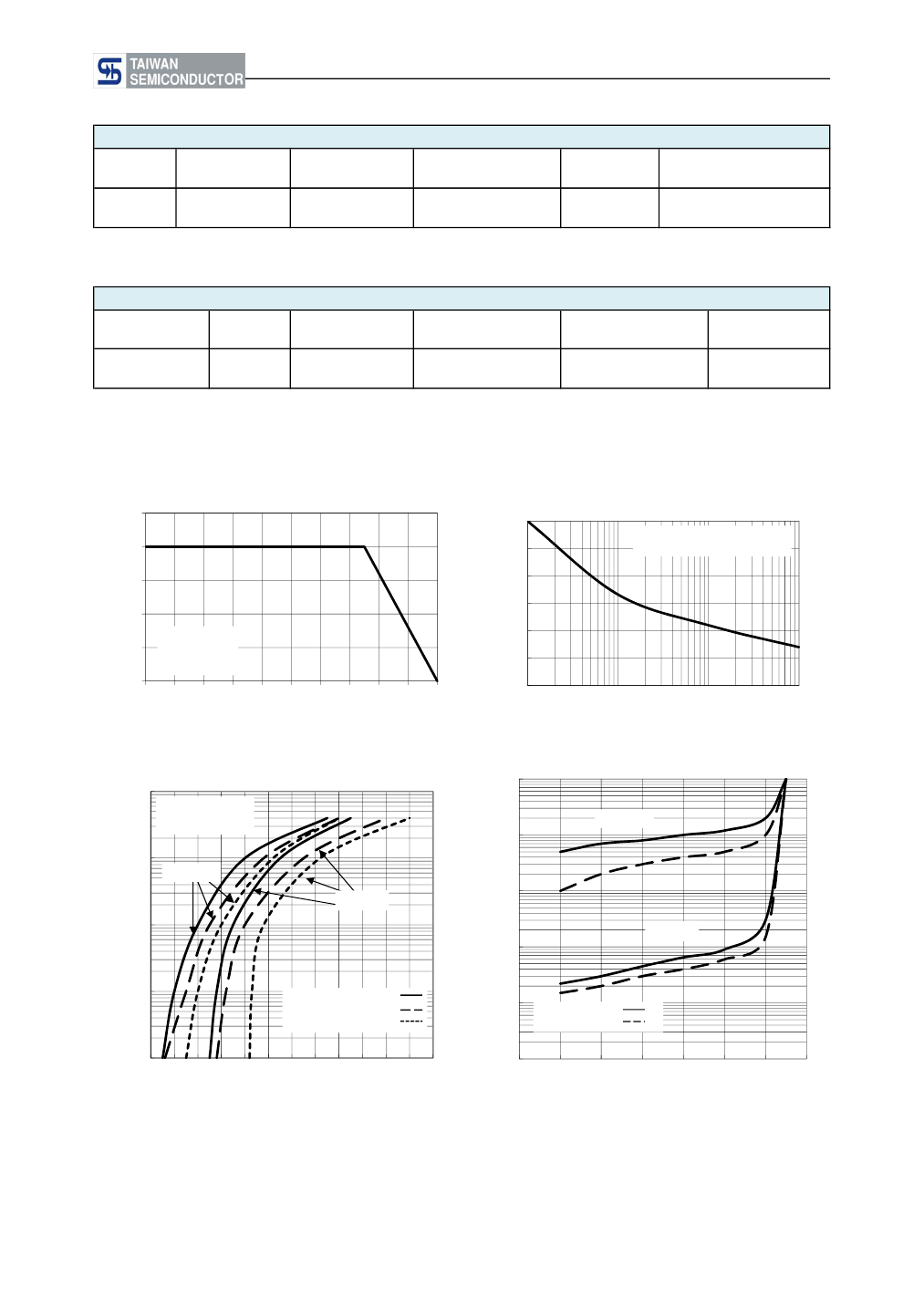

FIG.1 FORWARD CURRENT DERATING CURVE
20
16
12
8
4
0
50
60
70
80
90
100
110
120
130
140
150
Resistive or
inductive load
with heat sink
150
125
100
75
50
25
0
0
1
10
100
8.3ms single half sine wave
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
PEAK FORWARD SURGE CURRENT (A)
AVERAGE FORWARD CURRENT (A)
CASE TEMPERATURE (
°
C)
NUMBER OF CYCLES AT 60 Hz
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
Pulse Width=300μs
1% Duty Cycle
INSTANTANEOUS FORWARD CURRENT (A)
INSTANTANEOUS REVERSE CURRENT (mA)
10
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
T
J
=125°C
10
T
J
=125°C
T
J
=25°C
1
1
T
J
=25°C
0.1
0.1
MBRF1635-1645
MBRF1650-1660
MBRF1690-16150
0.01
MBRF1635-1645
MBRF1650-16150
0.01
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
1
1.1 1.2
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version: J1512
MBRF1635 - MBRF16150
Taiwan Semiconductor
CREAT BY ART

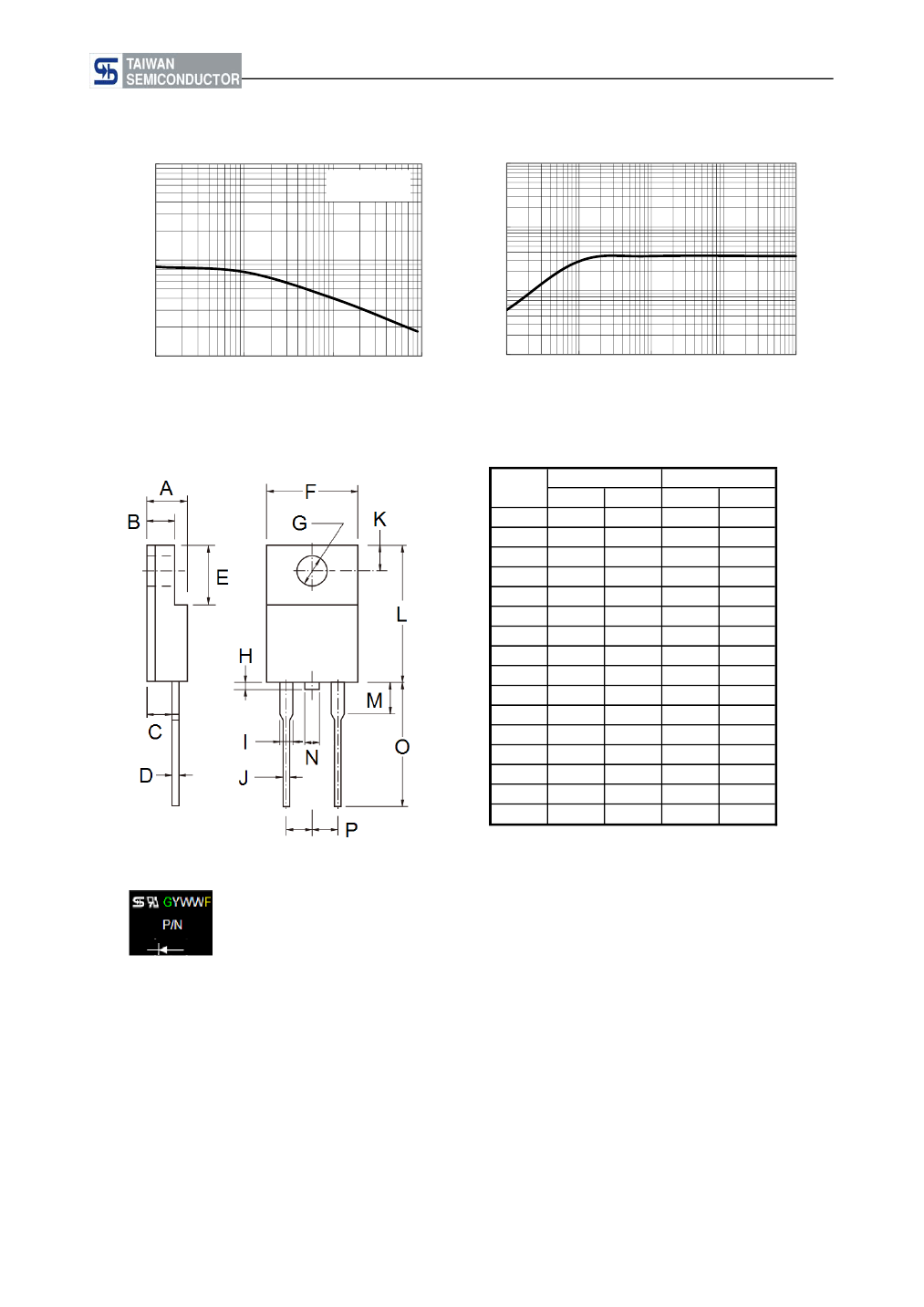

FIG. 5 TYPICAL JUNCTION CAPACITANCE
TRANSIENT THERMAL IMPEDANCE (°C/W)
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
100
10000
JUNCTION CAPACITANCE (pF)
A
f=1.0MHz
Vsig=50mVp-p
10
1000
1
100
0.1
1
10
100
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
ITO-220AC
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.00
0.95
0.50
2.40
14.80
-
-
12.60
4.95
Max
4.70
3.10
2.90
0.76
6.90
10.30
3.40
1.60
1.45
0.90
3.20
15.50
4.10
1.80
13.80
5.20
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.000
0.037
0.020
0.094
0.583
-
-
0.496
0.195
Max
0.185
0.122
0.114
0.030
0.272
0.406
0.134
0.063
0.057
0.035
0.126
0.610
0.161
0.071
0.543
0.205
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: J1512
MBRF1635 - MBRF16150
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
