104TL1-111P datasheet, PDF - EEWORLD Datasheet

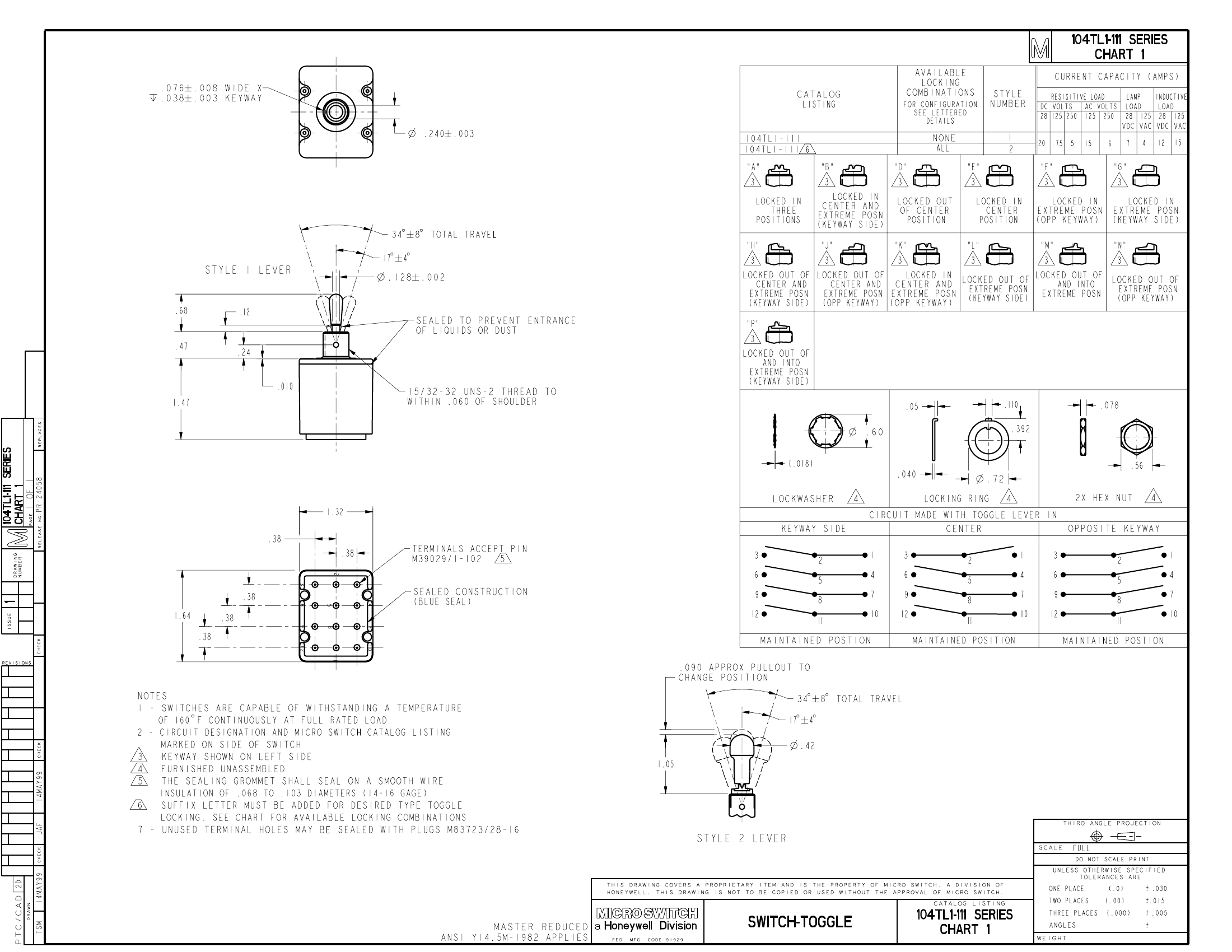

104TL1-111P: DescriptionToggle Switch, 4PDT, Latched, 20A, 28VDC, Wire Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size201KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

104TL1-111P Overview

Toggle Switch, 4PDT, Latched, 20A, 28VDC, Wire Terminal, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	33.53 mm
body height	37.34 mm
Body length or diameter	41.66 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	104TL1-111
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	4PDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1
