PCB-1209-106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PCB-1209-106

PCB-1209-106: DescriptionSingle Color LED, High Efficiency Green, Diffused Green, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size94KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

PCB-1209-106 Overview

Single Color LED, High Efficiency Green, Diffused Green, T-1, 3mm,

PCB-1209-106 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	DIFFUSED GREEN
Nominal luminous intensity	50.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	18.92 mm
method of packing	BULK
peak wavelength	568 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All



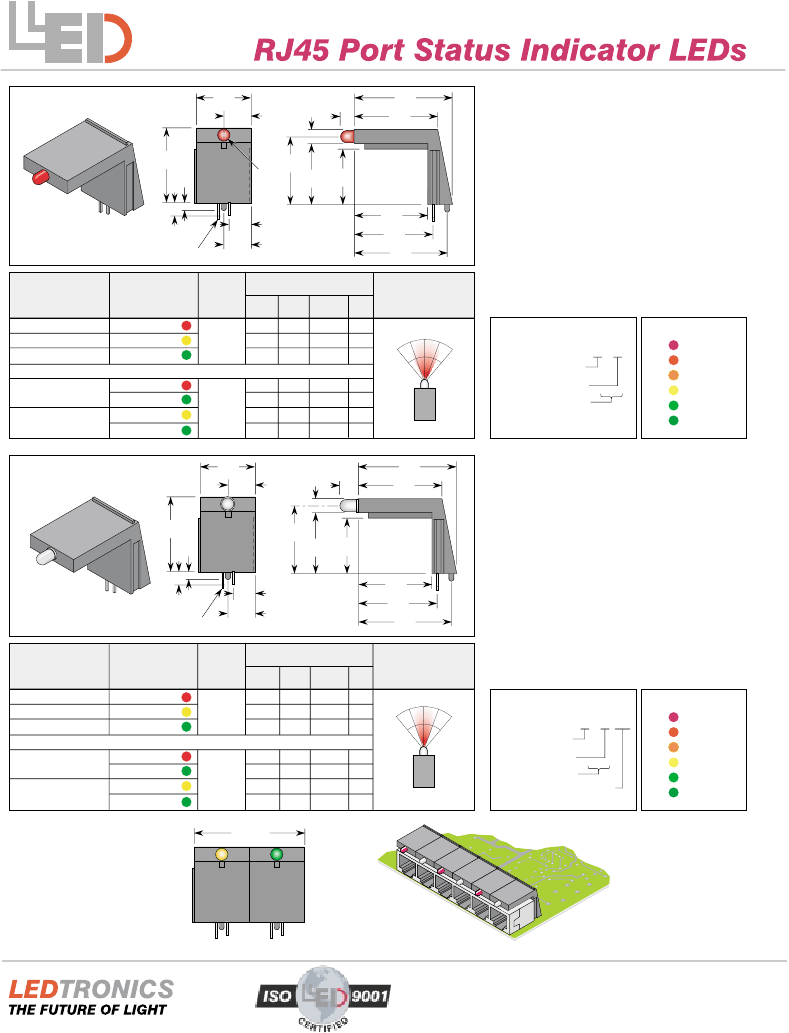

RJ45 Port Status Indicator LEDs

3mm Single-Position Standard Dome

PCB-1209-10X

.550

[13.97]

.275

[6.99]

.140

[3.56]

.140

[3.56]

.972

[24.69]

.832

[21.13]

.745

[18.92]

.075

[1.91]

Ø.120

[3.05]

.675

[17.15]

.605

[15.37]

.550

[13.97]

.140

[3.56]

ANODE (+)

.225

[5.72]

.275

[6.99]

.730

[18.54]

.780

[19.81]

.922

[23.42]

Part Number

PCB-1209-102

PCB-1209-104

PCB-1209-106

LED Color

HE RED

YELLOW

HE GREEN

Lens

Type/

Color

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

λP

typ

typ/max nm

typ

Full Viewing

Angle

Part number code for

additional combinations

For units with one LED

Color code

DIFFUSED

32.0

29.0

50.0

5.5

10.0

4.5

8.0

2.0/2.6 635

2.0/2.6 585

2.2/2.6 568

2.0/2.6 635

2.2/2.6 568

2.1/2.6 585

2.2/2.6 568

55˚

PCB-1209-XXX

Number of arrayed units

Color of LED

Bicolor option

UL RED

HE RED

ORANGE

YELLOW

HE GREEN

P GREEN

3mm Std Dome Bi-Color LED

HE RED

PCB-1209-1RG

HE GREEN

PCB-1209-1YG

YELLOW

HE GREEN

DIFFUSED

PCB-1209-10X-01

.550

[13.97]

.275

[6.99]

.140

[3.56]

.972

[24.69]

.210

[5.3]

.832

[21.13]

.745

[18.92]

.075

[1.91]

.675

[17.15]

.605

[15.37]

.550

[13.97]

.140

[3.56]

ANODE (+)

.225

[5.72]

.275

[6.99]

.730

[18.54]

.780

[19.81]

.922

[23.42]

Part Number

PCB-1209-102-01

PCB-1209-104-01

PCB-1209-106-01

LED Color

HE RED

YELLOW

HE GREEN

Lens

Type/

Color

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

λP

typ

typ/max nm

typ

Full Viewing

Angle

Part number code for

additional combinations

For units with one LED

DIFFUSED

32.0

42.0

45.0

5.5

10.0

4.5

8.0

2.0/2.6 635

2.1/2.6 585

2.2/2.6 568

2.0/2.6 635

2.2/2.6 568

2.1/2.6 585

2.2/2.6 568

Color code

PCB-1209-XXX-01

Number of arrayed units

Color of LED

UL RED

HE RED

ORANGE

YELLOW

HE GREEN

P GREEN

3mm Std Dome Bi-Color LED

HE RED

PCB-1209-1RG-01

HE GREEN

PCB-1209-1YG-01

YELLOW

HE GREEN

DIFFUSED

40˚

Bicolor option

Narrower 40˚ beam option

)

Arrayable Design

1.100 MAX

[27.94]

PCB-1209-20X



23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log 055C Rev 12-99

PCB-1209-106 Related Products

	PCB-1209-106	PCB-1209-102	PCB-1209-102-01	PCB-1209-104	PCB-1209-104-01	PCB-1209-106-01	PCB-1209-1YG-01	PCB-1209-1RG-01	PCB-1209-1RG
Description	Single Color LED, High Efficiency Green, Diffused Green, T-1, 3mm,	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm,	Single Color LED, High Efficiency Green, Diffused Green, T-1, 3mm,	Dual Color LED, Yellow/high Efficiency Green, Diffused White, T-1, 3mm,	Dual Color LED, High Efficiency Red/high Efficiency Green, Diffused White, T-1, 3mm,	Dual Color LED, High Efficiency Red/high Efficiency Green, Diffused White, T-1, 3mm,
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	YELLOW	YELLOW	HIGH EFFICIENCY GREEN	YELLOW/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	DIFFUSED GREEN	DIFFUSED RED	DIFFUSED RED	DIFFUSED	DIFFUSED	DIFFUSED GREEN	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE
Nominal luminous intensity	50.0 mcd	32.0 mcd	32.0 mcd	29.0 mcd	42.0 mcd	45.0 mcd	4.5/8.0 mcd	5.5/10.0 mcd	5.5/10.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	568 nm	635 nm	635 nm	585 nm	585 nm	568 nm	585/568 nm	635/568 nm	635/568 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
perspective	55 deg	55 deg	40 deg	55 deg	40 deg	40 deg	40 deg	40 deg	55 deg
Base Number Matches	1	1	1	1	1	1	1	-	-
