520243-3: DescriptionPHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL,LATCH; CategoryThe connector The connector; File Size730KB，13 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

520243-3 Overview

PHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL,LATCH

520243-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TRAY LOADED
Board mount options	MOUNTING FLANGE
body width	0.685 inch
subject depth	0.815 inch
body length	0.735 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Installation option 1	LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Plating thickness	50u inch
Rated current (signal)	0.2 A
Guideline	CSA, UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

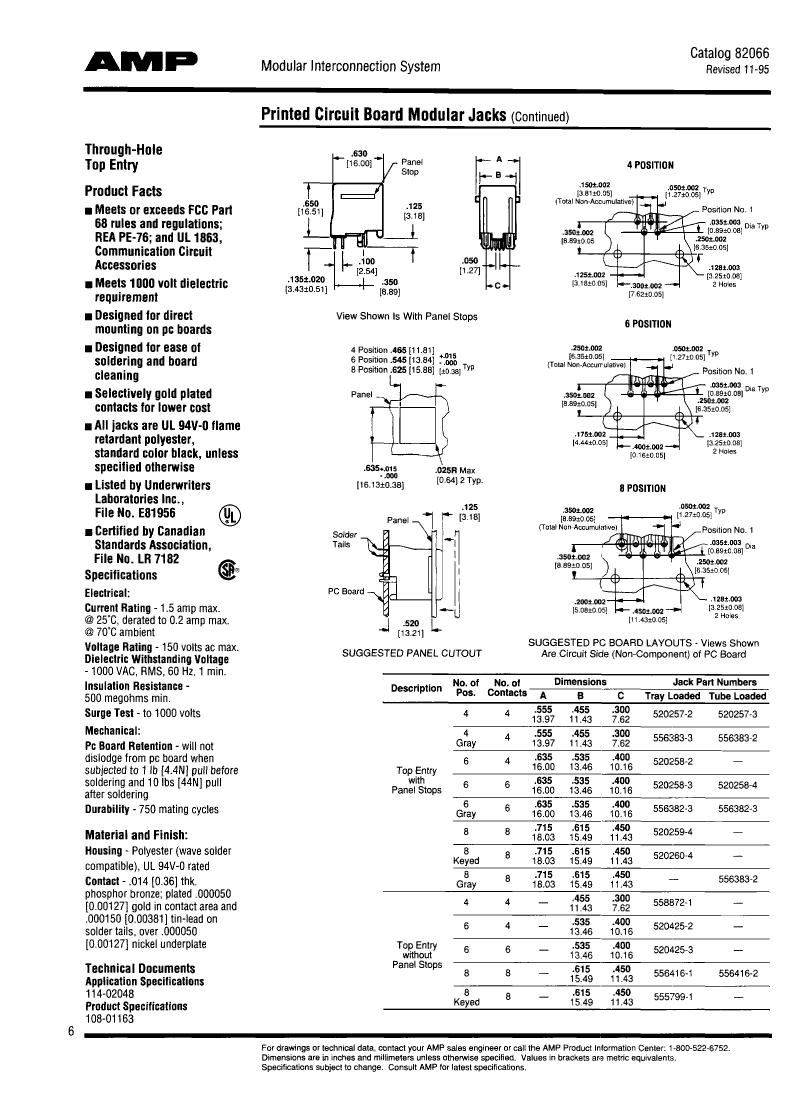

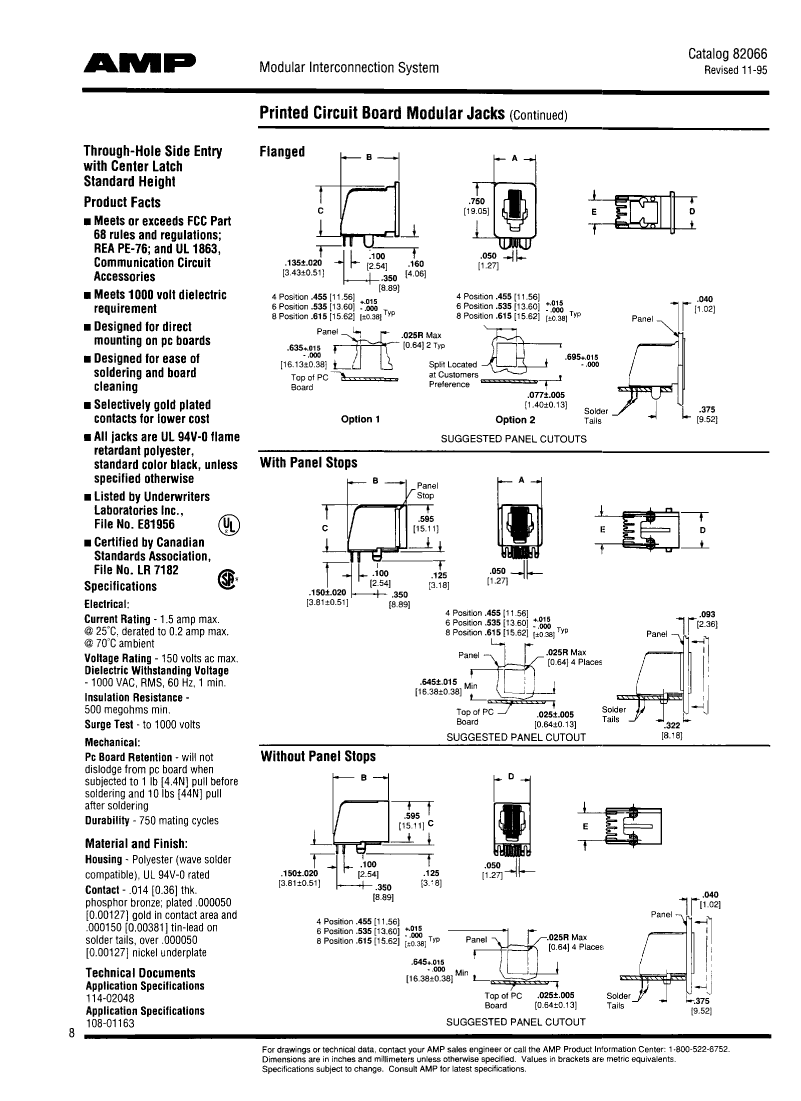

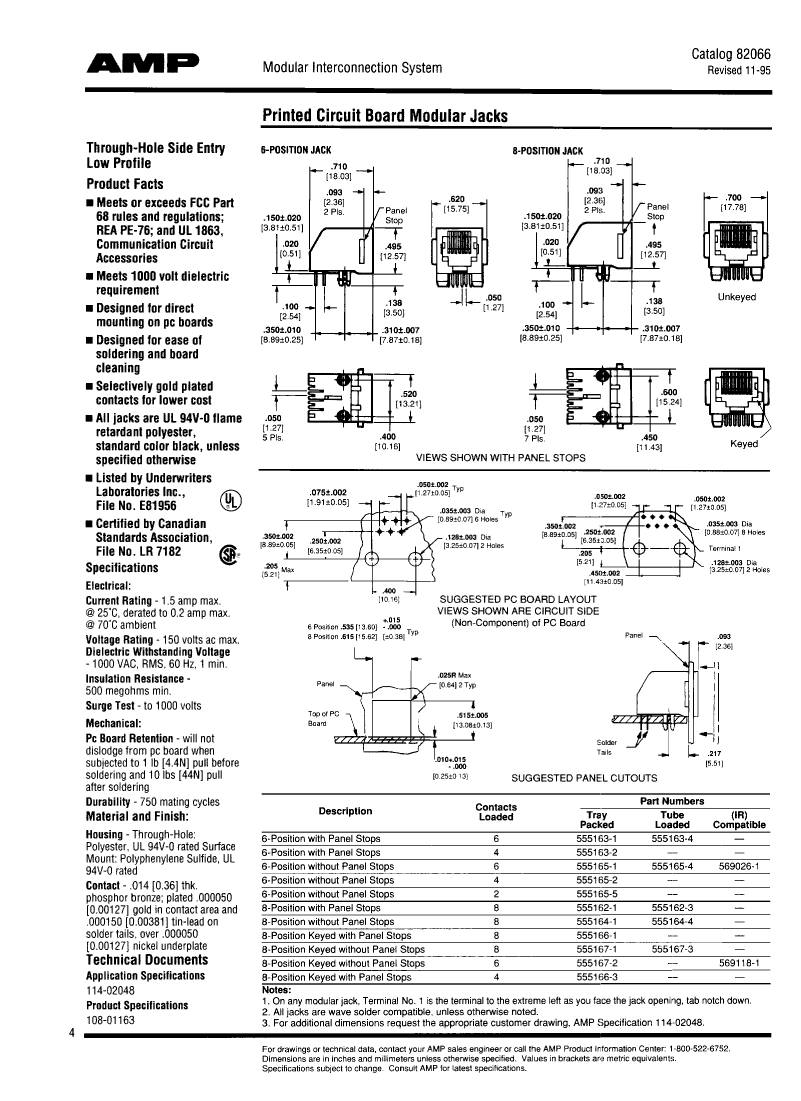

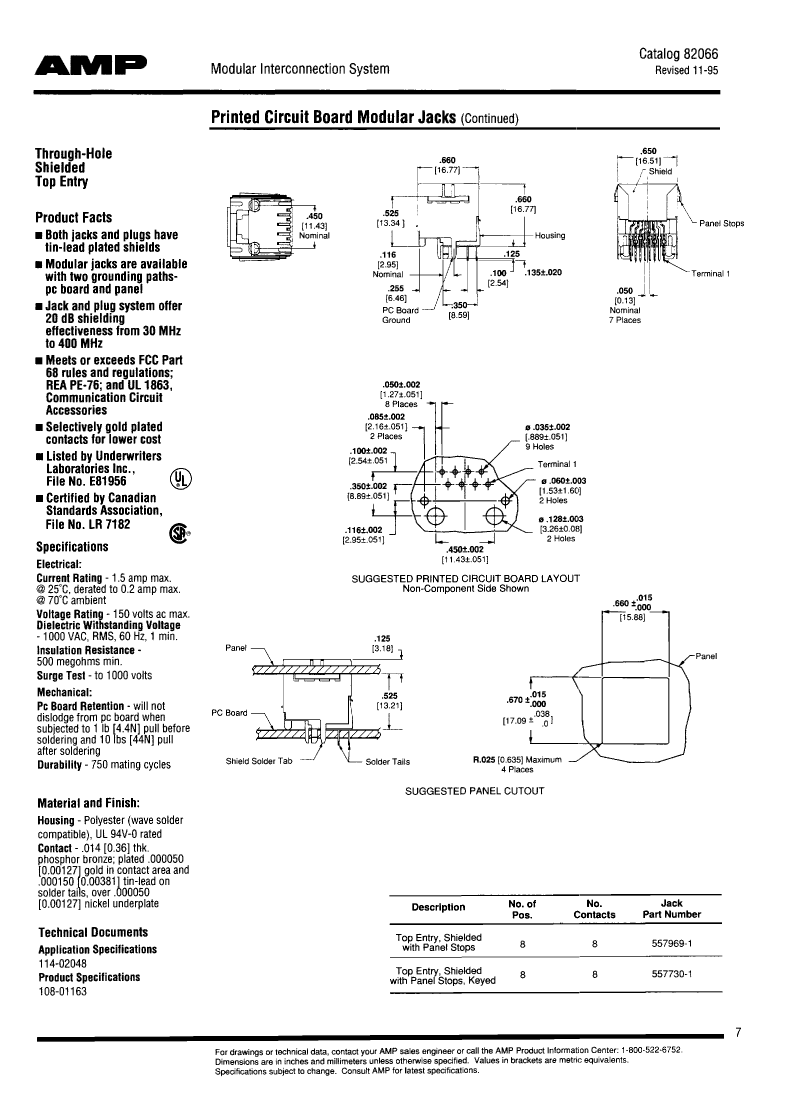

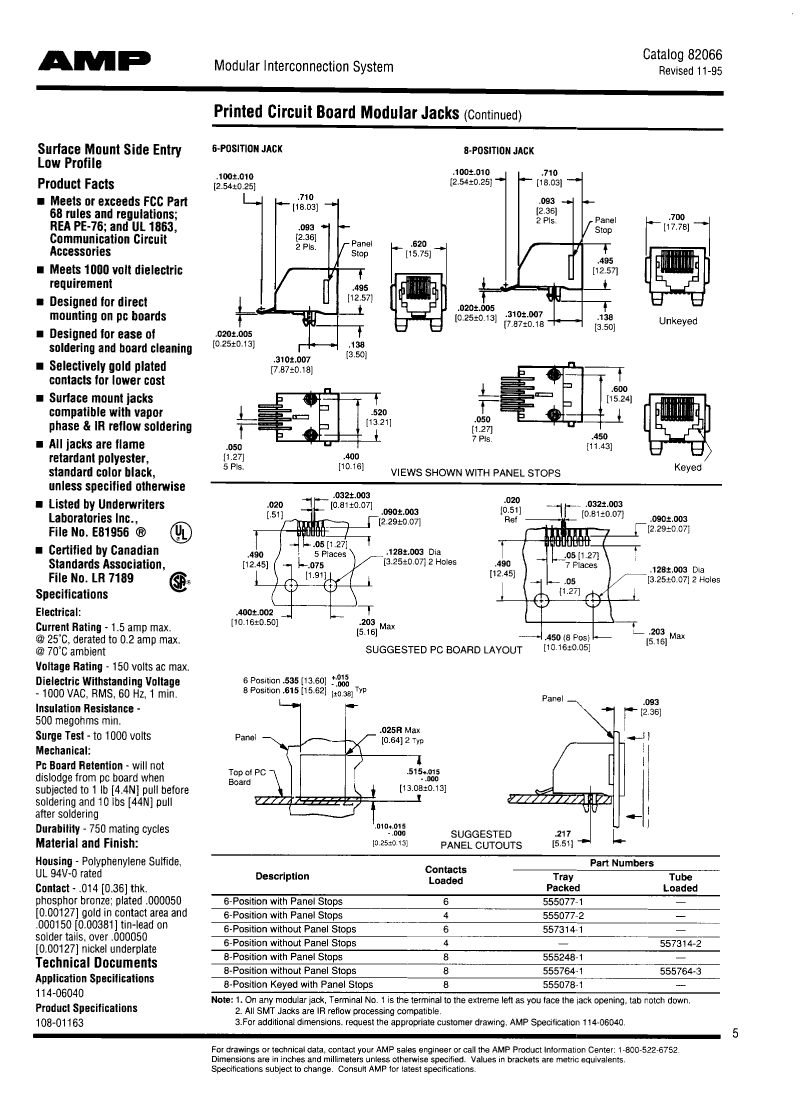

Preview

Download Datasheet

View All

520243-3 Related Products

	520243-3	215876-6	215875-3	555166-3	555162-3	215877-4	215876-7	557565-1	215878-2
Description	PHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL,LATCH	PHONE CONNECTOR,PCB MNT,6 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,4 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,6 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,56 CONTACTS,SKT,PC TAIL TERMINAL	PHONE CONNECTOR,PCB MNT,8 CONTACTS,SKT,PC TAIL TERMINAL
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	JACK	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1	1	7	1
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	6	4	8	8	8	6	56	8
Other features	TRAY LOADED	-	-	KEYED, PANEL STOPS,TRAY PACKED	PANEL STOPS,TUBE LOADED	-	-	7 PORT, 8-POSITION EACH	KEYED
Board mount options	MOUNTING FLANGE	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-	SPLIT BOARD LOCK
body width	0.685 inch	0.453 inch	0.453 inch	0.7 inch	0.7 inch	0.453 inch	0.453 inch	-	0.453 inch
subject depth	0.815 inch	0.713 inch	0.713 inch	0.495 inch	0.495 inch	0.713 inch	0.713 inch	-	0.713 inch
body length	0.735 inch	0.52 inch	0.441 inch	0.71 inch	0.71 inch	0.598 inch	0.52 inch	-	0.598 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	-	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V
Durability	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	-	750 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	-	500000000 Ω
Insulator color	BLACK	GRAY	GRAY	BLACK	BLACK	GRAY	GRAY	-	GRAY
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	-	POLYESTER
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	-	50u inch
Rated current (signal)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	-	0.2 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	-	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal length	0.135 inch	0.126 inch	0.126 inch	0.138 inch	0.138 inch	0.126 inch	0.126 inch	-	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Base Number Matches	1	1	1	1	1	1	-	-	-
