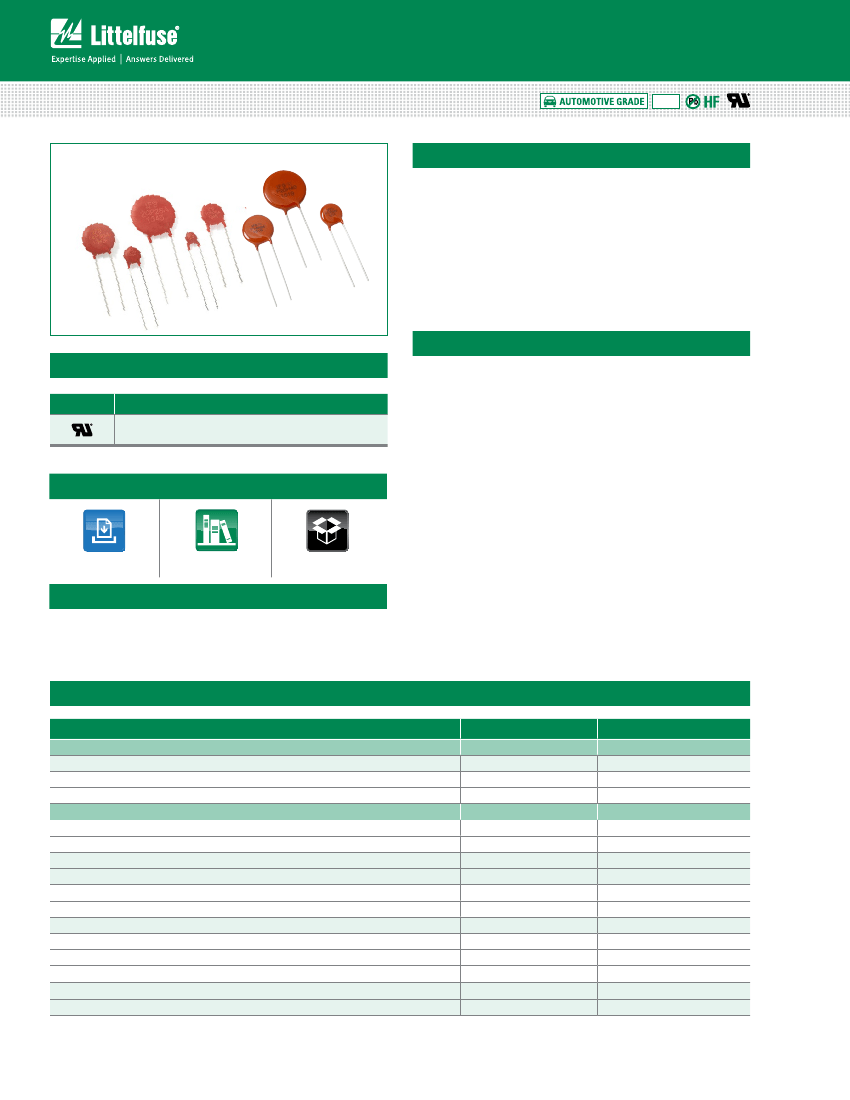

surge current, radial leaded varistors provides an ideal circuit
protection for load dump, jump start voltage transient condi-
tions specifically for automotive applications.
The maximum peak surge current rating is rated up to 5kA
(8/20 μs pulse) to protect sensitive infotainment systems
from voltage transients. This AEC-Q200 (Table 10) quali-
fied series is available in five disc sizes: 5mm, 7mm, 10mm,
14mm and 20mm; it features a wide VDC voltage range from
16V to 825V.
Features
Agency Approvals
Agency
Agency File Number
E320116 (only 14VAC to 42VAC for Epoxy coated)
Note: All Phenolic coating parts and Silicone coating parts are qualified to AEC-Q200 (Table
10).
Additional Information
Datasheet
Resources
Samples
Applications
• Body Electronics Systems • Automotive Control
Module Protection
• Powertrain Systems
• Motor or inductive load
• Infotainment Systems
transient suppression
Absolute Maximum Ratings
• For ratings of individual members of a series, see Device Ratings and Specifications chart
• Breakthrough in low
voltage varistor design
provides high peak
surge current rating
• Phenolic and Silicone
coating meet the
stringent quality
requirements of
AEC-Q200 (Table 10)
• Reduced footprint and
volume required for
surge protection
• Optional phenolic coating
for higher operating
temperature up to 125ºC
• High peak surge
current rating up to
5kA (8/20 μs pulse)
• Wide operating voltage
range: 14VAC to 625VAC
and 16VDC to 825VDC
• Five disc sizes available:
5, 7 10, 14, and 20mm
,
• High resistance to
thermal cycles for
phenolic coating
• High energy absorption
particularly for automotive
load dump and jump start
• Lead–free, Halogen-Free
and RoHS compliant
• Silicone coating
option: High operating
temperature combined
with high isolation voltage
capability: 125°C and
2500V, respectively
Low Voltage Series
Continous:
Steady State Applied Voltage:
AC Voltage Range (V
M(AC)RMS
)
DC Voltage Range (V
M(DC)
)
Transient:
Non-Repetitive Surge Current, 8/20µs Waveform (I
TM
)
Non-Repetitive Energy Capability, 2ms Waveform (W
TM
)
Operating Ambient Temperature Range (T
A
) for Epoxy coated
Operating Ambient Temperature Range (T
A
) for Phenolic coated and Silicone coated
Storage Temperature Range (T
STG
) for Epoxy coated
Storage Temperature Range (T
STG
) for Phenolic coated and Silicone coated
Temperature Coefficient (αV) of Clamping Voltage (V
C
) at Specified Test Current
Hi-Pot Encapsulation (Isolation Voltage Capability) for Epoxy coated
Hi-Pot Encapsulation (Isolation Voltage Capability) for Phenolic coated
Hi-Pot Encapsulation (Isolation Voltage Capability) for Silicone coated
Temperature Cycling (-40C to +125C) for Epoxy coated
Temperature Cycling (-40C to +125C) for Phenolic and Silicone coated
400 to 5,000
1.0 to 140
-40 to +85
-40 to +125
-40 to +125
-40 to +150
< 0.01%
2500
500
2500
5
1000
14 to 625
16 to 825
Units
V
V
A
J
°C
°C
°C
°C
°C
V
V
V
Cycles
Cycles
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of
the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Specifications are subject to change without notice.
Revised: 08/01/18
Radial Leaded Varistors > AUMOV
®
Varistor Series
Metal-Oxide Varistors
(MOVs)
AUMOV
®
Varistor Series Device Ratings & Specifications cont...
Max
Jump
Energy
Peak
Energy Start Typical
Rating
Max
Maximum
DC Capaci-
Size
Continuous Varistor Voltage at Clamping Current (2ms, (Load
(8 x
1mA
Dump, V
jump
tance
Disc
Voltage
1
Voltage
20µs 1
f
=
Dia.
pulse) 10 pul
pulse)
ses)*
1MHz
(5
(mm)
min)
V
RMS
V
DC
Min Nom Max
V
C
I
PK
I
TM
W
TM
Phenolic Coated
Models
Silicone Coated
Models
Part Number
Part Number
Branding
Branding
(Base part)
(Base part)
V10P550AUTO
V14P550AUTO
V20P550AUTO
V10P625AUTO
V14P625AUTO
V20P625AUTO
Note:
(V)
10
14
20
10
14
20
550
550
550
625
625
625
(V)
745
745
745
825
825
825
(V)
819
819
819
900
900
900
(V)
910
910
910
1000
1000
1000
(V)
1001
1001
1001
1100
1100
1100
(V)
1500
1500
1500
1650
1650
1650
(A)
25
50
100
25
50
100
(A)
3500
6500
10000
3500
6500
10000
(J)
98
210
450
110
235
490
(J)
-
-
-
-
-
-
(V)
-
-
-
-
-
-
(pF)
100
180
300
90
160
250
10P550A
14P550A
20P550A
10P625A
14P625A
20P625A
V10H550AUTO
V14H550AUTO
V20H550AUTO
V10H625AUTO
V14H625AUTO
V20H625AUTO
10H550A
14H550A
20H550A
10H625A
14H625A
20H625A
1. Average power dissipation of transients not to exceed 0.2W, 0.25W, 0.4W, 0.6W or 1W for model sizes 5mm, 7mm, 10mm, 14mm and 20mm, respectively.
*2. Energy rating (auto load dump) for impulse duration of 40ms minimum to one half of peak current, 60sec interval ISO7637-2 pulse 5a and ISO16750-2 Table 5A.
3. The shift of Vnom ( Varistor Volatge ) may be to +/-15% for Load dump or Jump Start test.
4. The ratings and specifications of Silicone coated options are the same as the Phenolic coating, except the isolation voltage capability (Hi-Pot Encapsulation) is 2500V.

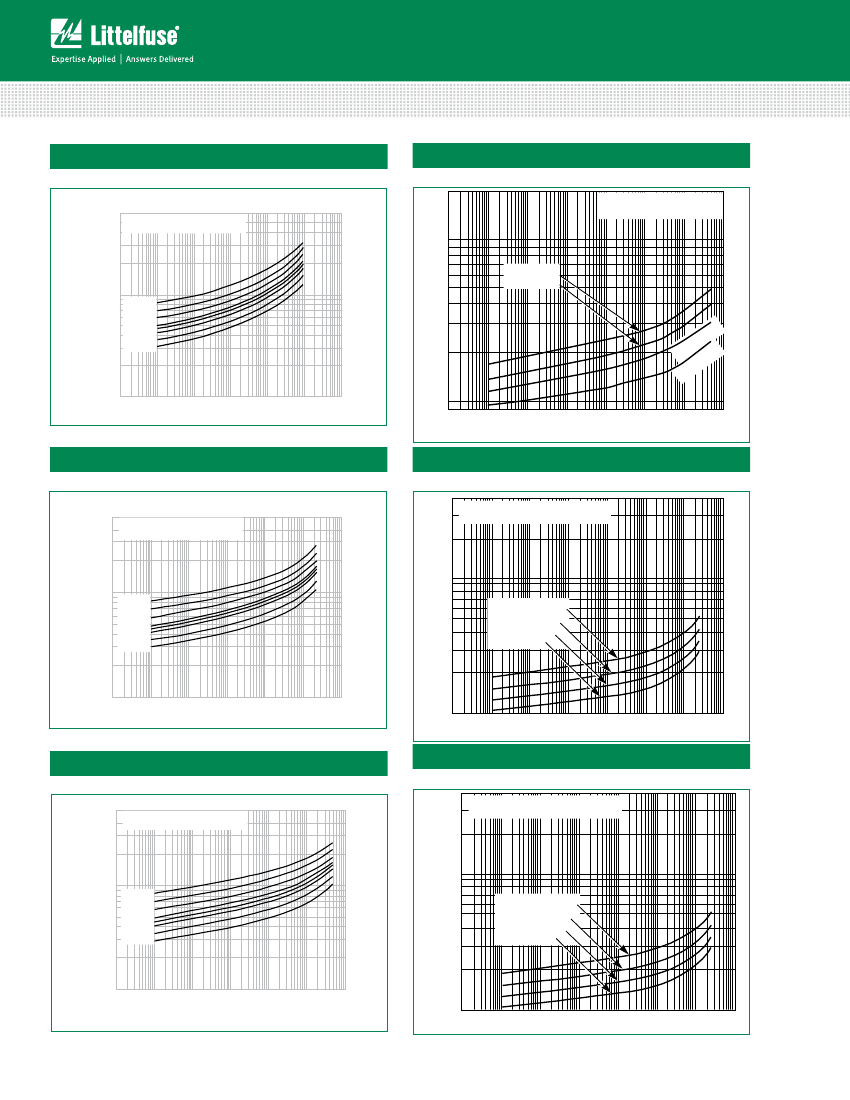

Current Energy and Power Dissipation Ratings
Figure 1A - Power Derating for Epoxy Coated
Figure 1B - Power Derating for Phenolic Coated and Silicone Coated
For applications exceeding 85ºC ambient temperature,
the peak surge current and energy ratings must be
reduced as shown below.
100
For applications exceeding 125ºC ambient temperature,
the peak surge current and energy ratings must be
reduced as shown below.
100
PERCENT OF RATED VALUE
80
70
60
50
40
30
20
10
0
-55
50
60
70
80
90 100 110 120
AMBIENT TEMPERATURE (
o
C)
130
140 150
PERCENT OF RATED VALUE
90
90
80
70
60
50
40
30
20
10
0
-55
50
60
70
80
90
100
110
120
130
140 150
AMBIENT TEMPERATURE (
o
C)
FIGURE 1. CURRENT, ENERGY AND POWER DERATING
CURVE
Peak Pulse Current Test Waveform for Clamping Voltage
100
PERCENT OF PEAK VALUE
Figure 2: Peak Pulse Current Test Waveform for Clamping Voltage
