0878970526 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0878970526

0878970526: Description2.54MM SRSW RA /OCAP 2.5SNLF; CategoryThe connector; File Size626KB，15 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0878970526 Overview

2.54MM SRSW RA /OCAP 2.5SNLF

0878970526 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	5
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.230"（5.84mm）
Contact length - terminal	0.090"（2.29mm）
Overall contact length	-
Insulation height	0.099"（2.51mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin
Contact material	copper alloy
Insulation Materials	thermoplastic
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications

Preview

Download Datasheet

View All

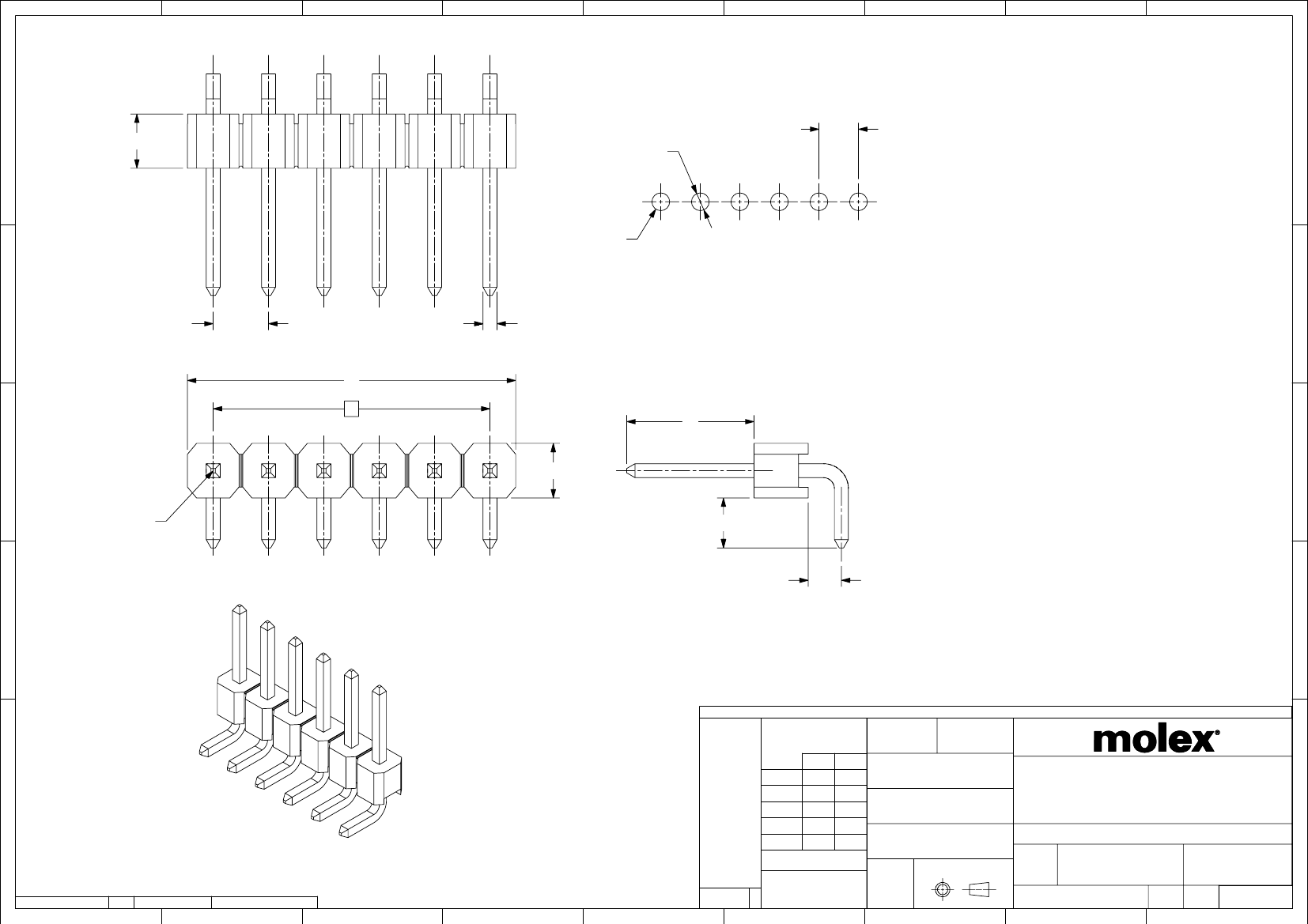

2.49

⌀

1.14

0.05

TYP

2.54

0.05

TYP

NON-ACCUM.

NOTES:

1. MATERIAL:

HOUSING: HIGH TEMP. THERMOPLASTIC UL94V-0,

COLOR: BLACK

TERMINAL: COPPER ALLOY

2. PLATING TYPE:

(1) : GOLD FLASH OVER

50 MICRO INCHES MIN. NICKEL OVERALL.

(2) : 1 MICRO INCHES MIN. GOLD PLATE ON CONTACT AND

75 MICRO INCHES MIN. TIN ON SOLDERTAIL OVER

50 MICRO INCHES MIN. NICKEL OVERALL.

(3) : 10 MICRO INCHES MIN. GOLD PLATE ON CONTACT AND

75 MICRO INCHES MIN. TIN ON SOLDERTAIL OVER

50 MICRO INCHES MIN. NICKEL OVERALL.

CKT #1

RECOMMENDED P.C.B. LAYOUT

2.54 TYP

0.64 SQ TYP

(4) : 15 MICRO INCHES MIN. GOLD PLATE ON CONTACT AND

75 MICRO INCHES MIN. TIN ON SOLDERTAIL OVER

50 MICRO INCHES MIN. NICKEL OVERALL.

(5) : 30 MICRO INCHES MIN. GOLD PLATE ON CONTACT AND

75 MICRO INCHES MIN. TIN ON SOLDERTAIL OVER

50 MICRO INCHES MIN. NICKEL OVERALL.

(6) : 100 MICRO INCHES MIN. TIN IN SELECTED AREA OVER

50 MICRO INCHES MIN. NICKEL OVERALL.

3. PRODUCT SPECIFICATION: PS-87920-019

4. PACKAGING SPECIFICATION: PK-89990-489 (TRAY)

PK-89990-516 (TUBE)

5. PIN PUSHOUT FORCE: 1KG MIN IN EITHER DIRECTION

6. THE ABOVE 6 CKT IS FOR ILLUSTRATION PURPOSE ONLY.

2.51

CKT #1

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2018/07/03

2018/08/14

DIMENSION UNITS

SCALE

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DRWN BY

DATE

NTS

CKT1&2 NO TUBE OPT

INCH

4 PLACES

3 PLACES

2 PLACES

0.2

YLQIAO

CHK'D BY

DATE

2005/01/24

2005/02/01

DATE

SALES DRAWING

SINGLE ROW SINGLE WAFER 2.54MM PITCH, R/A

600923

FCSOO

ISHWARG

PTLIM

APPR BY

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

SCLOW

DRAWING SIZE

2005/02/01

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

3.0

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

87897

DOCUMENT NUMBER

SEE TABLE

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

RELEASE STATUS

FORMAT: Met-lega-master-tb-prod-A3

REVISION: C

DATE: 2017/02/06

RELEASE DATE

2018/08/14

03:47:53

REV

SD-87897-010

PSD

001

1 OF 15

0878970526 Related Products

	0878970526	0878974006
Description	2.54MM SRSW RA /OCAP 2.5SNLF	2.54MM SRSW RA /OCAP 2.5SNLF
Connector type	Needle hub, separate	Needle hub, separate
Contact type	Male pin	Male pin
Spacing - Mating	0.100"（2.54mm）	0.100"（2.54mm）
Number of pins	5	40
Number of rows	1	1
Number of pins loaded	all	all
style	Board to Board or Cable	Board to Board or Cable
shield	Uncovered	Uncovered
Installation type	Through hole, right angle	Through hole, right angle
Termination	welding	welding
Fastening type	push-pull	push-pull
Contact Length - Mating	0.230"（5.84mm）	0.230"（5.84mm）
Contact length - terminal	0.090"（2.29mm）	0.090"（2.29mm）
Insulation height	0.099"（2.51mm）	0.099"（2.51mm）
Contact shape	Square	Square
Contact surface treatment - mating	tin	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin	tin
Contact material	copper alloy	copper alloy
Insulation Materials	thermoplastic	thermoplastic
Material flammability rating	UL94 V-0	UL94 V-0
Insulation color	black	black
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications
