FRCV24OR10 Overview

CABLE DUCT COVER SNAP-ON 10'

Preview

Download Datasheet

View All

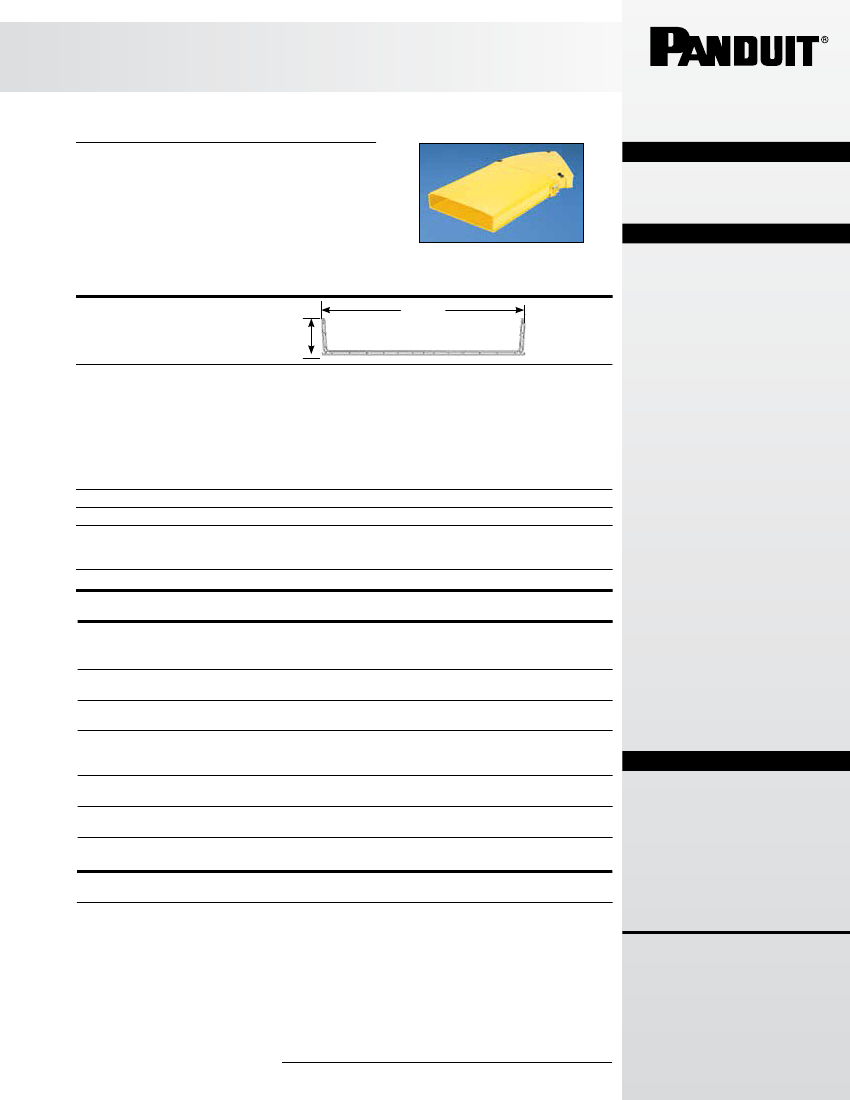

FiberRunner

24x4 Routing System

specifications

The 24x4 routing system shall be a system of channel,

fittings, covers, and brackets designed to segregate, route,

and protect fiber optic and high performance copper cabling.

Channel and fittings shall be installed using pre-assembled

couplers. Fittings maintain a minimum 3" bend radius to

protect against signal loss due to excessive cable bends.

Available system colors shall be yellow, orange, and black.

Brackets shall be available for attaching system components

to 1/2" threaded rod.

S P E C I F I C AT I O N S H E E T

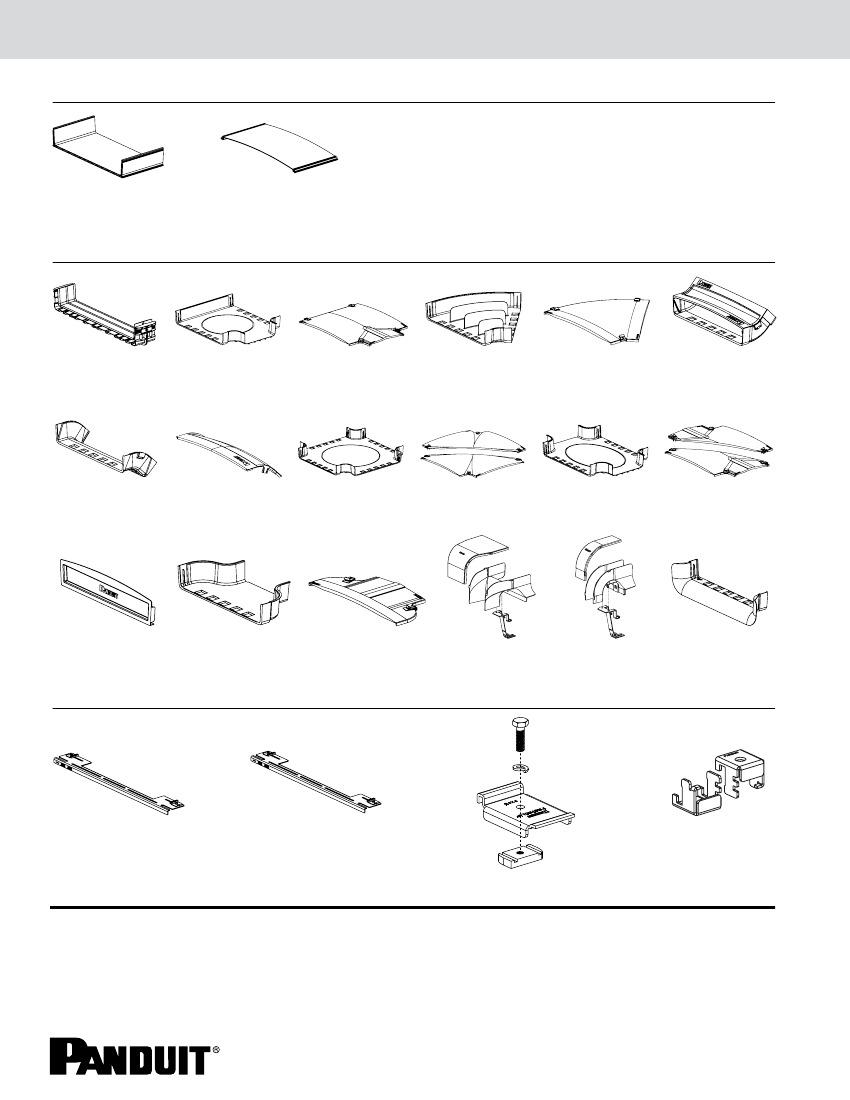

Channel and Cover

24x4 channel

(10'):

FR24X4**10

24x4 snap-on

cover (10'):

FRCV24**10

Fittings, Covers, and Spillouts

QuikLock

Coupler:

FRBC24X4**

Horizontal tee

with 12" exits:

FRT24X4W12**

Horizontal tee with

12" exits cover:

FRTCV24W12**

Horizontal 45°:

FRH4524X4**

Horizontal 45°

cover:

Inside

vertical 45°:

Outside

vertical 45°:

Outside vertical

45° cover:

4-way cross:

4-way

cross cover:

4-way cross

with 12" exits:

4-way cross with

12" exits cover:

End cap:

24" to 12"

reducer:

24" to 12"

reducer cover:

Spill-over

with 4x4 exit:

Spill-over

with 2x2 exit:

3-sided BRC

trumpet for

24x4 exit:

FRH45CV24**

FRIV4524X4**

FROV4524X4**

FROV45CV24**

FRFWC24X4**

FRFWCCV24**

FRFWC24X4W12**

FRFWCCV24W12**

FREC24X4**

FRRF2412**

FRRF2412CV**

FRSPJ4X4**

FRSPJ2X2**

™

technical information

Dimensions are in inches

(Dimensions in parentheses are metric)

4.48

(114mm)

25.38

(644.6mm)

A = 96.8 in. (63,613mm )

Open channel

50% fill capacity

(4" pile up)

Fiber Optic

Ribbon Interconnect

Category 6

Category 6A

Material:

Flammability:

Approvals:

Cable

1.6mm

2.0mm

3.0mm

5.20mm

6.35mm

7.75mm

94V-0

No. of Cables

15,820

10,124

4500

1494

1004

707

Rigid PVC (channel), ABS (fittings)

UL Listed to 2024A Optical Fiber Cable Routing Assemblies (Does not include

24x4 covers)

RoHs

LP-CSISPEC-FR

CSI spec form:

key features and benefits

Rigid one-piece construction

Molded and extruded solid components increase the strength and

integrity of the system; reduces cost of ownership and enhances

network reliability

Solid one-piece channel is provided in 10' lengths, reducing the use of

couplers and simplifying installation

Snap-on channel cover is provided in four 30" lengths (totaling 10')

to facilitate rapid cover installation and ease of handling

No bolts need to be tightened and no tools are required when

installing the QuikLock

™

Couplers; ready to use right from the

package; speeds installation and reduces cost

Offers multiple configuration options; provides design flexibility and

scalability to meet wide range of applications.

Channel and fitting covers protect cabling and provide fast and easy

access for future cabling moves, adds, and changes

A minimum 3" bend radius maintained throughout all fittings prevents

excessive bends in fiber optic cabling

Channel length

Channel covers

QuikLock

™

Couplers

and Brackets

Wide selection of directional

fittings and spillouts

Fitting covers

Cable protection

FRTR24X4**

Mounting Brackets

Trapeze bracket

for new ½"

threaded rod:

Trapeze bracket

for existing ½"

threaded rod:

Strut clip kit:

Two-piece

ladder rack

bracket for ½"

threaded rod:

FR24TBN12

FR24TBE12

FRSTRCLIP

applications

The FiberRunner

24x4 Routing System is a system

of channel, fittings, covers, and brackets designed to

route, manage, and protect fiber optic and high

performance copper cabling above network racks

and cabinets within data centers and service

provider facilities. Because of its larger capacity, the

24x4 system is used to route higher cable counts.

Channel and fittings are assembled using timesaving

Panduit

QuikLock

™

Couplers. Fittings maintain a 3"

bend radius to protect against signal loss due to

excessive cable bends. Available system colors are

yellow, orange, and black to differentiate various

types of cabling.

The FiberRunner

24x4 Routing System is part of

the Panduit complete fiber distribution system, which

includes the FiberRunner

12x4, 6x4, 4x4, and 2x2

Routing Systems, the Fiber-Duct

™

4x4 and 2x2

Routing Systems, Wyr-Grid

™

Overhead Cable Tray

System and cable management products and racks.

F2PCLB12

**Substitute YL = Yellow, OR = Orange,

BL = Black.

w w w.pa nd uit.c om
