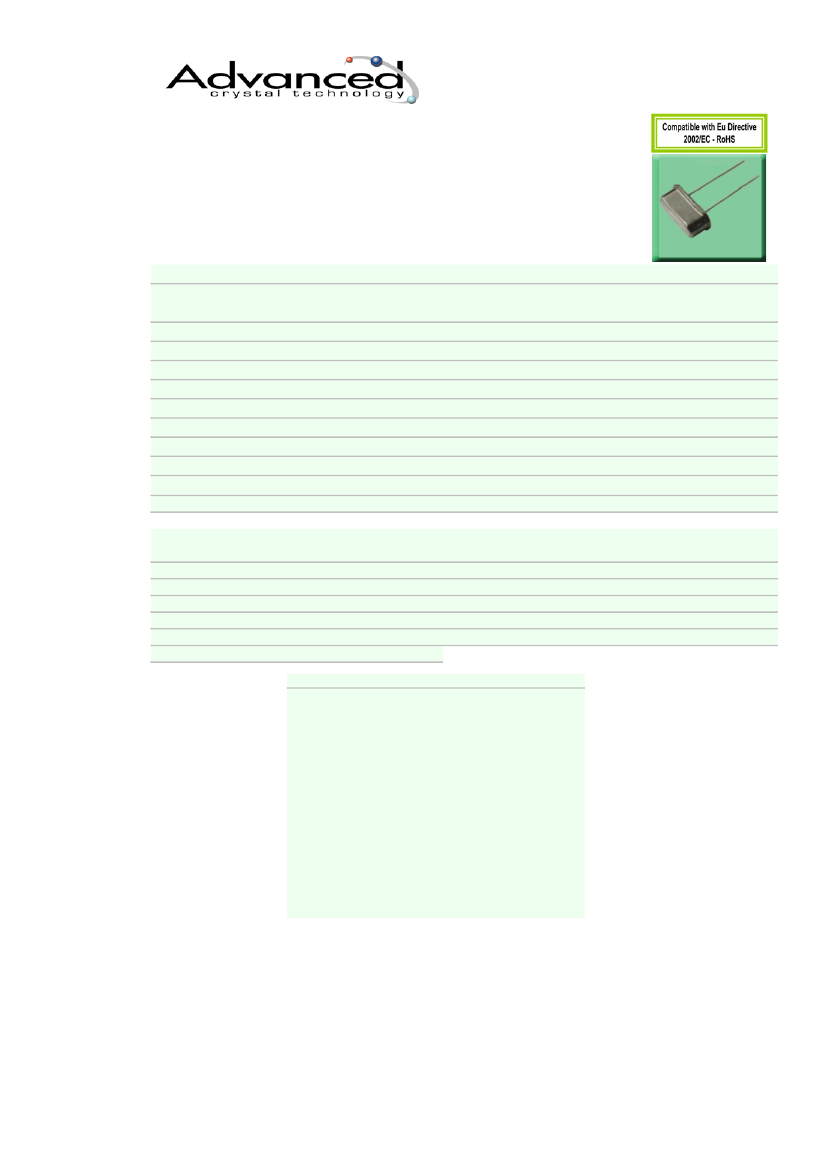

ACT HC49/US ( Custom Packages )
The ACT HC49/US is a family of robust, through hole crystals featuring high reliability,
tight stability and standard temperature range with extended temperature ranges also
available.
Applications include Computers, Modems, Networking, Telecomms, Industrial,
Consumer Electronics, Instrumentation and many more.

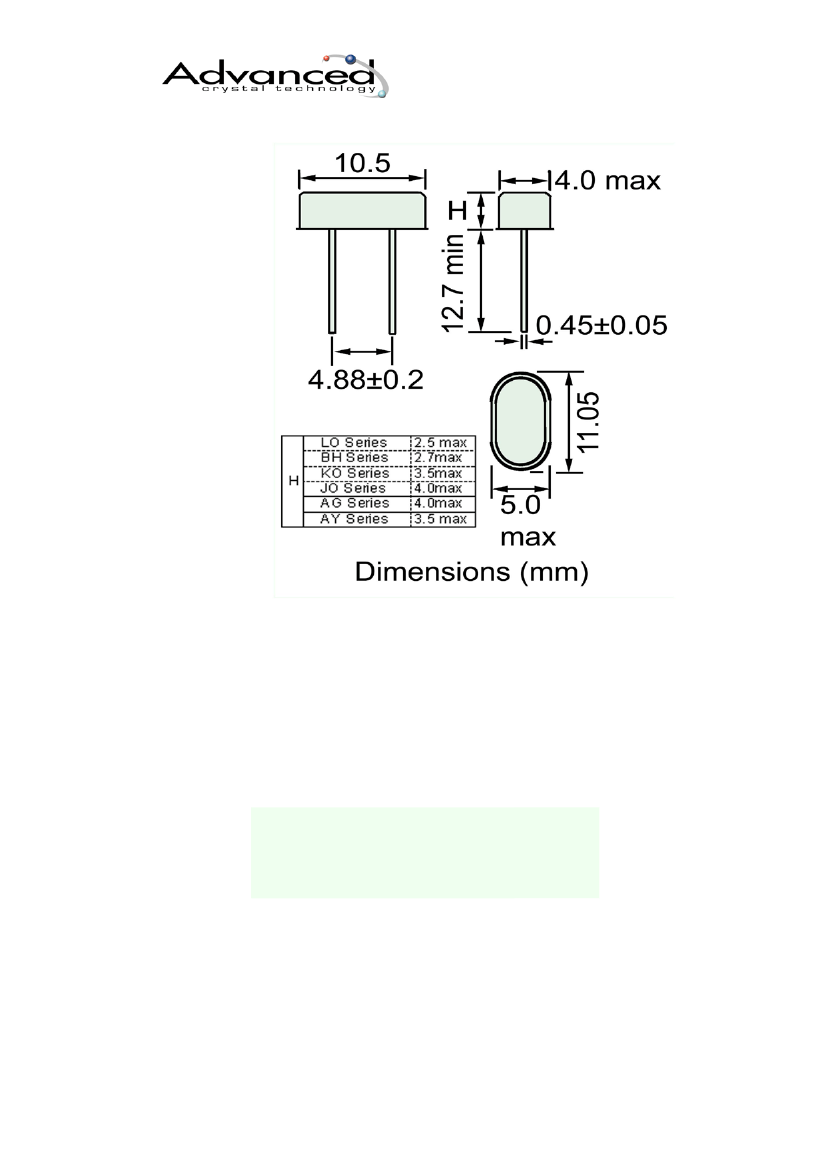

Specification
Parameter
Frequency Range
Symbol
fo
∆f/fo
Tc
Topr
Tstg
ESR
C0
CL
DL
IR
Fa
Specification
3.00 ~ 100.00MHz
Fundamental & 3rd Overtone
Condition
Please specify.
Please refer to Note 1
Please specify
Dependant on temperature
Others available Please specify
Frequency Tol. @25°C
Stability over Temp Range
Temp Operating Range
Temp Storage Range
Equivalent Series Resistance
Shunt Capacitance
Load Capacitance
Drive Level
Insulation Resistance
Aging
±5 ~ ±100ppm
±5 ~ ±100ppm
-10 to +60°C
-40 ~ +85°C
See table below
7pFmax
8 ~ 55pF or SR
50µW Typ
500MΩ min
±5ppm per year max @25°C
Please specify
Others available Please specify
@100Vdc
Others available Please specify
Frequency
(MHz)
3.000 ~ 4.199
4.200 ~ 4.499
4.500 ~ 5.999
6.000 ~ 7.999
8.000 ~ 9.999
10.00 ~ 11.999
ESR (Ω)
max
180
130
100
90
70
60
Mode
AT Fund
AT Fund
AT Fund
AT Fund
AT Fund
AT Fund
Frequency
(MHz)
12.000 ~13.999
14.000 ~ 16.999
17.000 ~ 37.50
20.000 ~ 100.00
24.000 ~ 85.00
ESR (Ω)
max
60
50
35
40
100
Mode
AT Fund
AT Fund
AT Fund
BT Fund
3rd OT
Standard Frequencies (MHz)
3.579545
3.686400
4.000
4.032
4.096
4.194304
4.433619
4.9152
5.000
5.0688
6.000
6.144
6.176
6.5539
6.750
7.15909
7.3728
7.680
8.000
8.192
8.604
8.6436
9.600
9.8304
10.000
10.240
10.244
10.245
10.592
10.752
11.000
11.0592
11.2896
12.000
12.288
12.800
14.31818
14.7456
15.000
16.000
16.000312
16.384
16.660
18.000
18.432
19.6608
20.0000
20.00014
22.1184
24.000
24.576
25.000
26.800
27.000
28.000
28.63636
29.000
29.4912
30.000
32.256
32.768
33.000
33.333
33.868
33.868
35.2512
36.000
40.000
40.320
40.960
42.000
42.500
45.000
46.000
50.000
52.416
56.448
60.000
66.666667
Note 1
Some frequencies below 8.00MHz and above 30MHz (fundamental) and 3rd O/T may not be
available please enquire.
Please note that all parameters can not necessarily be specified in the same device
Customer to specify : Frequency, Frequency Tolerance, Temperature Stability, Operating Temperature Range, Load Capacitance
In line with our ongoing policy of product evolvement and improvement, the above specification may be subject to change without notice
ISO9001:2000 Registered
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berkshire, RG41 2EY, UK
http://www.actcrystals.com
Issue : 11 C1F-H3
Date: 20-03-2013
Tel :
0044 (0)118 979 1238
Fax :
0044 (0)118 979 1283
email : info@actcrystals.com
ACT HC49/US ( Custom Packages )
PACKAGE OPTIONS AVAILABLE
With insulating washer.
Cropped leads.
With centre ground lead.
Ammo Pack*
Tape and Reel (Production facility code H3 only)*
* Not recommended for new builds.
In line with our ongoing policy of product evolvement and improvement, the above specification may be subject to change without notice
ISO9001:2000 Registered
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berkshire, RG41 2EY, UK
http://www.actcrystals.com
Issue : 11 C1F-H3
Date: 20-03-2013

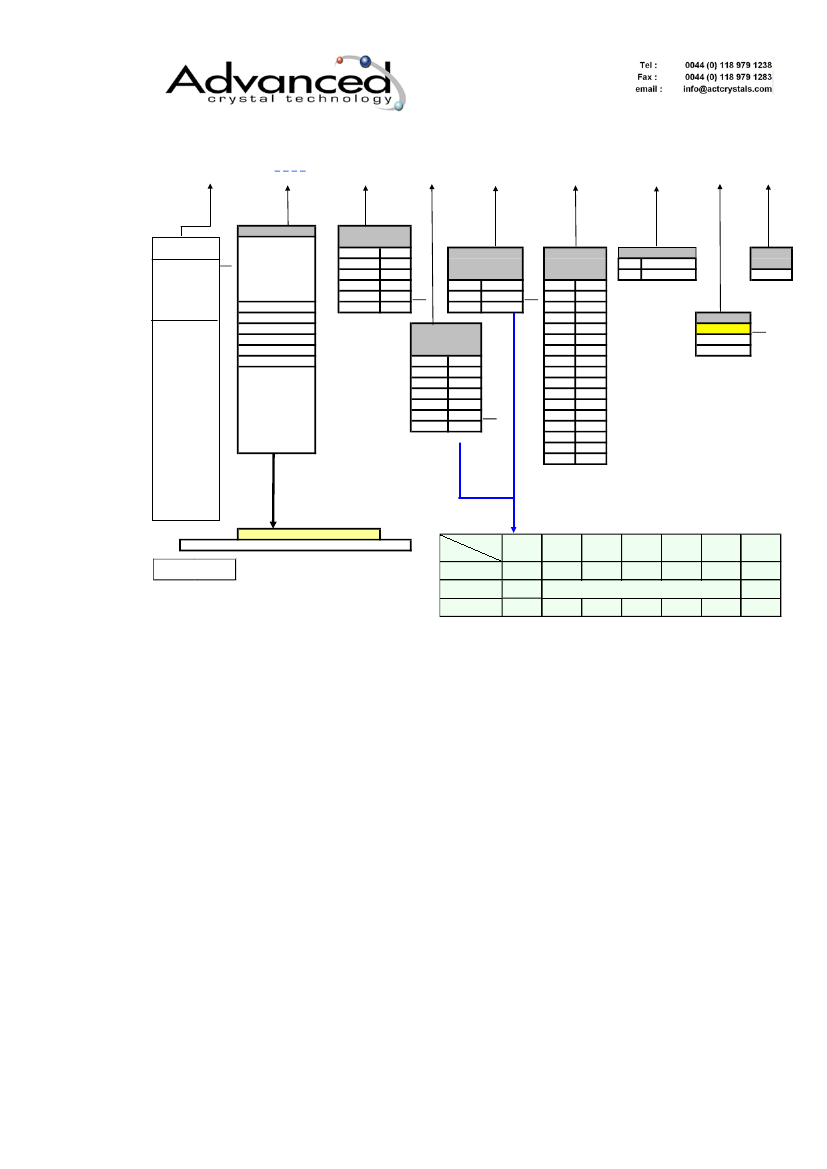

SERIES : ACTHC49/US ( Custom) Device series codes JO /BH /RO /AY /AE / AN
Example :
AE
(HC49/US)
1200
(12.000MHz )
I
(±30ppm)
K
(±30ppm)
G
(-20+70)
RO
(16pF)
F
(Fund')
L
(Loose )
- PF
(RoHS)
Frequency
Device
Height Codes
Std
JO
= 3.5mm
BH
= 2.5mm
Cropped Lead
To 99.9999MHz 1st
four digits of
Frequency
&
>99.9999MHz 1st
five digits of
Frequency
Tolerance (±pm)
@ 25ºC
A
5
RO
= 2.6mm
AE
= 3.5mm
high- cropped
lead to 7mm
AN
= 3.5mm
high- cropped
lead to 4mm
XD
= 3.5mm
high- cropped
lead to 3.5mm
Variant Codes
AY
= 3.5mm
high 3 pin
AG
= 4.0mm
high 3 pin
NB:
Above device
heights are all
Examples
0983
= 9.8304MHz
1200
= 12.000MHz
9999
= 99.9999MHz
10000
= 100.00MHz
NB:
Please refer to note 1
re availability.
It is important to suffix
the above P/No with
the full frequency
required to give a
complete P/No as
illustrated below
E
10
F
15
G
20
I
30
L
50
Others available
Operating
Temperature
Range (ºC)
Std
E
G
-10+60
-20+70
Load
Capacitance
( pF or Series
R
BO
6
)
A
F
Mode
3rd O/T
Fundamental
RoHS
Comp'
- PF
Std
M
-40+85
Others available
Stability Over
Operating
Temperature (ºC)
B
5
F
10
G
15
I
20
J
25
K
30
O
50
Others available
Std
GO
8
JO
9
KO
10
MO
11
OO
12
ZO
14
PO
15
RO
16
TO
18
VO
20
AA
24
BA
25
DA
30
FA
33
JA
50
SR
SR
Others available
Packaging
L
= Loose
C
=1K T&R
Y
= 1K Ammo
Std
Note5
Note6
Full Example Part Number
Available Stabilities
Stability
Temp
AE1200IKGROFL-PF
Commodity code
854160 00 00
12.00MHz
±5ppm
Enquire
±10ppm ±15ppm ±20ppm ±25ppm ±30ppm ±50ppm
-10 ~ +60°C
-20 ~ +70°C
-40 ~ +85°C
Enquire Enquire
NOTES :
1)
Tighter Tolerances and Stabilities, other Operating Temperature Ranges and CL's may be available on custom devices. Some
frequencies below 8.00MHz and above 30MHz (fundamental) and 3rd O/T may not be available as specification parameters impact on
each other, it is not always possible to combine all options in one device. Therefore, if a specification not catered for or has a
frequency within the bands noted above please enquire regarding availability.
2)
ACT are always happy to consider truly custom specification parts which may require non-standard specification parameters,
specific testing, customer requested AQL requirements, non standard packaging or taping and reeling and custom marking. Such
devices would normally be allocated a custom specification part number which is wholly customer specific. ( MOQ Dependent ) ( EG
: A 12.00MHz custom ACTHC49/US with a cropped lead device requested may have a part number such as AE1200C- C1246-PF)
3)
Frequencies below 10.000MHz are prefixed with a "0" (eg: 0800MHz = 8MHz.Whereas 10.000MHz is 1000 )
4)
Table 2 above shows the range of available Stabilities Vs Operating Temperatures.
5)
Not recommended for new builds, tape and reel limited to either production facility H3 or the HC49US (Standard) series.
ISO9001 Registered
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berkshire, RG41 2EY, United Kingdom
http:www.actcrystals.com
Issue : 11 C1F-H3
Date: 20-03-2013
