EKI-5629C/CI
EKI-5626C/CI

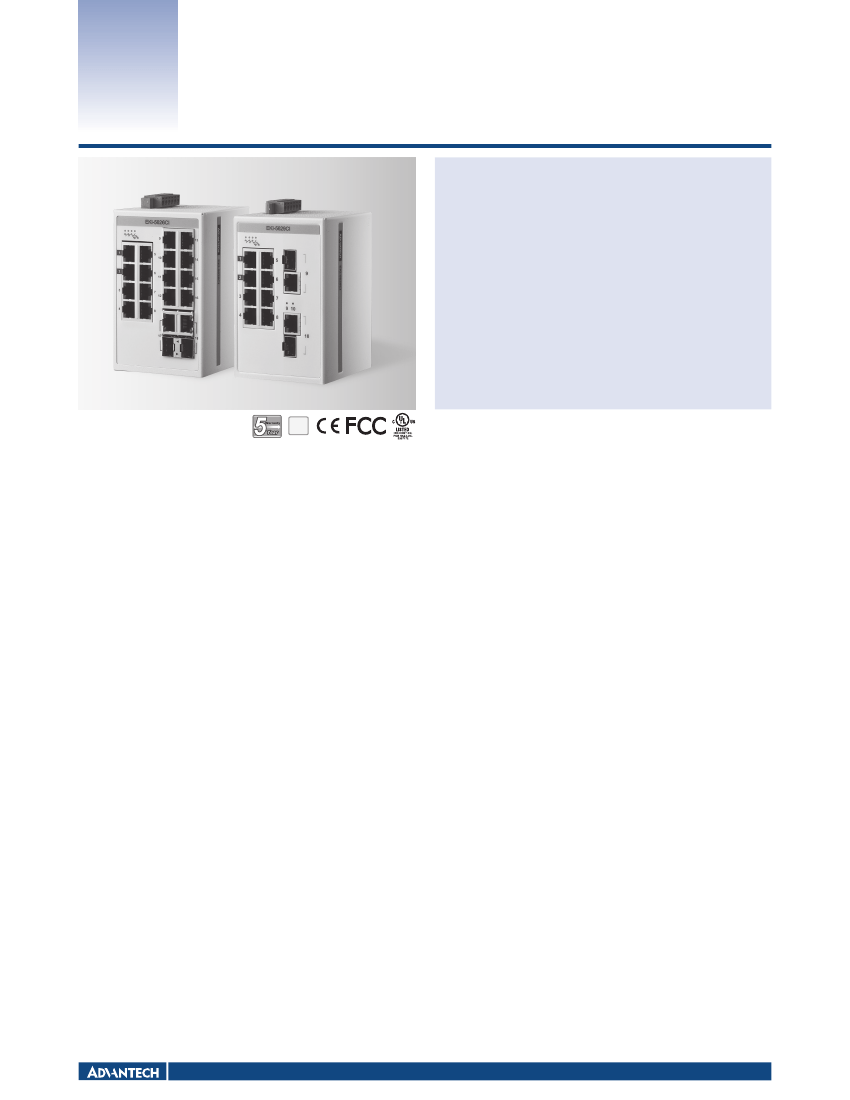

8FE + 2GE Combo Ethernet ProView
Switch
16FE + 2GE Combo Ethernet ProView
Switch
Features
Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5629CI/5626CI only)
EMS level 3 protection for extreme outdoor environments
12~48 V
DC
(8.4~52.8 V
DC
)wide-range power input
IEEE 802.3az Energy Efficient Ethernet (EEE)
Jumbo Frame Support (Up to 9,216 Bytes)
Supports redundant 12~48 V
DC
power input and P-Fail relay
Loop detection
RoHS
2002/95/EC
COMPLIANT
Introduction
The EKI-5629C/CI and EKI-5626C/CI is the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate
with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for
control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and
delay the less immediately necessary data over the remaining ports. EKI-5629C/CI and EKI-5626C/CI switches use the highest quality components, to enable the range to operate in
temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
Specifications
Communications
Standard
LAN
IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az , 802.3ab
10/100/1000Base-T(X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Distance
Ethernet: UP to 100m (4-wire Cat.5e, Cat.6 RJ-45 cable
suggested for Gigabit port)
SFP: UP to 110km (depends on SFP)
Transmission Speed
Ethernet: 10/100Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000Mbps, Auto-Negotiation
Gigabit Fiber: UP to 1000Mbps
Protection
Reverse Polarity
Overload Current
Present
Present
Environment
Operating Temperature
EKI-5629C/5626C: -10 ~ 60°C (14~140°F)
EKI-5629CI/5626CI: -40 ~ 75°C (-40~167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
MTBF
EKI-5629C/CI: 3,183,604 hours
EKI-5626C/CI: 2,825,281 hours
Interface
Connectors
EKI-5629C/CI: 8 x Fast Ethernet (RJ45) + 2 x Giga(RJ45/
SFP) combo ports
EKI-5626C/CI:16 x Fast Ethernet (RJ45) + 2 x Giga(RJ45/
SFP) combo ports
6-pin removable screw terminal (power & relay)
P1, P2, P-Fail, Loop detection
10/100T(X): Link/Activity, Speed
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Lin k/Activity
8K
4.1M bit
EKI-5629C/CI: 5.6 Gbps
EKI-5626C/CI: 7.2 Gbps
9216 bytes
EKI-5629C/CI: 5.8W
EKI-5626C/CI: 8.2W
12 ~ 48 V
DC
(8.4~52.8 V
DC
), redundant dual inputs
1 Relay Output
Certification
Safety
EMI
EMS
IEC/EN 60950-1, UL508, Class 1 Division 2, IECEx,
ATEX
FCC Part 15 Subpart B Class A, EN 55011/55022
Class A
EN 61000-4-2 (Level 3)
EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3)
EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3)
EN 61000-4-8 (Level 3)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
LED Indicators
Switch Properties
MAC Table Size
Packet Buffer Size
Switch Capacity
Jumbo Frame
Shock
Freefall
Vibration
Power
Power Consumption
Power Input
Fault Output
Ordering Information
EKI-5629C
EKI-5629CI
EKI-5626C
EKI-5626CI
8FE + 2GE Combo Ethernet ProView Switch
8FE + 2GE Combo Ethernet ProView Switch with Wide
Temperature
16FE + 2GE Combo Ethernet ProView Switch
16FE + 2GE Combo Ethernet ProView Switch with Wide
Temperature
Mechanism

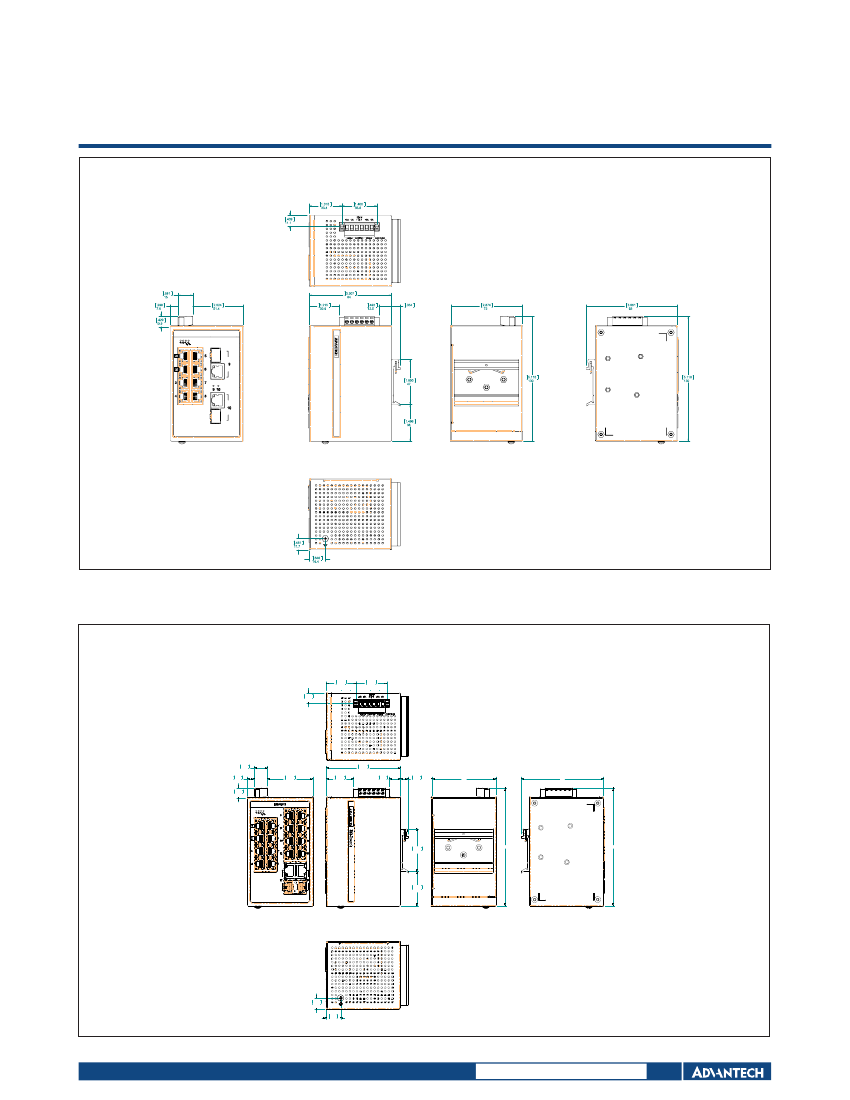

Dimensions (W x H x D)
74 x 120 x 84 mm
Enclosure
IP30, metal shell with solid mounting kits
Mounting
DIN-Rail, Wall
Industrial Ethernet Solutions
All product specifications are subject to change without notice
Date updated: 21-May-2015
