Signal Relays
Cradle N Relay V23154/V23162
n
n
n
n
n
n
AXICOM
Multi purpose relay
Highly reliable
Great variety of contact arrangements and materials to meet
specific applications
Contacts for signal loads and currents up to 5 A
DC coil, operating voltage 1.5VDC to 125VDC; AC, latching and non-
latching coils on request
Sockets for easy and quick mounting of relays
Typical applications
Measurement and control equipment, control equipment in nuclear
powerplant, press controls with high safety requirements (force-guided
springs), telecommunications
Product code block 3
Contact arrangement
Max. switching voltage
Contact Data
Rated current
Limiting continuous current
at max. ambient temperature
2A
Breaking capacity max.
35 to 70W
see DC load breaking capacity curve below 50VA
Contact material
silver, gold-flashed
Contact style
single contact
Frequency of operation, without load, max. 50 ops./s
Operate / release time typ.
7.5/3ms
Mechanical endurance
app. 10
7
ops.
Max. DC breaking capacity, contact sets B1xx, C1xx
150
V_
120
B104/B110/B112
B604/B610/B612
C104/C110/C112
C404/C410
F104 to F107
max. 4 form C (4 CO)contacts, 2 form B (2 NC) contacts or 6 form A (6 NO) contacts (see product code table)
150VDC
36VDC
150VDC
36VDC
150VDC
125VAC
30VAC
125VAC
30VAC
125VAC
2A
0.2A
2A
0.2A
5A
2A
5W, 5VA
-
gold F
single contact
50 ops./s
7.5/3ms
app. 10
7
ops.
2A
35 to 70W
50VA
silver, gold-flashed
bifurcated contacts
50 ops./s
7.5/3ms
app. 10
7
ops.
2A
5W, 5VA
-
gold F
bifurcated contacts
50 ops./s
7.5/3ms
app. 10
7
ops.
5A
50 to 140W
500VA
silver, gold-flashed
single contact
10 ops./s
7.5/3ms
app. 10
7
ops.

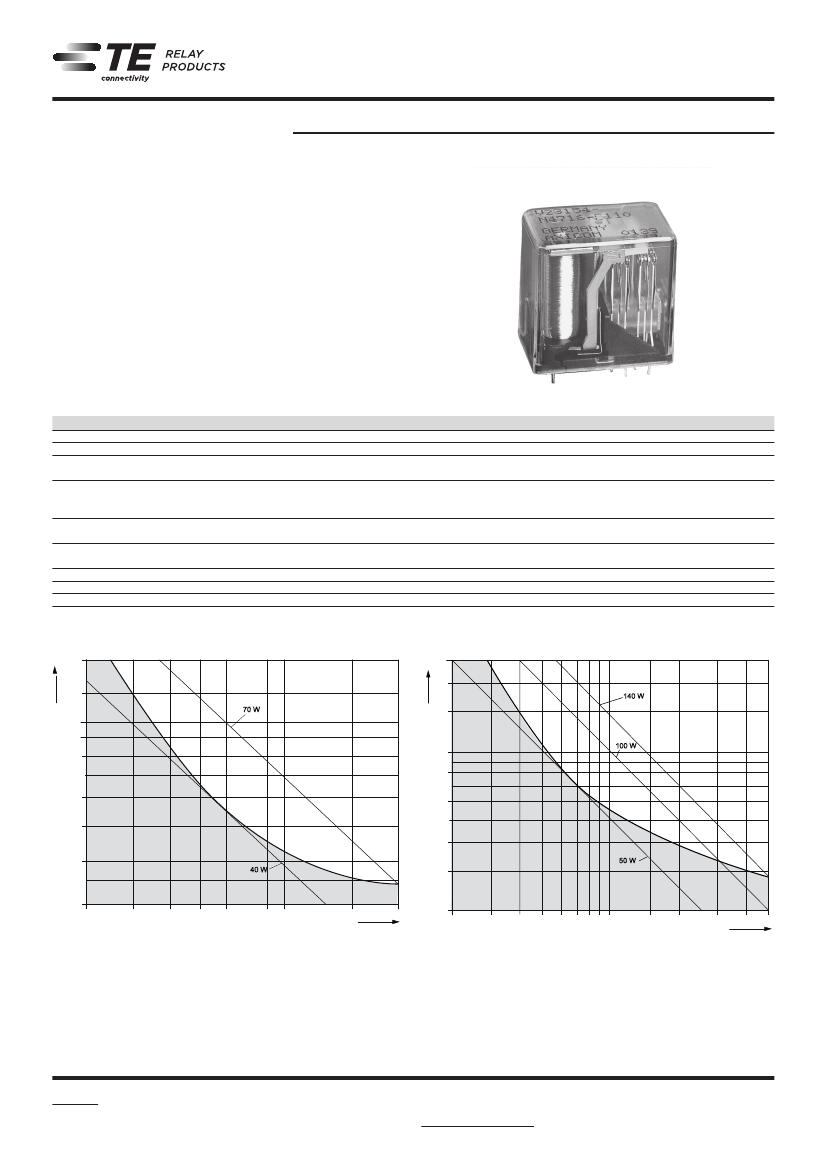

Max. DC breaking capacity, contact sets F1xx
250
V_
200
U
100
140 W
70 W
U
150
80
100
80
100 W
60
60
50
DC voltage [VDC]
50
DC voltage [VDC]
safe breaking, no stationary arc
contact material Ag, gold flashed
40
40
40 W
safe breaking, no stationary arc
contact material Ag, gold flashed
50 W
30
30
0,3
0,4
0,5
0,6
0,8
1
1,5
DC current [A]
I
2A
20
0,2
0,3
0,4
0,5
0,6
0,8
1
1,5
DC current [A]
I
2
3
4
5A
07-2012, Rev. 0712
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Signal Relays
Cradle N Relay V23154/V23162
(Continued)
Coil Data
Coil data
(continued)
Terminals:
coil with 1 winding: start 4, end 1
coil with 2 windings (upon request):
start 3, end 2 for winding I, start 4, end 1 for winding II
AXICOM
Magnetic system
Coil voltage range
Max. coil temperature
Thermal resistance
neutral
1.1 to 125 VDC,
typ. 800mW power consumption
100 °C
< 50K/W
Coil
resistance
Ω±15%
2
28
58
110
150
220
325
550
890
1700
3200
4700
7600
15000
20900
Rated coil
power
mW
807
893
845
736
667
655
692
727
647
602
720
766
682
807
748
Coil versions, DC coil, monostable
Coil
Rated
Operate/Limiting
code
voltage
voltage
1)
VDC
VDC
702
1.1
-
711
5
-
712
7
-
715
9
-
716
10
-
717
12
-
719
15
-
720
20
-
721
24
-
722
32
-
726
48
-
734
60
-
704
72
-
735
110
-
703
125
-
Coil versions, DC coil, monostable
Coil
Rated
Operate/Limiting
code
voltage
voltage
1)
VDC
VDC
430
10
-
418
12
-
471
12
-
479
16
-
421
24
-
472
24
-
496
25
-
473
60
-
404
72
-
The minimum voltage U
I
depends on the contact set and the ambient
temperature, the maximum voltage U
II
only depends on the ambient
temperature.
Between minimum voltage U
I tamb
and operating voltage U a safety margin
of approx. 20% is recommended.
U
I tamb
(1.2)
U
I tamb
U
II tamb
tamb
U
U
I tamb
U
II tamb
k
I
and k
II
< U
I
≤ U
II
tamb
U
I
· U20 °C · k
I tamb
U
Il
20 °C · k
II tamb
Ambient temperature
Operating voltage
Minimum voltage at ambient temperature, tamb
Maximum voltage at ambient temperature, tamb
Factors
B1xx, B6xx,
C1xx, C4xx
500V
rms
500V
rms
500V
rms
1000V
rms
F1xx
500V
rms
1000V
rms
1000V
rms
1500V
rms
Insulation Data
Product code, block 3
Initial dielectric strength
between coil / frame
between contact / contact
between contact / frame
between contact / coil
Initial insulation resistance, at 500VDC
1) refer to ‘Part code table’.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Coil
resistance
Ω±15%
140
230
220
390
700
890
730
4700
5800
Rated coil
power
mW
714
626
655
656
823
647
856
766
894
> 106Ω
1) refer to ‘Part code table’.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-40 to +70°C
Category of environmental protection
IEC 61810
RT - I dust protected,
RT V - hermetically sealed
Degree of protection, IEC 60529
dust-protected IP 30,
hermetically sealed IP 67
Terminal type
PCB, plug-in, solder terminals
Weight
V23154-C0/-MO Size I
approx. 20g
V23154-D0/-NO Size II
approx. 25g
V23162-A0xxx Size I
approx. 30g
V23162-B0xxx Size II
approx. 35g
Washing
not recommended
Ultrasonic cleaning
not recommended
Packaging unit
5 pcs.
Other Data
Accessories
For details see datasheet Cradle Relay, Accessories and Mounting
2
07-2012, Rev. 0712
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Signal Relays
Cradle N Relay V23154/V23162
(Continued)

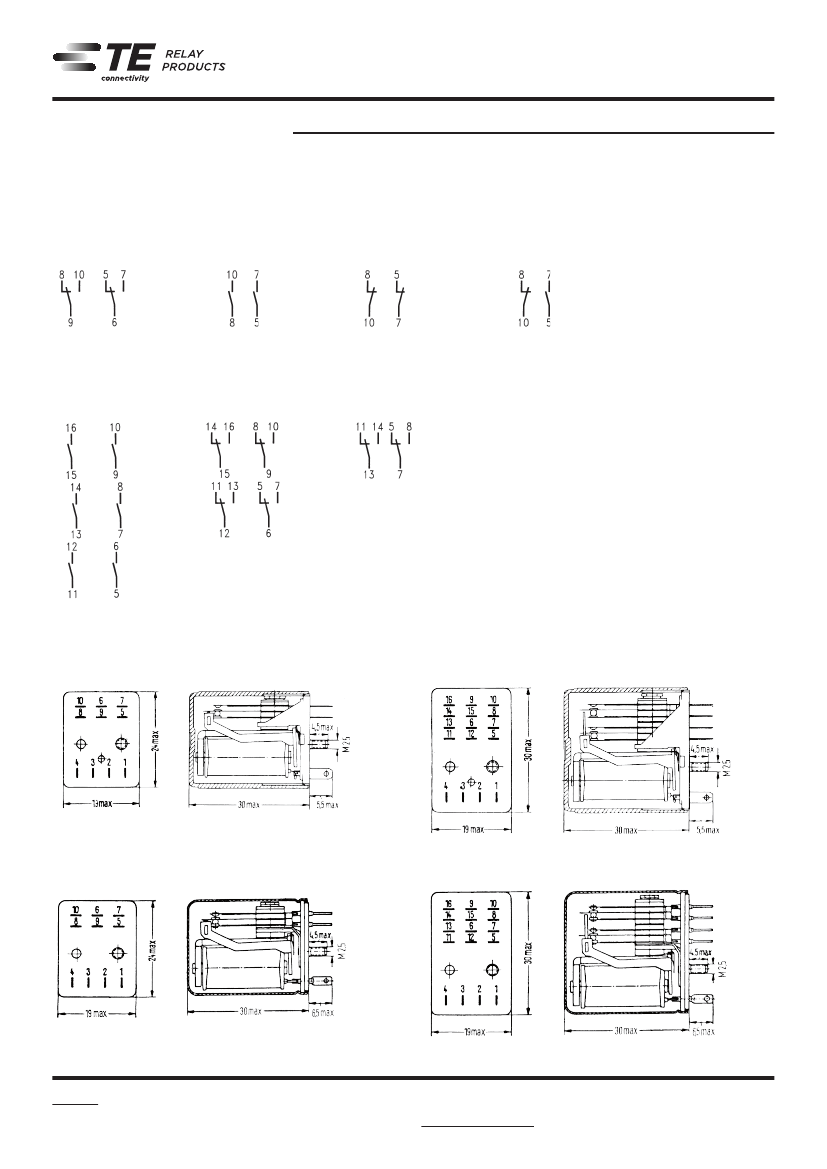

Terminal assignment
Size I
2 form C (2 CO)
V231xx-xxxxx-Bx04
V231xx-xxxxx-Cx04
2 form A (2 NO)
V231xx-xxxxx-F105
2 form B (2 NC)
V231xx-xxxxx-F107
1 form A + 1 form B
(1 NO + 1 NC)
V231xx-xxxxx-F106
AXICOM
Size II
6 form A (6 NO)
V231xx-xxxxx-Bx12
V231xx-xxxxx-Cx12
4 form C (4 CO)
V231xx-xxxxx-Bx10
2 form C (2 CO)
V231xx-xxxxx-F104

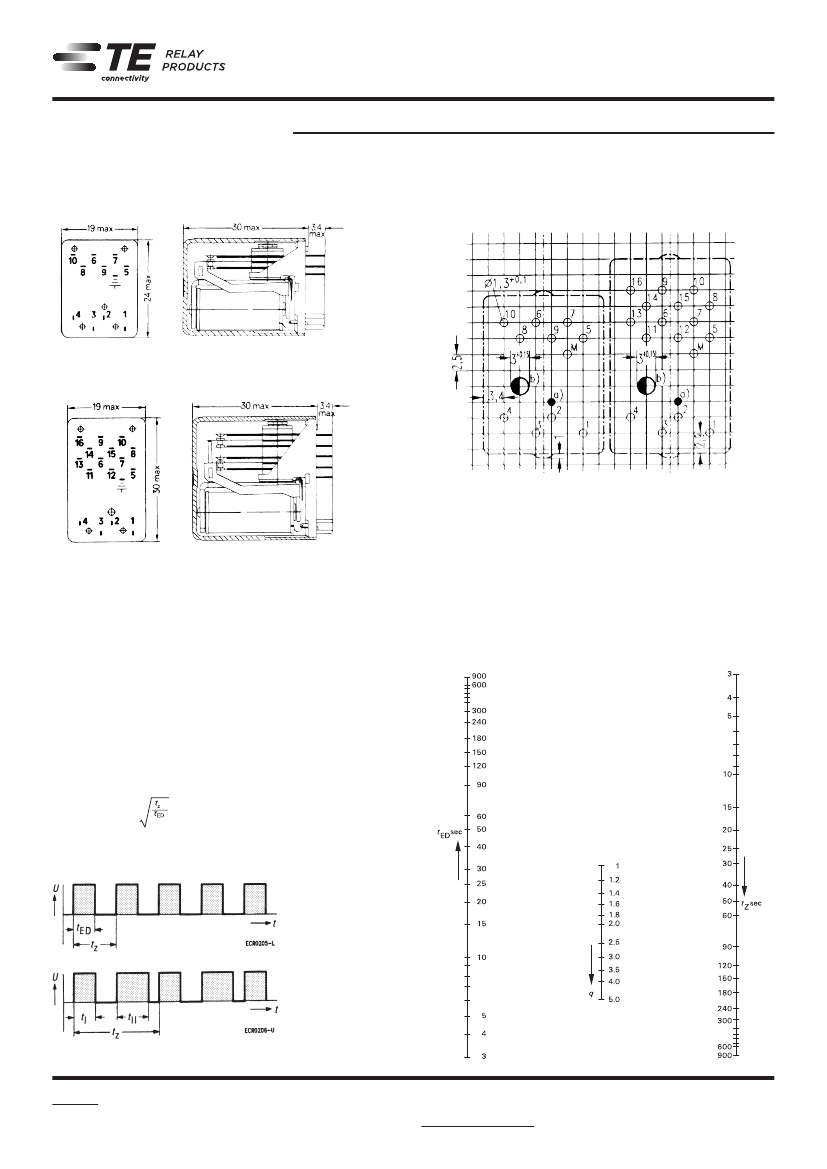

Dimensions
V23154-C0xx, size I type
V23154-D0xx, size II type
V23162-A0xx, size I type
V23162-B0xx, size II type
V23162-H0xx, size II type
07-2012, Rev. 0712
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
Signal Relays
Cradle N Relay V23154/V23162
(Continued)
Dimensions
V23154-Mxxx, size I type
PCB layout
TOP view on component side of PCB
V23154-M/Nxx versions
AXICOM
V23154-Nxxx, size II type
M = Earth terminal
a) Hole for mechanical armature actuation, if required
b) Hole for socket mounting with screw M1.6.
Instructions for Impulse Operation
The maximum voltage stated in the part code table can be increased for
impulse operation as follows:
U
II Impuls
U
II tamb
xq
U
II tamb
Maximum continuous voltage at ambient temperature t
amb
q
Factor
The impulse voltage must not exceed 80% of the test voltage (winding/
frame or winding/winding) or 2.5 times the value of the maximum voltage
listed in the part code table.
; Ift
ED
= Pulse width, t
2
= Cycle time. If t
ED
> 3s the
Ift
ED
≤ 3s then q=
value of q must be obtained from the nomograph.
Examples of various periodic pulse trains (energizing side)
1. Periodic recurrence of one energizing pulse
2. Periodic recurrence of two unequal energizing pulses
tED = tI + tII
tI + tII = Pulse widths
within one cycle
4
07-2012, Rev. 0712
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Signal Relays
Cradle N Relay V23154/V23162
(Continued)
Product code structure
Type
Typical product code
AXICOM
V23154
-D0
721
-B1
10
V23154
Cradle N Relay, dust protected
V23162
Cradle N Relay, hermetically sealed
Version
V23154 types
C0
Size I, for plug-in and screw fixing, hand solder terminals silver-plated, with earth terminal, dust-protected (V23154)
D0
Size II, for plug-in and screw fixing, hand solder terminals silver-plated, with earth terminal, dust-protected (V23154)
M0
Size I, for printed circuit mounting, with earth terminal, dust-protected (V23154)
M4
Size I, for printed circuit mounting, without earth terminal, dust-protected (V23154)
N0
Size II, for printed circuit mounting, with earth terminal, dust-protected (V23154)
N4
Size II, for printed circuit mounting, without earth terminal, dust-protected (V23154)
V23162 types
A0
Size I, for plug-in and screw fixing, hand solder terminals tinned, hermetically sealed (V23162)
B0
Size II, for plug-in and screw fixing, hand solder terminals tinned, hermetically sealed (V23162)
H0
Size II, for plug-in and screw, fixing, hand solder terminals, gold-plated, hermetically sealed (V23162)
Coils
Coil code: please refer to coil versions table
Contact style
B1
Single contacts
B6
Single contacts
F1
Single contacts
C1
Bifurcated contacts
C4
Bifurcated contacts
Contact arrangement
04
2 form C, 2 CO
05
2 form A, 1 NO
06
1 form A+ 1 form B, 1 NO+ 1 NC
07
2 form B, 2 NC
10
4 form C, 4 CO
12
6 form A, 6 NO
Other types on request
V23154-C0XX, standard, size I
V23154-C0711-B104 Standard, size I
V23154-C0711-B604 Standard, size I
V23154-C0712-B104 Standard, size I
V23154-C0712-B604 Standard, size I
V23154-C0430-B104 Standard, size I
V23154-C0418-B104 Standard, size I
V23154-C0717-B104 Standard, size I
V23154-C0717-C104 Standard, size I
V23154-C0719-B104 Standard, size I
V23154-C0719-B604 Standard, size I
V23154-C0719-C104 Standard, size I
V23154-C0719-C404 Standard, size I
V23154-C0720-B104 Standard, size I
V23154-C0720-B604 Standard, size I
V23154-C0720-C104 Standard, size I
V23154-C0421-B104 Standard, size I
V23154-C0721-B104 Standard, size I
V23154-C0721-B604 Standard, size I
V23154-C0721-C104 Standard, size I
V23154-C0721-C404 Standard, size I
V23154-C0496-C104 Standard, size I
V23154-C0722-B104 Standard, size I
V23154-C0722-B604 Standard, size I
V23154-C0722-C104 Standard, size I
V23154-C0722-C404 Standard, size I
V23154-C0726-B104 Standard, size I
V23154-C0726-B604 Standard, size I
V23154-C0726-C104 Standard, size I
V23154-C0726-C404 Standard, size I
V23154-C0734-B104 Standard, size I
V23154-C0404-B104 Standard, size I
V23154-C0704-B104 Standard, size I
V23154-C0704-B604 Standard, size I
V23154-C0704-C104 Standard, size I
V23154-C0704-C404 Standard, size I
V23154-C0735-B104 Standard, size I
V23154-C0703-B104 Standard, size I
Product code
Version
Coil
5VDC
5VDC
7VDC
7VDC
10VDC
12VDC
12VDC
12VDC
15VDC
15VDC
15VDC
15VDC
20VDC
20VDC
20VDC
24VDC
24VDC
24VDC
24VDC
24VDC
25VDC
32VDC
32VDC
32VDC
32VDC
48VDC
48VDC
48VDC
48VDC
60VDC
72VDC
72VDC
72VDC
72VDC
72VDC
110VDC
125VDC
Operate/Lim. Arrangement Contacts
1.8/7.2VDC
1.8/7.2VDC
2.7/10.5VDC
2.7/10.5VDC
7.1/16VDC
6.6/20.5VDC
5.3/20VDC
7.1/20VDC
6.8/24.5VDC
6.8/24.5VDC
9.1/24.5VDC
9.1/24.5VDC
8.9/32VDC
8.9/32VDC
11.9/32VDC
11.2/36VDC
11/40VDC
11/40VDC
14.5/40VDC
14.5/40VDC
20.8/36.3VDC
16.9/54VDC
16.9/54VDC
22.6/54VDC
22.6/54VDC
23/75VDC
23/75VDC
30/75VDC
30/75VDC
27/92VDC
36/100VDC
36.2/114VDC
36.2/114VDC
48.4/114VDC
48.4/114VDC
49/164VDC
61/190VDC
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
2 form C (2 CO)
Single
Single
Single
Single
Single
Single
Single
Bifurcated
Single
Single
Bifurcated
Bifurcated
Single
Single
Bifurcated
Single
Single
Single
Bifurcated
Bifurcated
Bifurcated
Single
Single
Bifurcated
Bifurcated
Single
Single
Bifurcated
Bifurcated
Single
Single
Single
Single
Bifurcated
Bifurcated
Single
Single
Terminals
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Plug-in/solder
Enclosure
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
Dust protected
PartNumber
5-1393806-3
5-1393806-4
5-1393806-5
5-1393806-6
2-1393806-0
1393806-8
6-1393806-7
6-1393806-8
7-1393806-1
7-1393806-2
7-1393806-3
7-1393806-4
7-1393806-8
7-1393806-9
8-1393806-1
1-1393806-1
8-1393806-6
8-1393806-7
8-1393806-8
8-1393806-9
2-1393806-5
9-1393806-4
9-1393806-5
9-1393806-7
9-1393806-8
1393807-6
1393807-7
1393807-8
1393807-9
1-1393807-4
1393806-2
4-1393806-3
4-1393806-5
4-1393806-6
4-1393806-7
1-1393807-6
3-1393806-6
07-2012, Rev. 0712
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
5
京公网安备 11010802033920号
EEWORLD
