20021832-06516T1LF: DescriptionCONN STACKER 16POS 1.27MM SMD; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021832-06516T1LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20021832-06516T1LF	-	-	View	Buy Now

20021832-06516T1LF Overview

CONN STACKER 16POS 1.27MM SMD

20021832-06516T1LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Objectid	7241769584
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.76
Board mount options	PEG
body width	0.134 inch
subject depth	0.283 inch
body length	0.4 inch
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	707VAC V
Durability	100 Cycles
Filter function	NO
maximum insertion force	2.16 N
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE6T
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	0.2 N

Preview

Download Datasheet

View All

NOTE:

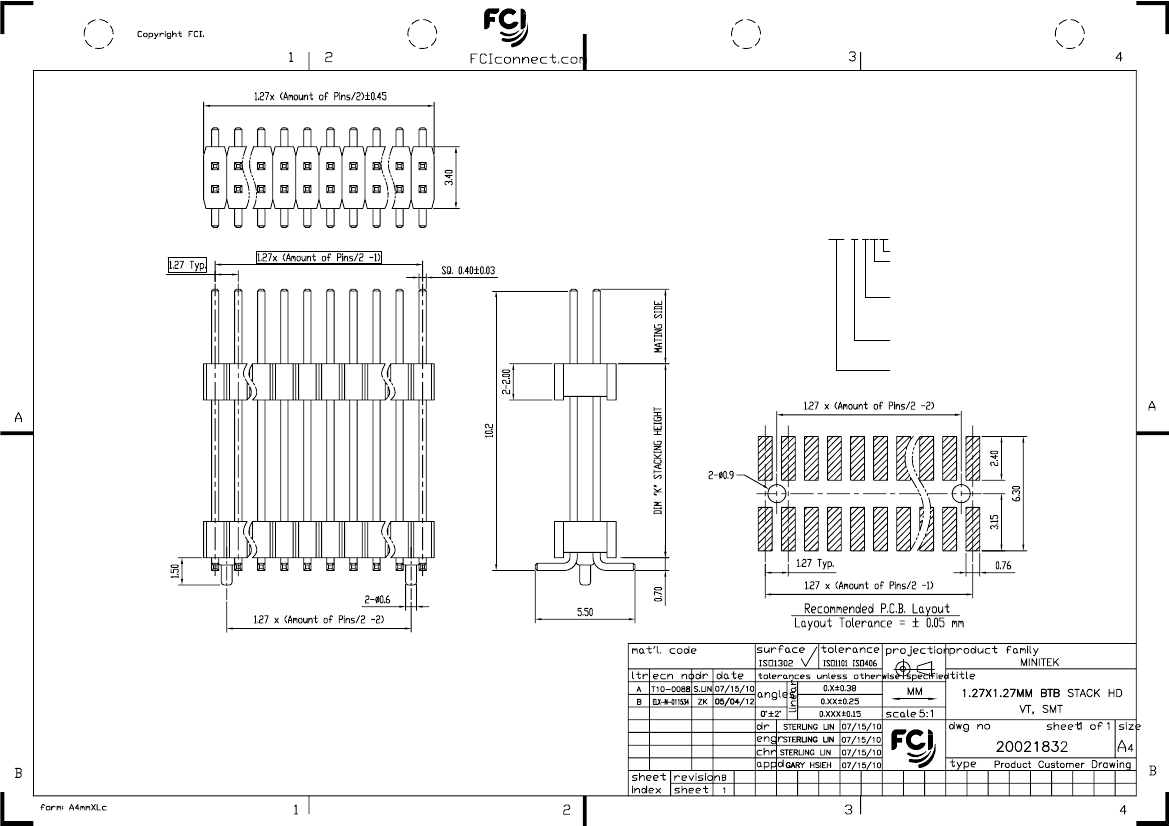

1. MATERIAL,

HOUSING: NYLON 6T (E630NK), UL94V-0

TERMINAL: C2700 H

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1um(40u") MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1517

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260C

PEAK TEMP. FOR 10 SEC. IN A CONVECTION, INFRA-RED

OR VAPOR PHASE REFLOW OVEN.

5. MATING SIDE LENGTH: 2.50MM MIN.

6. PRODUCT NUMBERING:

200218 3 2 - XXX XX X X LF

LEAD FREE

PLATING:

1:G/F ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U") GOLD AT CONTACT

PACKING

T: TUBE

D: TUBE + CAP

C: REEL + CAP (16 PIN)

PIN COUNT

04, 06, 08,..., 48, 50

( EVERY EVEN PIN )

STACK HEIGTH "K"

EXAMPLE: 045=4.5MM

IN 0.5MM INCREMENT

PDS: Rev :B

STATUS:Released

Printed: May 14, 2012
