5016283381 Overview

CONN FPC BOTTOM 33POS 0.30MM R/A

5016283381 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	33
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.035"（0.88mm）
Lock function	trigger lock
Cable end type	Welding lug type
Contact material	copper alloy
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced
characteristic	-
Rated voltage	-
Operating temperature	-
Material flammability rating	UL94 V-0
Rated current	-
Contact plating thickness	-
Shell color	-
Actuator color	-
Number of patches	-

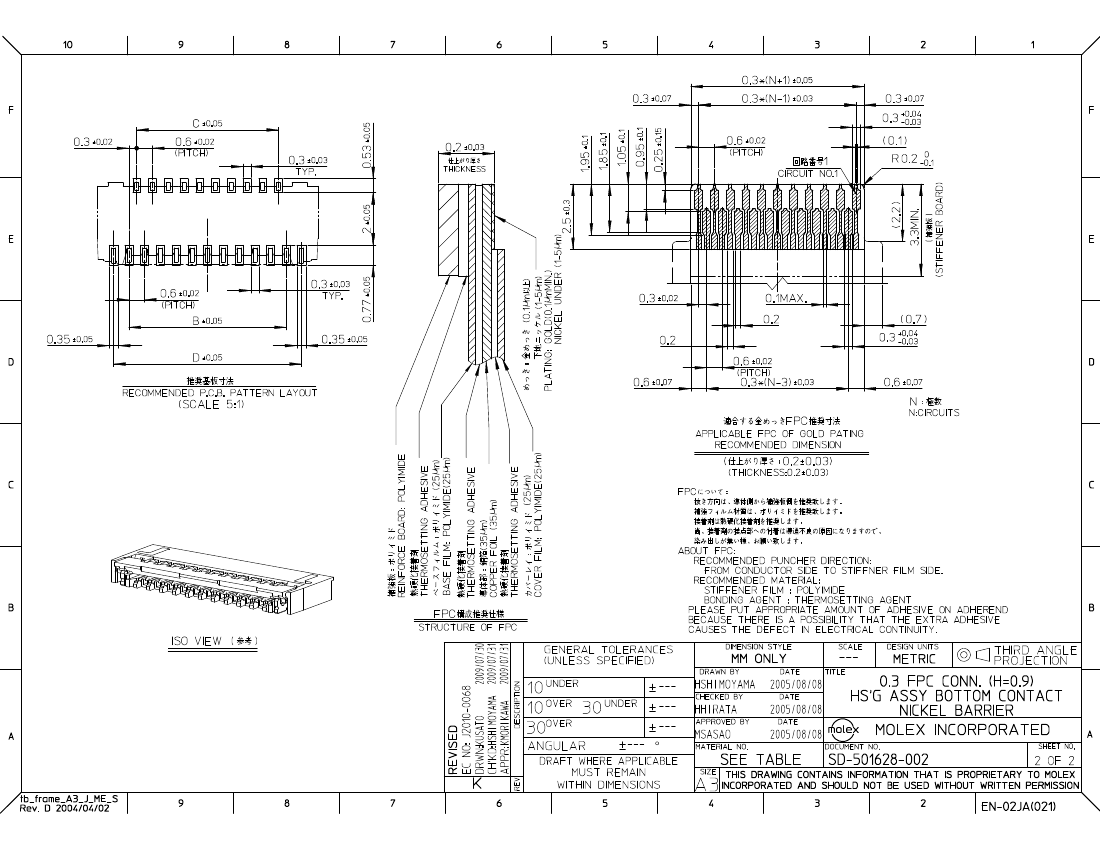

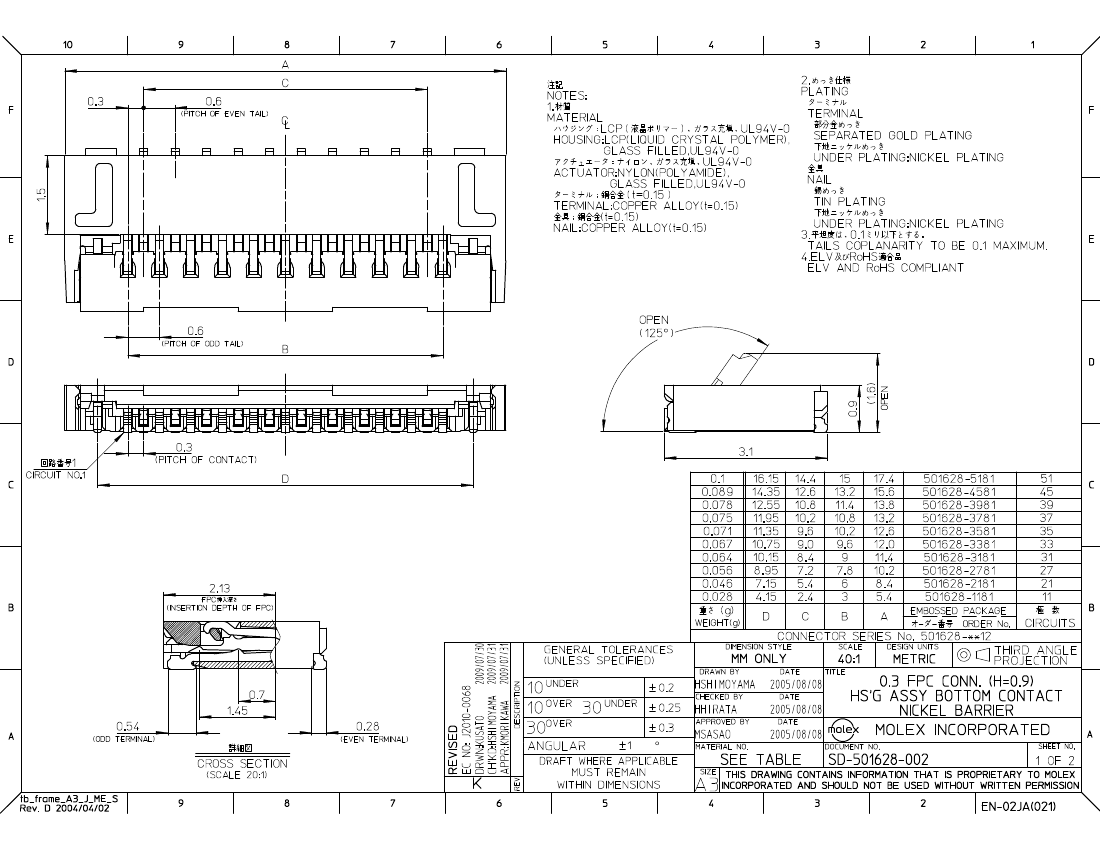

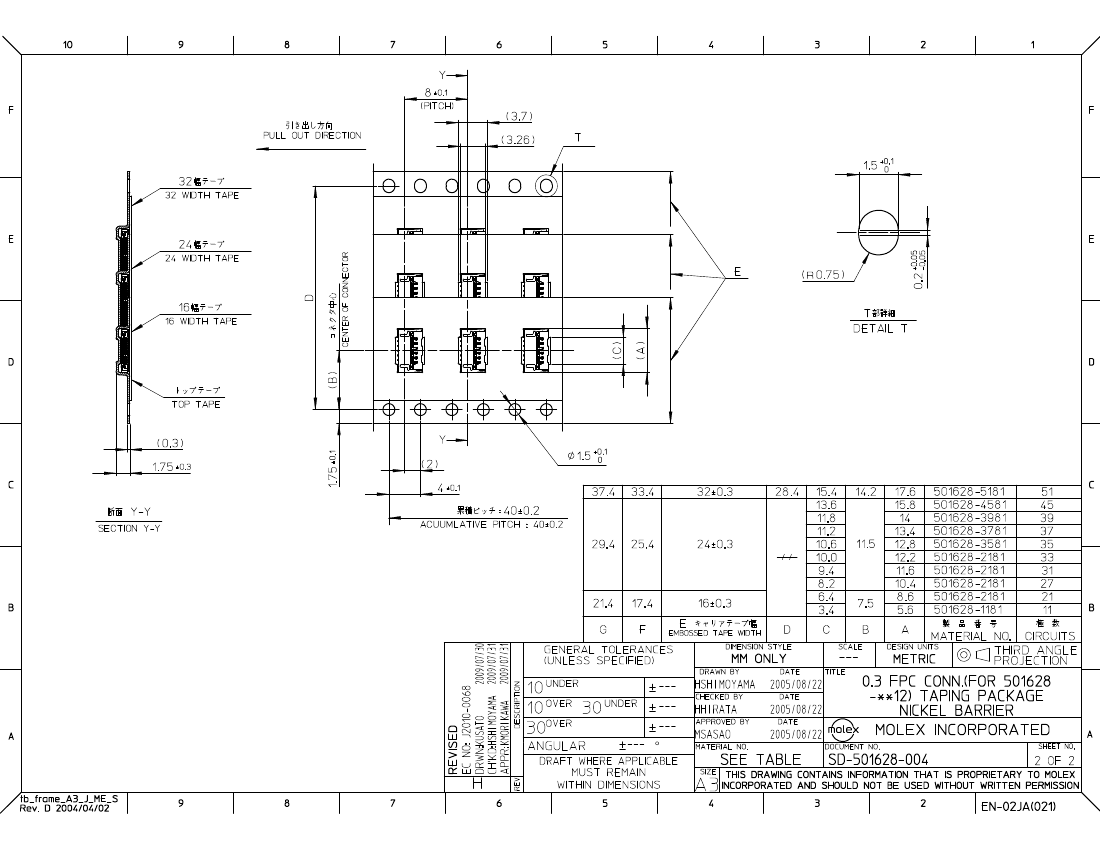

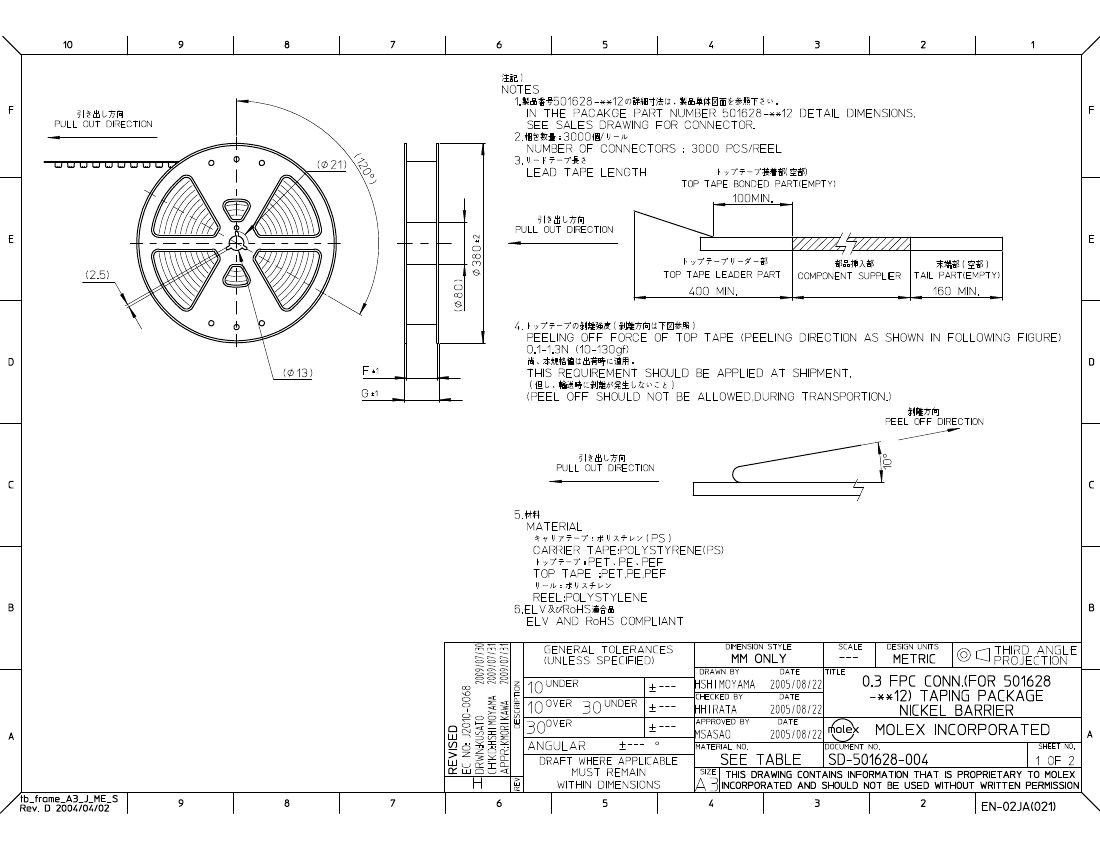

Preview

Download Datasheet

View All

5016283381 Related Products

	5016283381	5016282181	5016283981	5016282781	5016283781	5016283581
Description	CONN FPC BOTTOM 33POS 0.30MM R/A	CONN FPC BOTTOM 21POS 0.30MM R/A	CONN FPC BOTTOM 39POS 0.30MM R/A	CONN FPC BOTTOM 27POS 0.30MM R/A	CONN FPC BOTTOM 37POS 0.30MM R/A	CONN FPC BOTTOM 35POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	33	21	39	27	37	35
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact plating	gold	gold	gold	gold	gold	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
