Accessories
Electrical Accessories
ELECTRICAL ACCESSORIES
ELECTRICAL ACCESSORIES
Product
Features
Accessory For

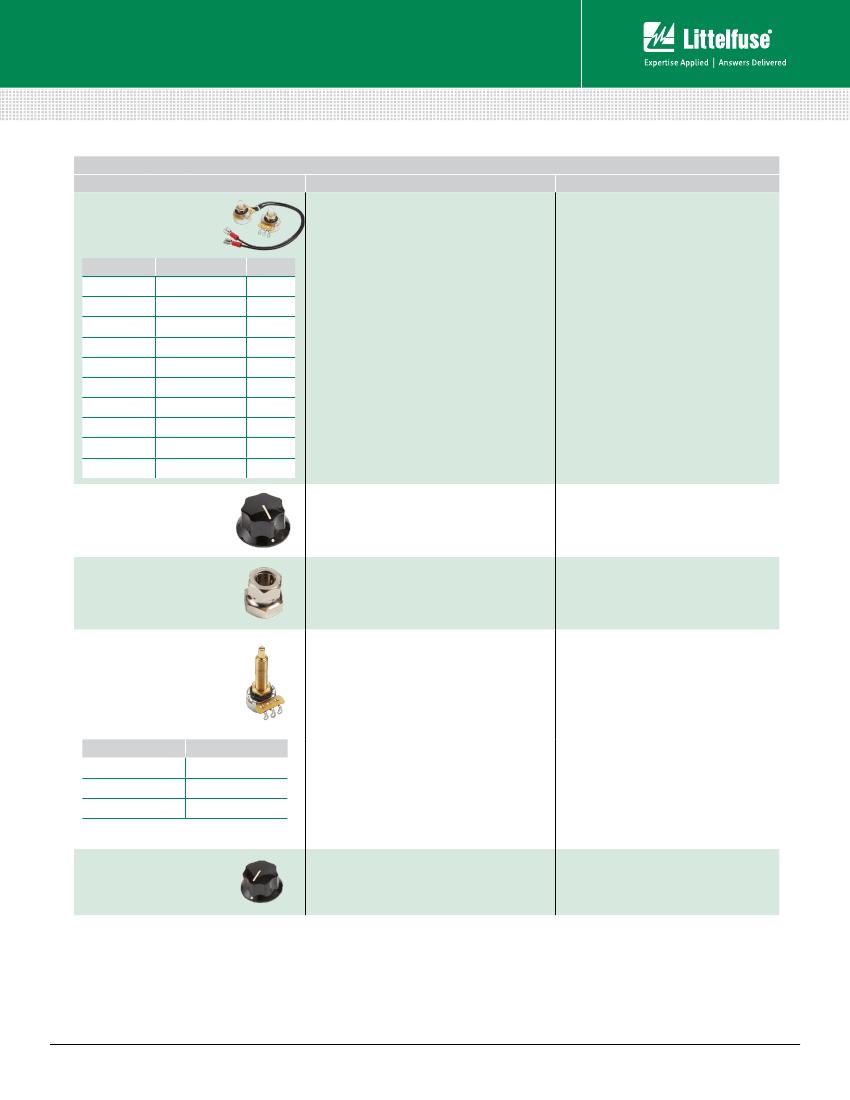

P1004-XX-(X)
Versa-Pot
PART NUMBER
WITH WIRE LEADS
VALUE
P1004-199
P1004-174
P1004-175
P1004-95
P1004-17
P1004-16
P1004-15
P1004-14
P1004-12
P1004-13
P1004-12-X
P1004-16-X
P1004-95-X
50kΩ
100KΩ
200KΩ
100kΩ
500kΩ
1MΩ
1.5MΩ
2MΩ
3MΩ
5MΩ
Panel mountable, industrial potentiometer
recommended for remote time delay adjustment.
The shaft is slotted for screwdriver adjustment and
serrated for slip-proof finger adjustment. Accepts
Versa-Knob or Lock Shaft. May be ordered with
two 8 in. (20.3 cm) wires soldered to pot
(clockwise increase) and female quick connect
terminals on other ends by adding suffix -X to end of
part number.
Specifications
Rating
Taper
Shaft Rotation
Tolerance
0.25W at 55°C
Linear
300° ±5°
±10%
P1004-95 & P1004-95-X:
Consult individual datasheet for
compatibility
P1004-174 & P1004-175:
PHS Series
P1004-16 & P1004-16-X:
Series: ERDM ERDI ERD3 TRB TRM
TRS TS1 TS6
P1004-15, P1004-14, P1004-13, P1004-12,
& P1004-12-X:
Series: ORB ORM ORS TAC1 THD7
TRB TRM TRS TS1 TS2
TS4 TS6 TSD7 TSU2000
P0700-7
Versa-Knob
Versa-Knob is designed for 0.25 in (6.35 mm) shaft
of Versa-Pot. Semi-gloss industrial black finish.
Fits 0.25 in. (6.35 mm) potentiometer shafts. Locks
by tightening nut onto four tapered/slotted fingers.
Pressure on the shaft locks control against
mis-adjustment. Nickel plated brass finish.
A high quality, industrial potentiometer for remote
time delay adjustment. The shaft extends through
the timer’s center hole for easy panel mounting. Use
mini-mount bracket for standup mounting of timer.
Adjustment by screwdriver or mini-knob. May be
ordered with two 3 in. (7.6 cm) wires soldered to
pot (clockwise increase) and female quick connect
terminals on other ends by adding suffix -X to end of
part number.
Specifications
Rating
Taper
Shaft Rotation
Tolerance
0.25W at 55°C
Linear
300° ±5°
±10%
P1004-XX-(X)
P0700-8
Lock Shaft
P1004-XX-(X)
P1004-9
P1004-10
P1004-31
Mini-Pot
PART NUMBER
VALUE
Series:
P1004-9
P1004-10
P1004-31
500kΩ
1MΩ
3MΩ
TAC1
TS1
TS4
TS6
TSU2000
TS2
TSD7
P0700-21
Mini-Knob
Versa-Knob is designed for 0.25 in (6.35 mm) shaft
of Versa-Pot. Semi-gloss industrial black finish.
P1004-XX-(X)
© 2016 Littelfuse Protection Relays & Controls
www.littelfuse.com/relayaccessories
Rev: 1-A-062916
Accessories
Electrical Accessories
ELECTRICAL ACCESSORIES
ELECTRICAL ACCESSORIES
Product
Features
Accessory For

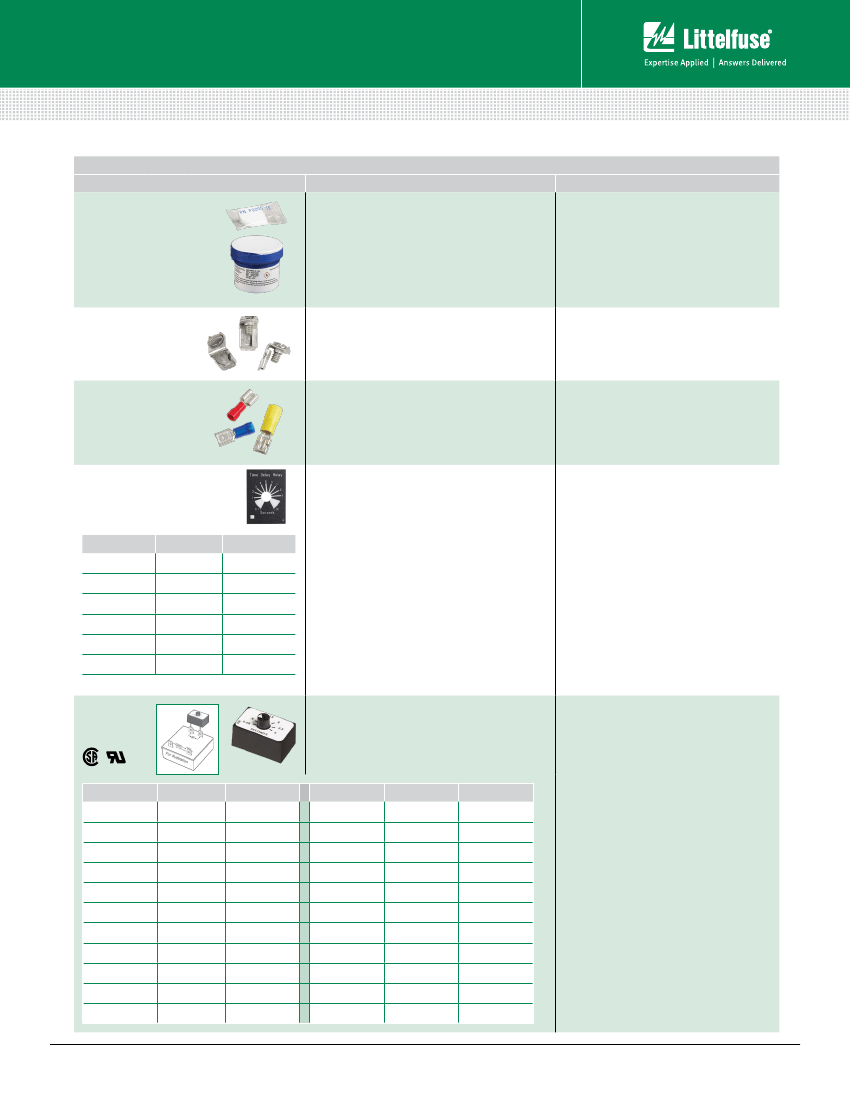

P0200-19
Heat Sink Compound
2 grams
P0200-20
Heat Sink Compound
100 grams
Single package/container of heat sink compound
consisting of primarily zinc oxide and having a 12
month shelf life (EOD date on the label). P0200-19
mounts one high current, plated 2 x 2 in. (50.8 x
50.8 mm) timer or flasher. P0200-20 mounts
50+ units.
Screw adaptor terminal designed for use with all
modules with 0.25 in. (6.35 mm) male quick
connect terminals. Screw terminal accepts ring
or spade terminals.
These 0.25 in. (6.35 mm) female terminals are
constructed with an insulator barrel to provide
strain relief.
Any 2 x 2 in. (50.8 x 50.8 mm) plated timer
or flasher.
P1015-18
Quick Connect
Screw Adaptor
Modules with 0.25 in. (6.35 mm)
male quick connect terminals.
Consult the individual datasheet to
determine compatibility.
P1015-13
P1015-64
P1015-14
Female Quick
Connect Terminals
Consult individual datasheet to
determine compatibility.
P0400
Time Adjustment Dials
PART NUMBER
RANGE
INCREMENTS
P0400-12
P0400-86
P0400-82
P0400-17
P0400-83
P0400-27
0.05 - 1s
0.1 - 10m
0.1 - 10s
1 - 30s
1 - 60s
0 - 10
0.1s
1m
1s
5s
10s
MRD*
Dials for use with remote Versa-Pot and panel
mounted Mini-Pot. Reverse screen printed on clear
plastic to avoid damage to printed image.
P1004-9
P1004-13
P1004-95
P1004-10
P1004-16
P1004-12
P1004-31
*Multiplier Reference Dial
VTPXX
VTP
The VTP Series mounts on modules with in-line
adjustment terminals. Rated at 0.25W at 55°C.
Available in resistance values from 5K Ω to 5MΩ
PART NUMBER
R
T
VALUE
RANGE
PART NUMBER
R
T
VALUE
RANGE
VTP0E
VTP1B
VTP1C
VTP1D
VTP2A
VTP2C
VTP2E
VTP2F
VTP2J
VTP2P
VTP3B
250kΩ
0.5MΩ
0.5MΩ
0.5MΩ
1MΩ
1MΩ
1MΩ
1MΩ
1MΩ
1MΩ
2MΩ
0.5 - 20s
0.05 - 3s
0.1 - 10s
0.5 - 10s
0.05 - 1s
0.1 - 10s
0.5 - 20s
0.5 - 60s
2 - 180s
1 - 100m
0.05 - 3s
VTP3L
VTP4B
VTP4F
VTP4J
VTP4P
VTP5G
VTP5K
VTP5N
VTP5P
VTPDF
2MΩ
3MΩ
3MΩ
3MΩ
3MΩ
5MΩ
5MΩ
5MΩ
5MΩ
50KΩ
0.1 - 4m
0.05 - 3s
0.5 - 60s
2 - 180s
1 - 100m
1 - 100s
10 - 1000s
0.1 - 10m
1 - 100m
0.5 - 60s
Series: TAC1
TS2
THD7
TS4
THDM
TS6
TS1
TSD7
© 2016 Littelfuse Protection Relays & Controls
www.littelfuse.com/relayaccessories
Rev: 1-A-062916
Accessories
Electrical Accessories
ELECTRICAL ACCESSORIES
ELECTRICAL ACCESSORIES
Product
Features
Accessory For

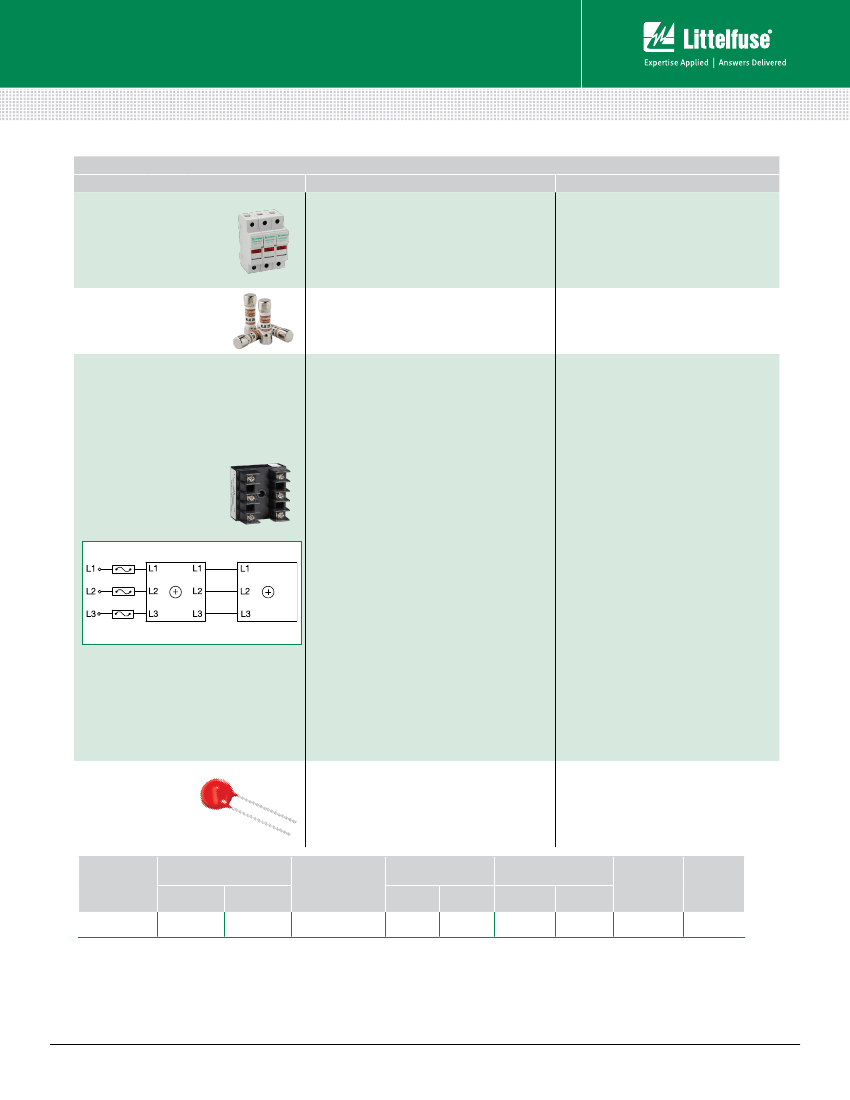

LPSM003ZXID
Indicating Fuse Holder
LPSM003Z
Non-indicating Fuse Holder
Littelfuse POWR-SAFE Dead Front holders provide
optimum protection to personnel for Class CC and
Midget-Style fuses. 600 VAC/DC
Series:
DLMU
PLMU
TVM
HLMU
PLR
TVW
PLM
PLS
WVM
0KLK002.T
Midget Fuse (2 Amp)
10 x 38 fast acting, high-interrupting capacity,
current-limiting type fuse. 600 VAC/500 VDC
The VRM6048 accessory module allows the voltage
monitor to monitor a 3-phase 550 to 600VAC Line.
Adjustment
If the measured line voltage
is 575VAC, connect as shown
and adjust/select the voltage
monitor for 460VAC operation.
Molded housing with
encapsulated circuitry
Surface mount with one #10
(M5 x 0.8) plastic screw. May
be DIN Rail mounted using
P1023-20 Adaptor.
Screw terminals with captive
wire clamps for up to No.12
AWG wire.
-40° to 70°C
-40° to 85°C
95% relative, non-condensing
Input
Output*
600VAC
480VAC
575VAC
460VAC
550VAC
440VAC
FH3P
LPSM003ZXID
LPSM003Z
VRM6048
Voltage Monitor
Accessory Module
575VAC
Package
Mounting
→
460VAC
Termination
Operating
Storage
Humidity
Voltage
PLM
PLR
PLS
TVM
TVW
(manufactured after December 2003)
Series:
VRM Module
Voltage Monitor
*The VRM6048 must be connected as shown. If the voltage
monitor is disconnected, the VRM output voltage equals the
input voltage.
V150LA10AP
LA Varistor
The V150LA10AP, a transient voltage surge
suppressor, is a radial leaded varistors (MOVs) that
is designed to be operated continuously across AC
power lines. This UL recognized varistor requires
very little mounting space.
MAX IMPULSE
CURRENT 80.20 μs
CURRENT WAVE
(A)
VARISTOR VOLTAGE AT
1MA DC TEST CURRENT
MIN. (V)
MAX. (V)
Any of our products that operate below
150 VAC or 200 VDC.
MAX. OPERATING VOLTAGE
PRODUCT
AC (V)
DC (V)
PEAK CLAMPING VOLTAGE
WITH 80.20 μs WAVE
V
C
(V)
1
PK
(A)
CAPACITANCE
DISC
DIAMETER
SIZE (MM)
V150LA10AP
150
200
4500
216
264
395
50
800
14
© 2016 Littelfuse Protection Relays & Controls
www.littelfuse.com/relayaccessories
Rev: 1-A-062916
