Preview

254825: DescriptionCombination Line Connector, 5 Contact(s), Male, Surface Mount Terminal, Receptacle; CategoryThe connector; File Size67KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

254825 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	254825	-	-	View	Buy Now

254825 Overview

Combination Line Connector, 5 Contact(s), Male, Surface Mount Terminal, Receptacle

254825 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Is Samacsys	N
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.199 inch
subject depth	0.35 inch
body length	0.754 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	254825
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

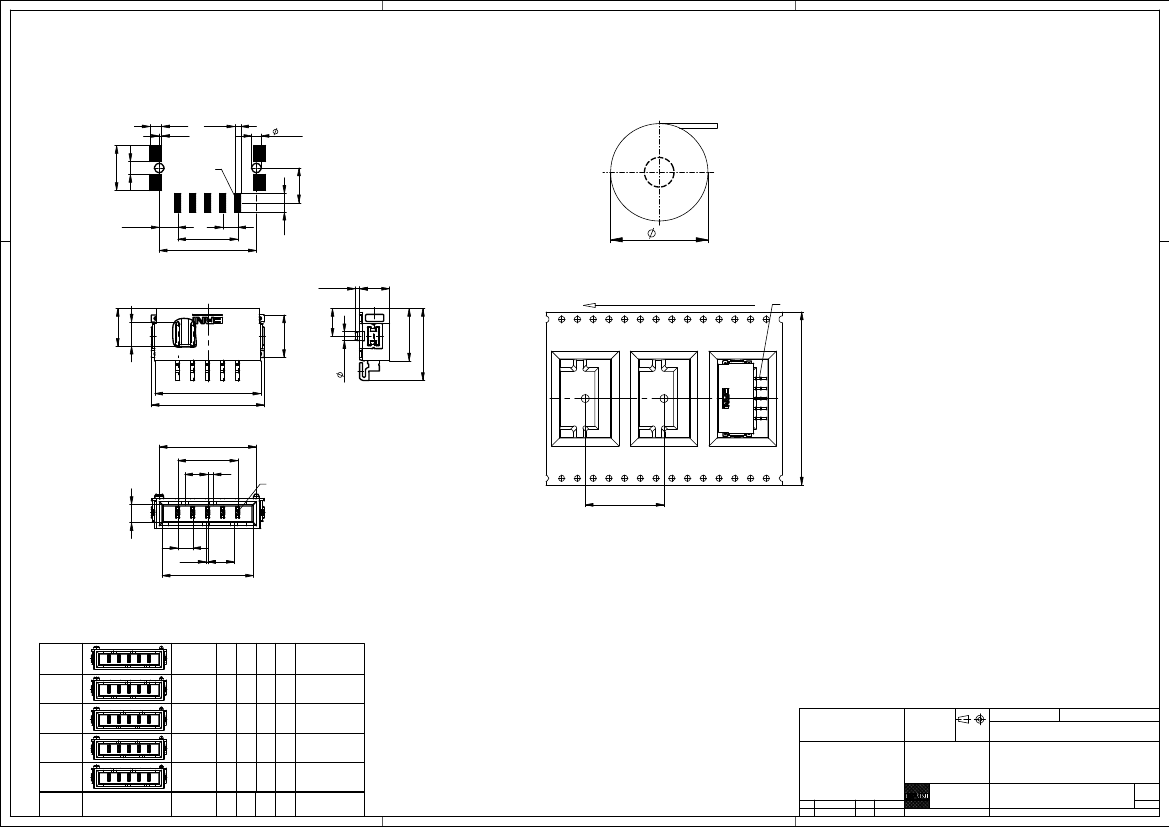

Verpackt in Gurtverpackung

Leiterplatten-Layout Vorschlag für SMT

Tape on Reel Packaging

PCB-Layout Proposal for SMT

1,95

0,4

1,02

Verpackungseinheit: 440 Stück

Packaging unit: 440 pcs

1,6

-0,03

7,6

2,2

a1

5,9

3,2

3,15

±0,03

16,46

±0,05

2,54

4 x 2,54 = 10,16

330

0,75

-0,1

5,05

Abspulrichtung -

Reel off Direction

6,4

4,1

±0,1

4,7

a1

7,2

8,9

1,5

-0,06

17,96

19,16

44

C

a1

Anforderungsstufe 1

16,46

±0,05

4 x 2,54 = 10,16

D

Performance Level 1

Kontaktbereich vergoldet

12,2

3,1

Mating Area gold plating

20

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

2,54

A

15,46

B

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

444807

254826

254825

254824

254823

Ident-Nr.

white

red

green

blue

schwarz

blau

grün

rot

weiß

0,3

4,5

0,9

3,9

Codierung wie Variante

schwarz

Encoding such variant

black

3,9

0,9

4,5

0,3

Tolerances

All Dimensions

in mm

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

2,7

2,1

3,3

1,5

Information:

Scale

3:1

1,5

3,3

2,1

2,7

black

color

0,3

4,5

0,9

3,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

e

Index

03.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

M 2,54 SRC-A, 5-polig

part-no.

Codierung

coding

Farbe

A

B

C

D

Bemerkung

www.ERNI.com

Class

note

224912

SRCA

I

A2

254825 Related Products

	254825	254824	444807
Description	Combination Line Connector, 5 Contact(s), Male, Surface Mount Terminal, Receptacle	Combination Line Connector, 5 Contact(s), Male, Surface Mount Terminal, Receptacle	Combination Line Connector, 5 Contact(s), Male, Surface Mount Terminal
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD	GOLD	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	5	5
Base Number Matches	1	1	1
Is it lead-free?	Lead free	Lead free	-
Other features	ROHS COMPLIANT	ROHS COMPLIANT	-
Board mount options	PEG	PEG	-
body width	0.199 inch	0.199 inch	-
subject depth	0.35 inch	0.35 inch	-
body length	0.754 inch	0.754 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Contact completed and terminated	Tin (Sn)	Tin (Sn)	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact resistance	20 mΩ	20 mΩ	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	1400VAC V	1400VAC V	-
Durability	250 Cycles	250 Cycles	-
Insulation resistance	10000000000 Ω	10000000000 Ω	-
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	-
JESD-609 code	e3	e3	-
Plug contact pitch	0.1 inch	0.1 inch	-
Installation option 1	LOCKING	LOCKING	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	-
Number of connectors	ONE	ONE	-
PCB row number	1	1	-
Number of rows loaded	1	1	-
Maximum operating temperature	150 °C	150 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
Guideline	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal pitch	2.54 mm	2.54 mm	-
