FISH TAPES, ACCESSORIES
& CONDUIT TOOLS
Innovative, high quality solutions for
wire pulling and conduit bending
PULL
FISH
BEND
For Professionals...Since 1857
®
49’

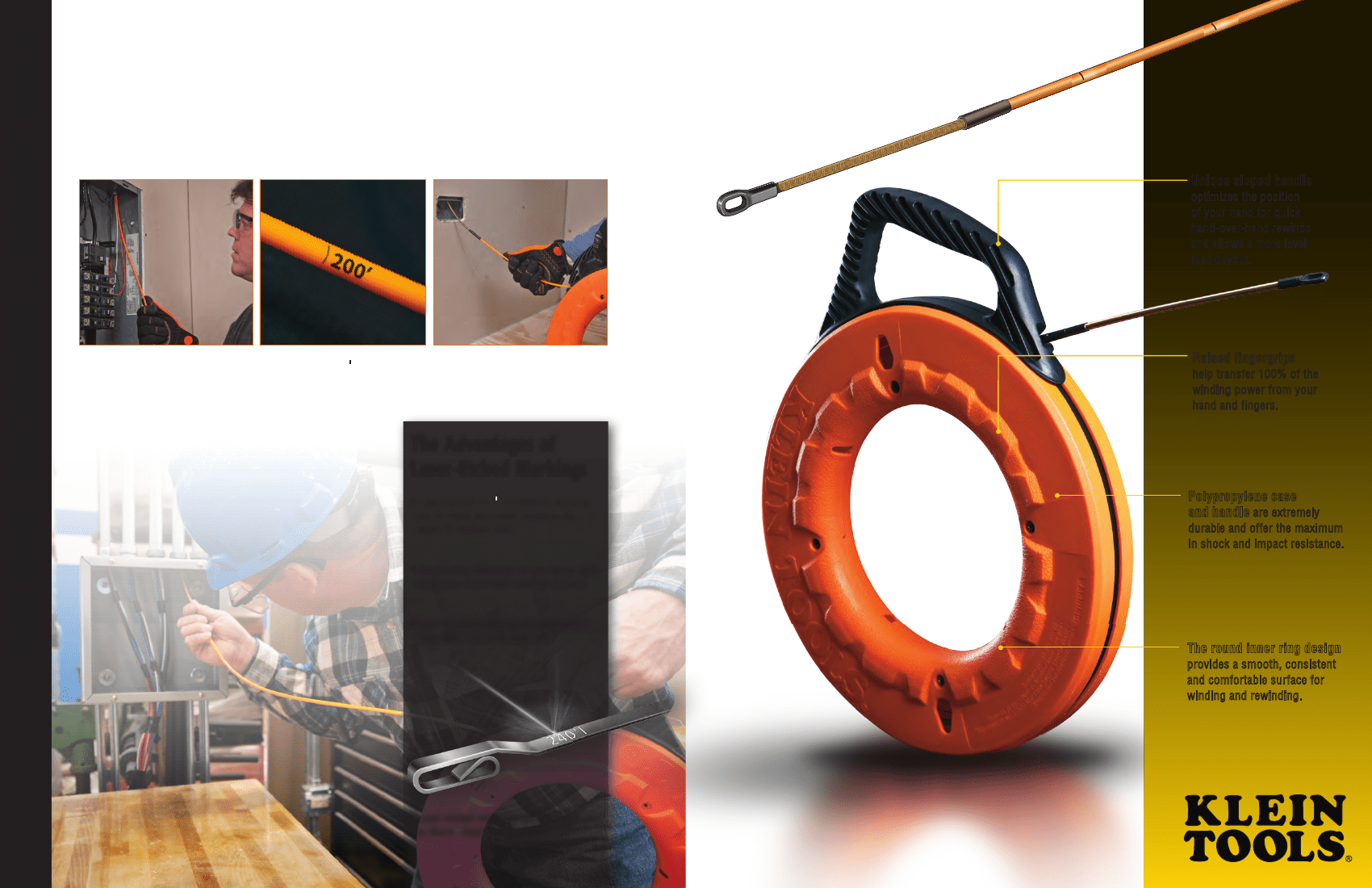

FISH TAPES, ACCESSORIES & CONDUIT TOOLS
I N T R O D U C I N G
Laser-Etched Fiberglass Fish Tapes
ve! ched M
lusi r-Et
Exc ase
L
ngs
arki
EN
PAT
T
D
PEN
ING
50’
Unique sloped handle
optimizes the position
of your hand for quick
hand-over-hand rewinds
and allows a more level
tape payout.
OL
S
S
I
NC
E
TO
185
Y
IT
7
L
A
NON-CONDUCTIVE
PERMANENT 1' MARKINGS
DURABLE LEADER
Raised fingergrips
help transfer 100% of the
winding power from your
hand and fingers.
The Advantages of
Laser-Etched Markings
•
Laser-etched in 1' increments allowing
you to more accurately measure the
depth of conduit runs.
Polypropylene case
and handle
are extremely
durable and offer the maximum
in shock and impact resistance.
•
Descending markings let you know right
away how much tape is left to pay out.
•
Laser-etched markings are permanent.
They won’t rub or scratch off.
The round inner ring design
provides a smooth, consistent
and comfortable surface for
winding and rewinding.
All dimensions are in inches and (millimeters) unless otherwise specified.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
ing fish tape.
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
Laser-etched markings are also available
on Klein
®
Steel Fish
loss of balance when using
WARNING:
Use a safe work position to avoid
Tapes.
2
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
Q
U

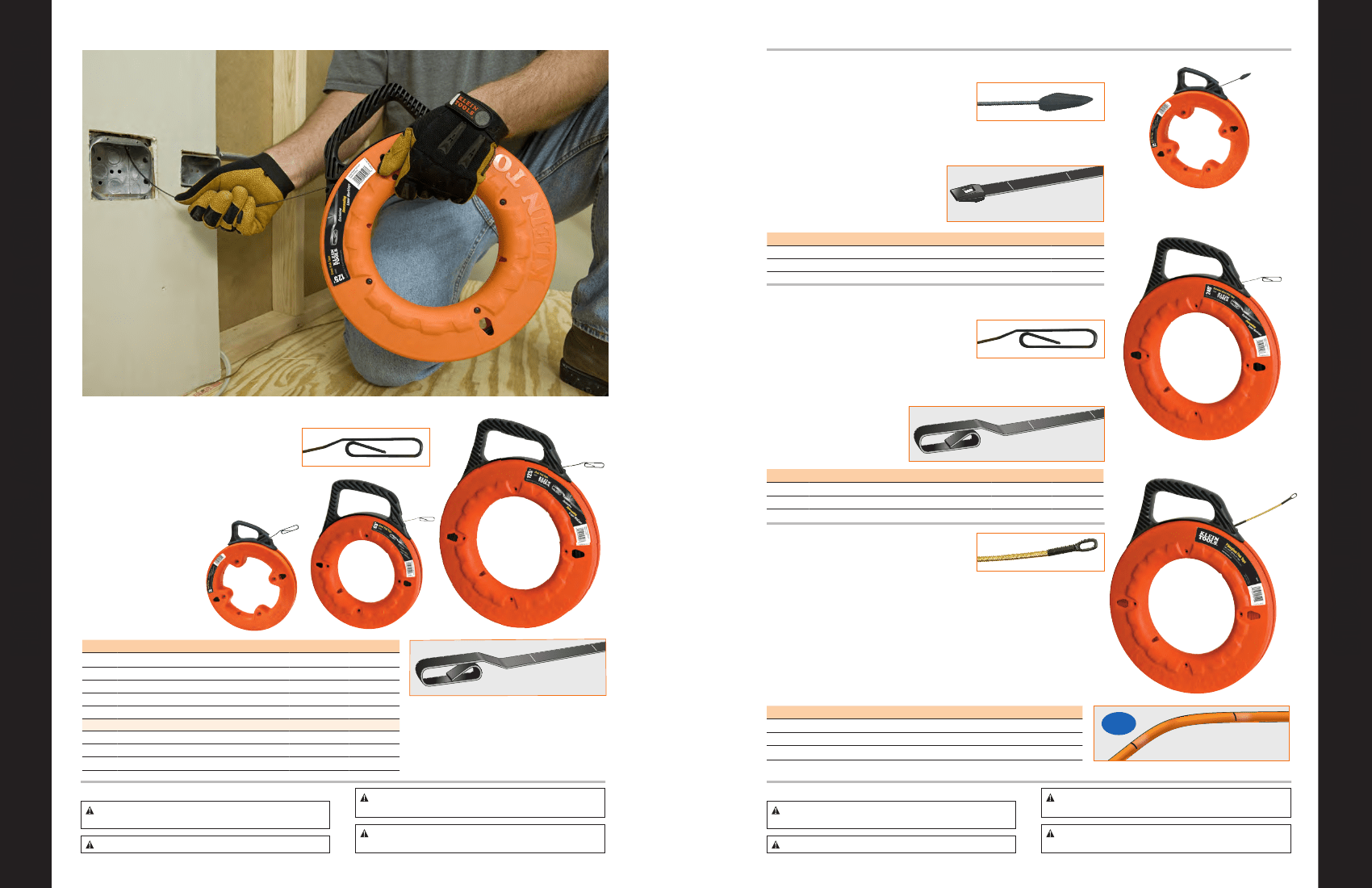

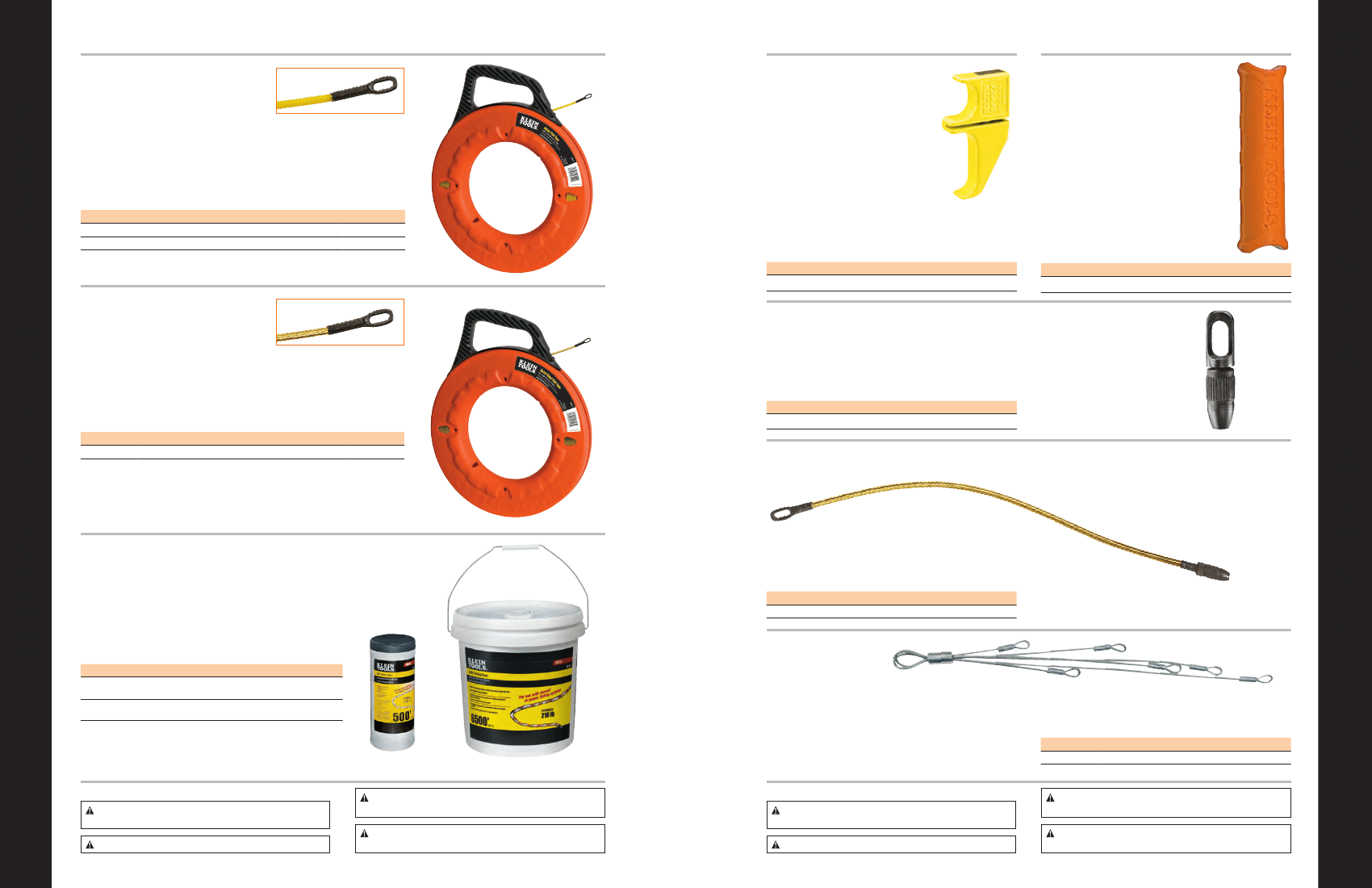

FISH TAPES, ACCESSORIES & CONDUIT TOOLS
Fish Tapes
High Strength 1/4" Wide Steel Fish Tapes
Additional Features:
Permanent, laser etched 1' increments
on the tape allow you to more accurately
measure the depth of conduit runs and
determine the amount of tape left to pay out.
Tempered, high quality tape keeps its stability as it glides between surfaces for
effective pushing and pulling of wire under carpets, through insulated walls
and over suspended ceilings.
Fish Tapes
•
•
FISH TAPES, ACCESSORIES & CONDUIT TOOLS
•
25’ length is perfect for short wire
runs associated with light commercial,
56005 Has a No Snag Plastic Tip
residential and voice-data-video-audio
installations (Cat. No. 56005).
25'
24'
23'
56005
1' Permanent Laser Etched
Descending Increments.
Cat. No.
Tape Size
Reel Diameter
Weight (lbs.)
56005
56006
25' L x 1/4" W x .030" H (7 m L x 6.3 mm W x .7 mm H)
100' L x 1/4" W x .062" H (30 m L x 6.3 mm W x 1.5 mm H)
7" (178 mm)
13" (330 mm)
1.1
6.8
High Strength 1/8" Stainless Steel Fish Tapes
Additional Features:
Permanent, laser etched 1' increments on
the tape allow you to more accurately
measure the depth of conduit runs and
determine the amount of tape left to pay out.
Stainless Steel fish tape is corrosion resistant and extends the life of the tool.
High strength spring steel fish tapes are stiff for long runs and are great for
heavy duty wire pulls.
•
•
•
High Strength 1/8" Wide Steel Fish Tapes
Additional Features:
Permanent, laser etched 1' increments
on the tape allow you to more
accurately measure the depth of
conduit runs and determine the
amount of tape left to pay out.
•
240'
239'
238'
1' Permanent Laser Etched
Descending Increments.
56008
Cat. No.
Tape Size
Reel Diameter
Weight (lbs.)
•
Full grip style handle gives you
a firm, steady grip as you
•
pull tape from the case
(Cat. Nos. 56000, 56001).
The 13" case diameter means
you can reel in 15% more
tape in a single revolution
than similar sized
12" tapes saving you
time and effort
(Cat. Nos. 56003, 56004).
56007
56008
125' L x 1/8" W x .062" H (38 m L x 3 mm W x 1.5 mm H)
240' L x 1/8" W x .062" H (73 m L x 3 mm W x 1.5 mm H)
13" (330 mm)
13" (330 mm)
4.7
7.5
Fiberglass Fish Tapes
Additional Features:
Permanent, laser etched 1' increments on the tape allow you to more accurately
measure the depth of conduit runs and determine the amount of tape left to pay out.
Designed for flexibility and easy navigation through conduit runs.
56001
56002
56003
Cat. No.
Tape Size
Reel Diameter
Weight (lbs.)
56000
25' L x 1/8" W x .045" H (7 m L x 3 mm W x 1.1 mm H)
56001
50' L x 1/8" W x .045" H (15 m L x 3 mm W x 1.1 mm H)
56002
65' L x 1/8" W x .062" H (19 m L x 3 mm W x 1.5 mm H)
56003
125' L x 1/8" W x .062" H (38 m L x 3 mm W x 1.5 mm H)
56004
240' L x 1/8" W x .062" H (73 m L x 3 mm W x 1.5 mm H)
Replacement Tapes
56065
65' L x 1/8" W x .062" H (19 m L x 3 mm W x 1.5 mm H)
56125
125' L x 1/8" W x .062" H (38 m L x 3 mm W x 1.5 mm H)
56240
240' L x 1/8" W x .062" H (73 m L x 3 mm W x 1.5 mm H)
7" (178 mm)
7" (178 mm)
9" (229 mm)
13" (330 mm)
13" (330 mm)
–
–
–
1.0
1.3
2.6
4.7
7.5
1.7
3.3
6.1
240'
239'
238'
1' Permanent Laser Etched
Descending Increments.
•
•
•
Non conductive, fiberglass fish tape slides easily over existing wires and
through multiple bends.
and
composite tape
•
The lightweightand isstrong fiberglassup to 500 pullingresists
harsh elements
strength rated
pounds.
The 13" case
you can reel in
•
revolution vs.diameter means case (except Cat.15% more tape in a single
a standard 12"
No. 56014).
•
Durable 7" leader helps push through crowded conduit.
Cat. No.
Tape Size
Reel Diameter
56010
NEW!
NEW!
NEW!
•
Replacement tapes available in
65', 125', & 240' lengths
Weight (lbs.)
(Cat. Nos. 56065, 56125, 56240).
56009
56010
56014
50' L x 3/16" W (7" leader) (15 m L x 4.8 mm W)
100' L x 3/16" W (7" leader) (30 m L x 4.8 mm W)
200' L x 3/16" W (7" leader) (60 m L x 4.8 mm W)
13" (330 mm)
13" (330 mm)
17" (432 mm)
2.8
3.5
6.2
NEW!
49’
NEW!
’
50
1' Permanent Laser Etched
Descending Increments.
All dimensions are in inches and (millimeters) unless otherwise specified.
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
All dimensions are in inches and (millimeters) unless otherwise specified.
ing fish tape.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
ing fish tape.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
WARNING:
Use a safe work position to avoid loss of balance when using
WARNING:
Use a safe work position to avoid loss of balance when using
4
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
5
FISH TAPES, ACCESSORIES & CONDUIT TOOLS
Fish Tapes
Nylon Fish Tapes
Additional Features:
Designed
•
navigationfor flexibility and easy
through conduit runs.
•
Non conductive, nylon fish tape slides
easily over existing wires and through
Fish Tape Accessories
Steel Fish Tape Puller
•
Exclusive design improves your
grip while pulling all
Composite Fish Tape Puller
Exclusive design improves your
•
while pulling round-diameter, grip
FISH TAPES, ACCESSORIES & CONDUIT TOOLS
•
•
•
multiple bends.
The lightweight and strong nylon composite tape resists
harsh elements and is strength rated up to 200 pulling pounds.
The 13" case diameter means you can reel in 15%
more tape in a single revolution vs. a standard 12" case.
Tape Size
Reel Diameter
Weight (lbs.)
mechanism
•
Internal resistancetape
securely locks fish
types of flat steel fish tape.
Rugged metal construction is
comfortable in your hand and
provides excellent leverage.
•
•
•
56012
Cat. No.
56011
56012
50' L x 3/16" W (15 m L x 4.8 mm W)
100' L x 3/16" W (30 m L x 4.8 mm W)
13" (330 mm)
13" (330 mm)
2.3
3.0
in place for pulling.
Compatible with 1/8" & 1/4"
tape widths and thicknesses of
.045", .062" and .030".
Compact size – fits easily in your
pocket or a tool pouch.
Interlocking teeth molded into channel
•
wrap completely around the tape when
composite fish tapes.
Flexible rubberized construction is
comfortable in your hand and provides
excellent leverage.
50355
•
•
squeezed.
Fits conveniently into center of 13"
fish tape case for easy storage.
Compatible with Nylon, Fiberglass
and Spiral Steel tapes.
56106
Cat. No.
Length
Weight (lbs.)
Cat. No.
Length
Weight (lbs.)
50355
3-1/4" (83 mm)
.33
56106
7-3/4" (196 mm)
.6
Spiral Steel Fish Tapes
Additional Features:
Designed for super flexibility and
easy navigation through conduit runs.
Spiral Steel fish tape slides easily over
existing wires and through multiple bends.
The durable spiral steel tape construction yields
a maximum pulling force of up to 500 lbs.
The 13" case diameter means you can reel in 15%
more tape in a single revolution vs. a standard 12" case.
•
•
•
•
Steel Fish Tape Swivel Eyelet
•
For use with 1/8" wide steel fish tapes.
•
Swivel head design helps prevent kinks and allows smoother, easier fishing in tight turns.
•
High capacity eyelet holds up to five #12 unstripped wires or seven #10 bare wires.
•
High strength steel construction allows for optimal performance over repeated uses.
•
Retrofit instructions included.
Cat. No.
Length
Diameter
Weight (lbs.)
50351
Weight (lbs.)
1-1/2" (38 mm)
3/16" (5 mm)
.03
50351
Cat. No.
Tape Size
Reel Diameter
56013
50' L x 3/16" W (15 m L x 4.8 mm W)
13" (330 mm)
5.1
13.5" Flexible Leader for Steel Fish Tapes
•
The 3/16" diameter tape has a rustproof
inner steel cable core wrapped with a
•
spiral cover for exceptional flexibility.
Flexible leader guides steel tapes
through 90° bends and makes pulling
and pushing flat steel tapes easier.
Fish Tape Accessories
Poly Pull Line
Use polypropylene line with manual or
•
power fishing systems for light duty cable
56013
•
•
•
or rope pulling applications.
Ready to use storage containers quickly
dispense a tangle free line and also protects
line from direct sunlight.
Line is resistant to rot and mildew.
Up to 210 lbs. average breaking strength.
Description
Container Type
Weight (lbs.)
•
For use with 1/8" wide steel fish tapes.
•
Heavy duty construction is strength rated up to 500 pulling pounds.
•
High capacity eyelet holds up to five #12 unstripped wires and seven #10 bare wires.
•
Retrofit instructions included.
Cat. No.
Length
Diameter
Weight (lbs.)
50350
50350
13-1/2" (343 mm)
3/16" (5 mm)
.10
Cat. No.
6 Loop Wire
Pulling Leader
56108
56110
500' (152 m) poly pull line
with orange tracer
6500' (1981 m) poly pull line
with orange tracer
one-quart size
w/locking lid
five-gallon
bucket
1
11
56108
56110
•
Save time by attaching leader to the end of a fish tape and pull up to 6 wires at once.
•
Braided steel construction provides up to 450 lbs. pull strength on main eyelet.
•
Flexible construction allows for easy navigation through multiple bends in conduit.
•
Staggered loop lengths won't overlap and clog pipe.
Cat. No.
Length
•
For use with 1/8" and 1/4" flat steel fish tapes.
56107
11-1/4" (285 mm)
All dimensions are in inches and (millimeters) unless otherwise specified.
ing fish tape.
56107
Weight (lbs.)
.2
All dimensions are in inches and (millimeters) unless otherwise specified.
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
ing fish tape.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
WARNING:
Use a safe work position to avoid loss of balance when using
WARNING:
Use a safe work position to avoid loss of balance when using
6
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
7
FISH TAPES, ACCESSORIES & CONDUIT TOOLS
Fish Tape Accessories

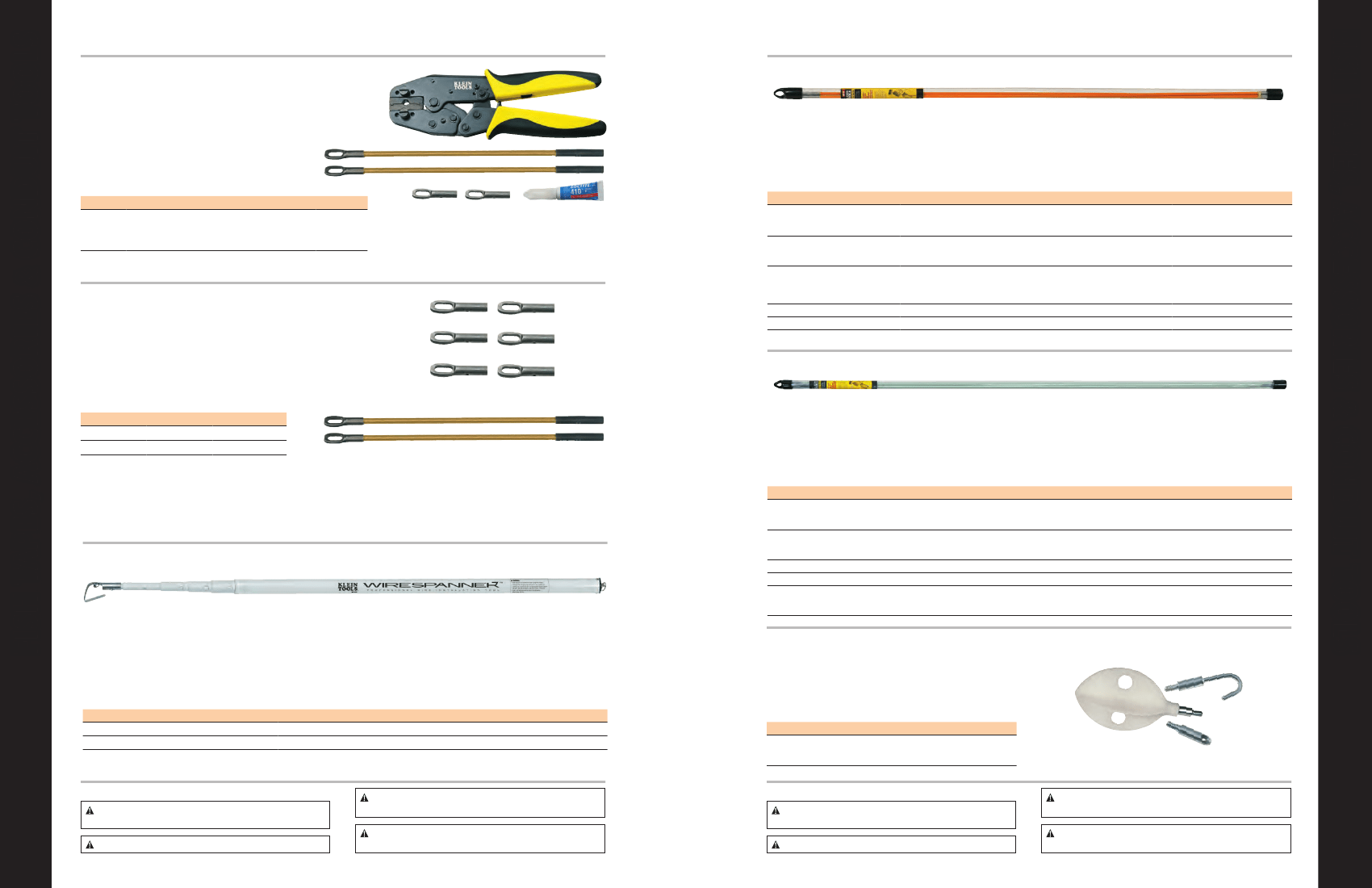

Fiberglass Fish Tape Repair Kit
crimper,
•
Contains high leverage ratchetingreplacement leaders,
two replacement eyelets, two 7"
Fish Rods
Fish Rods
FISH TAPES, ACCESSORIES & CONDUIT TOOLS
•
•
•
one tube of quick dry glue and comprehensive instructions.
Multi-function ratcheting crimper (Cat. No. 56115V) cuts
tape cleanly, strips tapes and crimps on new attachments.
Newly crimped on eyelets meet or exceed original
factory pulling strength requirements.
Protective carry case firmly holds all tools and
additional parts in handy, organized compartments..
Set Contains
Weight (lbs.)
•
Use to install wires above ceilings, through walls and under carpets and raised floors.
•
1/4" diameter Fish Rods are flexible, yet provide excellent rigidity for extended distance stand out.
•
Connect individual sections end-to-end to create a variety of lengths.
•
Threaded connectors are beveled on both ends to prevent snagging and hang ups on obstructions.
•
Sets contain (1ea.) steel "bullnose" and (1ea.) "J" hook accessory for attaching wires.
•
Cat. No. 56103 also includes one 3/16" x 5' Glow Rod section to help guide Fish Rods into dark spaces.
Cat. No.
56115
56100
Cat. No.
Description
Set Contains
Material
Max. Diameter
Weight (lbs.)
56115
High Leverage Crimper ( 1 ea.),
7" flexible leader (2 ea.),
Eyelets ( 2 ea.),
Tube quick-drying Glue (1 ea)
2.18
56100
56101
56103
12' (3.6 m) fish rod set
24' (7.3 m) fish rod set
25' (7.6 m) fish and
glow rod set
4' (1.2 m) fish rod
6' (1.8 m) fish rod
(3 ea.) 1/4" x 4' (6.3 mm x 1.2 m) fish rods
(1 ea.) bull nose attachment
(1 ea.) hook attachment
(4 ea.) 1/4" x 6' (6.3 mm x 1.8 m) fish rods
(1 ea.) bull nose attachment
(1 ea.) hook attachment
(5 ea.) 1/4" x 4' (6.3 mm x 1.2 m) fish rods
(1 ea) 3/16" x 5' (4.8 mm x 1.5 m) glow rod
(1 ea.) bull nose attachment
(1 ea.) hook attachment
−
−
fiberglass
fiberglass
fiberglass and
luminescent rods
fiberglass
fiberglass
1/4" (6 mm)
1/4" (6 mm)
1/4" (6 mm)
1.2
2.2
2.7
6-Pack Replacement Eyelets &
2-Pack 7" Replacement Flexible Leaders
fiberglass fish
•
For use only with56010 & 56014).tapes
(Cat. No. 56009,
with nylon
•
Not compatible & 56012). fish tapes
(Cat. No. 56011
Tools ratcheting crimper
•
Attach with Klein available in kit 56115 only.
(Cat. No. 56115V)
Cat. No.
Length
Weight (lbs.)
56111
56112
1/4" (6 mm)
1/4" (6 mm)
.2
.2
Glow Rods
56116
56116
56120
1.5" (38 mm)
8.94" (227 mm)
.06
.11
56120
•
Use to install wires above ceilings, through walls and under carpets and raised floors.
•
Luminescent rods glow in the dark and are rechargeable in most available light sources.
•
3/16" and 5/32" diameter Glow Rods are extremely flexible to navigate tight bends and narrow openings.
•
Connect individual sections end-to-end to create a variety of lengths.
•
Threaded connectors are beveled on both ends to prevent snagging and hang ups on obstructions.
•
Cat. No. 56109 features 2 permanently affixed bull nose tips and offers the ultimate in flexibility.
Cat. No.
Description
Set Contains
Material
Max. Diameter
56518
Weight (lbs.)
Fish Rods
Extension Pole – WireSpanner™
56102
56508
56109
56114
56518
56105
15' (4.5 m) glow rod set
9' (2.7 m) glow rod set
6' (1.8 m) glow rod
5' (1.5 m) glow rod
18' (5.5 m) glow rod set
(3 ea.) 3/16" x 5' (4.8 mm x 1.5 m) glow rods
(1 ea.) bull nose attachment
(1 ea.) hook attachment
(6 ea) 3/16" x 18" (4.8 mm x .5 m) glow rods
(1 ea) bull nose attachment
(1 ea) hook attachment
–
–
(3 ea) 5/32" x 6' (3 mm x 1.8 m) glow rods
(1 ea) bull nose attachment
(1 ea) hook attachment
luminescent fiberglass
luminescent fiberglass
luminescent fiberglass
luminescent fiberglass
luminescent fiberglass
3/16" (5 mm)
3/16" (5 mm)
5/32" (3 mm)
3/16" (5 mm)
5/32" (3 mm)
1.0
.6
.09
.2
.9
NEW!
NEW!
•
Push/Pull wires over long spans of suspended ceilings, sub-floors, crawl spaces and attics.
•
The durable 54" pole quickly and easily telescopes to a maximum of 22' long.
•
Each section locks securely into place and will not spin loose or collapse.
•
High quality, rigid fiberglass is sturdy, lightweight and slides easily over obstructions.
•
Large capacity hook/skid tip pulls multiple wires easily and has a separate eyelet for wire tie-on.
Cat. No.
Description
Collapsed Length
Extended Length
Max. Diameter
Weight (lbs.)
3-Piece Fish and Glow Rod Attachment Set
over obstructions
•
Whisk attachment helps guide rods left or right. and
can roll side-to-side to help "steer"
Hook attachment helps
•
objects from a distance. grab and retrieve wires or other
•
Compatible with 1/4", 3/16", and 5/32" rod sizes.
Cat. No.
Set Contains
Weight (lbs.)
56105
56118
WireSpanner™ installation tool
WireSpanner™ carry case
54" (1.3 m)
−
22' (6.7 m)
−
2" (50 mm)
−
4
0.4
56104
(1 ea.) whisk attachment
(1 ea.) bull nose attachment
(1 ea.) hook attachment
.1
56104
All dimensions are in inches and (millimeters) unless otherwise specified.
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
All dimensions are in inches and (millimeters) unless otherwise specified.
ing fish tape.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
ing fish tape.
WARNING:
Wear approved eye protection when feeding, pulling or rewind-
WARNING:
Do NOT use any fish tape on or near live circuits.
Use extreme caution when working near any electrical equipment.
WARNING:
Use a safe work position to avoid loss of balance when using
WARNING:
Use a safe work position to avoid loss of balance when using
8
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
WARNING:
Never remove screws while fish tape is coiled inside reel.
fish tape.
9
京公网安备 11010802033920号
EEWORLD
