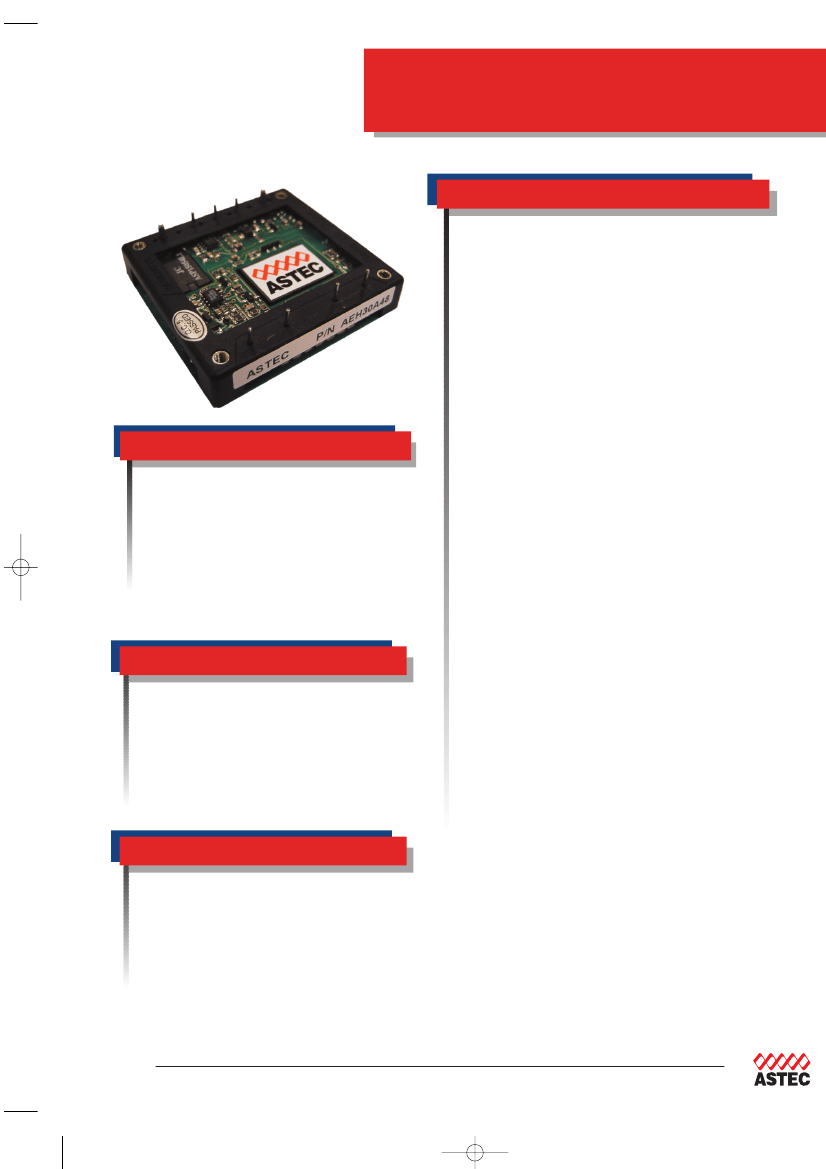

AEH30F48: Description1-OUTPUT DC-DC REG PWR SUPPLY MODULE; Categoryaccessories; File Size459KB，2 Pages; ManufacturerAstec [Astec America, Inc]

Download Datasheet View All

AEH30F48 Overview

1-OUTPUT DC-DC REG PWR SUPPLY MODULE

Preview

Download Datasheet

View All

Astec Industry Standard

50-150 Watts

AEH10-30

Total Power:

Input Voltages:

No. of Outputs:

50-150 Watts

24V,48V

Single

Electrical Specs

Input

Input range

Input Surge

Efficiency

36-75 VDC

100V / 100ms

89%@5V

Output

Load regulation

Line regulation

Ripple and noise

Output voltage

adjust range

Transient Response

0.2% max

0.5% max

150mV max

±10% of nominal output

1% max deviation with

50% to 75% full load

100 µS (max) recovery

Special Features

• Industry standard pin-out &

performance 100°C baseplate

temperature (no derating)

• Positive and negative enable function

• Low output ripple and noise

• Remote sense compensation

• Regulation to zero load

• Fixed frequency switching (330 kHz)

Control

Voltage Adjust

Enable

90 to 110%

TTL compatible

(positive & negative enable options)

Environmental

Operating case temperature range:

-40°C to +100°C

Storage temperature: -55°C to +125°C

MTBF: >2 million hours

Safety

CSA

TUV

UL1950

CSA22.2-950

EN60950

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
