MTAN2146-CG: DescriptionMarktech 5.00 5x8 Dot Matrix; CategoryLED optoelectronic/LED photoelectric; File Size35KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric Compare View All

MTAN2146-CG Overview

Marktech 5.00 5x8 Dot Matrix

MTAN2146-CG Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
color@wavelength	Gree
Display height	106.7 mm
Maximum forward voltage	6 V
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	5 X 8 DOT MATRIX LED DISPLAY
peak wavelength	567 nm
Base Number Matches	1

Preview

Download Datasheet

View All

Marktech 5.00" 5x8 Dot Matrix

Features

Additional Colors/Materials Available

Excellent Character Appearance

High Light Output

IC Compatible

Low Current Requirements

Other face/epoxy colors available

Applications

Message Signs

VMS

Notes

All Dimensions are in millimeters.

Tolerance is ±0.25mm unless otherwise stated.

The slope angle of any pin may be ±5.0° MAX.

Operating Temperature: −25 ~ +85

Storage Temperature: −25 ~ +100

Specifications subject to change without notice.

Part Number

PWL Material Emitted

λp

Color

Face Colors

Epoxy Surface

Color

Maximum Ratings

IF

VR

PD

Optical and Electrical Characteristics

Forward Voltage

VF

typ.

max.

6.00

4.40

V

IF@

20mA

−

Reverse Current

IR

max.

100

µA

VR@

5V

4V

−

Luminous Intensity

IV

typ. dot

6.80

7.80

41.10

mcd

IF@

10mA

20mA

−

Out

MTAN2146−AG

MTAN2146−CG

MTAN4146−AHR

MTAN4146−AO

MTAN4146−CHR

MTAN4146−CO

MTAN7146M−12A

MTAN7146M−22C

Units

567

635

660

nm

GaP

GaAsP

GaAlAs

−

YG

HR

SBUR

−

White

Red

White

Red

White

−

Gray

Red

Gray

Red

Gray

Black

−

30

mA

5.00

4.00

V

85.00

70.00

mW

4.20

3.40

1

2

1

2

1

2

−

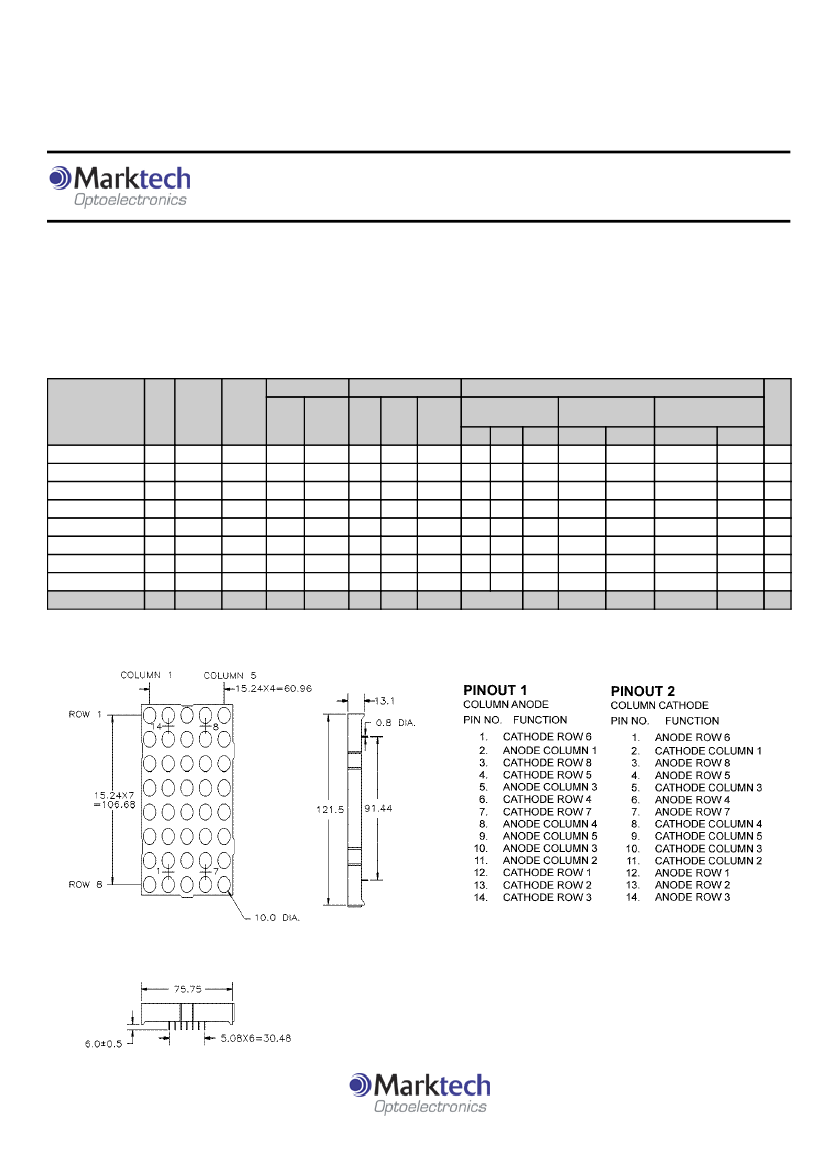

Package Dimensions and Pin Functions

Company Headquarters

3 Northway Lane North

Latham,

New York 12110

Toll Free: 800.984.5337

Fax: 518.785.4725

Web: www.marktechopto.com | Email: info@marktechopto.com

West Coast Sales Office

950 South Coast Drive, Suite 225

Costa Mesa, California 92626

Toll Free: 800.984.5337

Fax:

714.850.9314

MTAN2146-CG Related Products

	MTAN2146-CG	MTAN2146-AG	MTAN4146-AO	MTAN7146M-22C	MTAN7146M-12A	MTAN4146-CO
Description	Marktech 5.00 5x8 Dot Matrix	Marktech 5.00 5x8 Dot Matrix	Marktech 5.00 5x8 Dot Matrix	Marktech 5.00 5x8 Dot Matrix	Marktech 5.00 5x8 Dot Matrix	Marktech 5.00 5x8 Dot Matrix
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
color@wavelength	Gree	Red	Red	Red	Red	Orange
Display height	106.7 mm	106.7 mm	106.7 mm	53 mm	53 mm	106.7 mm
Maximum forward voltage	6 V	6 V	6 V	4.4 V	4.4 V	6 V
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	5 X 8 DOT MATRIX LED DISPLAY	5 X 8 DOT MATRIX LED DISPLAY	5 X 8 DOT MATRIX LED DISPLAY	5 X 8 DOT MATRIX LED DISPLAY	5 X 8 DOT MATRIX LED DISPLAY	5 X 8 DOT MATRIX LED DISPLAY
peak wavelength	567 nm	567 nm	635 nm	660 nm	660 nm	635 nm
Base Number Matches	1	1	-	1	1	-
Maker	-	-	Marktech	Marktech	Marktech	Marktech
