Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, crimp
connection pitch 5.00 | RSV 1.6 C | RSV1.6 CB
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Connectable conductors
Clamping range, min.
Clamping range, max.
Flexible, min. H05(07) V-K
1419000000
RSV1,6 B36 GR

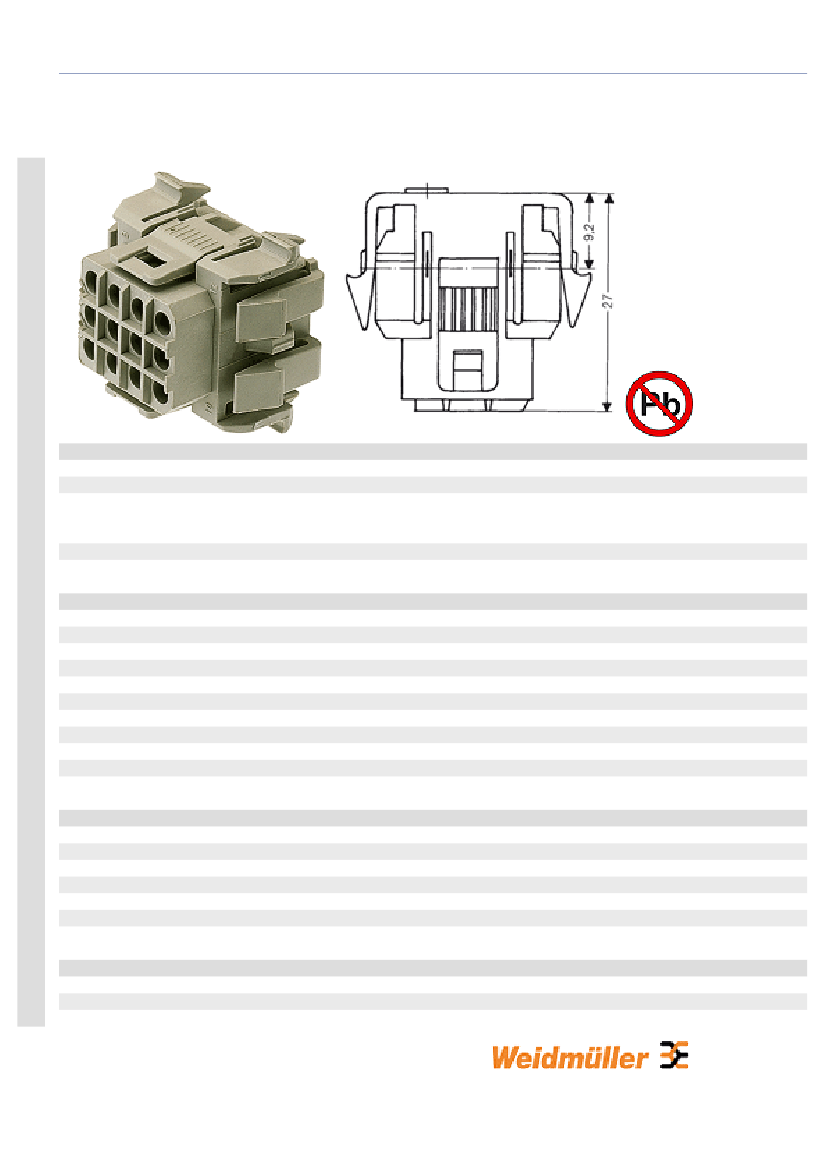

PCB plug-in connector, Female connectors, Crimp
connection, Clamping range, max.: 3.31 mm²,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
4008190108212
10 pc(s).
Crimp connection
180°
5 mm
0.197 inch
36
2...4
4 mm
40 mm
1.575 inch
IP 20
Safe from finger touch
Wemid (PA)
pebble grey
Similar to RAL 7032
I
V-0
>= 600
Copper alloy
0.13 mm²
3.31 mm²
0.2 mm²
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, crimp
connection pitch 5.00 | RSV 1.6 C | RSV1.6 CB
Connectable conductors
Flexible, max. H05(07) V-K
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1977 rating data
Rated voltage (UL 1977)
Rated current (UL 1977)
AWG-conductor, min. (UL 1977)
AWG-conductor, max. (UL 1977)
Approvals
Approvals institutes
2.5 mm²
17 A
13 A
15 A
11.5 A
630 V
400 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
600 V
13 A
26
12
600 V
10 A
26
12
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, crimp
connection pitch 5.00 | RSV 1.6 C | RSV1.6 CB
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
RSV1.6.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
Similar products
Order No.
1413000000
1414000000
1415000000
1416000000
1417000000
1418000000
Part designation
RSV1,6 B4 GR
RSV1,6 B6 GR
RSV1,6 B9 GR
RSV1,6 B12 GR
RSV1,6 B18 GR
RSV1,6 B24 GR
Version
PCB plug-in connector, Female connectors, Crimp connection,
Clamping range, max.: 3.31 mm², Pitch: 5.00 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, Crimp connection,
Clamping range, max.: 3.31 mm², Pitch: 5.00 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, Crimp connection,
Clamping range, max.: 3.31 mm², Pitch: 5.00 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, Crimp connection,
Clamping range, max.: 3.31 mm², Pitch: 5.00 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, Crimp connection,
Clamping range, max.: 3.31 mm², Pitch: 5.00 mm, No. of poles: 18,
180°, Box
PCB plug-in connector, Female connectors, Crimp connection,
Clamping range, max.: 3.31 mm², Pitch: 5.00 mm, No. of poles: 24,
180°, Box
-3-
