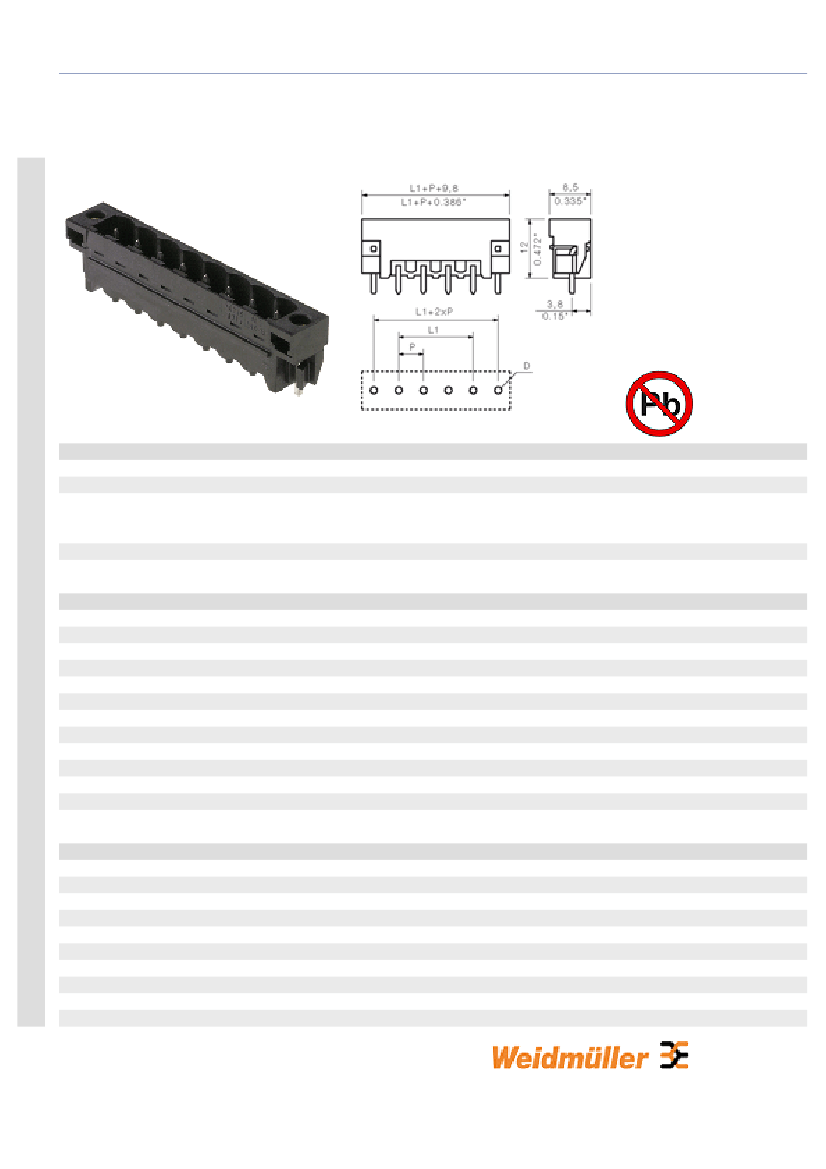

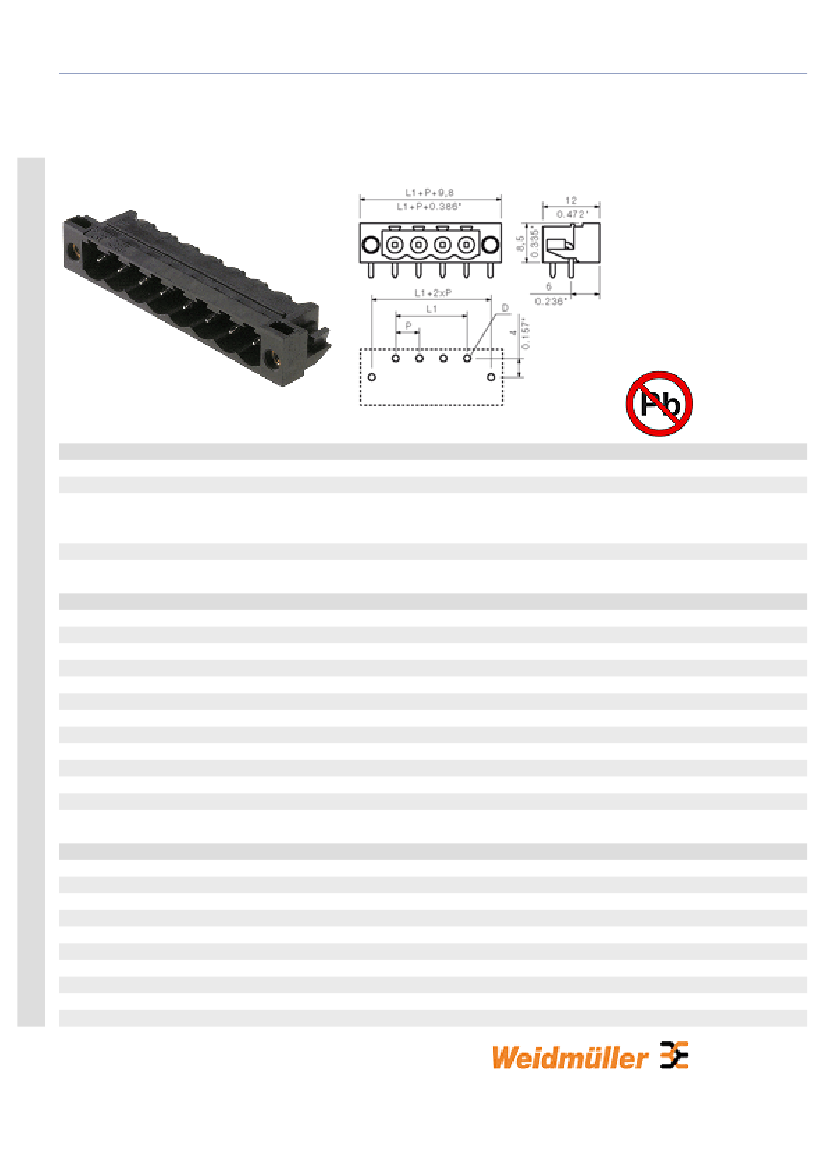

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180LF | SL-SMT 5.00/180LF Box
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
1841570000
SL-SMT5.00/20/180LF 3.2SN SW BOX
PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 5.00 mm, No. of poles:
20, 180°, Box
4032248352470
20 pc(s).
Reflow solder connection
180°
5 mm
0.197 inch
20
3.2 mm
Yes
1
1
+ 0.1 mm
95 mm
3.74 inch
1 MΩ
LCP GF
black
Similar to RAL 9011
IIIa
V-0
>= 175
CuSn
tinned
-25 °C
100
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180LF | SL-SMT 5.00/180LF Box
Material data
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
-25 °C
55 °C
80 %
19 A
15 A
16 A
13 A
250 V
4 kV
320 V
4 kV
400 V
4 kV
300 V
10 A
300 V
10 A
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
NK
EC001284
27-26-07-01
27-26-07-01
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180LF | SL-SMT 5.00/180LF Box
Classifications
eClass 5.1
27-26-07-04
Similar products
Order No.
1796780000
1841390000
1796790000
1841400000
1796800000
1841410000
1796810000
1841420000
1796820000
1841430000
1796830000
1841440000
1796840000
1841450000
1796850000
1841460000
1796860000
1841470000
1796870000
1841480000
1796880000
1841490000
Part designation
SL-SMT5.00/2/180LF 1.5SN
SL-SMT5.00/2/180LF 3.2SN SW
BOX
SL-SMT5.00/3/180LF 1.5SN
SL-SMT5.00/3/180LF 3.2SN SW
BOX
SL-SMT5.00/4/180LF 1.5SN
SL-SMT5.00/4/180LF 3.2SN SW
BOX
SL-SMT5.00/5/180LF 1.5SN
SL-SMT5.00/5/180LF 3.2SN SW
BOX
SL-SMT5.00/6/180LF 1.5SN
SL-SMT5.00/6/180LF 3.2SN SW
BOX
SL-SMT5.00/7/180LF 1.5SN
SL-SMT5.00/7/180LF 3.2SN SW
BOX
SL-SMT5.00/8/180LF 1.5SN
SL-SMT5.00/8/180LF 3.2SN SW
BOX
SL-SMT5.00/9/180LF 1.5SN
SL-SMT5.00/9/180LF 3.2SN SW
BOX
SL-SMT5.00/10/180LF 1.5SN
SL-SMT5.00/10/180LF 3.2SN
SW BOX
SL-SMT5.00/11/180LF 1.5SN
SL-SMT5.00/11/180LF 3.2SN
SW BOX
SL-SMT5.00/12/180LF 1.5SN
SL-SMT5.00/12/180LF 3.2SN
SW BOX
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180LF | SL-SMT 5.00/180LF Box
1796890000
1841500000
1796900000
1841510000
1796910000
1841520000
1796920000
1841530000
1841540000
1841550000
1841560000
1841580000
1841590000
1841600000
1841610000
SL-SMT5.00/13/180LF 1.5SN
SL-SMT5.00/13/180LF 3.2SN
SW BOX
SL-SMT5.00/14/180LF 1.5SN
SL-SMT5.00/14/180LF 3.2SN
SW BOX
SL-SMT5.00/15/180LF 1.5SN
SL-SMT5.00/15/180LF 3.2SN
SW BOX
SL-SMT5.00/16/180LF 1.5SN
SL-SMT5.00/16/180LF 3.2SN
SW BOX
SL-SMT5.00/17/180LF 3.2SN
SW BOX
SL-SMT5.00/18/180LF 3.2SN
SW BOX
SL-SMT5.00/19/180LF 3.2SN
SW BOX
SL-SMT5.00/21/180LF 3.2SN
SW BOX
SL-SMT5.00/22/180LF 3.2SN
SW BOX
SL-SMT5.00/23/180LF 3.2SN
SW BOX
SL-SMT5.00/24/180LF 3.2SN
SW BOX
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 21, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 23, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 24, 180°, Box
-4-
