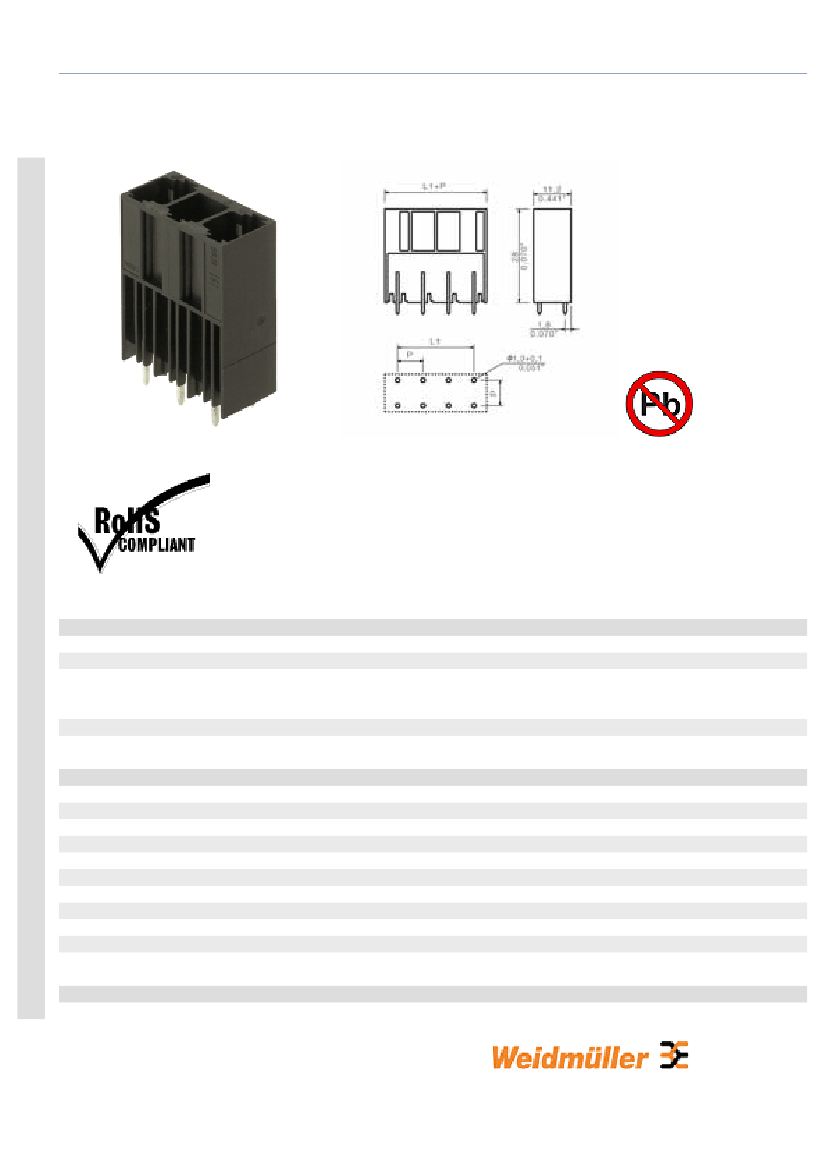

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/180 | SV 7.62/180G
Material data
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
black
Similar to RAL 9011
IIIa
V-0
>= 200
Copper alloy
tinned
-25 °C
100
-25 °C
55 °C
41 A
38 A
38 A
31 A
500 V
6 kV
630 V
6 kV
800 V
6 kV
300 V
31 A
600 V
5A
300 V
31 A
600 V
5A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/180 | SV 7.62/180G
Approvals
Approvals institutes
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
SV.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1822530000
1822540000
1822550000
1822560000
1822570000
1822580000
1822590000
1822610000
1822620000
1822630000
Part designation
SV 7.62/02/180G 3.5 SW
SV 7.62/03/180G 3.5 SW
SV 7.62/04/180G 3.5 SW
SV 7.62/05/180G 3.5 SW
SV 7.62/06/180G 3.5 SW
SV 7.62/07/180G 3.5 SW
SV 7.62/08/180G 3.5 SW
SV 7.62/10/180G 3.5 SW
SV 7.62/11/180G 3.5 SW
SV 7.62/12/180G 3.5 SW
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 12, 180°, Box
