LCAX2/0-38F-X: DescriptionCONN TERM RECT TONG 2/0 AWG #3/8; CategoryThe connector; File Size79KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LCAX2/0-38F-X Overview

CONN TERM RECT TONG 2/0 AWG #3/8

LCAX2/0-38F-X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panduit
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Terminal and terminal strip types	WIRE TERMINAL

Preview

Download Datasheet

View All

ELECTRICAL SOLUTIONS

A.

System

Overview

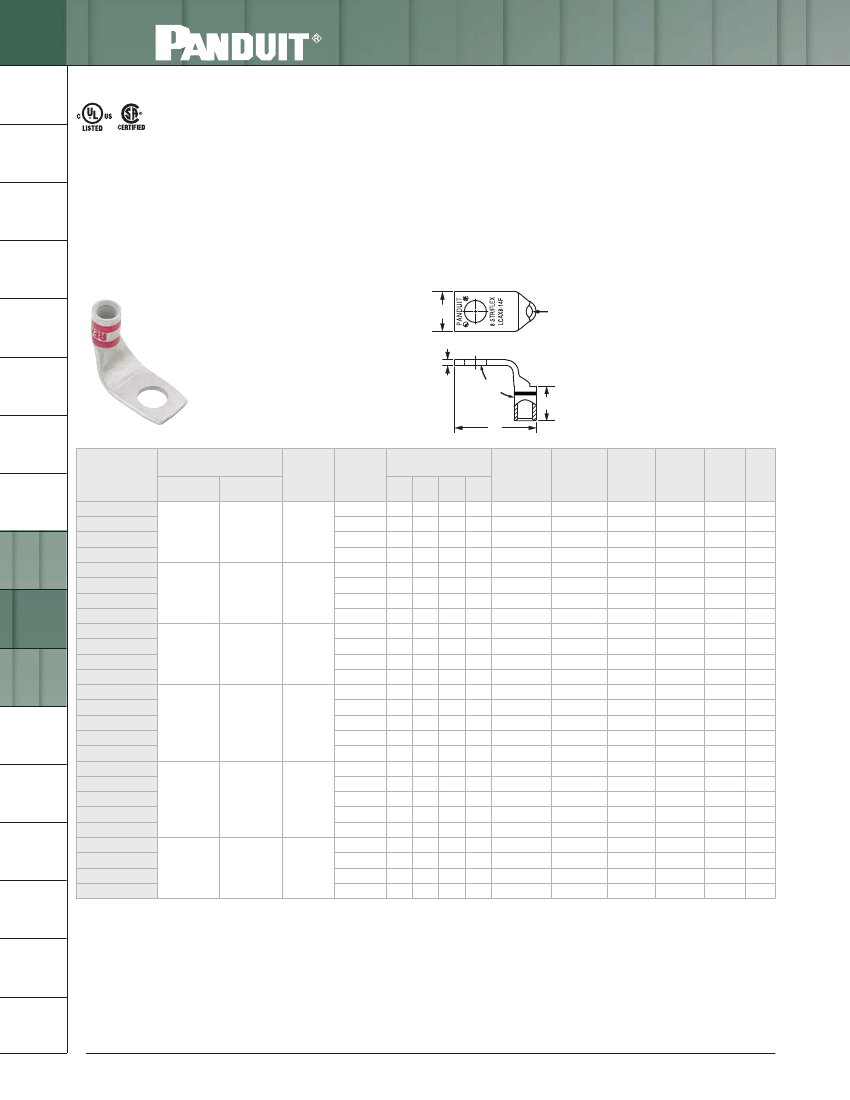

Flex Conductor, One-Hole, Standard Barrel with Window Lug, 90° Angle

For Use with Flexible, Extra-Flexible, and Code Stranded Copper Conductors

Type LCAX-F

• Can be used with code conductor and flex conductor class: G, H, I,

K, M and Diesel Locomotive

• Generously beveled wire entry prevents bent back strands when

inserting conductor into barrel

• Color-coded barrels marked with Panduit and specified competitor

die index numbers for proper crimp die selection

• Inspection window to visually assure full conductor insertion

• Tin-plated to inhibit corrosion

• UL Listed and CSA Certified to 35 KV** and temperature rated to

90°C when crimped with Panduit and specified competitor crimping

tools and dies

• American Bureau of Shipping approved

B1.

Cable Ties

B2.

Cable

Accessories

B3.

Stainless

Steel Ties

C1.

Wiring

Duct

W

INSPECTION

WINDOW

T

C2.

Surface

Raceway

90˚

B

L

Figure Dimensions

(In.)

Flex Conductor Size

Code

Conductor Stud Hole

Class

Diesel

Size

G, H, I, K, M Locomotive

Size (In.) W

B

T

L

#10

0.41 0.42 0.08 0.90

1/4

#8 AWG

5/16

3/8

#10

1/4

#6 AWG

5/16

3/8

#10

#4 AWG

#5, #4, #3

AWG

1/4

#4 AWG

5/16

3/8

#10

1/4

#2 AWG

5/16

3/8

1/2

#10

1/4

#1 AWG

5/16

3/8

1/2

1/4

5/16

1/0 AWG

3/8

1/2

0.48 0.42 0.07 0.99

0.56 0.42 0.05 1.11

0.60 0.42 0.05 1.21

0.45 0.48 0.09 0.99

0.48 0.48 0.08 1.03

0.56 0.48 0.07 1.15

0.62 0.48 0.06 1.25

0.55 0.53 0.09 1.03

0.55 0.53 0.09 1.12

0.55 0.53 0.09 1.24

0.62 0.53 0.07 1.34

0.70 0.59 0.11 1.21

0.70 0.59 0.11 1.31

0.70 0.59 0.11 1.44

0.70 0.59 0.11 1.51

0.75 0.59 0.09 1.75

0.76 0.66 0.12 1.28

0.76 0.66 0.12 1.45

0.76 0.66 0.12 1.51

0.76 0.66 0.12 1.58

0.80 0.66 0.12 1.82

0.85 0.72 0.13 1.59

0.85 0.72 0.13 1.66

0.85 0.72 0.13 1.91

Burndy

Die

Index

No.‡

49

7

8

10

11

12

T&B

Die

Index

No.‡

21

24

29

33

37

42

Wire

Strip

Std.

Length Pkg.

(In.)

Qty.

1/2

50

1/2

9/16

5/8

11/16

3/4

50

20

10

C3.

Abrasion

Protection

C4.

Cable

Management

Part Number

LCAX8-10F-L

LCAX8-14F-L

LCAX8-56F-L

LCAX8-38F-L

LCAX6-10F-L

LCAX6-14F-L

LCAX6-56F-L

Panduit

Color

Code

Red

Blue

Gray

Brown

Green

Pink

Panduit

Die Index

No.‡

P21

P24

P29

P33

P37

P42

D1.

Terminals

D2.

Power

Connectors

LCAX6-38F-L

LCAX4-10F-L

LCAX4-14F-L

LCAX4-56F-L

LCAX4-38F-L

LCAX2-10F-E*

LCAX2-14F-E*

LCAX2-56F-E*

LCAX2-38F-E*

LCAX2-12F-E*

LCAX1-10F-X

LCAX1-14F-X

LCAX1-56F-X

LCAX1-38F-X

LCAX1-12F-X

LCAX1/0-14F-X

LCAX1/0-56F-X

LCAX1/0-38F-X

LCAX1/0-12F-X

D3.

Grounding

Connectors

E1.

Labeling

Systems

E2.

Labels

E3.

Pre-Printed

& Write-On

Markers

E4.

Permanent

Identification

E5.

Lockout/

Tagout

& Safety

Solutions

F.

Index

‡See pages D3.70 – D3.73 for tool and die information.

*Not UL Listed or CSA Certified with Class K flex conductor when crimped with Burndy tools.

**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in

BOLD.
