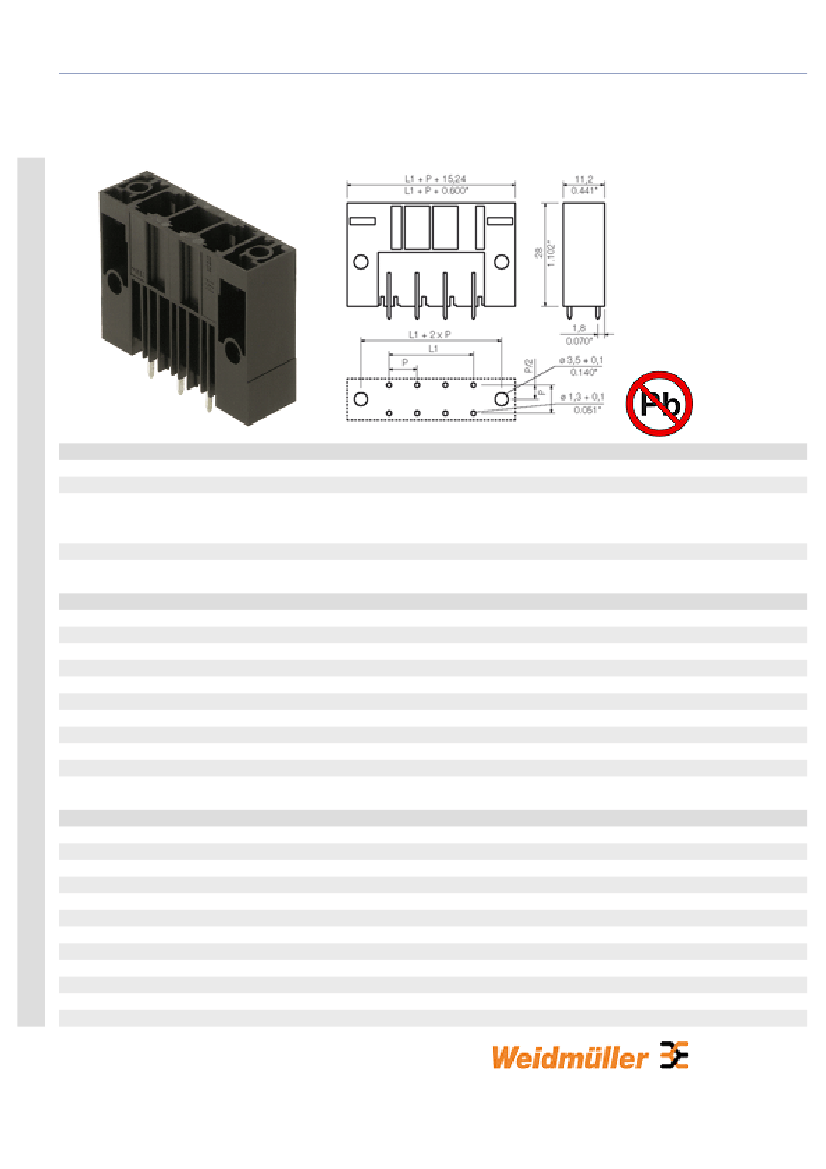

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/180 | SV 7.62/180F
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
1822740000
SV 7.62/12/180F 3.5 SW
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 7.62 mm, No. of poles: 12,
180°, Box
4032248324101
50 pc(s).
Soldered connection
180°
7.62 mm
0.3 inch
12
3.5 mm
1.3 mm
+ 0.1 mm
83.82 mm
3.3 inch
1 MΩ
PBT GF
black
Similar to RAL 9011
IIIa
V-0
>= 200
Copper alloy
tinned
-25 °C
100
-25 °C
55 °C
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/180 | SV 7.62/180F
Material data
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
41 A
38 A
38 A
31 A
500 V
6 kV
630 V
6 kV
800 V
6 kV
300 V
31 A
600 V
5A
300 V
31 A
600 V
5A
Downloads
CAD Library (P-CAD Format - Standard)
SV.LIB
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/180 | SV 7.62/180F
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1822640000
1822650000
1822660000
1822670000
1822680000
1822690000
1822700000
1822710000
1822720000
1822730000
Part designation
SV 7.62/02/180F 3.5 SW
SV 7.62/03/180F 3.5 SW
SV 7.62/04/180F 3.5 SW
SV 7.62/05/180F 3.5 SW
SV 7.62/06/180F 3.5 SW
SV 7.62/07/180F 3.5 SW
SV 7.62/08/180F 3.5 SW
SV 7.62/09/180F 3.5 SW
SV 7.62/10/180F 3.5 SW
SV 7.62/11/180F 3.5 SW
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 11, 180°, Box
-3-
