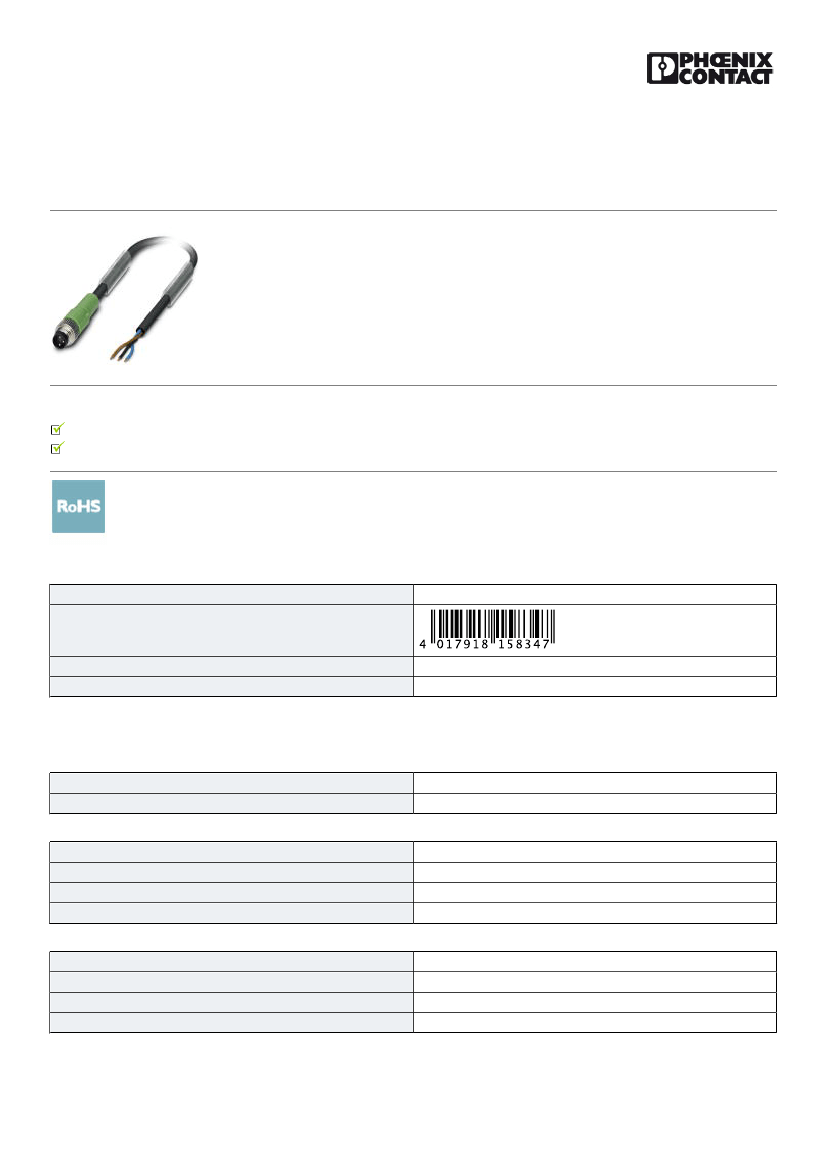

Sensor/actuator cable - SAC-3P-M 8MS/5,0-PUR - 1681680
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M8, on free cable
end, cable length: 5 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Key Commercial Data
Packing unit
GTIN
GTIN
Sales Key
4017918158347
02
1 pc
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
5m
50 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
4A
48 V AC
60 V DC
3
12/01/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1681680
Sensor/actuator cable - SAC-3P-M 8MS/5,0-PUR - 1681680
Technical data
General
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
≥ 100 MΩ
A - standard
M8 connector IEC 61076-2-104
No
Unwired
II
3
≥ 100
0.2 Nm (M8 connectors)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M8 connector
IEC 61076-2-104
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
PUR halogen-free black
PUR
Li9Y11Y-HF
20549
3x 0.25 mm²
24
32x 0.10 mm
1.17 mm ±0.02 mm
≥ 0.21 mm (Core insulation)
brown, blue, black
3 wires, twisted
40 mm
black-gray RAL 7021
approx. 0.5 mm
3.6 mm ±0.15 mm
18 mm
36 mm
12/01/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1681680
Sensor/actuator cable - SAC-3P-M 8MS/5,0-PUR - 1681680
Technical data
Cable
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
10000000
44 mm
10 m
3 m/s
10 m/s²
18 kg/km
PUR
PP
Bare Cu litz wires
≥ 100 GΩ*km (at 20 °C)
≤ 78 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
hydrolysis and microbe resistant
Highly resistant to acids, alkaline solutions and solvents
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
12/01/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1681680
Sensor/actuator cable - SAC-3P-M 8MS/5,0-PUR - 1681680

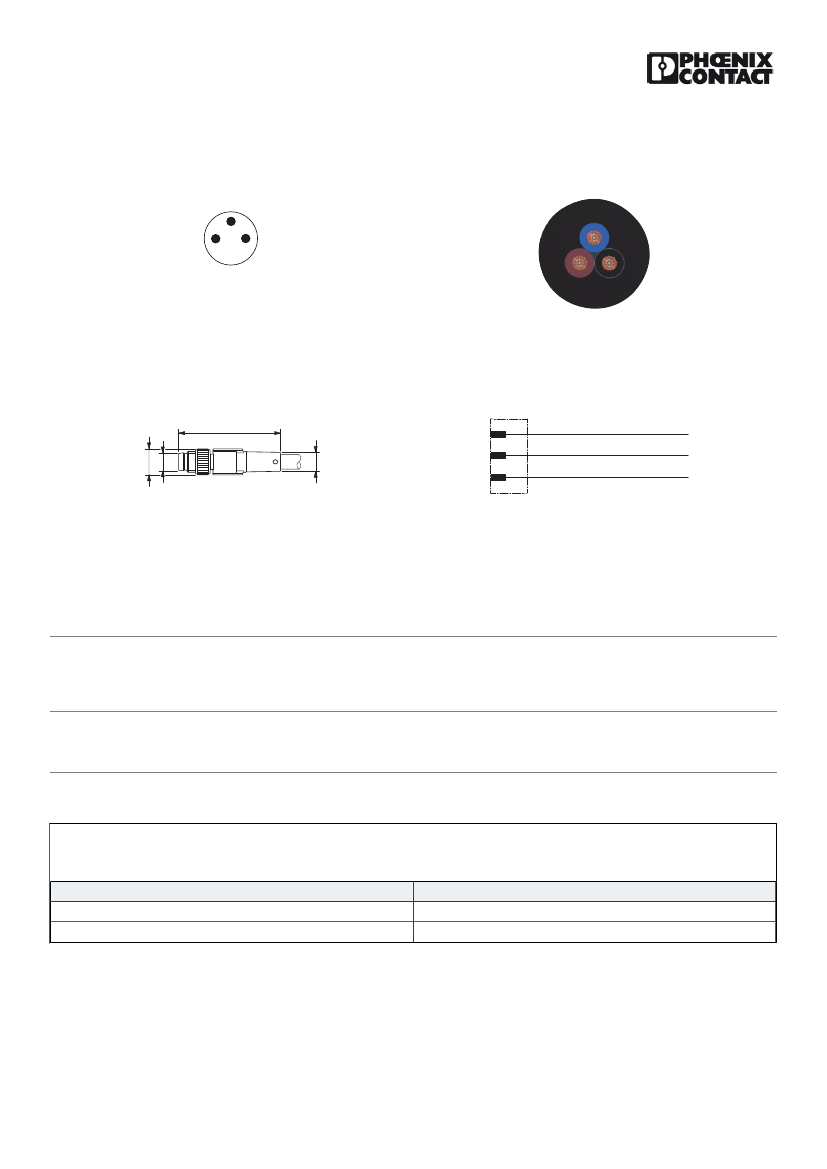

Schematic diagram
4
Cable cross section
1
3
Pin assignment M8 plug, 3-pos., view male side
PUR halogen-free black [PUR]
Dimensional drawing
Circuit diagram
38,7
1
BN
BK
BU
Ø7,5
Ø10
M8
4
3
M8 x 1 male plug, straight version
Contact assignment of the M8 plug
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
60 V
4A
FILE E 221474
12/01/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1681680
Sensor/actuator cable - SAC-3P-M 8MS/5,0-PUR - 1681680
Approvals
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
60 V
4A
FILE E 221474
EAC
EAC-Zulassung
cULus Listed
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
12/01/2018 Page 5 / 5
