Customer Specification
PART NO: ACFS Series
M12 Female M16 Mount Receptacle

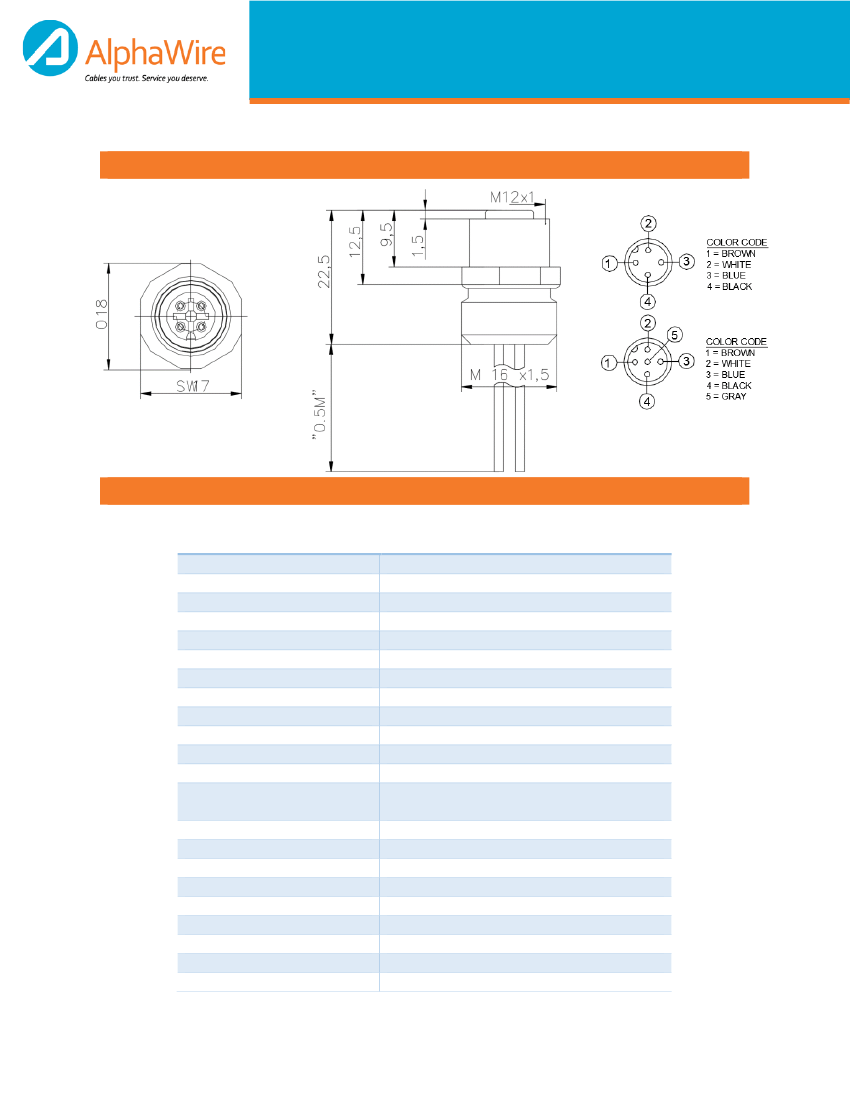

Drawing
Issue: 1 Issue Date: 8/8/2016 Effective Date: 8/8/2016
Technical Data
Mechanical
Receptacle Style
Applicable Standard
Receptacle Threads
Housing
Insert
Contact
Mounting Orientation
Panel Nut
O-Ring
Electrical
Contact Resistance
Nom. Current @ 40°C
Rated Voltage
UL File
Lead Wires
AWG
Insulation
Outside Diameter
Lead Length
UL Style
CSA Style
Environmental
M12, Female
IEC 61076-2-101
Internal
Stainless Steel, Leads Epoxy Potted
PBT
Copper Alloy, Gold Plated
Front
Not Included
EPDM
≤ 5 mΩ
4A
4 Pole 250 V (IEC) 300V (UL)
5 Pole 60 V (IEC) 30V (UL)
E485156
22 AWG (7/30) Tinned Copper
PVC
0.062” Nominal
0.5 Meters (19.7”)
AWM 1007 & 1569
TR64
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: ACFS Series
M12 Female M16 Mount Receptacle
Degree of Protection
Operating Temperature
Range
CE
IP 67/ NEMA 6P
-25C (-13F)/ +70C (+158F)
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
Description
4 Pin
5 Pin
Quantity
Each
Each
REACH Regulation (EC
1907/2006)
Ordering Information
306ACFS NC404
309ACFS NC404
Issue: 1 issue Date: 8/4/2016 Effective Date: 8/4/2016
Although Alpha Wire (“Alpha”) makes every reasonable effort to ensure their accuracy
at the time of this publication, information and specifications described herein are
subject to error or omission and to change without notice, and the listing of such
information and specifications does not ensure product availability. Alpha provides the
information and specification herein on an “AS IS” basis, with no representations or
warranties, whether express, statutory or implied. In no event will Alpha be liable any
damages (including consequential, indirect, incidental, special, punitive, or exemplary
damages) whatsoever, even if Alpha has been advised of the possibility of such damages,
whether in an action under contact, negligence or any other theory, arising out of or in
connection with the use, or inability to use, the information or specification described
herein.
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
2
