LLF70 Series
Compact, External Fitting, Low Level, Low S.G. Float Switch
Suitable for low specific gravity liquids (0.7 S.G.)
Very low level sensing
Class leading compact design
Compression seal fitting
Flying Lead or M12 plug connection
Available in Nylon, Polypropylene, PPS & PVDF
25VA & 100VA versions available
Many variants are UL recognised components File No. E171218
Many variants have WRAS and /or UL approval
LLF74
LLF78
LLF76
Polypropylene
Polypropylene
Polyphenylene
WRAS approved
UL approved
Sulphide (PPS)
Colour
Black
Opaque
White
Grey
Temp. Range °C
-20 / +75
-20 / +100
-20 / +100
-10 / +120*
°F
-4 ./ +167
-4 / +212
-4 / +212
+14 / +248*
Min. Fluid SG
0.7
0.7
0.7
0.7
Must close level (SG=1)
1mm
1mm
1mm
1mm
Must open level (SG=1)
10mm
10mm
10mm
10mm
* ETFE cable needs to be selected in order to achieve the maximum temperature rating
Electrical Specification
Contact Form
Switching Power Max
VA
Switching Voltage AC Max
V
Switching Voltage DC Max
V
Switching Current Max
A
All ratings are for resistive load only.
Standard Parts
LLF73H100RN
LLF73Y100RN
LLF73Y100RM
LLF74H100RN
LLF74Y100RN
LLF74Y100RM
LLF76H100RN
LLF76Y100RN
LLF77Y100GN
LLF77H100GN
LLF77Y100GV
LLF77H100GV
LLF78H100RN
LLF78Y100RN
LLF73HNP
LLF73YNP
LLF74HNP
LLF74YNP
LLF76HNP
LLF76YNP
LLF77HNP
LLF77YNP
LLF77HVP
LLF77YVP
LLF78HNP
LLF78YNP
25W (Y code)
N/O (N/C)
25
240
120
0.6
100W (H code)
N/O (N/C)
100
300
300
1
Technical Specification
Material
LLF73
Nylon
LLF77
Polyvinylidene
Fluoride (PVDF)
Green
-10 / +105
-14
/ +221
0.7
1mm
10mm
The LLF70 series is designed for fitting
through a tank wall from the outside,
where access to the inside for fitting is not
possible.
These devices are particularly suitable for
detecting low levels of liquids in the
bottom of tanks and containers, and for
lower SG liquids. Typical applications
include vending machines, commercial
dishwashers and auxiliary tanks on
vehicles.
These are manufactured in a variety of
plastics, with a choice of gasket materials,
to suit most commonly used liquids.
The switch action may be reversed by
mounting the device with the float able to
move upwards away from the body, instead
of the more normal downwards direction.
Available with either flying leads or M12
socket for electrical connection. Cable
sets with M12 plugs are also available.
Custom versions can be made for
particular applications. Please contact
Cynergy3 with your requirements.
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
www.cynergy3.com
Material
Max Power
Nylon
100VA
Nylon
25VA
Nylon
25VA
Polypropylene 100VA
Polypropylene 25VA
Polypropylene 25VA
PPS
100VA
PPS
25VA
PVDF
25VA
PVDF
100VA
PVDF
25VA
PVDF
100VA
PP (UL)
100VA
PP (UL)
25VA
Nylon
100VA
Nylon
25VA
Polypropylene 100VA
Polypropylene 25VA
PPS
100VA
PPS
25VA
PVDF
100VA
PVDF
25VA
PVDF
100VA
PVDF
25VA
PP (UL)
100VA
PP (UL)
25VA
Leadouts
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
100cm PTFE 7/0.2
100cm PTFE 7/0.2
100cm PTFE 7/0.2
100cm PTFE 7/0.2
100cm PVC 16/0.2
100cm PVC 16/0.2
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
M12 connection
Gasket
Nitrile
Nitrile
Silicone
Nitrile
Nitrile
Silicone
Nitrile
Nitrile
Nitrile
Nitrile
Viton
Viton
Nitrile
Nitrile
Nitrile
Nitrile
Nitrile
Nitrile
Nitrile
Nitrile
Nitrile
Nitrile
Viton
Viton
Nitrile
Nitrile
Approvals
WRAS
WRAS
WRAS
WRAS
WRAS
WRAS
WRAS & UL
WRAS & UL
UL
UL
UL
UL
UL
UL
WRAS
WRAS
WRAS
WRAS
WRAS & UL
WRAS & UL
UL
UL
UL
UL
UL
UL
ISO
9001
C E R T I F I E D
LLF70 2018
Made in the UK
www.cynergy3.com
© 2018 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
LLF70 Series
Compact, External Fitting, Low Level, Low S.G. Float Switch

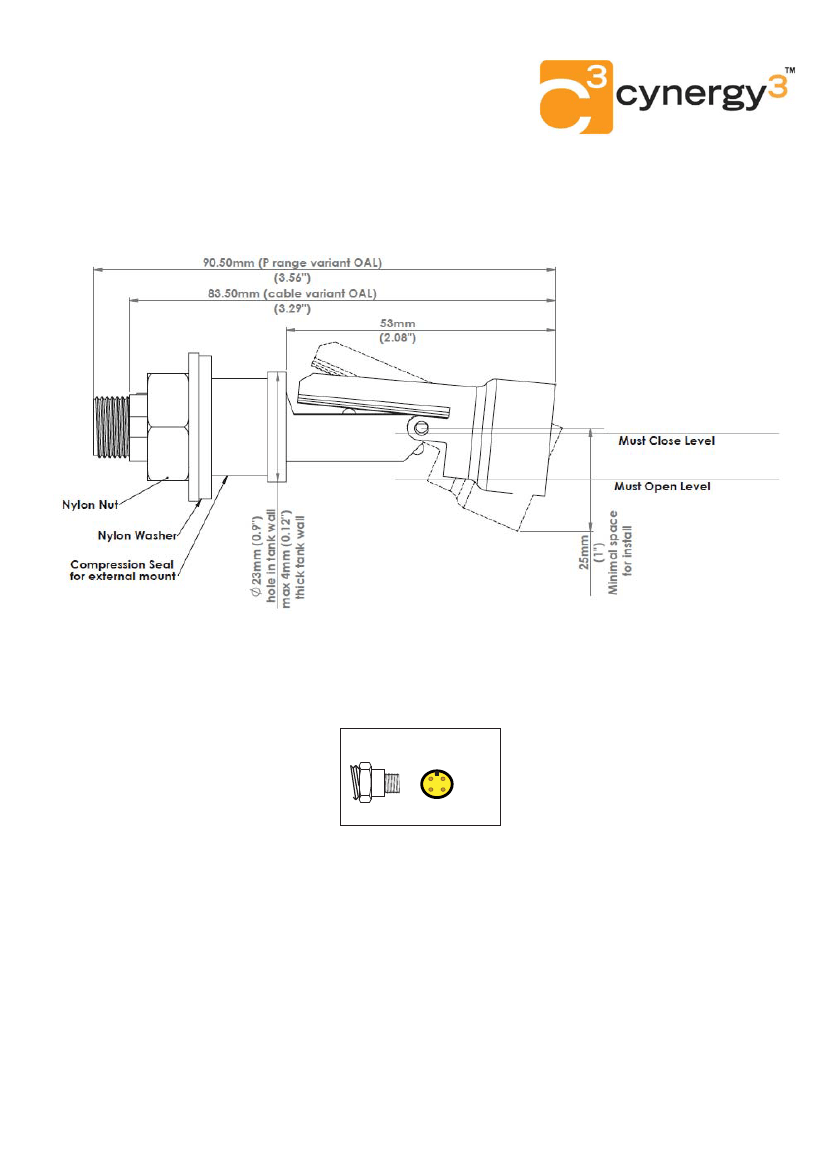

Mechanical Dimensions
Electrical Connections
M12 connection version
(suffix “P”)
2
1
3
4
Switch on pins 1 & 2
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
www.cynergy3.com
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2018 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
