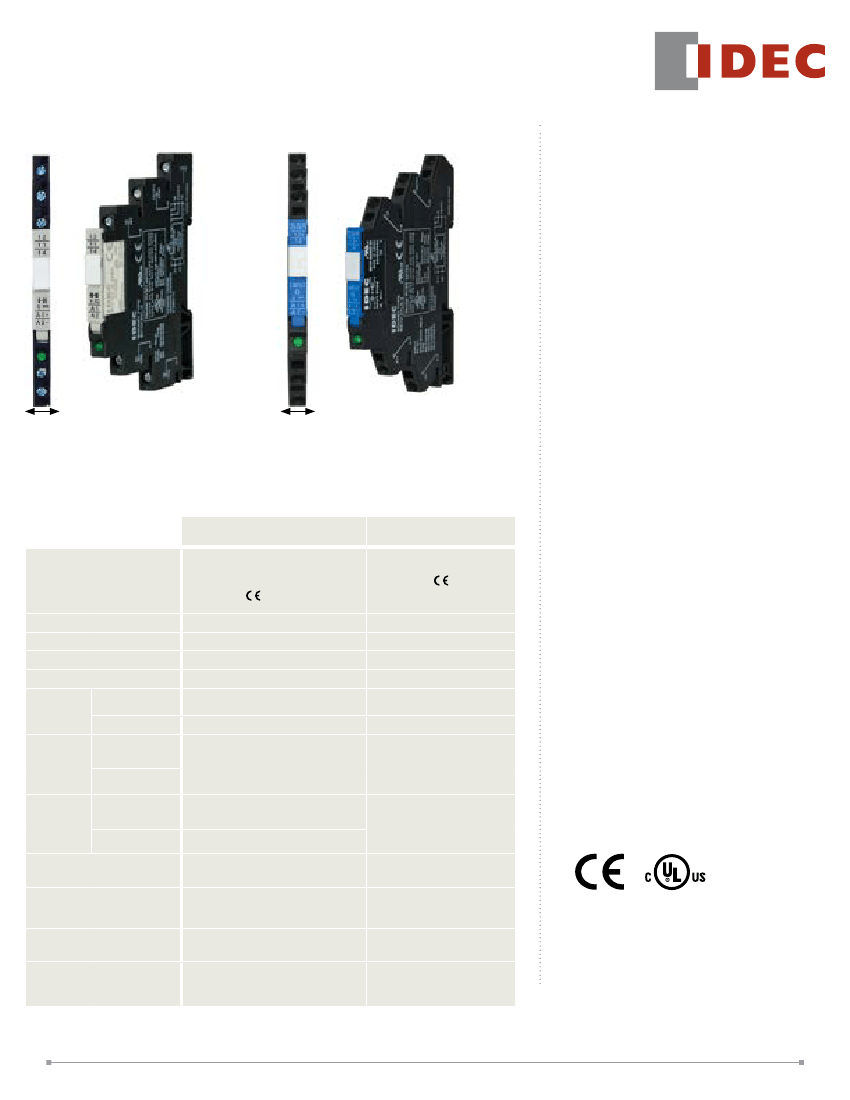

6mm and 14mm Slim Interface Relay
RV8 Series 6mm Width
Electromechanical Screw Terminal
Solid State Spring Clamp Terminal
PRODUCT DESCRIPTION
IDEC 6mm and 14mm interface relays
provide a compact solution for general
purpose relay requirements. Available
in electromechanical and solid state
models, the RV8 series Interface relays
are ideal for PLC and electronic systems,
industrial automation, panel builders,
assembly machine applications and other
applications that require a high switching
capability in a compact space. The RV8
series interface relays can be used as
interfaces between the controller and the
actuator to switch small and medium size
loads.
6mm wide
6mm wide
KEY FEATURES
• Class I, Division 2 and Class I, Zone 2
Hazardous Location options
(electromechanical relays only)
SPECIFICATIONS
Electromechanical Standard/
Hazardous Location C1D2
Class I, Division 2, Groups A, B, C, D, T4A
Class I, Zone 2 AEx nA nC IIC T4
Class I, Zone 2 Ex nA nC IIC T4 X Gc
UL/c-UL Listed
1 Pole
1C (SPDT)
AgNi (Au plating)
IP20
4,000V AC for 1 minute
1,000V AC for 1 minute
Frequency 10 to 55Hz,
Amplitude 0.5mm (NO contact),
0.2mm (NC contact)
NO: 49m/s²
NC: 29.4m/s²
980m/s²
Over 10,000,000 operations
(operation frequency 18,000
operations per hour)
-40 to +70°C no freezing
(-40 to +55°C for AD110 and AD220 coil
voltages)
5 to 85% (no condensation)
Screw Terminal: 30g,
Spring Clamp Terminal: 26g
-
-20 to +60°C
5 to 85% (no condensation)
Screw Terminal: 30g,
Spring Clamp Terminal: 26g
Between Contact
and Coil
Between Pole
Operating Extremes
Damage Limits
Operating Extremes
Damage Limits
Mechanical Life
(no load)
Operating Temperature
Solid State
• Solid State relay versions available
(6mm only)
• Only 70mm in height from DIN rail
• Gold-plated contacts
(electrical mechanical relays only)
• Pre-assembled relay and DIN mount
socket
• Universal screw terminals (flat and
phillips) or spring clamp terminals
• Universal AC/DC socket with built-in
surge suppression and green LED
• 6A-16A contact rating
(electromechanical relays only)
• Lever for easy locking and removal of
relay
• Operating temperature of -40ºC ~ +70°C
(-20°C ~ +60°C for SSR)
• RoHS compliant
Ratings
UL/c-UL Listed,
Number of Poles
Contact Configuration
Contact Material
Degree of Protection
Dielectric
Strength
1 Pole
1A (SPST)
MOSFET, Transistor or Triac
IP20
2,500V AC for 1 minute
-
Frequency 10 to 55Hz,
Amplitude 1.0mm
Vibration
Resistance
Shock
Resistance
980m/s
2
(when using combination
of RV relay and SV socket
)
Operating Humidity
Weight (approx.)
1
6mm and 14mm Slim Interface Relay

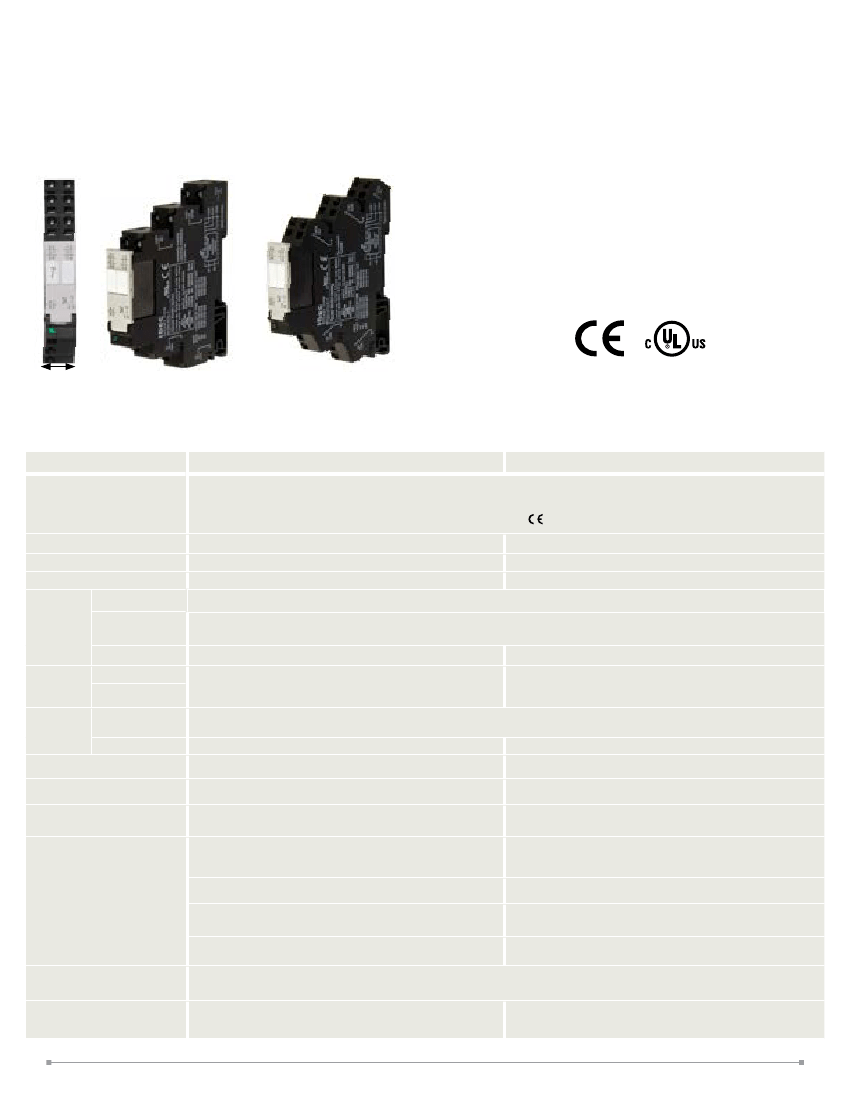

RV8 Series 14mm Width
Top View
with
Marking
Plate
PRODUCT DESCRIPTION
Electromechanical
Screw Terminal
Electromechanical
Spring Clamp Terminal
14mm interface relays are ideal for panels
with limited room, these low-profile relays
provide up to a 40% reduction in DIN rail space
when compared with standard plug-in relays.
RV8 relays are good for higher load switching
applications, panels with high I/O content and
commercial HVAC panels. UL listed when
paired with a corresponding socket.
14mm wide
(when using combination
of RV relay and SV socket
)
SPECIFICATIONS
Number of Poles
1 Pole
Class I, Division 2, Groups A, B, C, D, T4
Class I, Zone 2 AEx nA nC IIC T4
Class I, Zone 2 Ex nA nC IIC T4 X Gc
UL/c-UL Listed
1C (SPDT)
AgNi
IP20
5,000V AC for 1 minute
1,000V AC for 1 minute
-
Frequency 10 to 55Hz,
Amplitude 0.75mm (NO contact), 0.175mm (NC contact)
NO: 98m/s²
NC: 24.5m/s²
980m/s²
AC load:30,000 operations minimum
(250V AC, 16A resistive load, operation frequency 360 operation per hour)
AC load:30,000 operations minimum
(250V AC, 12A resistive load, operation frequency 360 operation per hour)
Over 10,000,000 operations
(Operation frequency 18,000 operations per hour)
RV8H-1L1-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD48, AD60, AD110
: -40 to +70°C (Contact current 12A max, 6A per terminal) no freezing
: -40 to +55°C (Contact current 16A max, 8A per terminal) no freezing
2 Pole
Ratings
Contact Configuration
Contact Material
Degree of Protection
Between contact
and coil
Dielectric
strength
Between contacts of
the same pole
Between contact sets
Vibration
Resistance
Shock
Resistance
Operating extremes
Damage limits
Operating extremes
Damage limits
2C (DPDT)
AgNi (Au-plated)
IP20
2,500V AC for 1 minute
Frequency 10 to 55Hz,
Amplitude 0.75mm (NO contact), 0.1mm (NC contact)
Electrical Life - Screw terminal
Electrical Life - Spring Clamp terminal
Mechanical Life (no load)
980m/s²
AC load:100,000 operations minimum
(250V AC, 8A resistive load, ozperation frequency 360 operation per hour)
AC load:100,000 operations minimum
(250V AC, 6A resistive load, operation frequency 360 operation per hour)
Over 10,000,000 operations
(Operation frequency 18,000 operations per hour)
RV8H-2L-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD48, AD60, AD110
: -40 to +70°C (Contact current 6A max) no freezing
: -40 to +55°C (Contact current 8A max) no freezing
RV8H-2L- AD220
: -40 to +55°C (Contact current 8A max) no freezing
RV8H-2S-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD48, AD60, AD110
: -40 to +70°C (Contact current 6A max) no freezing
RV8H-2S- AD220
: -40 to +55°C (Contact current 6A max) no freezing
Operating Temperature
RV8H-1L1- AD220
: -40 to +55°C (Contact current 16A max, 8A per terminal) no freezing
RV8H-1S1-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD48, AD60, AD110
: -40 to +70°C (Contact current 12A max, 6A per terminal) no freezing
RV8H-1S1- AD220
: -40 to +55°C (Contact current 12A max, 6A per terminal) no freezing
Operating Humidity
Weight (approx.)
5 to 85% (no condensation)
Screw Terminal: 52g
Spring Clamp Terminal: 49g
Screw Terminal: 52g
Spring Clamp Terminal: 49g
2
