LOW PROFILE MULTILAYER POWER INDUCTOR
ASMPL
FEATURES
•
•
•
•
•
•
Miniature ceramic chip inductors
High current carrying in a compact 1.6 x 0.8mm or
2.0 x 1.25mm footprint
Low profile 0.5mm MAX for height restricted
applications
Excellent 1.45A saturation current
High inductance up to 2.2µH
Wide operating temperature range
-40˚C ~ +125˚C
1.6 x 0.8 x 0.5 mm
2.0 x 1.25 x 0.5 mm
MSL = 1
Pb
RoHS/RoHS II Compliant
APPLICATIONS
•
•
•
•
•
•
•
•
•
•
•
•
IoT and IIoT
Wearables
Drones
Smart watches
Hand-held devices
Audio/video, cameras, and speakers
VR/AR and smart glasses
Medical monitoring
Battery operated devices
DC/DC supplies for Bluetooth and RF modules
High efficiency battery chargers
High efficiency switch mode power supplies
OPTIONS AND PART IDENTIFICATION
ASMPL -
SERIES #
0603
0805
-
INDUCTANCE CODE
Please refer to Electrical
Spec Table
TOLERANCE
M: ±20%
N: ±30%
-
SERIES
PACKAGING
#
(T = TAPE AND REEL)
0603
T: 5k pcs /reel
0805
ELECTRICAL SPECIFICATIONS
OPERATING TEMPERATURE
-40°C - 125°C
(including self-temperature rise)
INDUCTANCE
0.1MHz/0.1V
µH
L
0.22
0.33
0.47
0.68
1.0
0.22
0.33
0.47
1.0
1.5
2.2
STORAGE CONDITION
-40°C - +85°C
and R.H. 70%max
DC RESISTANCE
max
mΩ
DCR
150
200
225
275
400
88
125
150
238
325
400
SATURATION
CURRENT
max
A
Isat
1.45
1.35
1.05
0.80
0.70
1.20
1.35
1.30
0.70
0.50
0.35
TEMPERATURE
RISE CURRENT
max
A
Irms
1.20
1.10
1.15
0.90
0.80
1.60
1.20
1.10
0.80
0.70
0.60
PART NUMBER
UNITS
SYMBOL
ASMPL-0603-R22
ASMPL-0603-R33
ASMPL-0603-R47
ASMPL-0603-R68
ASMPL-0603-1R0
ASMPL-0805-R22
ASMPL-0805-R33
ASMPL-0805-R47
ASMPL-0805-1R0
ASMPL-0805-1R5
ASMPL-0805-2R2
TOLERANCE
%
M
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
±20%, ±30%
SELF-
RESONANT
FREQUENCY
min
MHz
SRF
180
140
120
100
90
100
90
80
40
35
30
LLC
1501 Hidden Creek Lane Spicewood TX 78751
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales visit:
www.abracon.com
REVISED:
10.06.2017
ABRACON IS
ISO9001-2008
CERTIFIED
LOW PROFILE MULTILAYER POWER INDUCTOR
ASMPL
1.6 x 0.8 x 0.5 mm
2.0 x 1.25 x 0.5 mm
MSL = 1
Pb
RoHS/RoHS II Compliant

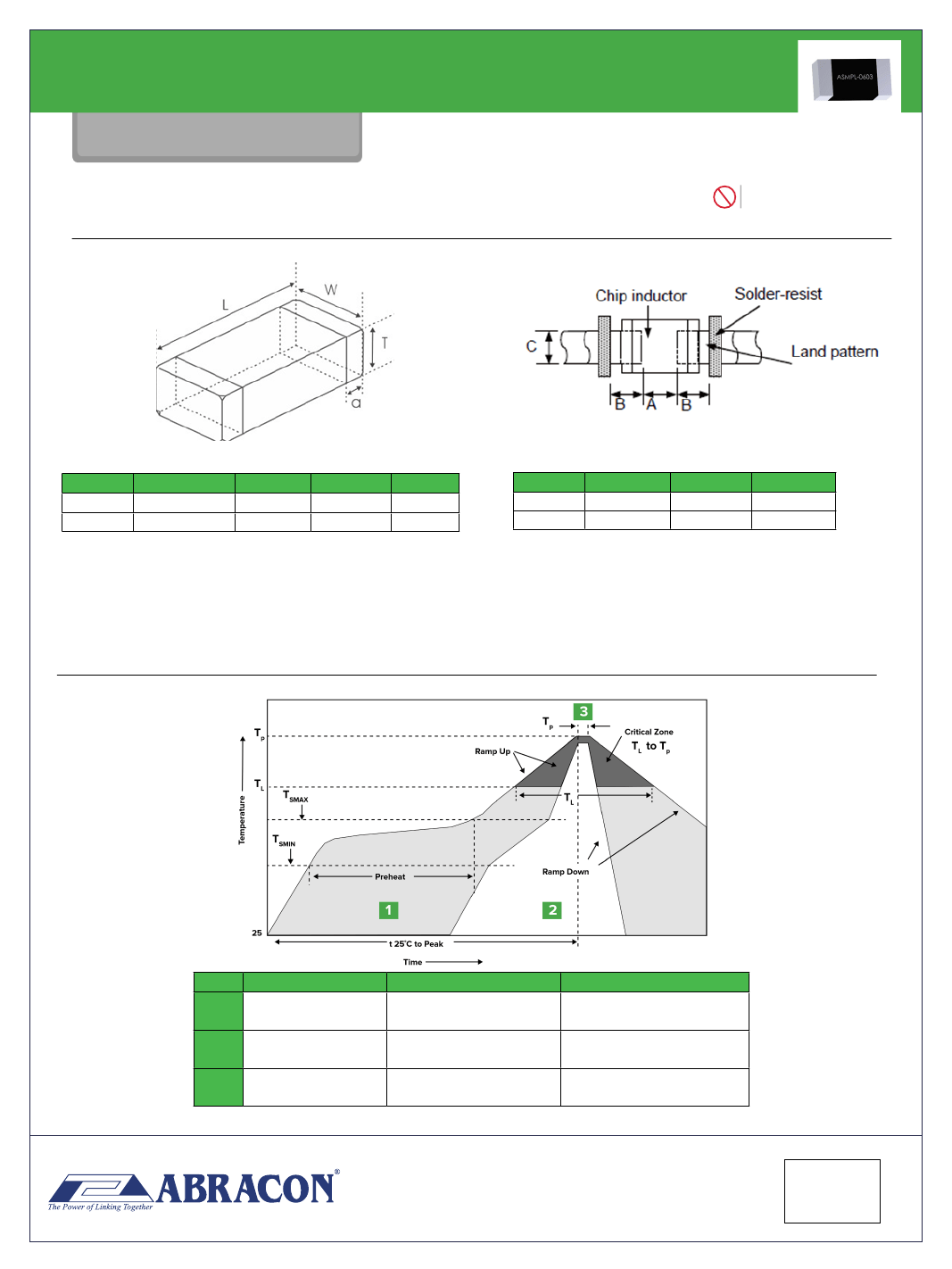

MECHANICAL DIMENSIONS
SERIES
0603
0805
L
1.60 ± 0.15
2.0 (+0.3, -0.1)
W
0.8 ± 0.15
1.25 ± 0.2
T
0.5 ± 0.05
0.5 ± 0.1
A
0.3 ± 0.2
0.5 ± 0.3
SERIES
0603
0805
A
0.60~0.80
0.80~1.20
B
0.60~0.80
0.80~1.20
C
0.60~0.80
0.90~1.60
Dimension: mm
REFLOW
Zone
1
2
3
Description
Preheat
Reflow
Peak heat
Temperature
T
SMIN
~ T
SMAX
150°C ~ 200°C
T
L
217°C
T
P
260°C
Times
60 ~ 120 sec.
60 ~ 90 sec.
10 sec. MAX
LLC
1501 Hidden Creek Lane Spicewood TX 78751
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales visit:
www.abracon.com
REVISED:
10.06.2017
ABRACON IS
ISO9001-2008
CERTIFIED
LOW PROFILE MULTILAYER POWER INDUCTOR
ASMPL

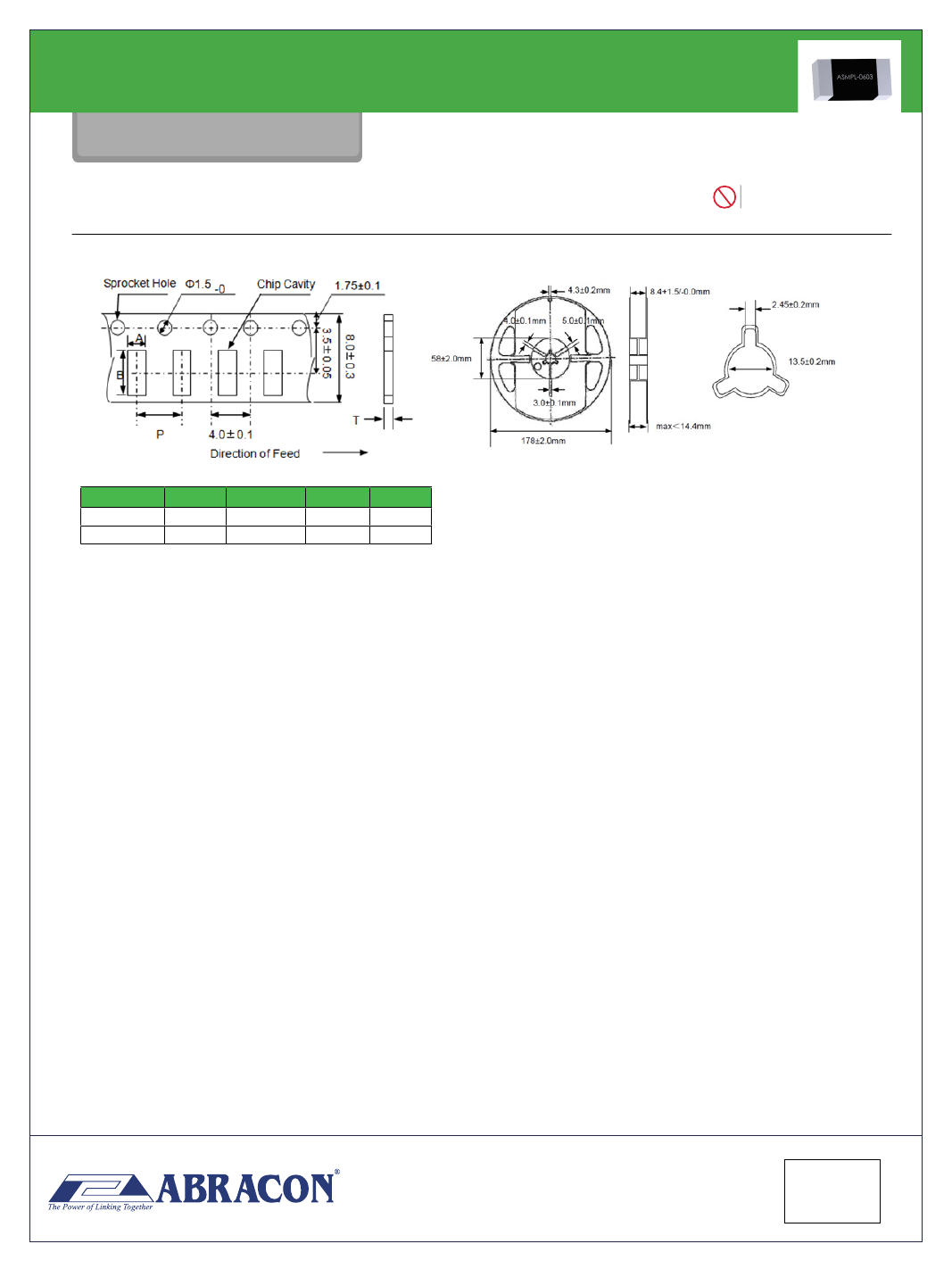

PACKING (TAPE & REEL: 5000 PCS/REEL)
1.6 x 0.8 x 0.5 mm
2.0 x 1.25 x 0.5 mm
MSL = 1
Pb
RoHS/RoHS II Compliant
SERIES
0603
0805
A
1.0±0.2
1.6±0.1
B
1.8±0.2
2.3±0.1
P
4.0±0.1
4.0±0.1
T (max)
0.8
0.8
Dimension: mm
LLC
1501 Hidden Creek Lane Spicewood TX 78751
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales visit:
www.abracon.com
REVISED:
10.06.2017
ABRACON IS
ISO9001-2008
CERTIFIED
