10
9
8
1.3
7
6
NOTES
5
4
3
2
1
F
5.25
7.15
1. 適合ターミナル：5054311000
APPLICABLE TERMINAL : 5054311000
2. 嵌合相手：505433****/505448****
MATE WITH : 505433****/505448****
3
極数／２＝偶数に適用。
APPLY FOR CKT. SIZE / 2 = EVEN.
A
回路番号 N-1
CKT. N-1
回路番号 1 マーク
CKT. No. 1 MARK
E
8.25
8.55
1.25
(PITCH)
0.625
B
3
回路番号 N
CKT. N
4. 本½品のプラスチック部に黒点等が確認される場合や
色合いが異なる場合がありますが、½品性½に½響はありません。
THERE IS NO INFLUENCE IN THE PRODUCT PERFORMANCE THOUGH
THE BLACK SPOT ETC. MIGHT BE CONFIRMED TO THE PLASTIC PART
OF THIS PRODUCT AND THE SHADE MIGHT BE DIFFERENT.
5. コネクタの詳細な取り扱いにつきましては、
アプリケーション仕様書(AS-505432-001, -002)を参照して下さい。
PLEASE REFER TO THE APPLICATION SPECIFICATION (AS-505432-001, -002)
ABOUT THE DETAILED HANDLING OF THE CONNECTOR.
回路番号 1 6. コネクタの仕様につきましては、
½品仕様書(5054320000PS002)を参照して下さい。
CKT. 1
PLEASE REFER TO THE PRODUCT SPECIFICATION (5054320000PS002)
ABOUT THE SPECIFICATION OF THE CONNECTOR.
7. ½品番号 MATERIAL No.
NO.
COLOR
NATURAL
0
505432**0*
1
BLACK
極数
色
RED
2
CIRCUIT SIZE
COLOR
4
BLUE
回路番号 2
6
GREEN
CKT. 2
F
E
D
COLOR:GREEN
D
COLOR:BLUE
COLOR:RED
COLOR:BLACK
COLOR:NATURAL
C

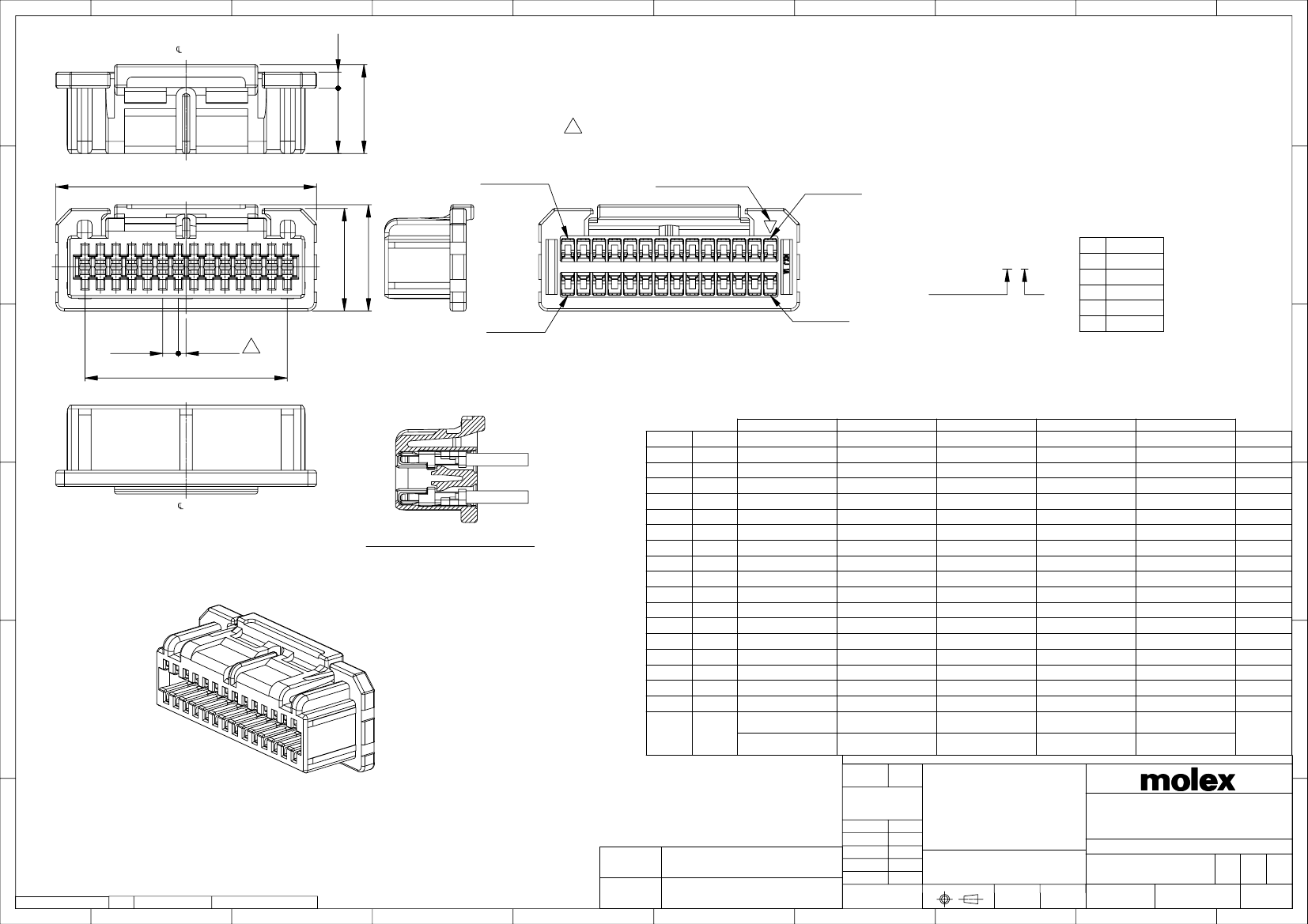

ターミナル装着図
TERMINAL ASSEMBLY DRAWING
25.00
23.75
22.50
21.25
20.00
18.75
17.50
16.25
15.00
13.75
12.50
11.25
10.00
8.75
7.50
6.25
5.00
3.75
B
29.70
28.45
27.20
25.95
24.70
23.45
22.20
20.95
19.70
18.45
17.20
15.95
14.70
13.45
12.20
10.95
9.70
8.45
B
5054324206
5054324006
5054323806
5054323606
5054323406
5054323206
5054323006
5054322806
5054322606
5054322406
5054322206
5054322006
5054321806
5054321606
5054321406
5054321206
5054321006
5054320806
ポリ袋
POLYBAG PACKAGE
オーダー番号
ORDER NO.
5054324204
5054324004
5054323804
5054323604
5054323404
5054323204
5054323004
5054322804
5054322604
5054322404
5054322204
5054322004
5054321804
5054321604
5054321404
5054321204
5054321004
5054320804
ポリ袋
POLYBAG PACKAGE
オーダー番号
ORDER NO.
DIMENSION UNITS
5054324202
5054324002
5054323802
5054323602
5054323402
5054323202
5054323002
5054322802
5054322602
5054322402
5054322202
5054322002
5054321802
5054321602
5054321402
5054321202
5054321002
5054320802
ポリ袋
POLYBAG PACKAGE
オーダー番号
ORDER NO.
5054324201
5054324001
5054323801
5054323601
5054323401
5054323201
5054323001
5054322801
5054322601
5054322401
5054322201
5054322001
5054321801
5054321601
5054321401
5054321201
5054321001
5054320801
ポリ袋
POLYBAG PACKAGE
オーダー番号
ORDER NO.
5054324200
5054324000
5054323800
5054323600
5054323400
5054323200
5054323000
5054322800
5054322600
5054322400
5054322200
5054322000
5054321800
5054321600
5054321400
5054321200
5054321000
5054320800
ポリ袋
POLYBAG PACKAGE
オーダー番号
ORDER NO.
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
極数
CKT No.
C
B
A
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
CURRENT REV DESC: REVISED
mm
ANGULAR TOL
±
±
±
±
±
±
4:1
3.0 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
EC NO:
601895
4 PLACES
3 PLACES
0.2
0.2
0.2
0.2
0.2
A
部品
PART
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
材質
MATERIAL
2 PLACES
1 PLACE
0 PLACES
P1
RELEASE DATE
2018/07/26
02:16:06
ハウジング PBT UL94V-0 色：表参照
HOUSING PBT UL94V-0 COLOR:SEE CHART
DRWN: TAKAIKE
CHK'D: KOMURAKAMI
APPR:
TKANEKO
INITIAL REVISION:
DRWN: TAKAIKE
APPR:
TKANEKO
THIRD ANGLE PROJECTION
DRAWING
2018/07/25
2018/07/26
2018/07/26
2017/02/10
2017/04/03
SERIES
MICRO-LOCK PLUS 1.25 W/B
DUAL ROW RECEPTACLE HOUSING
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
A
5054320000
MATERIAL NUMBER
CUSTOMER
PSD
000
C
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
505432
GENERAL
1 OF 2
10
9
8
7
6
5
4
3
2
1
10
9
8
7
6
5
4
3
2
1
F
F

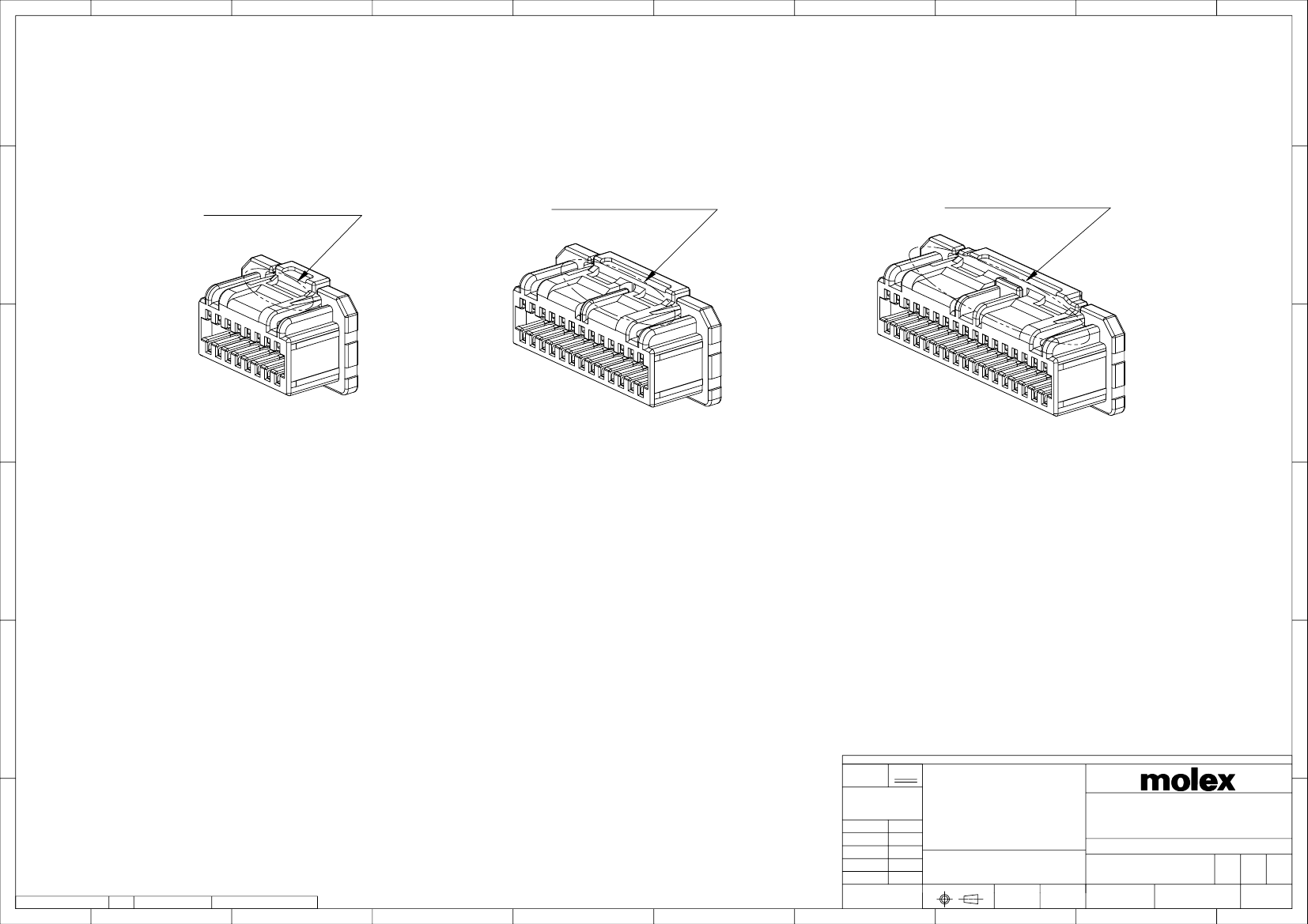

8-24CKT. ロック½状
LOCK SHAPE OF 8-24P
E
26-32CKT. ロック½状
LOCK SHAPE OF 26-32P
34-42CKT. ロック½状
LOCK SHAPE OF 34-42P
E
D
D
C
C
B
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
mm
ANGULAR TOL
±
±
±
±
±
±
4:1
3.0 °
NTS
CURRENT REV DESC: REVISED
GENERAL TOLERANCES
(UNLESS SPECIFIED)
EC NO:
601895
4 PLACES
3 PLACES
0.2
0.2
0.2
0.2
0.2
A
2 PLACES
1 PLACE
0 PLACES
DRWN: TAKAIKE
CHK'D: KOMURAKAMI
APPR:
TKANEKO
INITIAL REVISION:
DRWN: TAKAIKE
APPR:
TKANEKO
THIRD ANGLE PROJECTION
DRAWING
2018/07/25
2018/07/26
2018/07/26
2017/02/10
2017/04/03
SERIES
MICRO-LOCK PLUS 1.25 W/B
DUAL ROW RECEPTACLE HOUSING
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
A
5054320000
MATERIAL NUMBER
CUSTOMER
PSD
000
C
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/07/26
02:16:06
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
505432
GENERAL
2 OF 2
10
9
8
7
6
5
4
3
2
1
