K3GN-NDC-L1 24VDC datasheet, PDF

Datasheet> All Categories > Tools and equipment> K3GN-NDC-L1 24VDC

K3GN-NDC-L1 24VDC: DescriptionPROC MTR 4-20MA/10VDC LCD PNL MT; CategoryTools and equipment; File Size434KB，17 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

K3GN-NDC-L1 24VDC Overview

PROC MTR 4-20MA/10VDC LCD PNL MT

K3GN-NDC-L1 24VDC Parametric

Parameter Name	Attribute value
type	process multimeter
Measuring range	4 ~ 20mA，'±10VDC
display type	LCD - dual color characters, backlit
Number of characters per line	5
Display characters - height	0.275"（7.00mm）
Output type	analog,relay(2)
Voltage - Power	24VDC
Panel opening size	Rectangular - 45.00mm x 22.20mm
Installation type	Panel mounting
Terminal type	screw terminal
Intrusion protection	IP66 - dust and water resistant
characteristic	-
Operating temperature	-10°C ~ 55°C
weight	0.221 lbs (100.24g)

Preview

Download Datasheet

View All

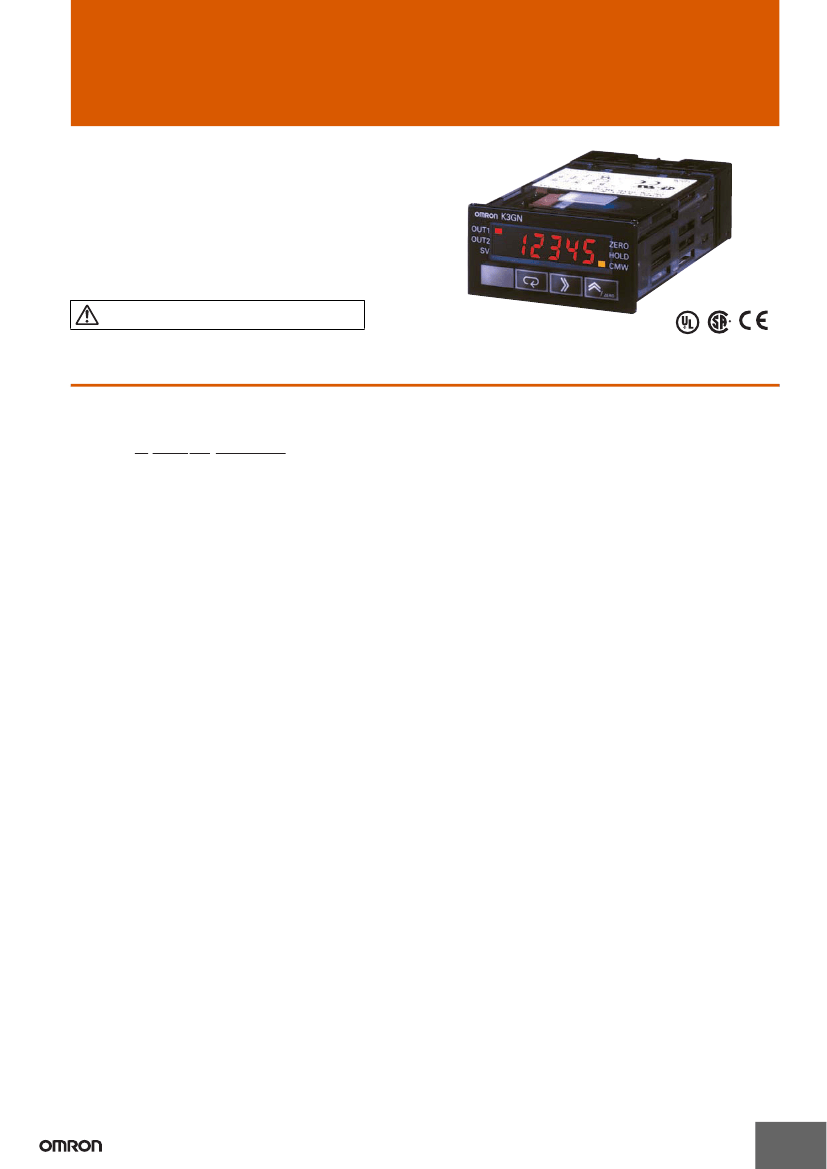

1/32 DIN Digital Panel Meter

K3GN

CSM_K3GN_DS_E_3_1

1/32 DIN Digital Panel Meter for Downsizing

Equipment and Control Panels

• Compact size: 48 x 24 x 83 (W x H x D).

• Multi-input compatible: DC voltage/current, rotary pulse.

• Two display colors (switchable): green/red.

• Selectable outputs.

• CE marking and UL/CSA approval.

• Splash-proof construction (NEMA4X: equivalent to IP66).

Refer to

Safety Precautions for All Digital Panel

Meters.

Model Number Structure

■

Model Number Legend

K3GN-@@-@-@ 24 VDC

1. Input Type

ND:

DC voltage/current, NPN

PD:

DC voltage/current, PNP

2. Output Type

2 relay contact outputs (SPST-NO)

C-FLK: 2 relay contact outputs (SPST-NO) and RS-485

C-L1:

2 relay contact outputs (SPST-NO) and DC current (0 to 20 mA, 4 to 20 mA)

C-L2:

2 relay contact outputs (SPST-NO) and DC voltage (0 to 5 V, 1 to 5 V, 0 to 10 V)

T1:

3 transistor outputs (NPN open collector)

T1-FLK: 3 transistor outputs (NPN open collector) and RS-485

T1-L1:

3 transistor outputs (NPN open collector) and DC current (0 to 20 mA, 4 to 20 mA)

T1-L2:

3 transistor outputs (NPN open collector) and DC voltage (0 to 5 V, 1 to 5 V, 0 to 10 V)

T2:

3 transistor outputs (PNP open collector)

T2-FLK: 3 transistor outputs (PNP open collector) and RS-485

3. Option

None:

None

-400:

Normally energized relays

4. Supply Voltage

24 VDC: 24 VDC
