Y11200R50000F9R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y11200R50000F9R

Y11200R50000F9R: DescriptionRES 0.5 OHM 1% 1/4W 1610; CategoryPassive components The resistor; File Size1MB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y11200R50000F9R Overview

RES 0.5 OHM 1% 1/4W 1610

Y11200R50000F9R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 1610
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH PRECISION, NON-INDUCTIVE
JESD-609 code	e3
Manufacturer's serial number	VCS1610
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	0.5 Ω
Resistor type	FIXED RESISTOR
size code	1610
surface mount	YES
technology	METAL FOIL
Temperature Coefficient	15 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%

Preview

Download Datasheet

View All

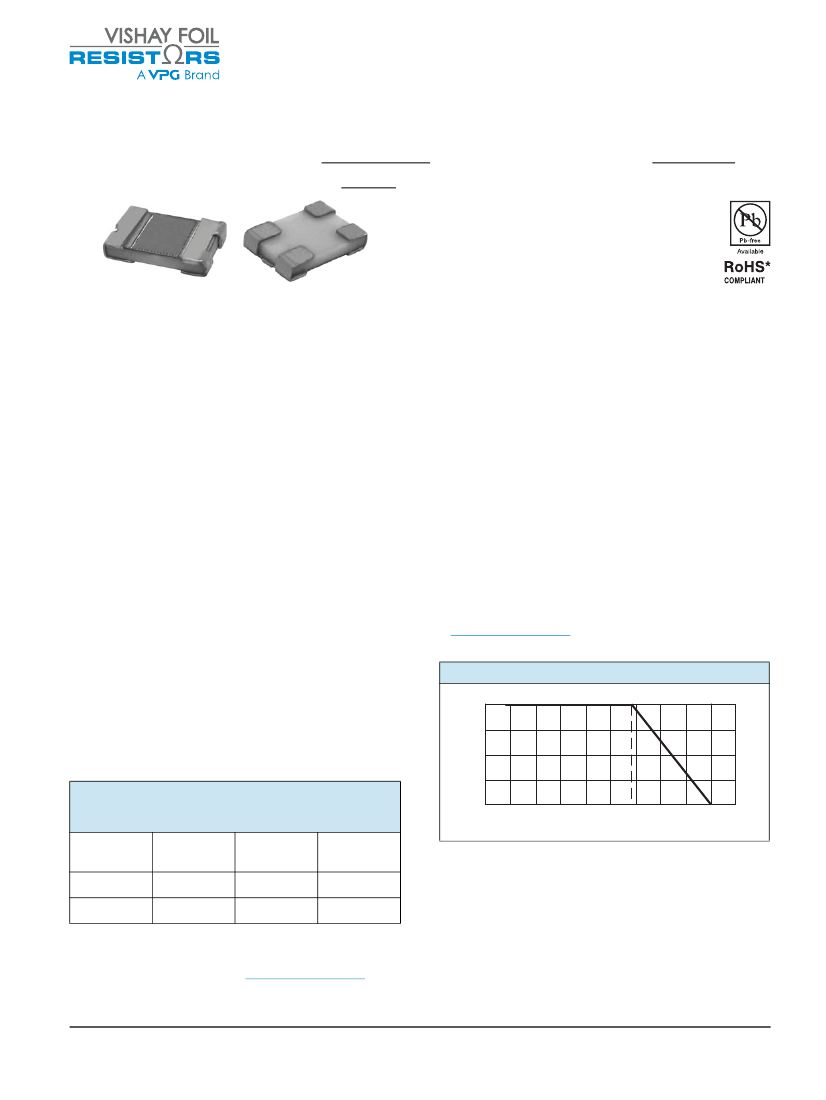

VCS1610 (Kelvin Connection)

High Precision Foil Surface Mount Current Sensing Chip

Resistors with TCR of ± 2 ppm/°C, Load Life Stability of ± 0.02 %,

ESD Immunity up to 25 kV and Fast Thermal Stabilization

FEATURES



Temperature coefficient of resistance (TCR):

± 2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C

ref.) (see table 1)



Resistance range: 0.1



to 1



(for higher or

lower values, please contact Application

Engineering department)



Resistance tolerance: to ± 0.5 %



Load life stability:

± 0.02 % at 70 °C, 2000 h at rated power



Power rating: 0.25 W at + 70 °C



Bulk Metal

Foil resistors are not restricted to standard

values; specific “as required” values can be supplied at no

extra cost or delivery (e.g. 0.2345



vs. 0.2

)



Electrostatic discharge (ESD) at least to 25 kV



Thermal stabilization time < 1 s (nominal value

achieved within 10 ppm of steady state value)



Short time overload < 0.005 %



Non-inductive, non-capacitive design



Thermal EMF: 0.05 µV/°C typical



Current noise: 0.010 µV

RMS

/V of applied voltage



(< - 40 dB)



Rise time: 1 ns effectively no ringing



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Quick prototype quantities available, please contact

foil@vpgsensors.com



For improved performances, please see VCS1610Z

INTRODUCTION

Why should I use the VCS1610?

The VCS1610 is a current sensing solution that was

developed with a low TCR to meet demands for new and

stable resistive product solutions in the industry today. This

resistor is most-often used to monitor a current that is directly

proportional to some physical characteristic (such as

pressure, weight, etc) being measured by an analog sensor.

The resistor converts the current to a voltage that is

representative of the physical characteristic and feeds that

voltage into control circuits, instrumentation, or other

indicators.

Variations induced in the resistor, not representative of the

monitored characteristic, can be caused by high TCR

response to both ambient temperature and self-heating and

can feed erroneous signals into the system. Resistance is

usually kept low to reduce the I²R self-heating (Joule effect)

portion of the error while minimizing the stresses that cause

long-term resistance changes. It is critical for this resistor to

reach thermal equilibrium quickly in circuits that require fast

response or where the current changes quickly.

The VCS1610 is used where the emphasis is on accuracy

and repeatability under stress conditions in applications

requiring precision resistor performance up to 0.25 W and up

to 70 °C. Applications as EB systems, switching power

supplies, force-balanced scales all rely on current sense

resistors to develop a precise voltage proportional to the

current. The VCS1610 is a four terminal resistor which is

essential to achieve high accuracy and stability.

FIGURE 1 - POWER DERATING CURVE

(1)

Percent of Rated Power

- 55 °C

100

- 75

+ 70 °C

TABLE 1 - TOLERANCE AND TCR VS.

RESISTANCE VALUE

(- 55 °C to + 125 °C, + 25° Ref.)

VALUE

()

0R5 to 1R

0R1 to <0R5

Note

TOLERANCE

0.5 %, 1 %

TYPICAL

TCR

± 2 ppm/°C

MAXIMUM

TCR

± 10 ppm/°C

± 15 ppm/°C

- 50

- 25

+ 25

+ 50

+ 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

Note

(1)

Power rating: 0.25 W at + 70 °C

TERMINATIONS



Two lead (Pb)-free options are available:

Gold plated or tin plated



Tin/lead plated

• Tighter tolerances and higher values are available. Please

contact application engineering

foil@vpgsensors.com

* This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS compliant. Please see the information/tables in this datasheet for details.

Document Number: 63137

Revision: 19-Jan-16

For any questions, contact

foil@vpgsensors.com

www.vishayfoilresistors.com

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014

www.vpgsensors.com
