3: Ni plating on base, Au plating on surface (for Ni barrier available)
<Header>
4: Ni plating on base, Au plating on surface
Other specifications
<Header>
Note 1
B: Soldering terminals with fork type terminal
Packing
G: 3,000 pieces embossed tape and plastic reel
×
2
Notes: 1. “B” in the 11th digit of the header part number signifies a fork type soldering terminals to lessen the constraint on amount of solder when mounting,
and a construction that makes it difficult when mounting for excess solder to interfere with the socket.
Although compatible with the previous parts, these parts are not compatible with the recommended PC board pattern and recommended metal mask pattern.
G
panasonic-electric-works.net/ac
AXK7L, 8L

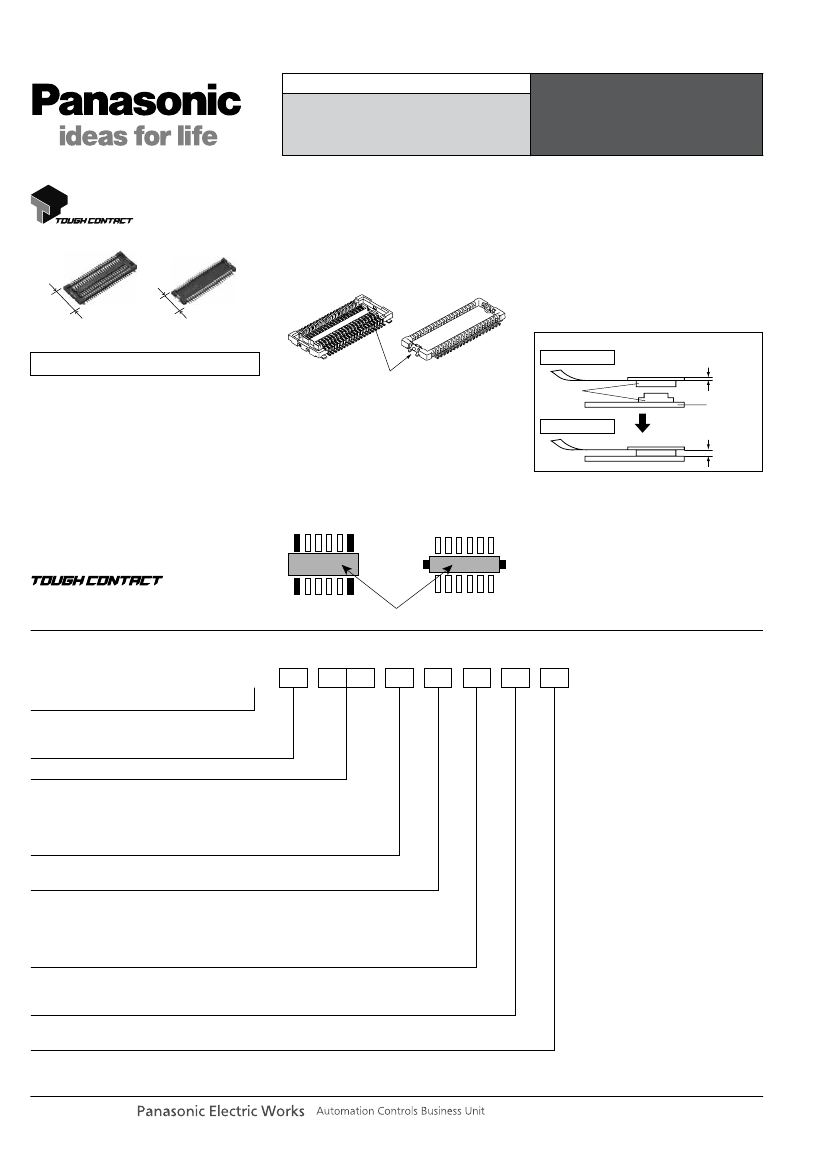

PRODUCT TYPES
Part number
Mated height
Number of contacts
10
12
14
16
20
22
24
26
28
30
32
0.9 mm
34
36
38
40
44
48
50
54
60
66
70
80
Socket
AXK7L10223G
AXK7L12223G
AXK7L14223G
AXK7L16223G
AXK7L20223G
AXK7L22223G
AXK7L24223G
AXK7L26223G
AXK7L28223G
AXK7L30223G
AXK7L32223G
AXK7L34223G
AXK7L36223G
AXK7L38223G
AXK7L40223G
AXK7L44223G
AXK7L48223G
AXK7L50223G
AXK7L54223G
AXK7L60223G
AXK7L66223G
AXK7L70223G
AXK7L80223G
Header
AXK8L10124BG
AXK8L12124BG
AXK8L14124BG
AXK8L16124BG
AXK8L20124BG
AXK8L22124BG
AXK8L24124BG
AXK8L26124BG
AXK8L28124BG
AXK8L30124BG
AXK8L32124BG
AXK8L34124BG
AXK8L36124BG
AXK8L38124BG
AXK8L40124BG
AXK8L44124BG
AXK8L48124BG
AXK8L50124BG
AXK8L54124BG
AXK8L60124BG
AXK8L66124BG
AXK8L70124BG
AXK8L80124BG
3,000 pieces
6,000 pieces
(2 reels)
Inner carton
(1 reel)
Packing
Outer carton
Notes: 1. Regarding ordering units;
During production: Please make orders in 1-reel units.
Samples for mounting confirmation: Available in units of 50 pieces. Please contact us.
Samples: Available. Please contact us.
2. The above part numbers are for connectors without positioning bosses, which are standard. When ordering connectors with positioning bosses, please contact our
sales office.
3. Please contact us regarding different number of contacts.
4. “B” in the 11th digit of the header part number signifies a fork type soldering terminals to lessen the constraint on amount of solder when mounting, and a
construction that makes it difficult when mounting for excess solder to interfere with the socket.
Although compatible with the previous parts, these parts are not compatible with the recommended PC board pattern and recommended metal mask pattern.
SPECIFICATIONS
1. Characteristics
Item
Rated current
Rated voltage
Electrical
characteristics
Breakdown voltage
Insulation resistance
Contact resistance
Ambient temperature
Soldering heat resistance
Storage temperature
Specifications
0.3A/terminal (Max. 5 A at total terminals)
60V AC/DC
150V AC for 1 min.
Min. 1,000MΩ (Initial)
Max. 90mΩ
–55°C to +85°C
Max. peak temperature of 260°C (on the surface of the
PC board around the connector terminals)
300°C within 5 sec, 350°C within 3 sec.
–55°C to +85°C (Product only)
–40°C to +50°C (Emboss packing)
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
120 hours,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
24 hours,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
48 hours,
contact resistance max. 90mΩ
50 times
20 contacts; Socket: 0.03g Header: 0.01g
Conditions
—
—
Rated voltage is applied for one minute and check for
short circuit or damage with a detection current of 1mA
Using 250V DC megger (applied for 1 min.)
Based on the contact resistance measurement method
specified by JIS C 5402.
No freezing at low temperatures
Infrared reflow soldering
Soldering iron
No freezing at low temperatures
Sequence
0
1. –55
–3
°C,
30 min.
2. ~ , Max. 5 min.
3. 85
+3
°C,
30 min.
0
4. ~ , Max. 5 min.
Temperature 40±2°C,
humidity 90 to 95% R.H.
Temperature 35±2°C,
saltwater concentration 5±1%
Temperature 40±2°C,
gas concentration 3±1 ppm, humidity 75 to 80% R.H.
Repeated insertion and removal speed of max. 200
times/hours
—
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
panasonic-electric-works.net/ac
AXK7L, 8L
2. Material and surface treatment
Part name
Molded portion
Material
LCP resin (UL94V-0)
Surface treatment
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Au plating on surface (Except for front edge of terminal)
However, the area adjacent to the socket terminal is exposed to Ni on base.
Soldering terminals: Socket: Ni plating on base, Pd + Au flash plating on surface (Expect for front edge of terminal)
Header: Ni plating on base, Au plating on surface (Expect for front edge of terminal)
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://panasonic-electric-works.net/ac
Contact/Post
Copper alloy

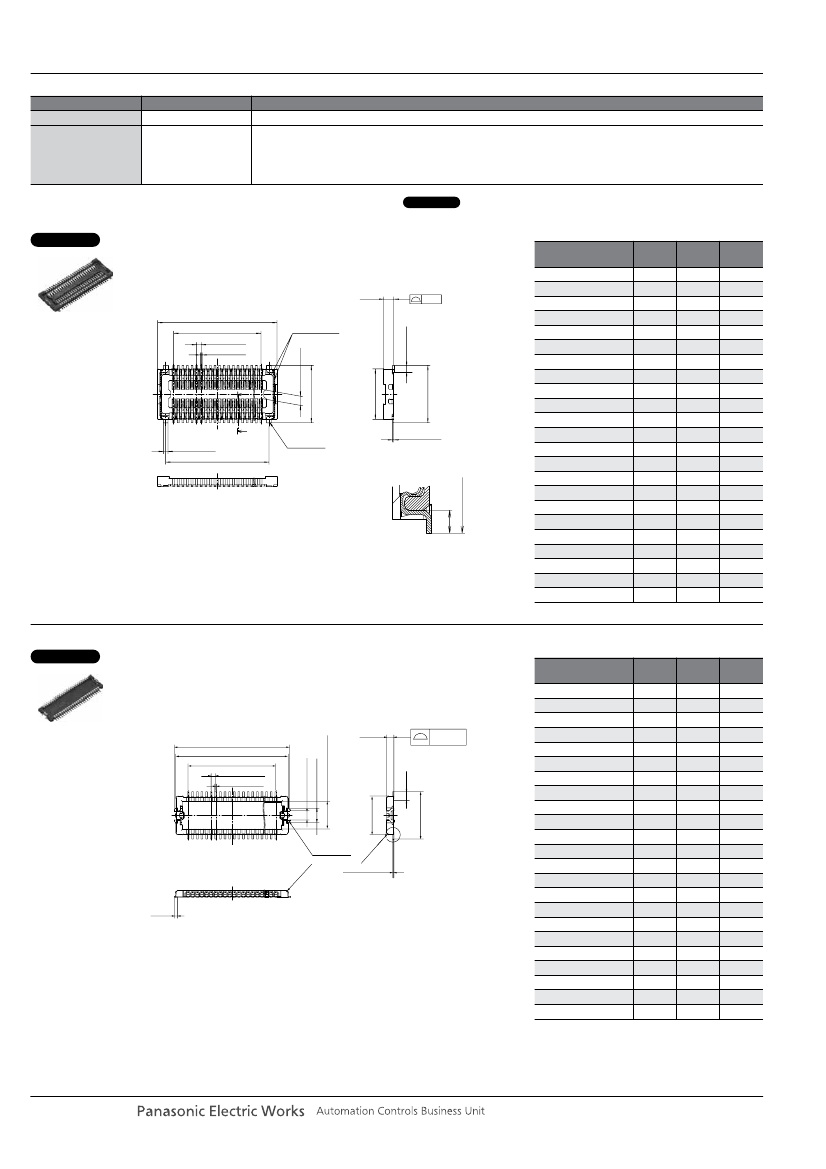

DIMENSIONS
(unit: mm)
• Socket (Mated height 0.9 mm)
CAD Data
Dimension table (mm)
Number of contacts/
Dimensions
10
0.87
A
B±0.1
0.40±0.05
0.15±0.03
This surface
C0.15
Suction
face
0.80
5.00
Terminal coplanarity
0.08
(Contact and
soldering terminals)
0.60
Soldering
terminals
A
4.4
4.8
5.2
5.6
6.4
6.8
7.2
7.6
8.0
8.4
8.8
9.2
9.6
10.0
10.4
11.2
12.0
12.4
13.2
14.4
15.6
16.4
18.4
B
1.6
2.0
2.4
2.8
3.6
4.0
4.4
4.8
5.2
5.6
6.0
6.4
6.8
7.2
7.6
8.4
9.2
9.6
10.4
11.6
12.8
13.6
15.6
C
3.0
3.4
3.8
4.2
5.0
5.4
5.8
6.2
6.6
7.0
7.4
7.8
8.2
8.6
9.0
9.8
10.6
11.0
11.8
13.0
14.2
15.0
17.0
12
14
16
20
22
24
26
28
30
32
34
36
38
40
44
48
50
54
60
66
70
80
4.40
F
F
0.40±0.05
C±0.15
Soldering
terminals
0.10±0.03
F-F cross section
(5.00)
5.00
0.50
General tolerance:
±0.2
• Header (Mated height: 0.9 mm)
CAD Data
Dimension table (mm)
Number of contacts/
Dimensions
10
Terminal coplanarity
A
B
C±0.1
0.40±0.05
0.15±0.03
0.80±0.05
1.20±0.05
Suction face 2.30
0.63
A
4.0
4.4
4.8
5.2
6.0
6.4
6.8
7.2
7.6
8.0
8.4
8.8
9.2
9.6
10.0
10.8
11.6
12.0
12.8
14.0
15.2
16.0
18.0
B
3.74
4.14
4.54
4.94
5.74
6.14
6.54
6.94
7.34
7.74
8.14
8.54
8.94
9.34
9.74
10.54
11.34
11.74
12.54
13.74
14.94
15.74
17.74
C
1.6
2.0
2.4
2.8
3.6
4.0
4.4
4.8
5.2
5.6
6.0
6.4
6.8
7.2
7.6
8.4
9.2
9.6
10.4
11.6
12.8
13.6
15.6
0.08
(Contact and
soldering terminals)
0.65
0.27
Soldering terminals
R0
.1
5
0.08±0.03
R0
.1
Soldering
terminals
General tolerance:
±0.2
12
14
16
20
22
24
26
28
30
32
34
36
38
40
44
48
50
54
60
66
70
80
3.36
5
4.10
panasonic-electric-works.net/ac
AXK7L, 8L
• Socket and header are mated
Header
0.90±0.15
Socket

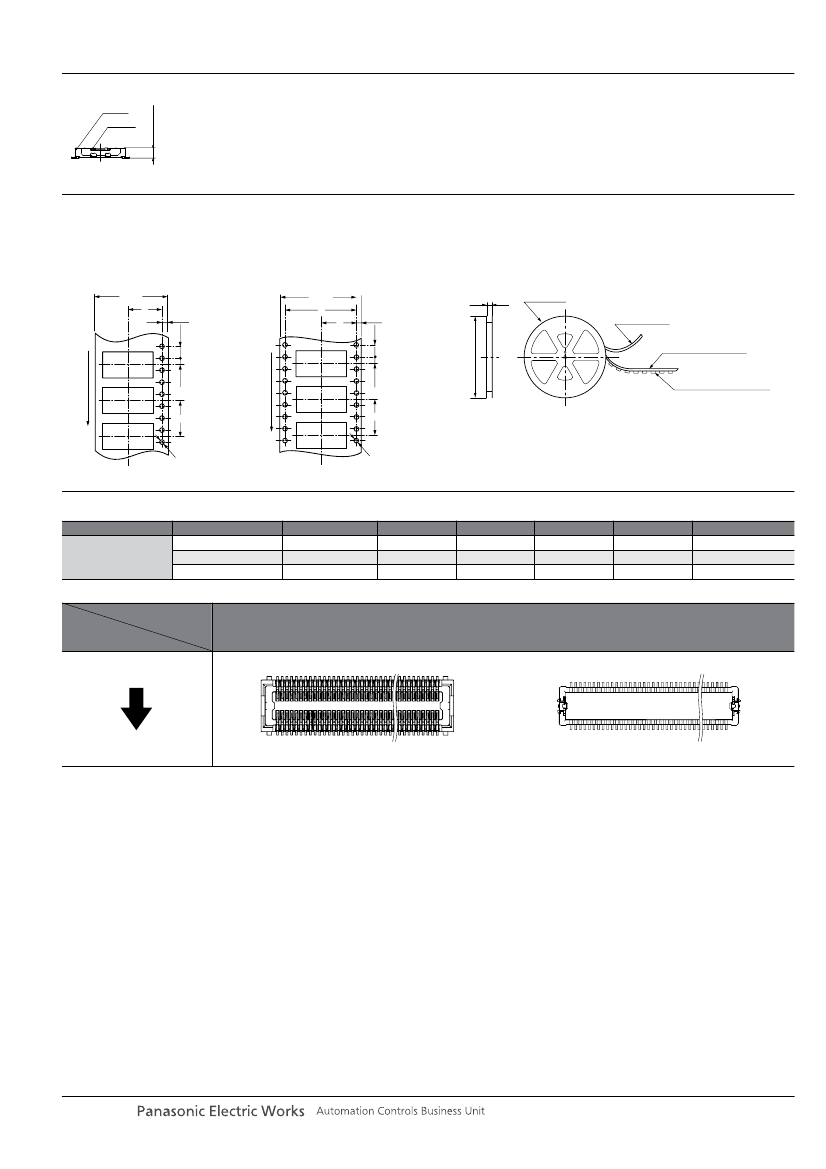

EMBOSSED TAPE DIMENSIONS
(unit: mm) (Common for respective contact type, socket and header)
Tape dimensions
(Conforming to JIS C 0806-1990. However,
some tapes have mounting hole pitches that do not comply with
the standard.)
Tape I
Tape II
A±0.3
C
1.75
A±0.3
B
C
1.75
380 dia.
Top cover tape
Plastic reel dimensions
(Conforming to EIAJ ET–7200B)
D±1
Taping reel
Pull out direction
Pull out direction
4
2
4
2
Embossed carrier tape
Embossed mounting-hole
8.0
8.0
1.5
+0.1
dia.
0
1.5
+0.1
dia.
0
TABLE OF DIMENSIONS
Mated height
Common for
socket and header:
0.9mm
Number of contacts
Max. 24
26 to 70
80
Type of taping
Tape I
Tape I
Tape II
A
16.0
24.0
32.0
B
—
—
28.4
C
7.5
11.5
14.2
D
17.4
25.4
33.4
Quantity per reel
3000
3000
3000
Connector orientation with respect to direction of progress of embossed tape
Type
Direction of
tape progress
Socket
Common for F4
Header
Note: There is no indication on this product regarding top-bottom or left-right orientation.
panasonic-electric-works.net/ac
AXK7L, 8L
For board-to-FPC
Connectors for
inspection usage
(0.4mm pitch)
F4
Series
APPLICATIONS
Ideal for module unit inspection and
equipment assembly inspection
FEATURES
1. 3,000 insertion and removals (when
as recommended)
2. Same external dimensions and foot
pattern as standard type.
3. Improved mating
Insertion and removal have become
easier due to a reduction in the mating
retention force required by the simple
locking structure and also in the amount
of force needed for insertion and
removal. (We cannot warrant anything
regarding mating retention.)
Compliance with RoHS Directive
TABLE OF PRODUCT TYPES
✩:
Available for sale
Product name
F4
for inspection
10
✩
12
✩
14
✩
16
✩
20
✩
22
✩
24
✩
26
✩
28
✩
Number of contacts
30
32
34
36
38
✩
✩
✩
✩
✩
40
✩
44
✩
48
✩
50
✩
54
✩
60
✩
66
✩
70
✩
80
✩
Notes: 1. Please inquire about numbers of contacts other than those given above.
2. Please inquire with us regarding delivery times.
3. Please keep the minimum unit for ordering no less than 50 pieces per lot.
4. Please inquire for further information.
PRODUCT TYPES
Socket
Specifications
Without positioning bosses
Part No.
AXK7LE∗∗26G
Header
Specifications
Without positioning bosses
Part No.
AXK8LE∗∗26BG
Notes: 1. When placing an order, substitute the “∗” (asterisk) in the above part number with the number of contacts for the required connector.
2. The above part numbers are for connectors without positioning bosses, which are standard. When ordering connectors with positioning bosses, please contact our
I used 74HC245 to make an S51 parallel download cable. Why can't the device be detected when I use the software written by Nie Zhongqiang to burn it... If anyone has used it before, I hope you can lea...
Today I will post a circuit of connecting a microcontroller to a 4x3 numeric keypad. The author is American electrician Robert Simhay. In many applications, it is necessary to connect a numeric keypad...
There are 8 digital tubes, each 4 in a group, using dynamic scanning to achieveMethod 1: Use two floating point variables as parameters void show (float digitron1, float digitron0);In the function, th...
[Power Amplifier Application Case] How to use a power amplifier to drive a capacitive load?The customer requires a frequency of two hz, a square wave waveform, a high voltage of 0-1000v, and a low vol...
Hardware designers have begun to adopt FPGA technology in high-performance DSP designs because it can provide 10-100 times faster computing than PC-based or microcontroller-based solutions. Previou...[Details]
The Mobile Industry Processor Interface (MIPI) Alliance is an organization responsible for promoting the standardization of software and hardware in mobile devices. It has released the D-PHY specif...[Details]
This paper designs a dot matrix LED text display screen that is easy to update, expandable, and low-cost. The way to reduce costs is
① Use the Bluetooth data transmission function of mobile ph...[Details]
1 Introduction
Ultrasonic waves have strong directivity, slow energy consumption, and can propagate over long distances in a medium, so they are used for distance measurement. Ultrasonic detec...[Details]
PV inverter manufacturer SMA has launched its first DC arc fault circuit interrupter (AFCI) PV inverter and has received UL certification.
The new SunnyBoy AFCI inverter models include 3000-US...[Details]
Spatial Division Multiplexing (SDM) MIMO processing can significantly improve spectrum efficiency and thus greatly increase the capacity of wireless communication systems. Spatial Division Multip...[Details]
LED light sources have many environmental advantages, but early products still have certain technical bottlenecks in heat dissipation and high brightness design that cannot be broken through....[Details]
1 Introduction
Ultrasound refers to elastic vibration with a frequency higher than the audible frequency limit (i.e., in the frequency band above 20 kHz). The propagation process of this vib...[Details]
Among the uses of electrical energy, lighting accounts for a considerable proportion. Compared with the earlier ordinary incandescent lamps, the fluorescent lamps and energy-saving lamps we commonl...[Details]
Movpower is a portable power bank. It can charge most mobile phones and digital products, such as digital cameras, PDAs, and mobile phones such as Apple, iPod, Blackberry, Motorola, Samsung, Nokia,...[Details]
Nowadays, more and more people have digital cameras. The convenience and speed of digital cameras have gradually replaced film cameras and become the main tool for people's daily photography. The n...[Details]
Synchronous buck designs are becoming increasingly difficult, and the selection of suitable ICs is becoming quite narrow. This Design Idea combines a current-mode PWM IC used in a flyback regulator...[Details]
In the test of the electronic ignition module, in order to simulate the real working conditions of the electronic ignition system, the electronic ignition module is often placed in an environment h...[Details]
In order to ensure that lighting-grade white light LEDs can not only be well applied but also achieve high utilization efficiency, first of all, it is necessary to meet certain application conditions,...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
