1618694 Overview

CONN RCPT HSG FMALE 4POS INLINE

1618694 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	not_compliant
Is Samacsys	N
Connector type	CIRCULAR CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1618694

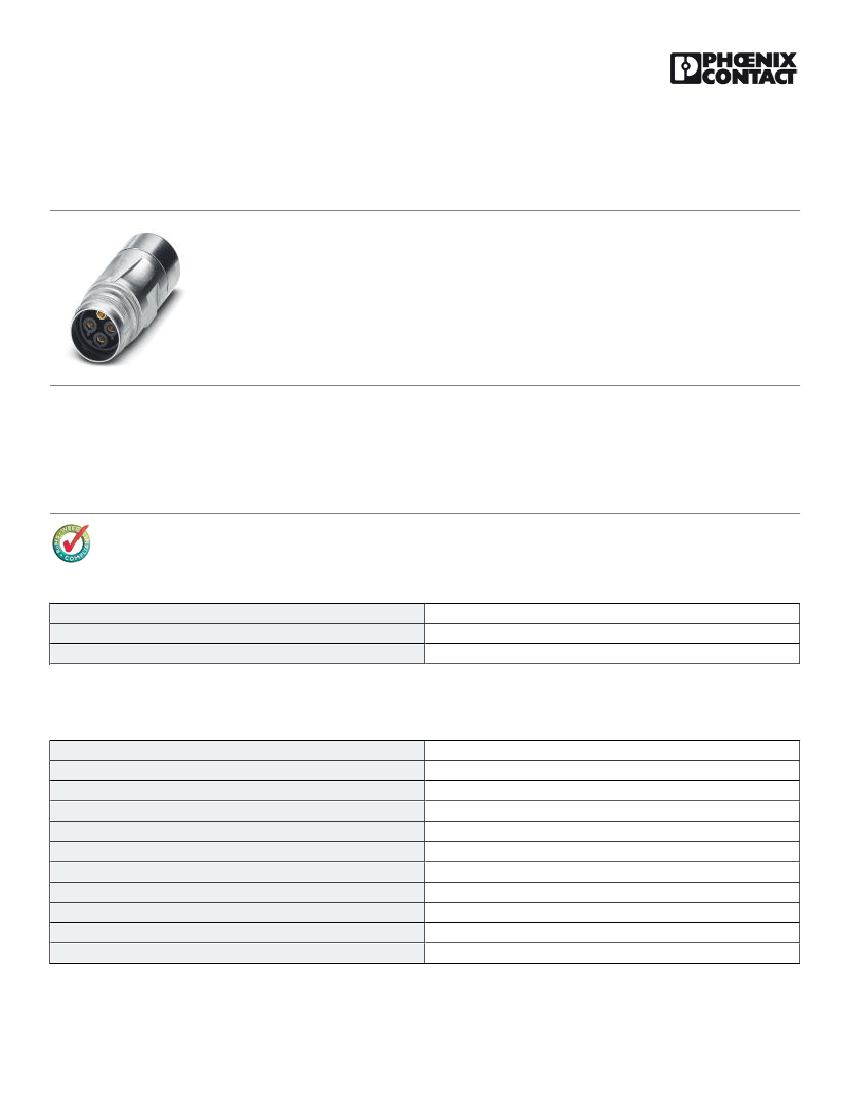

Coupler connector - ST-3ES1N8A9K03S - 1618694

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Coupler connector, straight, SPEEDCON locking, M17, Number of positions: 3+PE, Type of contact: Socket,

Crimp connection, shielded: yes, Cable diameter: 5 mm...9.2 mm

Product Features

■

Reduced size: ideal for compact devices

Consistent EMC protection for reliable connection solutions in the industrial environment

Crimping connection: vibration- and temperature-resistant assembly

Flexible use: reliably connect various cable diameters

Key Commercial Data

Packing unit

Custom tariff number

Country of origin

1 pc

85366990

Germany

Technical data

General

Note

Type of locking

Direction of rotation of contact chamber numbering

Coding

Contact connection method

Type of contacts

Number of positions

Contact diameter of power contacts

Nominal current per power contact at 25°C

Contact diameter of signal contacts

Conductor entry

Order information: Order crimp contacts Ø 2 mm separately

SPEEDCON locking

Standard

Crimp connection

Socket

2 mm

20 A

2 mm

5 mm ... 9.2 mm

05/17/2016 Page 1 / 4
