SMD Power Inductor
0410CDMCC/DS
Description
•
Metal compound molding type construction
•
Magnetically shielded
•
Low audible core noise
•
Suitable for large current
•
L×W×H:4.75×4.45×1.0mm Max.
•
Product weight: 0.098g (Ref.)
•
Moisture Sensitivity Level: 1
Environmental Data
•
Operating temperature range: -55℃~+125℃ (including coils self temperature rise)
•
Storage temperature range: -55℃~+125℃
Packaging
•
Carrier tape and reel packaging.
•
3000pcs per reel
Applications
•
Ideally used in notebook, ultrabook, tablet PC, LCD display, server application.
•
HDD, SSD modules application.
•
Low profile, high current power supplies.
•
Battery powered devices.
•
High current, POL converters.
•
DC/DC converter in distributed power systems.

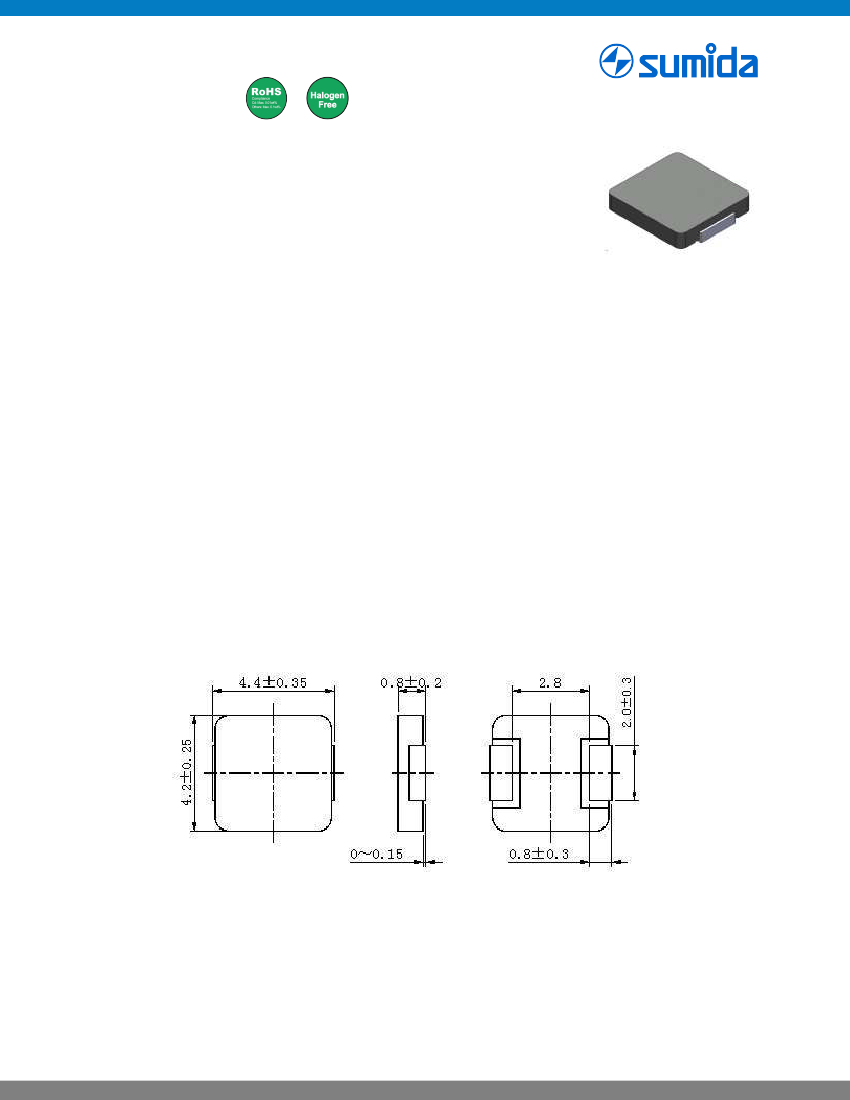

Dimension - [mm]
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 1 of 5
Ver. 2018-11-20
WWW.SUMIDA.COM
SMD Power Inductor
0410CDMCC/DS

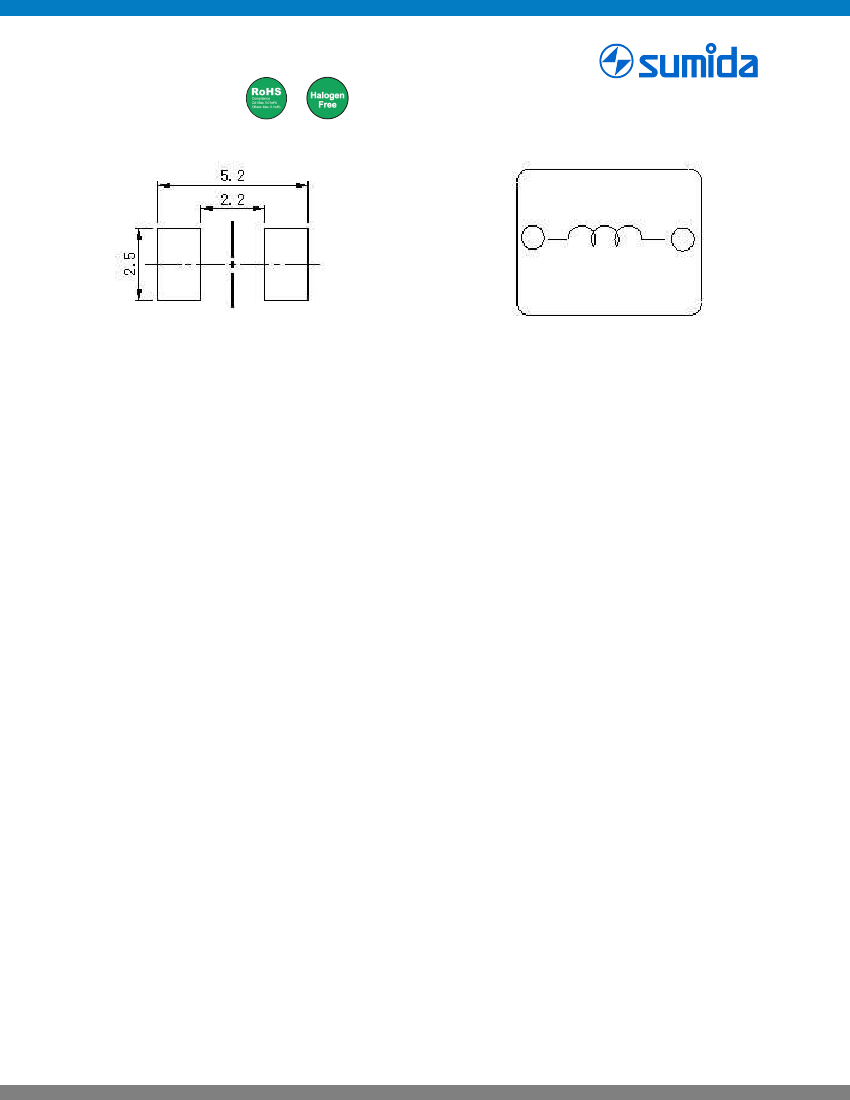

Recommended Land pattern - [mm]
Wire Connection
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 2 of 5
Ver. 2018-11-20
WWW.SUMIDA.COM
SMD Power Inductor
0410CDMCC/DS
Electrical Characteristics
Part Number
Inductance
[Within]
(μH)
※1
Temperature
D.C.R. at 20℃ Saturation Current
Rise Current
max(typ) (mΩ)
at 20℃(A)
※2
(A)
※3
0410CDMCCDS-R10MC
0410CDMCCDS-R15MC
0410CDMCCDS-R22MC
0410CDMCCDS-R33MC
0410CDMCCDS-R47MC
0410CDMCCDS-R56MC
0410CDMCCDS-R68MC
0410CDMCCDS-1R0MC
0410CDMCCDS-1R2MC
0410CDMCCDS-1R5MC
0410CDMCCDS-2R2MC
0410CDMCCDS-3R3MC
0410CDMCCDS-4R7MC
0410CDMCCDS-6R8MC
0410CDMCCDS-100MC
※1
Measuring frequency Inductance at 100kHz 1V.
0.10 ± 20%
0.15 ± 20%
0.22 ± 20%
0.33 ± 20%
0.47 ± 20%
0.56 ± 20%
0.68 ± 20%
1.00 ± 20%
1.20 ± 20%
1.50 ± 20%
2.20 ± 20%
3.30 ± 20%
4.70 ± 20%
6.80 ± 20%
10.00 ± 20%
5.80 (4.80)
6.30 (5.20)
11.70 (9.70)
23.00
(19.20)
30.50
(25.40)
34.50
(28.80)
38.90
(32.40)
56.00
(49.00)
66.00
(57.00)
82.00
(72.00)
107 (93.00)
203 (177)
243 (211)
257 (224)
318 (277)
14.40
13.10
9.20
8.10
6.40
6.20
5.10
4.10
3.80
3.40
3.10
2.60
1.90
1.70
1.65
14.00
13.00
9.00
6.00
5.00
4.50
4.00
3.70
3.50
3.20
2.90
1.80
1.75
1.70
1.60
※2
Saturation current: This indicates the actual value of D.C. current when the inductance becomes 30% lower than its initial
value.
※3
Temperature rise current: The actual value of D.C. current when the temperature of coil becomes
△T=40℃
(Ta＝25℃).(Test board condition: FR4, Copper=70μm, four-layer PWB t=1.6mm)

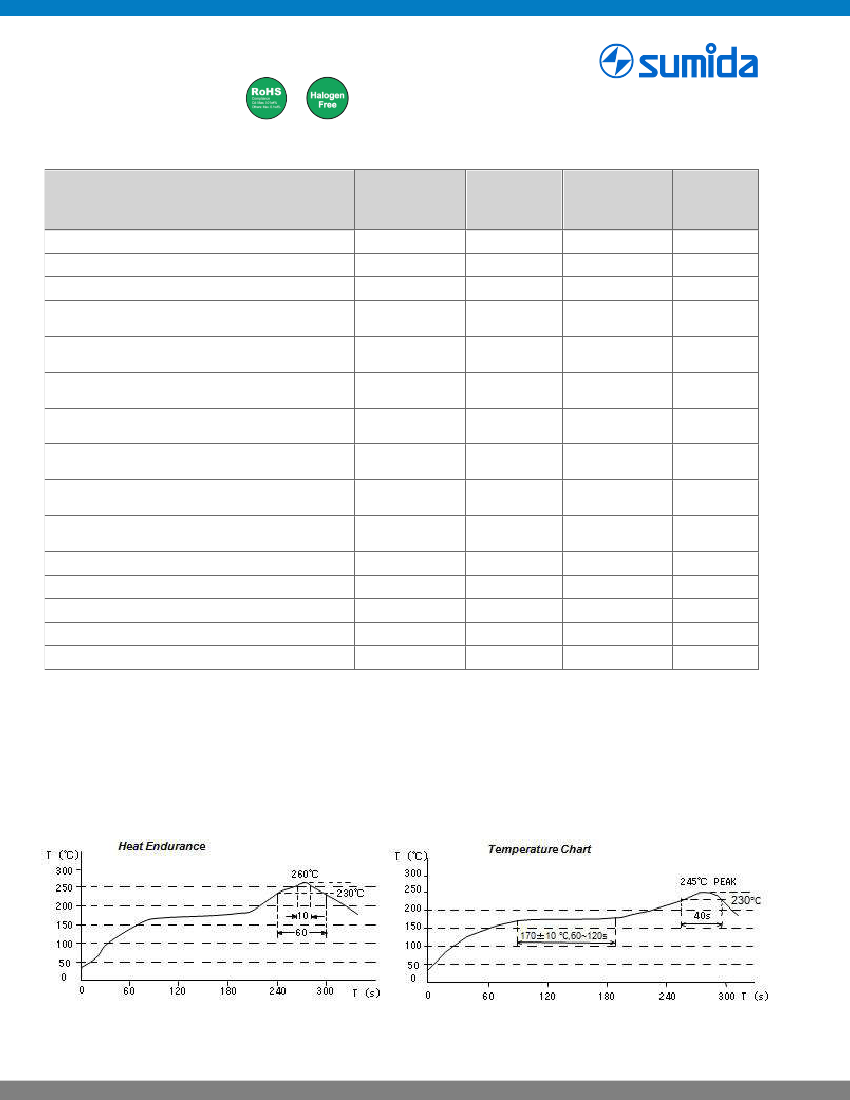

Solder Reflow Condition
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 3 of 5
Ver. 2018-11-20
WWW.SUMIDA.COM
SMD Power Inductor
0410CDMCC/DS

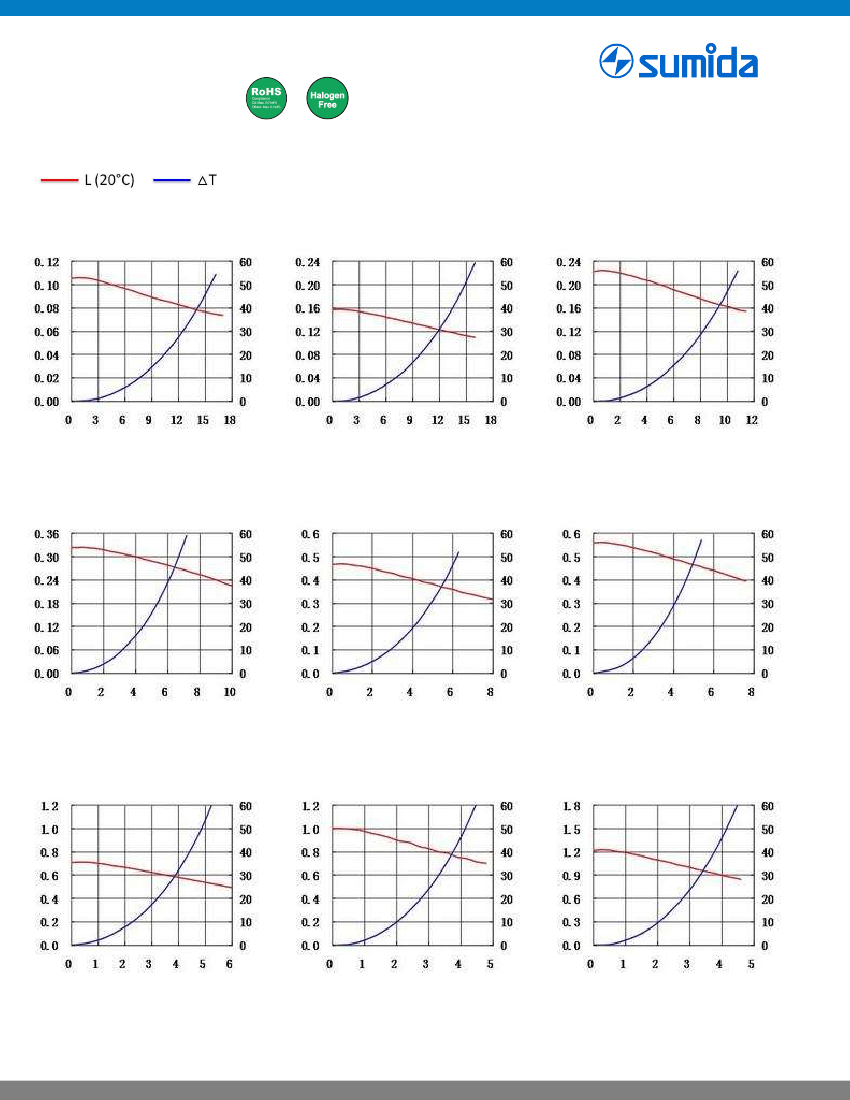

Saturation Current & Temperature Rise Graph
1. 0410CDMCCDS-R10MC
L (μH)
△T(℃)
2. 0410CDMCCDS-R15MC
L (μH)
△T(℃)
3. 0410CDMCCDS-R22MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
4. 0410CDMCCDS-R33MC
L (μH)
△T(℃)
5. 0410CDMCCDS-R47MC
L (μH)
△T(℃)
6. 0410CDMCCDS-R56MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
7. 0410CDMCCDS-R68MC
L (μH)
△T(℃)
8. 0410CDMCCDS-1R0MC
L (μH)
△T(℃)
9. 0410CDMCCDS-1R2MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 4 of 5
Ver. 2018-11-20
WWW.SUMIDA.COM
SMD Power Inductor
0410CDMCC/DS

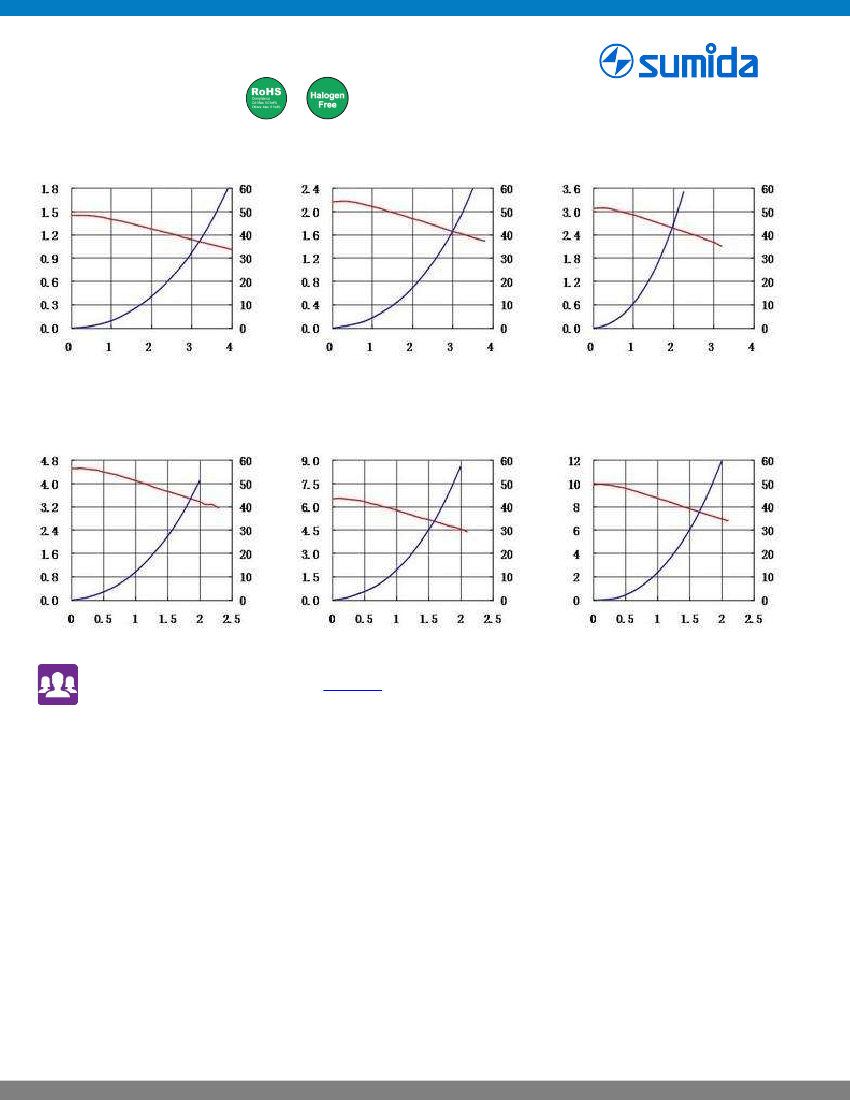

10. 0410CDMCCDS-1R5MC
L (μH)
△T(℃)
11. 0410CDMCCDS-2R2MC
L (μH)
△T(℃)
12. 0410CDMCCDS-3R3MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
13. 0410CDMCCDS-4R7MC
L (μH)
△T(℃)
14. 0410CDMCCDS-6R8MC
L (μH)
△T(℃)
15. 0410CDMCCDS-100MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
For sales office information, please
click here
to visit our website.
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 5 of 5
Ver. 2018-11-20
WWW.SUMIDA.COM
