Order Code
701 520 500
701 521 000
701 521 500
701 522 000
701 522 500
701 523 000
701 523 500
701 524 000
701 524 500
701 525 000
701 525 500
701 526 000
701 526 500
L (mm)
3.2 ±0.2
4.0±0.2
5.0±0.3
6.3±0.3
7.0±0.3
8.0±0.3
9.5±0.3
10.5±0.3
12.7±0.3
14.0±0.3
15.9±0.3
19.0±0.3
22.0±0.4
3,6
Operating Temp.: -30°C up to +85°C
Flammability according to: UL94-V2
Drilling in Panel: 4.0mm
Panel Thickness: 1.2-1.7mm
O
5,0
3,6
L
1,7
Scale - 3:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
com. +49 79 42 945 - 0
www.we-online.de
eiSos@we-online.de
CREATED
CHECKED
GENERAL TOLERANCE
DaF
DESCRIPTION
SKl
DIN ISO 2768-1m
PROJECTION
METHOD
MATERIAL
SIZE
A4
Nylon 66,
natur
TECHNICAL REFERENCE
AsSNSN

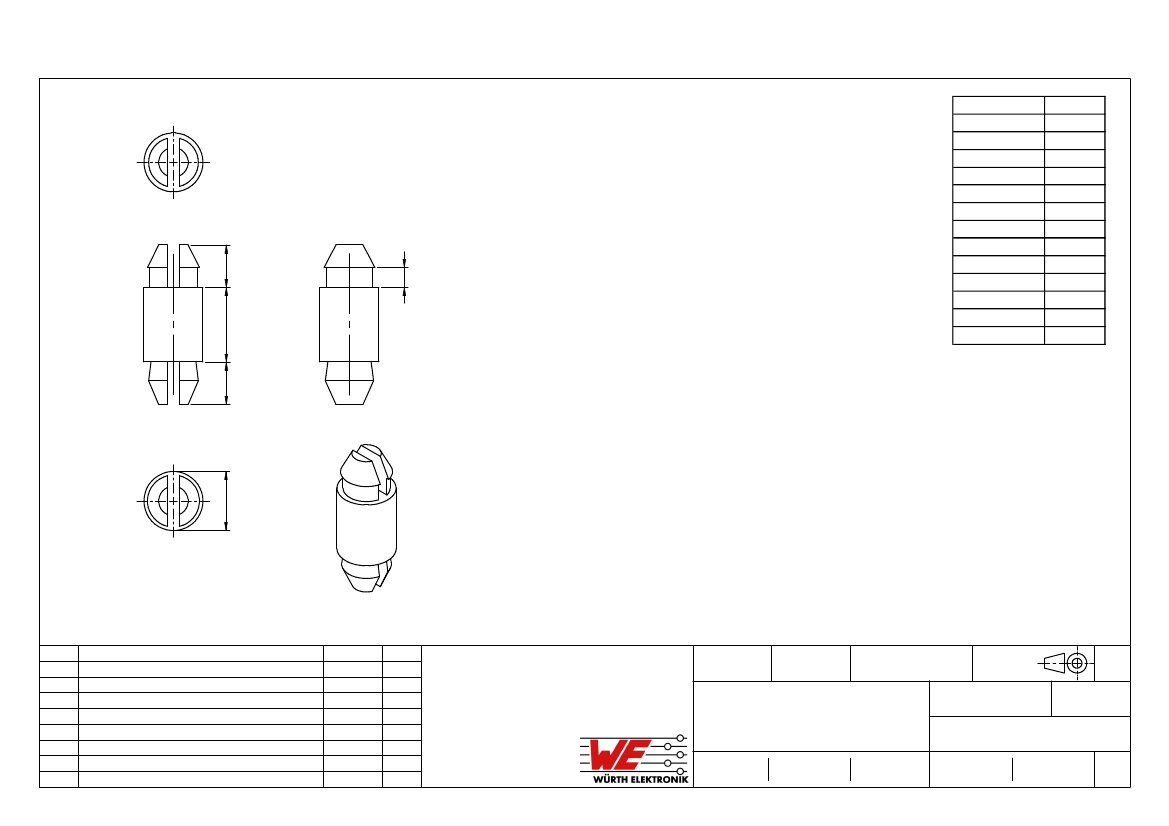

Snap-on keyslot spacer
arresting on both sides
SIZE
WEIGHT
STATUS
_________
ORDER CODE
70152xx00
DATE
BUSINESS UNIT
PAGE
REV.
FILE
DATE
BY
xxx xxx xxx
Released
2016-11-10
eiCan
1 /1
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
